| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_006T01_9000001608_11057cztM0_level2.evt | modeM0/AS1C03_006T01_9000001608_11057cztM0_level2_quad_clean.evt |
| Size (bytes) | 591,672,960 | 53,884,800 |
| Size | 564.3 MB | 51.4 MB |
| Events in quadrant A | 7,655,624 | 287,027 |
| Events in quadrant B | 3,766,323 | 319,249 |
| Events in quadrant C | 2,826,107 | 317,757 |
| Events in quadrant D | 3,278,811 | 301,978 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26743 | 2 |
| B | 0 | 14832 | 1 |
| C | 0 | 11930 | 1 |
| D | 0 | 13209 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5794 | 1319 | 22.764929% |
| B | 5794 | 195 | 3.365551% |
| C | 5794 | 31 | 0.535036% |
| D | 5794 | 72 | 1.242665% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7103 | 5793 | 971 | 971 | 13.67% | 16.76% |  |
| B | 7104 | 5795 | 92 | 92 | 1.30% | 1.59% |  |
| C | 7104 | 5795 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7104 | 5794 | 35 | 35 | 0.49% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 3692427 | 26870.38 | 674 | 661 | 137.4 |
| A | 15 | 174 | 1357238 | 9873.8 | 674 | 661 | 137.4 |
| A | 11 | 29 | 9397 | 63.58 | 674 | 661 | 137.4 |
| B | 4 | 239 | 811686 | 5851.34 | 740 | 725 | 138.6 |
| B | 0 | 214 | 22686 | 158.46 | 740 | 725 | 138.6 |
| B | 15 | 204 | 19616 | 136.3 | 740 | 725 | 138.6 |
| C | 13 | 61 | 5480 | 28.63 | 723 | 729 | 166.0 |
| C | 14 | 67 | 4252 | 21.23 | 723 | 729 | 166.0 |
| C | 14 | 234 | 3390 | 16.03 | 723 | 729 | 166.0 |
| D | 8 | 195 | 250192 | 1474.71 | 709 | 691 | 169.2 |
| D | 11 | 129 | 142546 | 838.46 | 709 | 691 | 169.2 |
| D | 13 | 152 | 57628 | 336.53 | 709 | 691 | 169.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

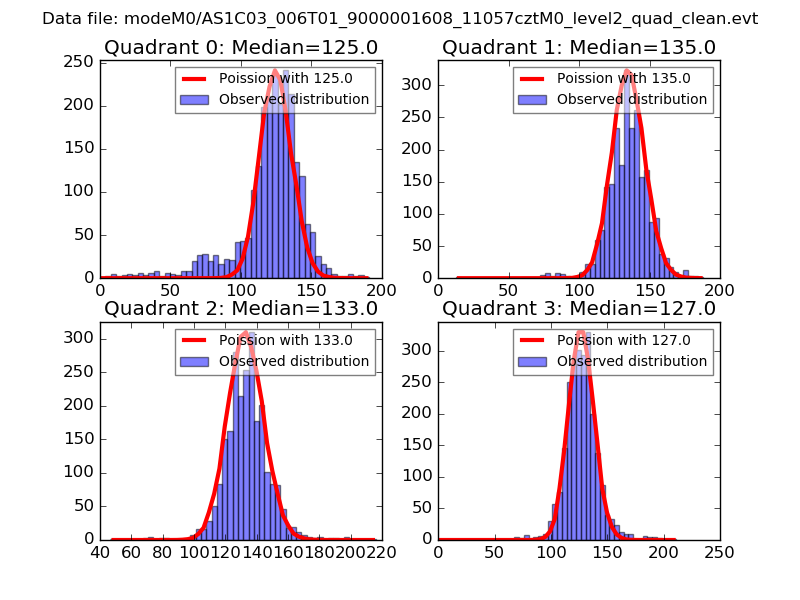

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

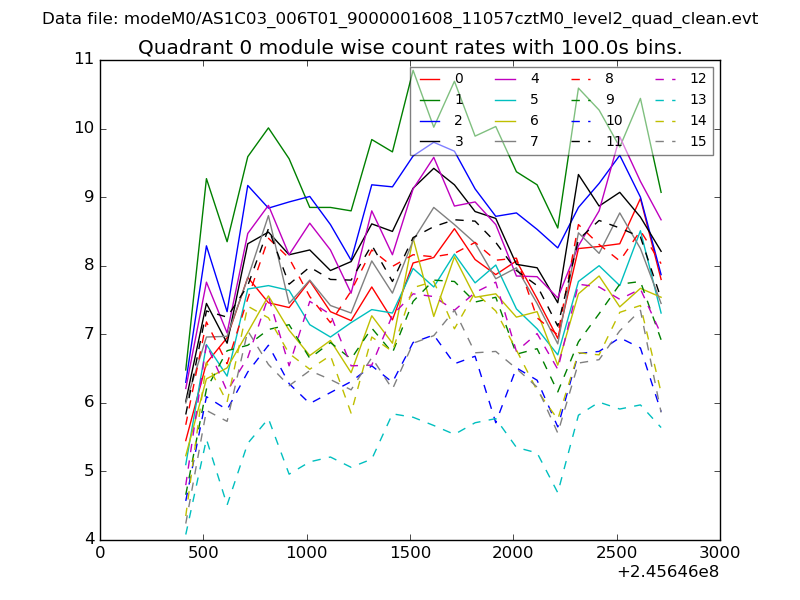

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

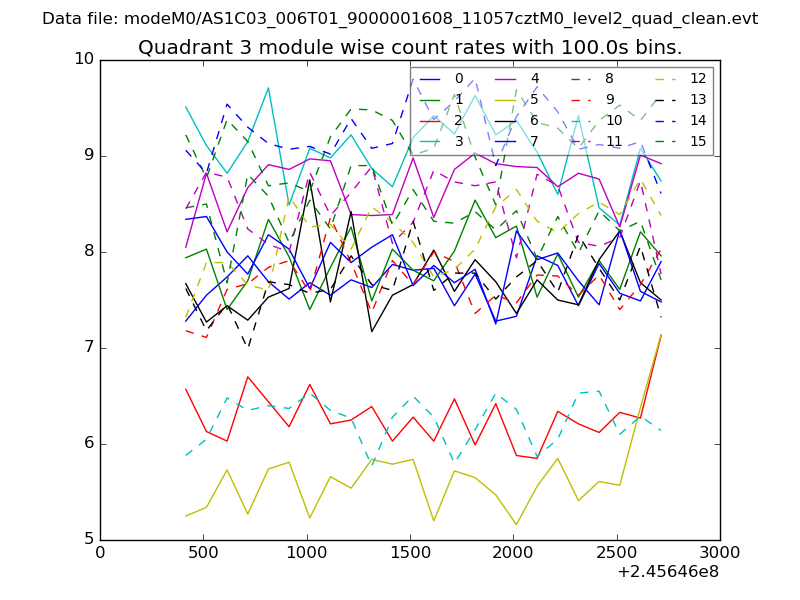

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

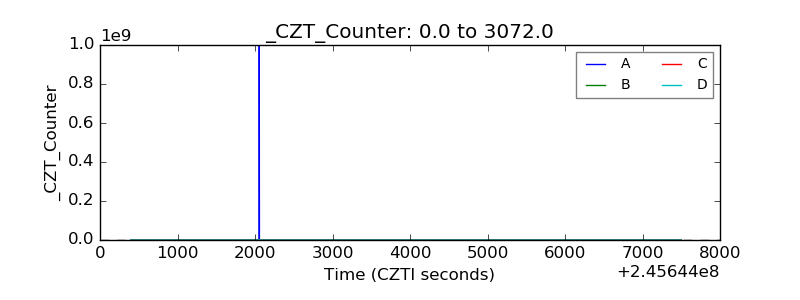

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

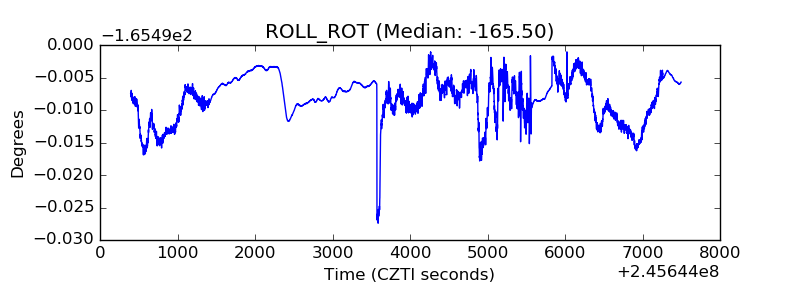

| _ROLL_ROT |  |

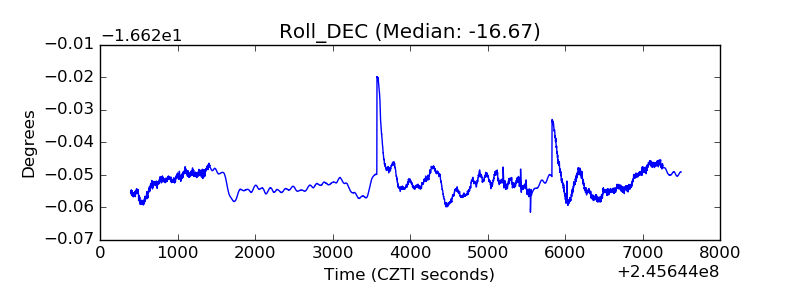

| _Roll_DEC |  |
| _Roll_RA |  |

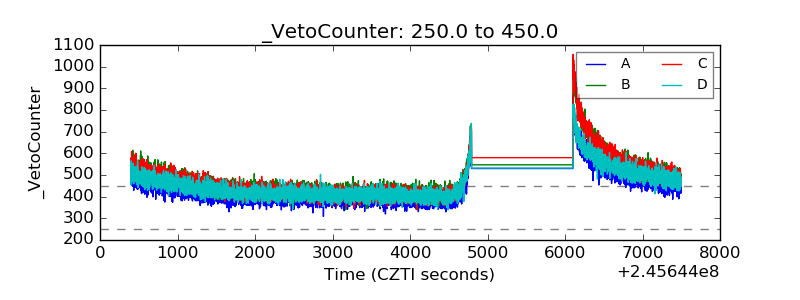

| Veto Counter |  |
