| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_006T01_9000001608_11063cztM0_level2.evt | modeM0/AS1C03_006T01_9000001608_11063cztM0_level2_quad_clean.evt |
| Size (bytes) | 701,824,320 | 91,175,040 |
| Size | 669.3 MB | 87.0 MB |
| Events in quadrant A | 6,268,764 | 526,426 |
| Events in quadrant B | 5,740,251 | 569,189 |
| Events in quadrant C | 3,729,808 | 575,403 |
| Events in quadrant D | 4,983,703 | 543,111 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23932 | 1 |
| B | 0 | 22313 | 1 |
| C | 0 | 16517 | 1 |
| D | 0 | 20004 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7857 | 1158 | 14.738450% |
| B | 7857 | 823 | 10.474736% |
| C | 7857 | 136 | 1.730941% |
| D | 7857 | 297 | 3.780069% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

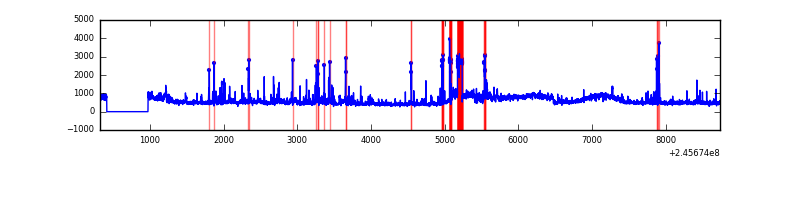

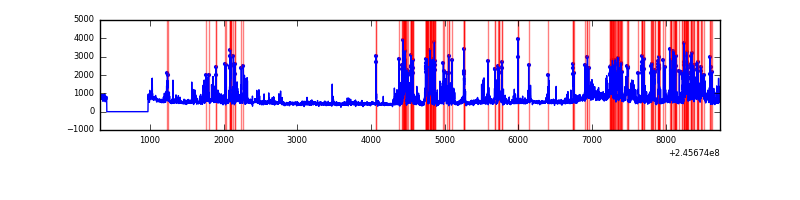

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8417 | 7858 | 688 | 688 | 8.17% | 8.76% |  |
| B | 8417 | 7857 | 248 | 248 | 2.95% | 3.16% |  |
| C | 8417 | 7858 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8417 | 7858 | 111 | 111 | 1.32% | 1.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1319713 | 6737.72 | 947 | 923 | 195.7 |
| A | 13 | 210 | 905904 | 4623.56 | 947 | 923 | 195.7 |
| A | 15 | 174 | 379898 | 1936.19 | 947 | 923 | 195.7 |
| B | 4 | 239 | 1739448 | 9310.78 | 963 | 938 | 186.7 |
| B | 3 | 189 | 62426 | 329.3 | 963 | 938 | 186.7 |
| B | 15 | 204 | 56262 | 296.29 | 963 | 938 | 186.7 |
| C | 13 | 61 | 7098 | 27.5 | 955 | 957 | 223.3 |
| C | 14 | 67 | 4548 | 16.08 | 955 | 957 | 223.3 |
| C | 14 | 234 | 3122 | 9.69 | 955 | 957 | 223.3 |
| D | 13 | 152 | 915081 | 4002.28 | 945 | 915 | 228.4 |
| D | 1 | 52 | 165918 | 722.39 | 945 | 915 | 228.4 |
| D | 11 | 129 | 77702 | 336.18 | 945 | 915 | 228.4 |

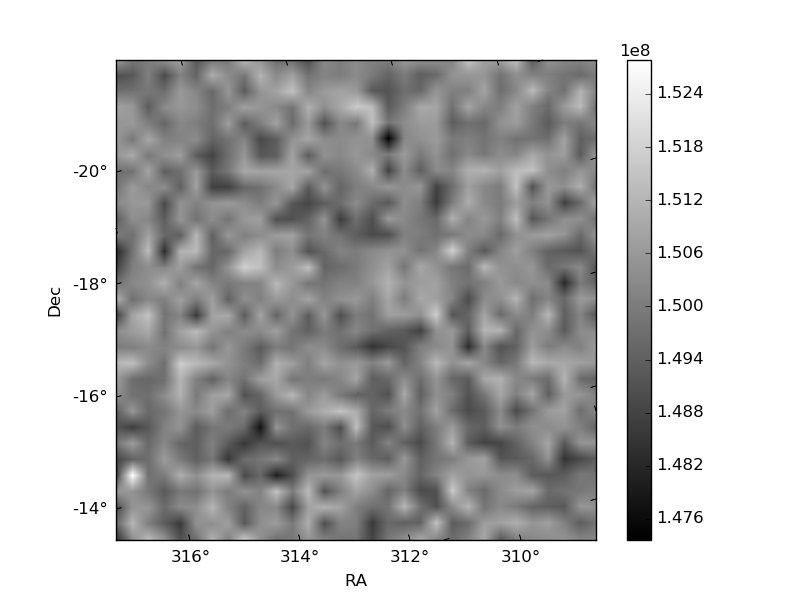

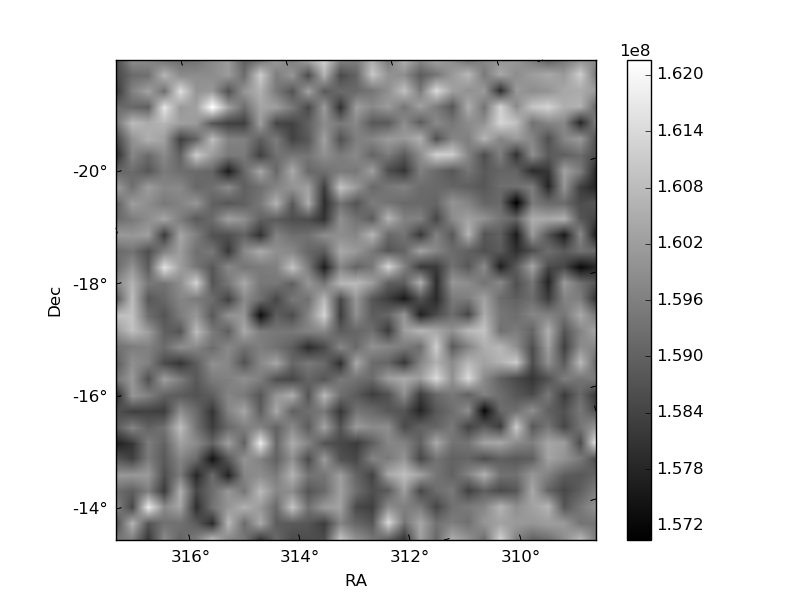

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

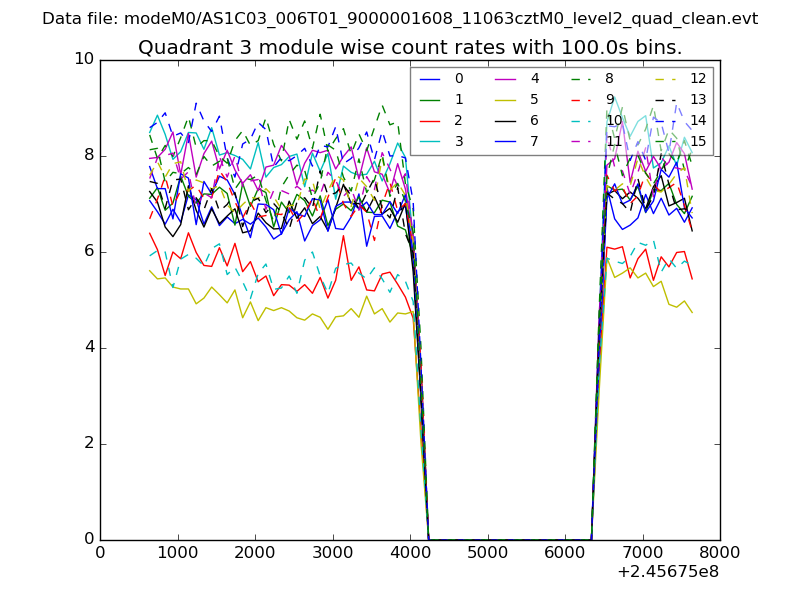

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

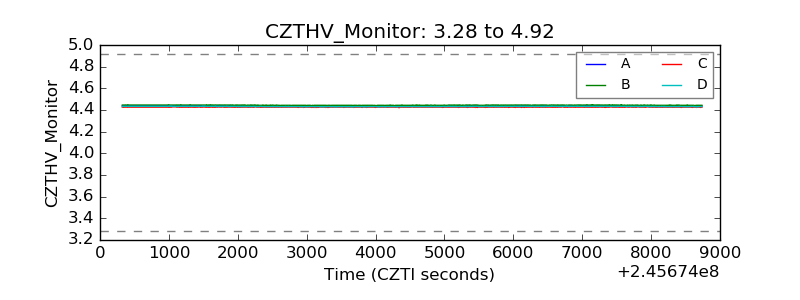

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

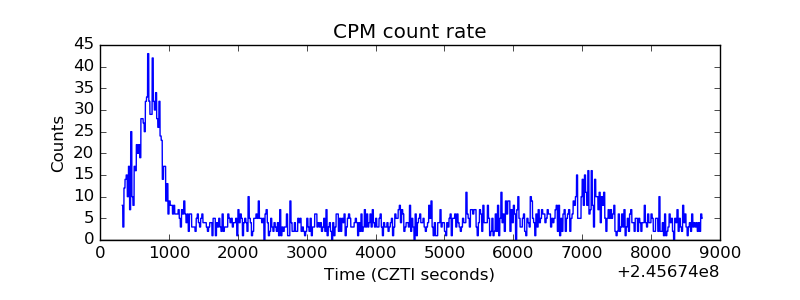

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

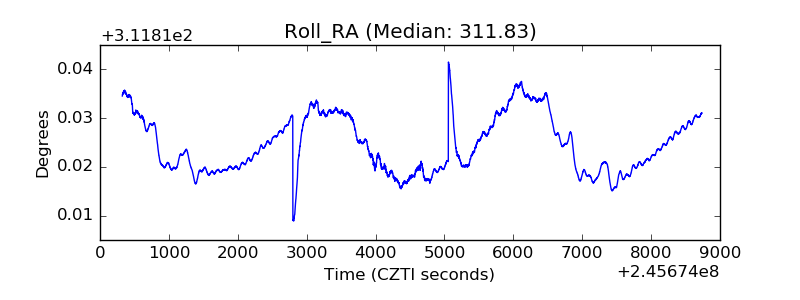

| _Roll_RA |  |
| Veto Counter |  |
