| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_053T01_9000001610_11063cztM0_level2.evt | modeM0/AS1A04_053T01_9000001610_11063cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,600,000 | 67,334,400 |
| Size | 415.4 MB | 64.2 MB |
| Events in quadrant A | 2,683,605 | 417,024 |
| Events in quadrant B | 4,025,937 | 405,955 |
| Events in quadrant C | 2,625,416 | 415,109 |
| Events in quadrant D | 3,467,342 | 399,600 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12009 | 1 |
| B | 0 | 15704 | 0 |
| C | 0 | 11954 | 0 |
| D | 0 | 14333 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5745 | 110 | 1.914708% |
| B | 5745 | 415 | 7.223673% |
| C | 5745 | 39 | 0.678851% |
| D | 5745 | 136 | 2.367276% |

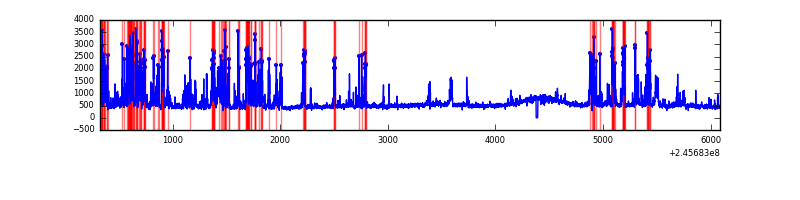

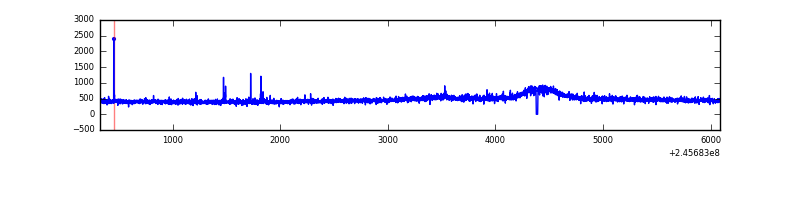

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5760 | 5746 | 1 | 1 | 0.02% | 0.02% |  |
| B | 5760 | 5746 | 204 | 204 | 3.54% | 3.55% |  |
| C | 5760 | 5746 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5760 | 5746 | 63 | 63 | 1.09% | 1.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 12690 | 84.42 | 689 | 670 | 142.4 |
| A | 13 | 248 | 11179 | 73.8 | 689 | 670 | 142.4 |
| A | 0 | 226 | 6191 | 38.77 | 689 | 670 | 142.4 |
| B | 4 | 239 | 1174210 | 8890.4 | 682 | 665 | 132.0 |
| B | 3 | 189 | 65363 | 490.13 | 682 | 665 | 132.0 |
| B | 15 | 204 | 55553 | 415.81 | 682 | 665 | 132.0 |
| C | 13 | 61 | 4976 | 27.25 | 671 | 674 | 157.8 |
| C | 8 | 128 | 3686 | 19.08 | 671 | 674 | 157.8 |
| C | 1 | 3 | 3337 | 16.87 | 671 | 674 | 157.8 |
| D | 11 | 129 | 434288 | 2704.92 | 661 | 639 | 160.3 |
| D | 1 | 52 | 258029 | 1605.49 | 661 | 639 | 160.3 |
| D | 10 | 253 | 71123 | 439.65 | 661 | 639 | 160.3 |

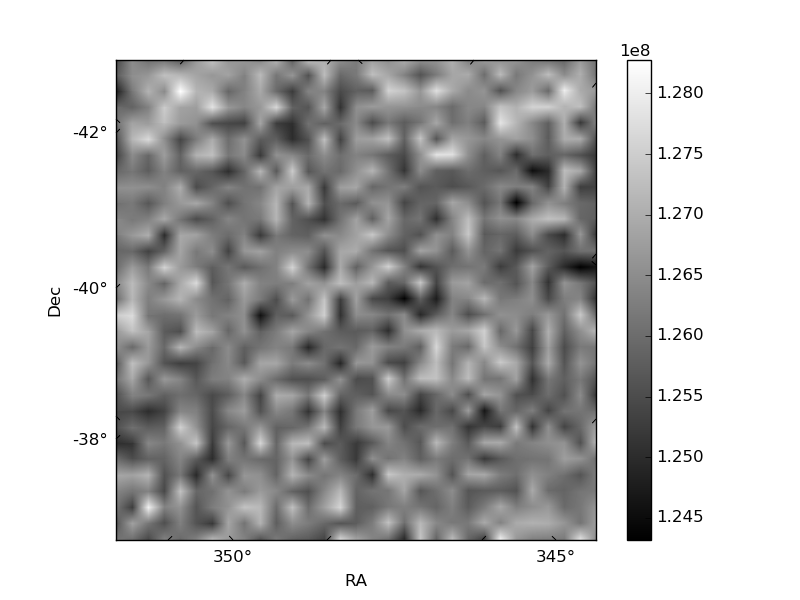

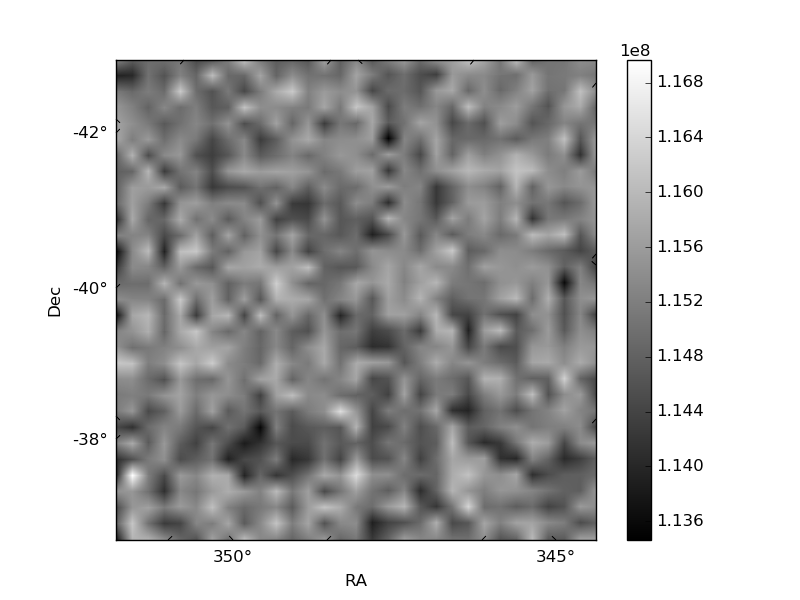

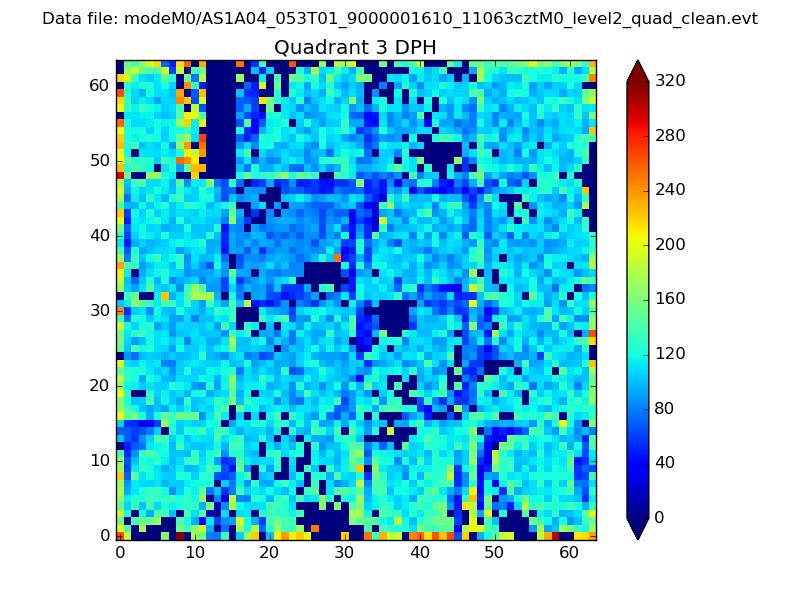

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

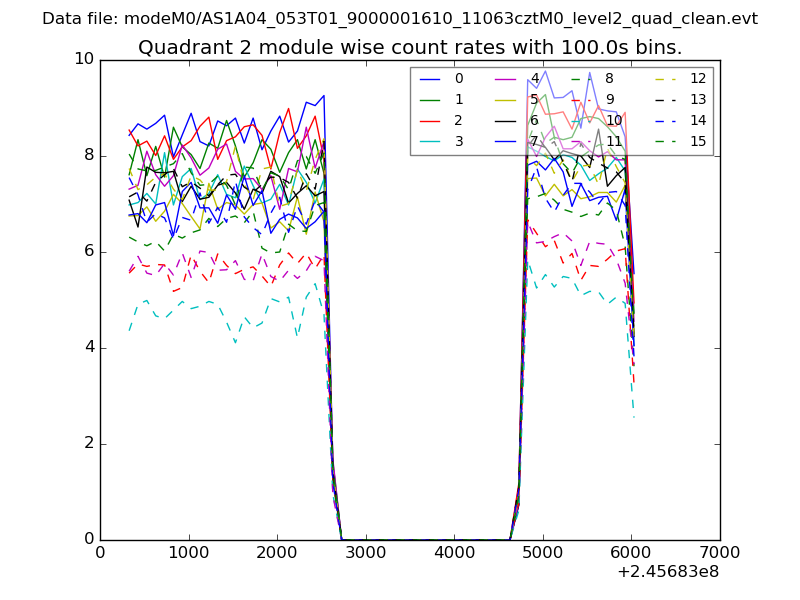

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

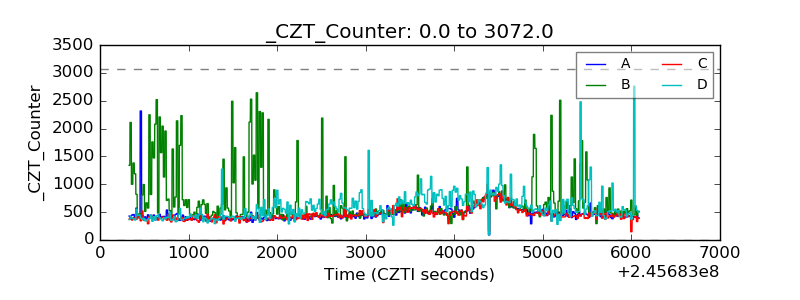

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

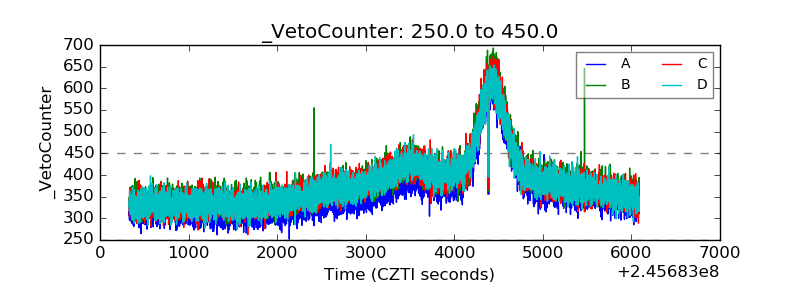

| Veto Counter |  |
