| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11084cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11084cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,254,400 | 76,849,920 |
| Size | 526.7 MB | 73.3 MB |
| Events in quadrant A | 3,619,899 | 489,812 |
| Events in quadrant B | 3,667,775 | 497,558 |
| Events in quadrant C | 2,716,623 | 493,644 |
| Events in quadrant D | 6,311,060 | 423,320 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14772 | 2 |
| B | 0 | 14859 | 1 |
| C | 0 | 12258 | 1 |
| D | 0 | 22965 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6052 | 32 | 0.528751% |
| B | 6052 | 201 | 3.321216% |
| C | 6052 | 5 | 0.082617% |
| D | 6052 | 729 | 12.045605% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

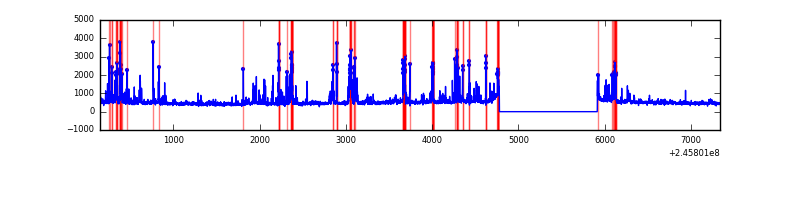

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7187 | 6053 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7187 | 6053 | 114 | 114 | 1.59% | 1.88% |  |
| C | 7187 | 6053 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7187 | 6053 | 617 | 617 | 8.58% | 10.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 862978 | 5960.35 | 706 | 690 | 144.7 |
| A | 15 | 239 | 18333 | 121.95 | 706 | 690 | 144.7 |
| A | 11 | 29 | 10079 | 64.9 | 706 | 690 | 144.7 |
| B | 4 | 239 | 768159 | 5697.59 | 707 | 691 | 134.7 |
| B | 0 | 214 | 61365 | 450.44 | 707 | 691 | 134.7 |
| B | 15 | 204 | 23100 | 166.36 | 707 | 691 | 134.7 |
| C | 9 | 204 | 19447 | 116.89 | 690 | 697 | 160.4 |
| C | 13 | 61 | 5110 | 27.51 | 690 | 697 | 160.4 |
| C | 12 | 4 | 3034 | 14.57 | 690 | 697 | 160.4 |
| D | 1 | 52 | 2167829 | 13962.4 | 642 | 626 | 155.2 |
| D | 10 | 253 | 1346846 | 8673.15 | 642 | 626 | 155.2 |
| D | 8 | 195 | 136582 | 875.91 | 642 | 626 | 155.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

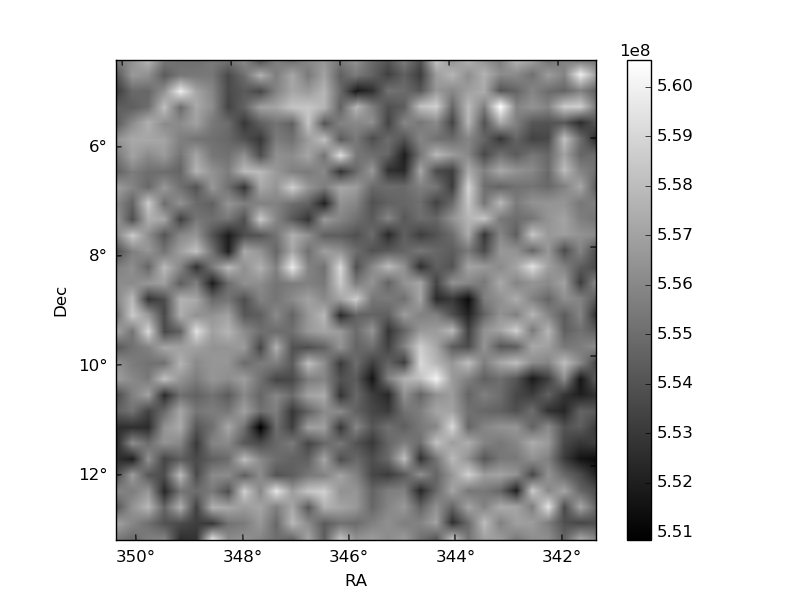

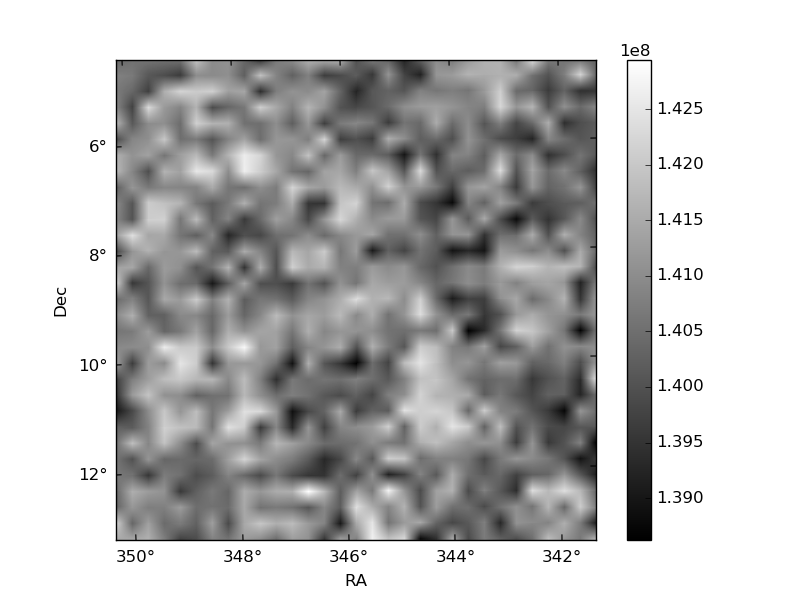

| Plot type | Count rate plots | Images |
|---|---|---|

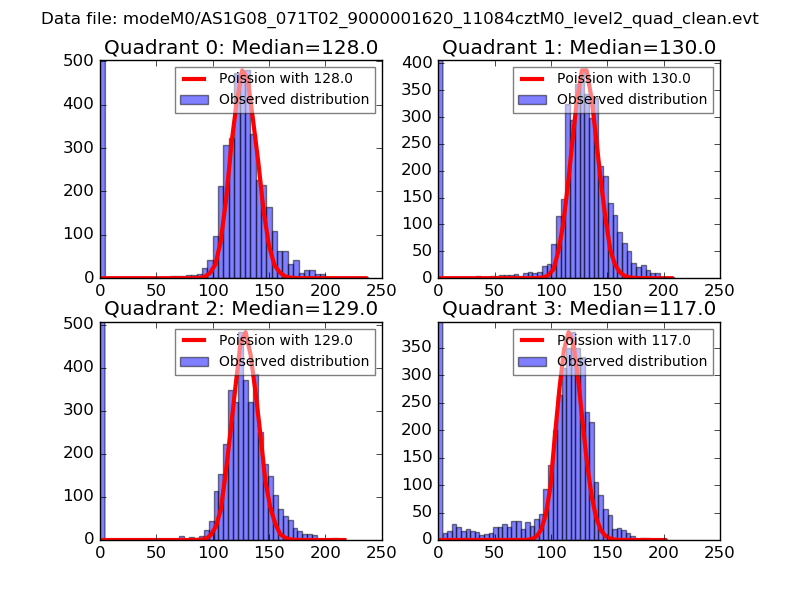

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

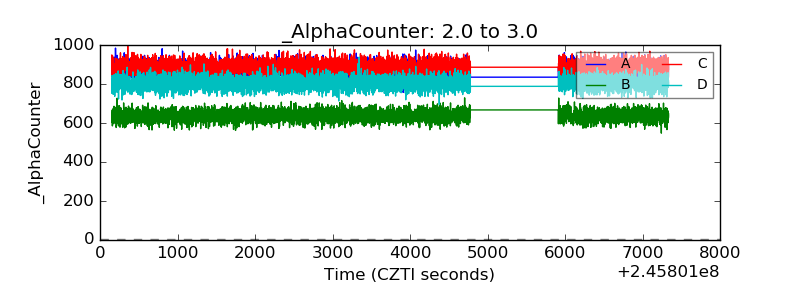

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

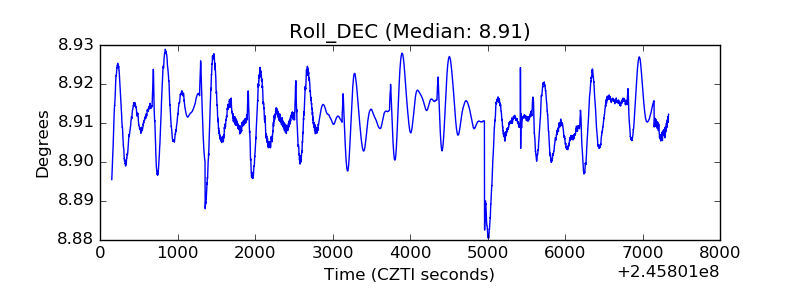

| _Roll_DEC |  |
| _Roll_RA |  |

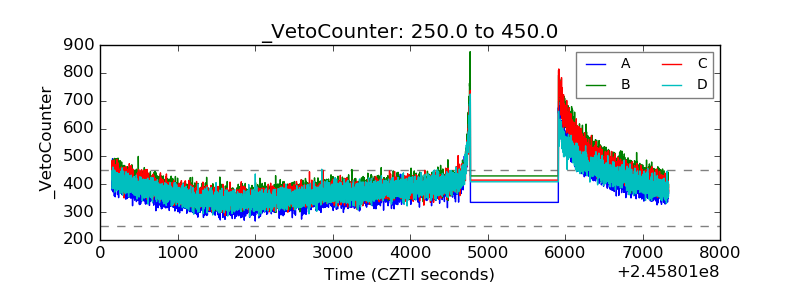

| Veto Counter |  |
