| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11085cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11085cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,249,280 | 81,993,600 |
| Size | 560.0 MB | 78.2 MB |
| Events in quadrant A | 3,362,318 | 525,406 |
| Events in quadrant B | 3,885,180 | 537,165 |
| Events in quadrant C | 2,943,924 | 524,815 |
| Events in quadrant D | 7,167,550 | 456,241 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13984 | 3 |
| B | 0 | 15606 | 2 |
| C | 0 | 12831 | 2 |
| D | 0 | 25616 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6290 | 30 | 0.476948% |
| B | 6290 | 189 | 3.004769% |
| C | 6290 | 7 | 0.111288% |
| D | 6290 | 901 | 14.324324% |

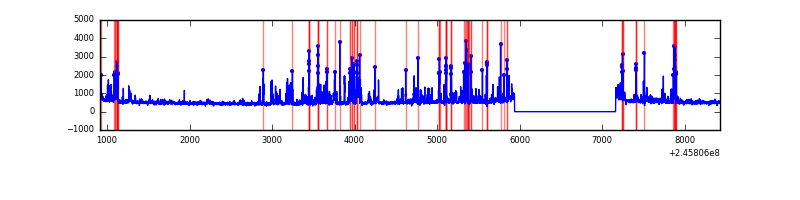

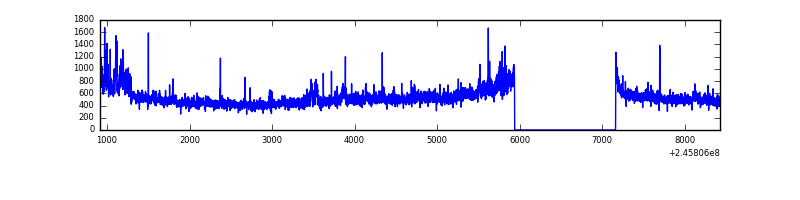

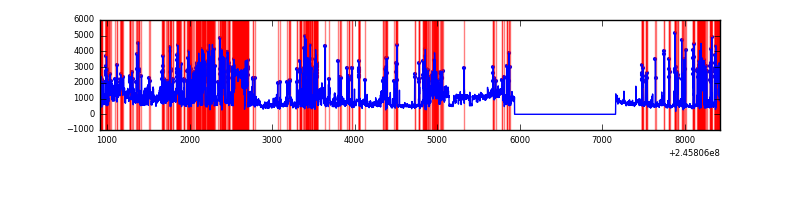

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7515 | 6291 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7515 | 6291 | 90 | 90 | 1.20% | 1.43% |  |
| C | 7515 | 6291 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7515 | 6291 | 838 | 838 | 11.15% | 13.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 367622 | 2367.71 | 768 | 752 | 154.9 |
| A | 15 | 239 | 17148 | 105.82 | 768 | 752 | 154.9 |
| A | 11 | 29 | 10058 | 60.06 | 768 | 752 | 154.9 |
| B | 4 | 239 | 625520 | 4286.33 | 773 | 756 | 145.8 |
| B | 10 | 16 | 126431 | 862.22 | 773 | 756 | 145.8 |
| B | 0 | 214 | 44436 | 299.68 | 773 | 756 | 145.8 |
| C | 9 | 204 | 24123 | 134.79 | 747 | 754 | 173.4 |
| C | 13 | 61 | 5520 | 27.49 | 747 | 754 | 173.4 |
| C | 5 | 207 | 2657 | 10.98 | 747 | 754 | 173.4 |
| D | 1 | 52 | 2582233 | 15704.1 | 682 | 662 | 164.4 |
| D | 10 | 253 | 1352698 | 8224.65 | 682 | 662 | 164.4 |
| D | 2 | 33 | 345092 | 2095.22 | 682 | 662 | 164.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

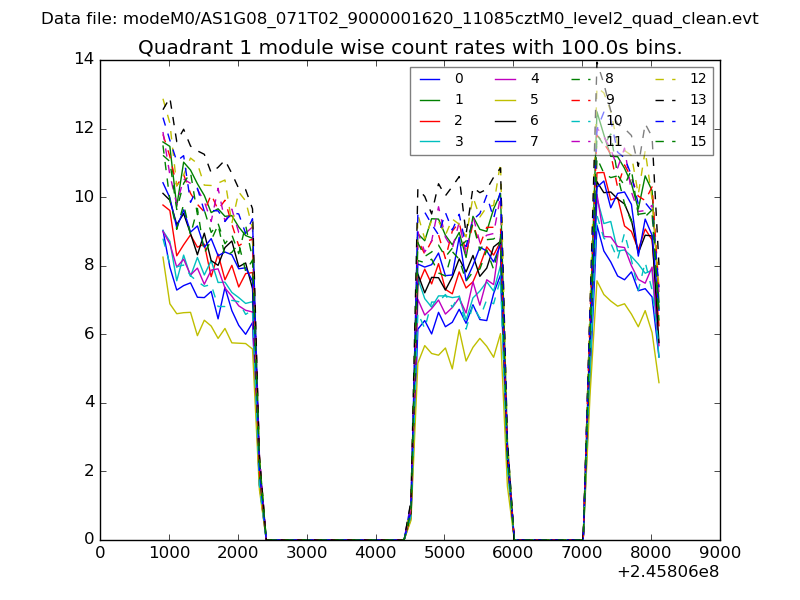

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

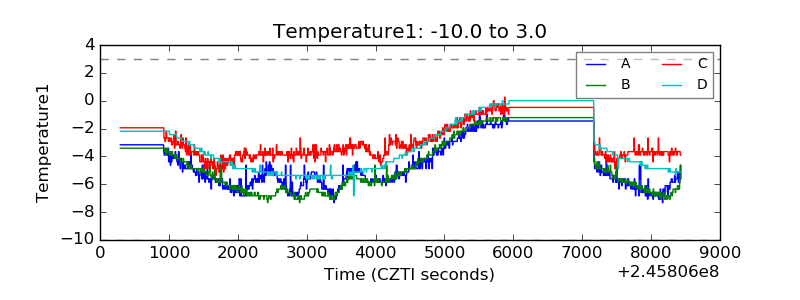

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

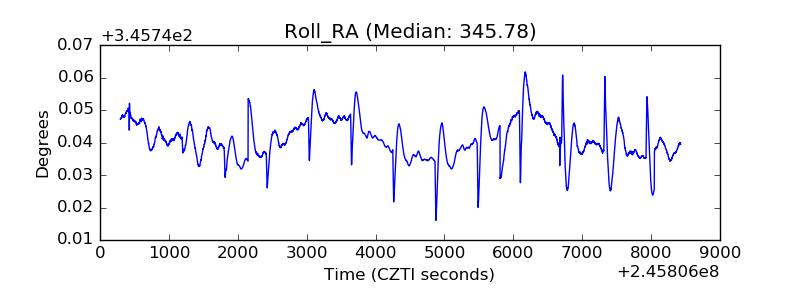

| _Roll_DEC |  |
| _Roll_RA |  |

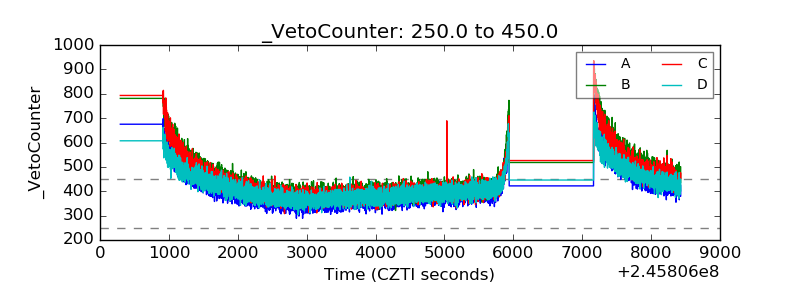

| Veto Counter |  |
