| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11088cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11088cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,474,240 | 62,254,080 |
| Size | 529.7 MB | 59.4 MB |
| Events in quadrant A | 3,151,912 | 365,348 |
| Events in quadrant B | 4,623,379 | 371,419 |
| Events in quadrant C | 3,062,651 | 365,431 |
| Events in quadrant D | 5,552,036 | 337,318 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13237 | 3 |
| B | 0 | 17782 | 2 |
| C | 0 | 13149 | 2 |
| D | 0 | 20661 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6379 | 29 | 0.454617% |
| B | 6379 | 337 | 5.282960% |
| C | 6379 | 21 | 0.329205% |
| D | 6379 | 806 | 12.635209% |

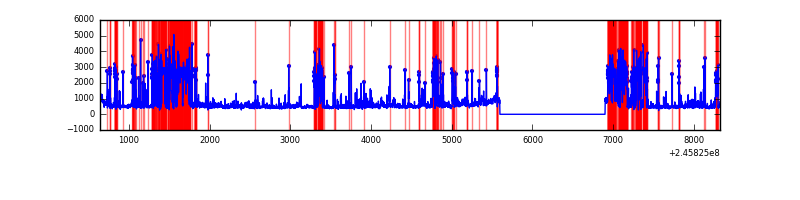

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7684 | 6380 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7684 | 6380 | 165 | 165 | 2.15% | 2.59% |  |
| C | 7684 | 6380 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7684 | 6380 | 740 | 740 | 9.63% | 11.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 8262 | 45.38 | 813 | 799 | 164.4 |
| A | 0 | 226 | 7567 | 41.16 | 813 | 799 | 164.4 |
| A | 11 | 29 | 7001 | 37.72 | 813 | 799 | 164.4 |
| B | 4 | 239 | 1311909 | 8590.79 | 810 | 792 | 152.6 |
| B | 10 | 16 | 49509 | 319.21 | 810 | 792 | 152.6 |
| B | 15 | 204 | 49067 | 316.31 | 810 | 792 | 152.6 |
| C | 13 | 61 | 5864 | 27.9 | 784 | 791 | 181.9 |
| C | 9 | 54 | 3512 | 14.96 | 784 | 791 | 181.9 |
| C | 12 | 4 | 2356 | 8.61 | 784 | 791 | 181.9 |
| D | 10 | 253 | 1880890 | 10813.87 | 720 | 701 | 173.9 |
| D | 1 | 52 | 313176 | 1797.19 | 720 | 701 | 173.9 |
| D | 10 | 157 | 295739 | 1696.91 | 720 | 701 | 173.9 |

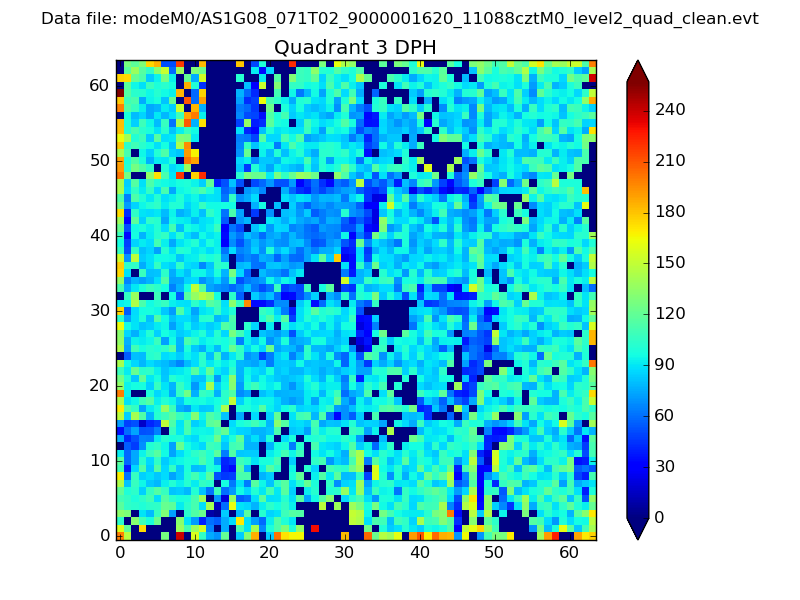

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

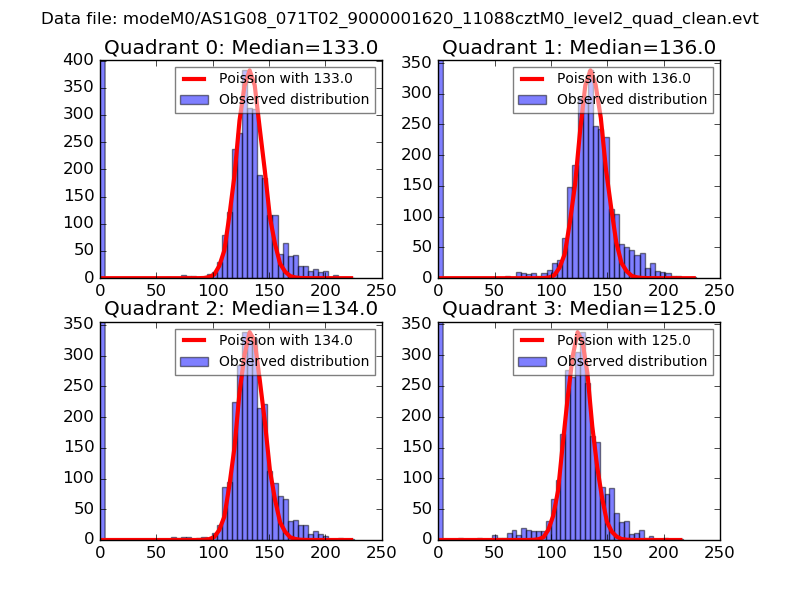

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

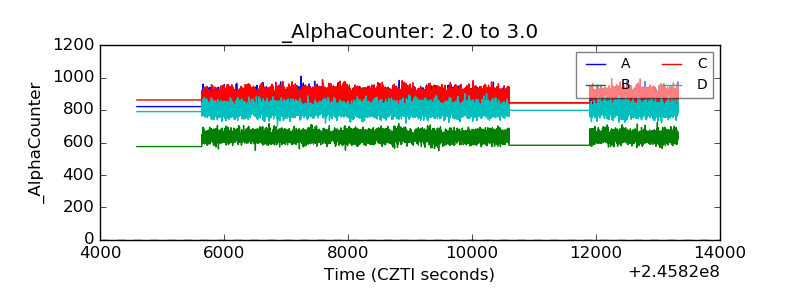

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

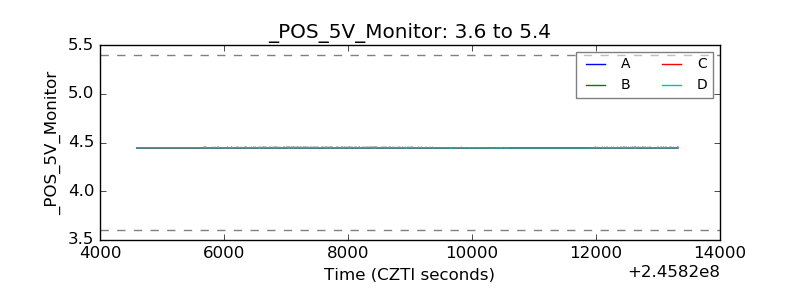

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

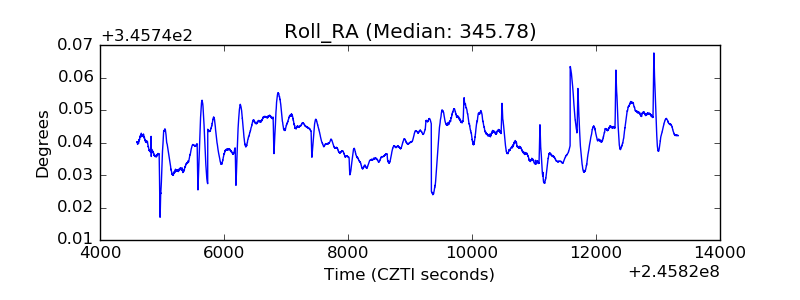

| _Roll_RA |  |

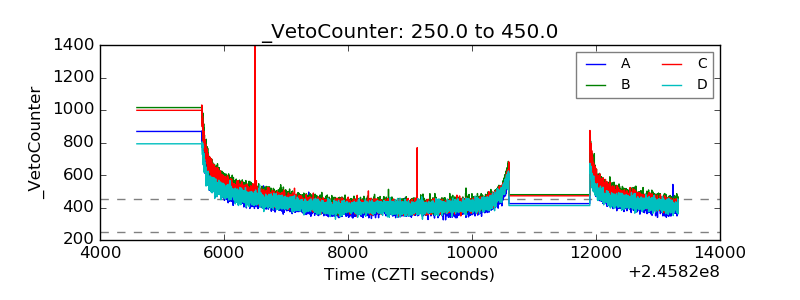

| Veto Counter |  |
