| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11099cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11099cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,506,560 | 88,937,280 |
| Size | 494.5 MB | 84.8 MB |
| Events in quadrant A | 3,203,212 | 572,917 |
| Events in quadrant B | 3,740,821 | 577,615 |
| Events in quadrant C | 2,992,693 | 569,992 |
| Events in quadrant D | 5,327,917 | 522,046 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13722 | 3 |
| B | 0 | 15151 | 2 |
| C | 0 | 13203 | 2 |
| D | 0 | 20235 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6457 | 39 | 0.603996% |
| B | 6457 | 147 | 2.276599% |
| C | 6457 | 20 | 0.309741% |
| D | 6457 | 507 | 7.851944% |

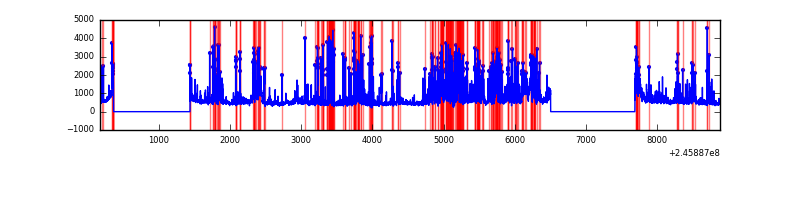

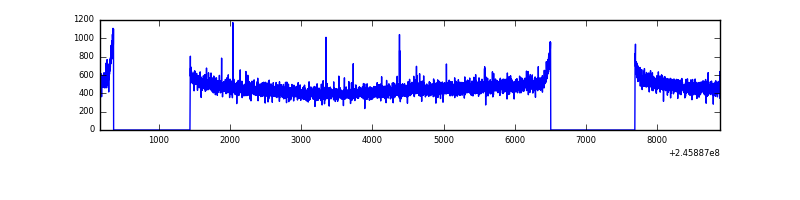

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8717 | 6459 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8717 | 6457 | 65 | 65 | 0.75% | 1.01% |  |
| C | 8717 | 6459 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8717 | 6459 | 372 | 372 | 4.27% | 5.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 123979 | 762.63 | 789 | 772 | 161.6 |
| A | 11 | 29 | 21272 | 126.89 | 789 | 772 | 161.6 |
| A | 14 | 238 | 11199 | 64.54 | 789 | 772 | 161.6 |
| B | 4 | 239 | 346430 | 2294.54 | 790 | 771 | 150.6 |
| B | 10 | 16 | 115966 | 764.68 | 790 | 771 | 150.6 |
| B | 0 | 219 | 58561 | 383.62 | 790 | 771 | 150.6 |
| C | 13 | 61 | 5680 | 27.35 | 765 | 770 | 179.5 |
| C | 14 | 234 | 4938 | 23.22 | 765 | 770 | 179.5 |
| C | 9 | 54 | 3731 | 16.5 | 765 | 770 | 179.5 |
| D | 4 | 95 | 1353995 | 7656.39 | 731 | 711 | 176.8 |
| D | 10 | 253 | 433168 | 2446.68 | 731 | 711 | 176.8 |
| D | 8 | 195 | 170563 | 960.96 | 731 | 711 | 176.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

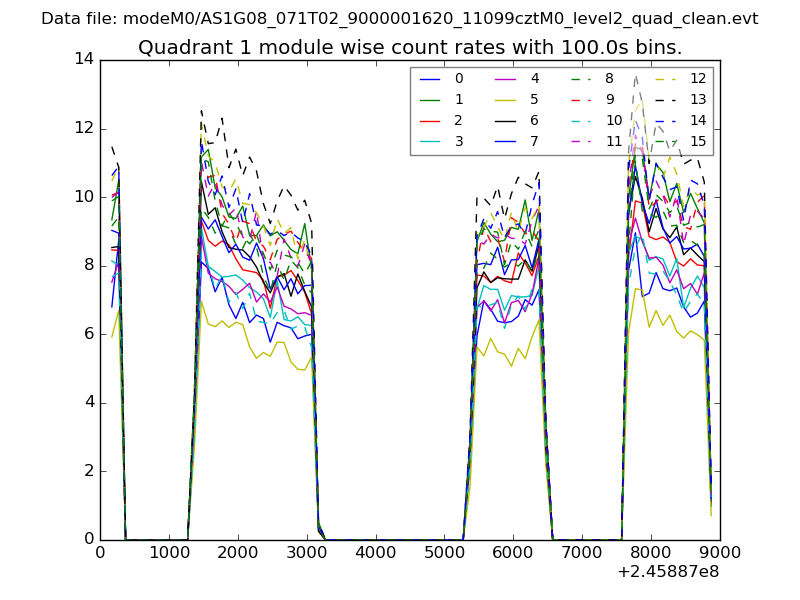

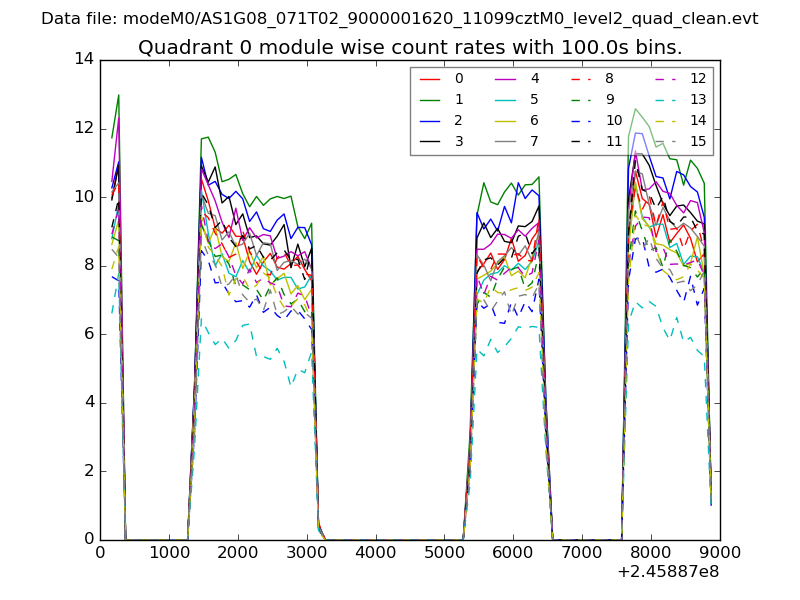

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

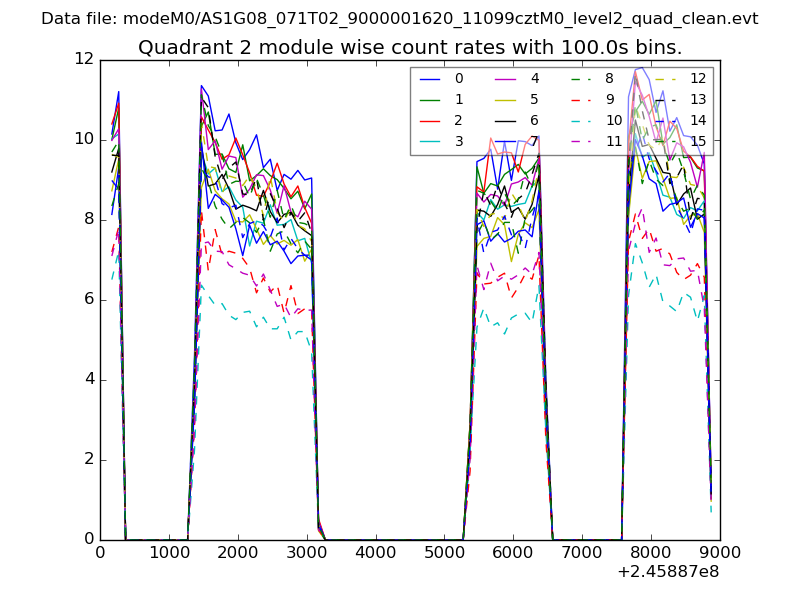

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

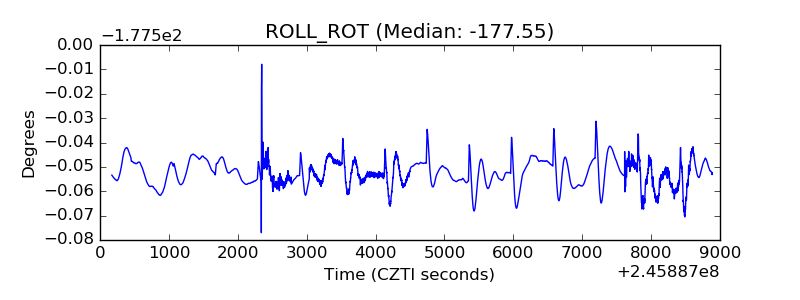

| _ROLL_ROT |  |
| _Roll_DEC |  |

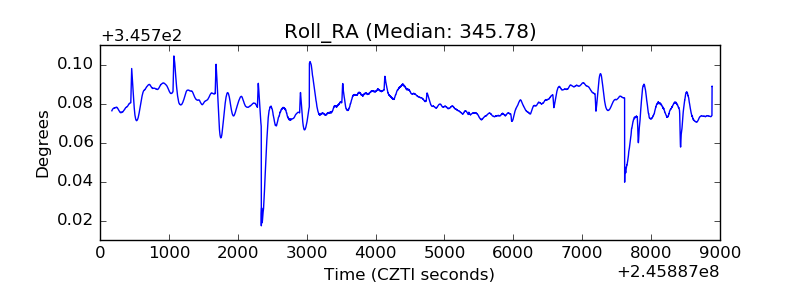

| _Roll_RA |  |
| Veto Counter |  |
