| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11100cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11100cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,693,760 | 81,063,360 |
| Size | 460.3 MB | 77.3 MB |
| Events in quadrant A | 3,163,679 | 514,788 |
| Events in quadrant B | 3,460,539 | 525,926 |
| Events in quadrant C | 2,947,997 | 511,921 |
| Events in quadrant D | 4,620,275 | 464,374 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13330 | 3 |
| B | 0 | 14173 | 2 |
| C | 0 | 12799 | 2 |
| D | 0 | 17936 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6269 | 16 | 0.255224% |
| B | 6269 | 68 | 1.084703% |
| C | 6269 | 8 | 0.127612% |
| D | 6269 | 485 | 7.736481% |

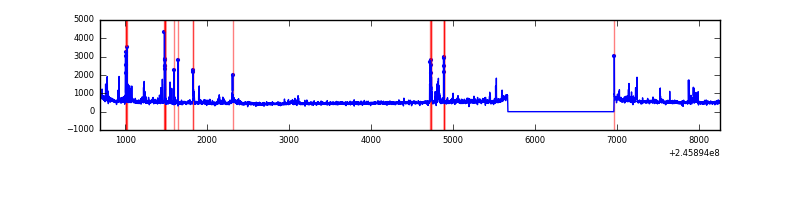

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7564 | 6270 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7564 | 6270 | 25 | 25 | 0.33% | 0.40% |  |
| C | 7564 | 6270 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7563 | 6269 | 411 | 411 | 5.43% | 6.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 119652 | 749.43 | 776 | 761 | 158.6 |
| A | 11 | 29 | 28387 | 174.14 | 776 | 761 | 158.6 |
| A | 1 | 162 | 10197 | 59.48 | 776 | 761 | 158.6 |
| B | 4 | 239 | 186239 | 1253.98 | 785 | 766 | 147.9 |
| B | 10 | 16 | 105249 | 706.4 | 785 | 766 | 147.9 |
| B | 0 | 187 | 24984 | 163.73 | 785 | 766 | 147.9 |
| C | 13 | 61 | 5543 | 27.41 | 754 | 758 | 174.6 |
| C | 9 | 54 | 4070 | 18.97 | 754 | 758 | 174.6 |
| C | 5 | 207 | 2641 | 10.79 | 754 | 758 | 174.6 |
| D | 10 | 253 | 1335026 | 7700.59 | 712 | 692 | 173.3 |
| D | 1 | 52 | 120240 | 689.92 | 712 | 692 | 173.3 |
| D | 2 | 120 | 71962 | 411.31 | 712 | 692 | 173.3 |

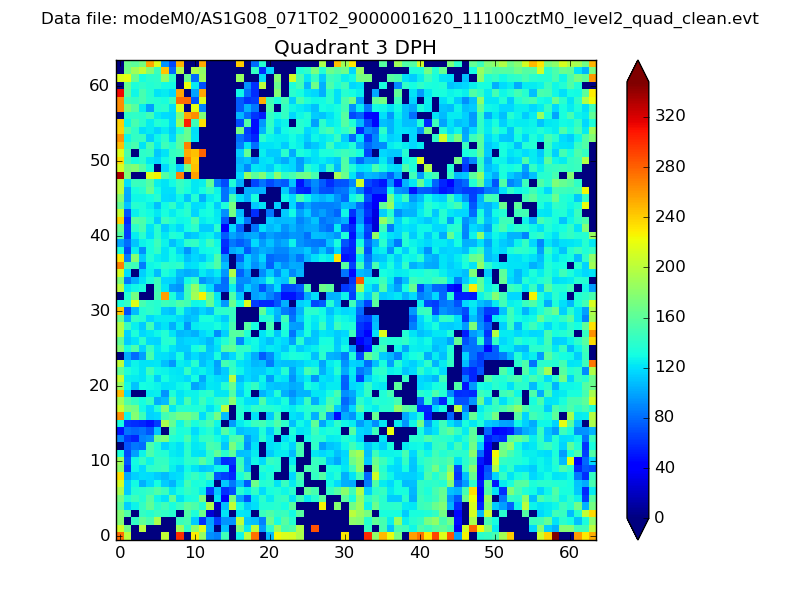

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

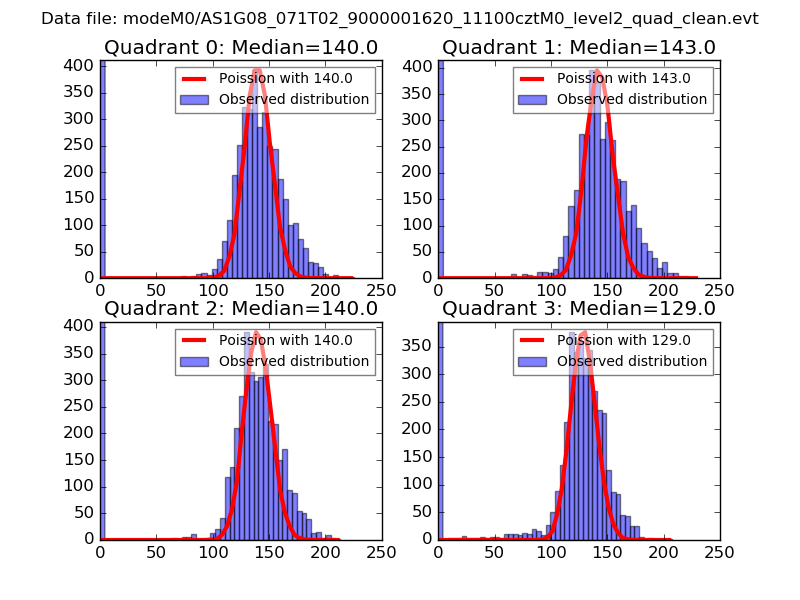

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

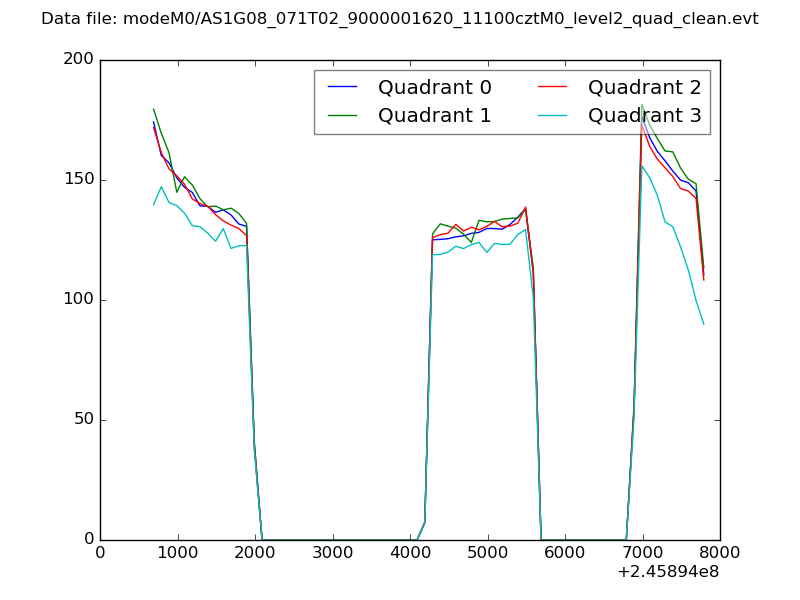

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

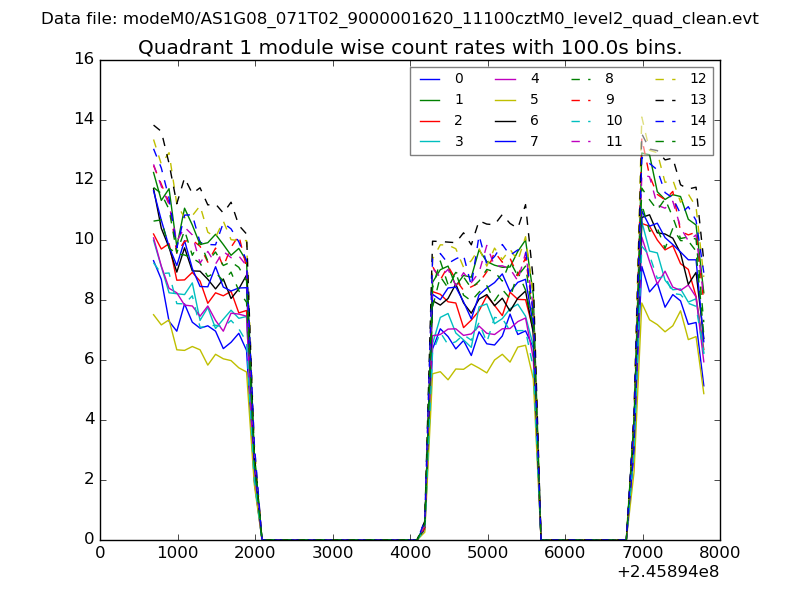

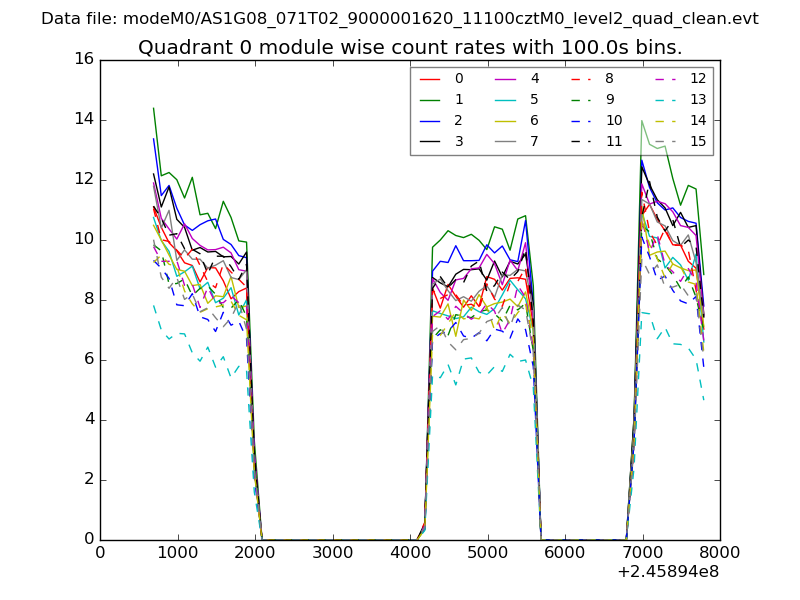

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

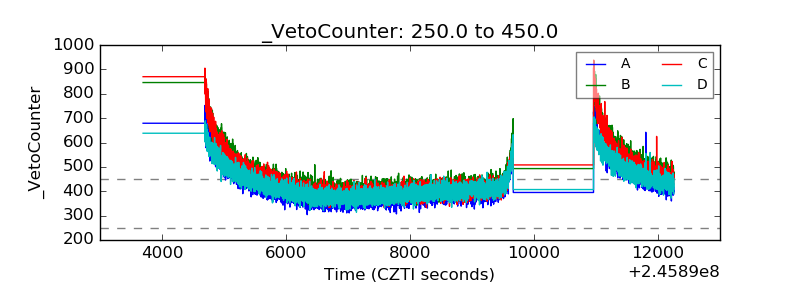

| Veto Counter |  |
