| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11102cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11102cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,743,360 | 65,076,480 |
| Size | 545.3 MB | 62.1 MB |
| Events in quadrant A | 3,582,618 | 390,886 |
| Events in quadrant B | 3,550,307 | 401,300 |
| Events in quadrant C | 3,037,038 | 388,900 |
| Events in quadrant D | 6,717,964 | 348,434 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14540 | 3 |
| B | 0 | 14285 | 2 |
| C | 0 | 12991 | 2 |
| D | 0 | 24199 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6315 | 36 | 0.570071% |
| B | 6315 | 89 | 1.409343% |
| C | 6315 | 9 | 0.142518% |
| D | 6315 | 708 | 11.211401% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

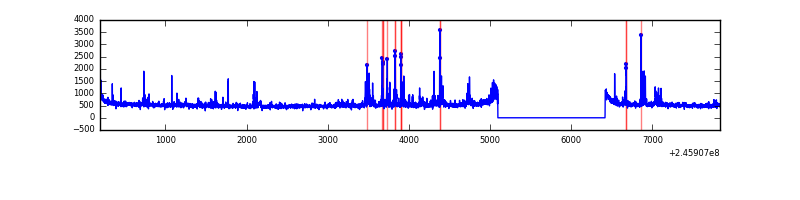

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7636 | 6316 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7636 | 6316 | 15 | 15 | 0.20% | 0.24% |  |
| C | 7636 | 6316 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7636 | 6316 | 587 | 587 | 7.69% | 9.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 446005 | 2739.14 | 807 | 791 | 162.5 |
| A | 11 | 29 | 26309 | 156.99 | 807 | 791 | 162.5 |
| A | 0 | 226 | 7288 | 39.97 | 807 | 791 | 162.5 |
| B | 4 | 239 | 231356 | 1503.14 | 815 | 798 | 153.4 |
| B | 0 | 187 | 35565 | 226.67 | 815 | 798 | 153.4 |
| B | 15 | 204 | 33773 | 214.98 | 815 | 798 | 153.4 |
| C | 13 | 61 | 5752 | 27.4 | 778 | 783 | 181.3 |
| C | 8 | 222 | 2093 | 7.22 | 778 | 783 | 181.3 |
| C | 3 | 202 | 1951 | 6.44 | 778 | 783 | 181.3 |
| D | 1 | 52 | 2272369 | 12884.16 | 725 | 705 | 176.3 |
| D | 10 | 253 | 1335886 | 7572.72 | 725 | 705 | 176.3 |
| D | 8 | 195 | 72235 | 405.7 | 725 | 705 | 176.3 |

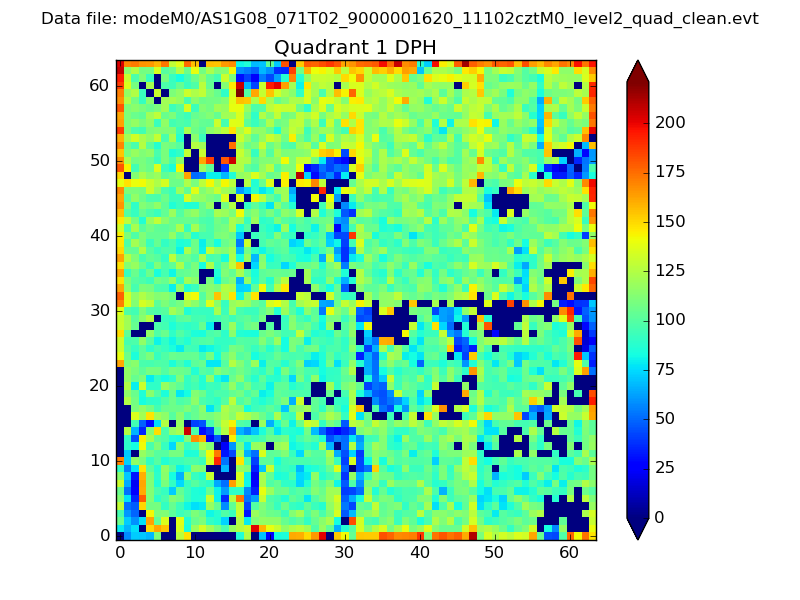

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

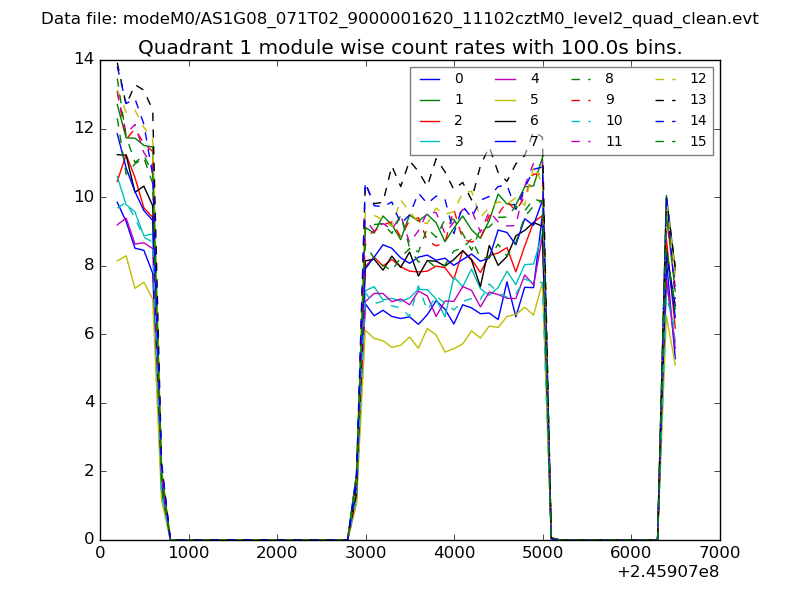

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

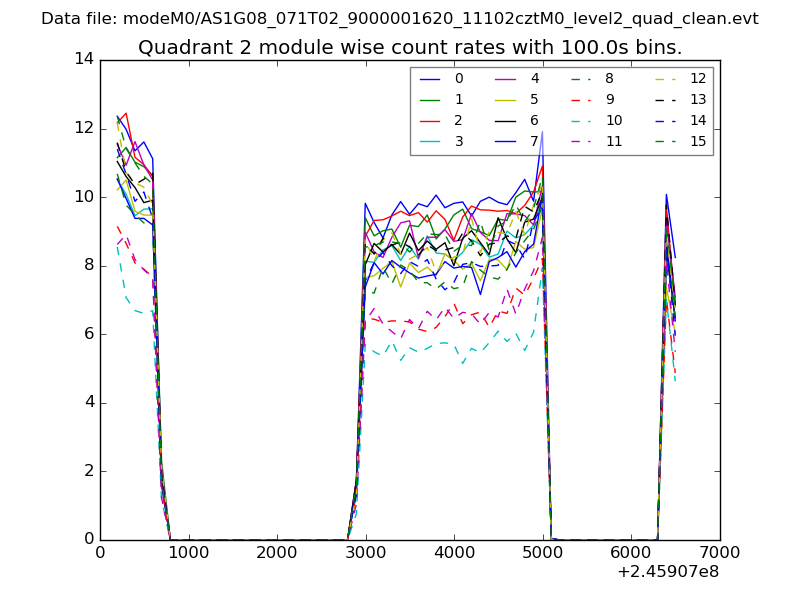

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

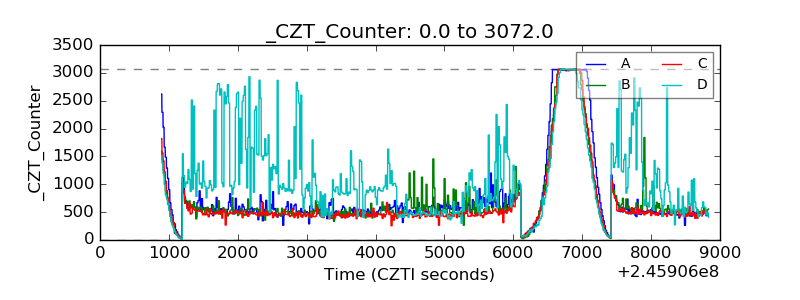

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

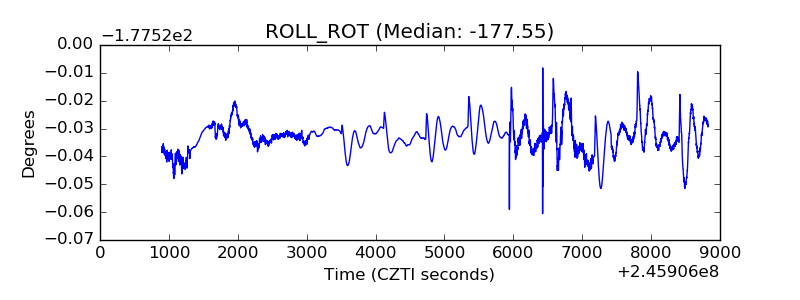

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

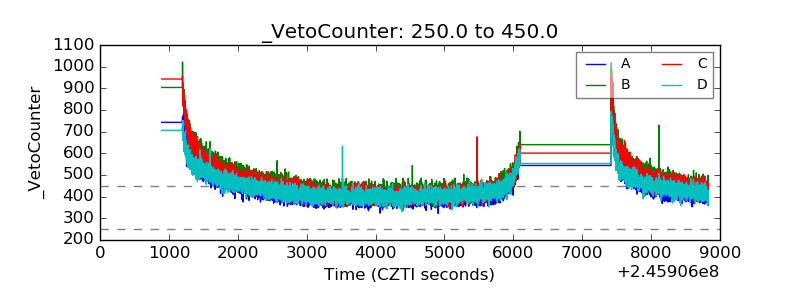

| Veto Counter |  |
