| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11104cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11104cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,179,840 | 70,986,240 |
| Size | 547.6 MB | 67.7 MB |
| Events in quadrant A | 4,592,666 | 418,764 |
| Events in quadrant B | 3,797,971 | 436,296 |
| Events in quadrant C | 3,172,041 | 432,186 |
| Events in quadrant D | 5,369,356 | 391,832 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18069 | 3 |
| B | 0 | 15459 | 2 |
| C | 0 | 13963 | 2 |
| D | 0 | 20506 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6739 | 445 | 6.603354% |
| B | 6739 | 197 | 2.923282% |
| C | 6739 | 92 | 1.365188% |
| D | 6739 | 551 | 8.176287% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7554 | 6739 | 236 | 236 | 3.12% | 3.50% |  |
| B | 7554 | 6739 | 37 | 37 | 0.49% | 0.55% |  |
| C | 7554 | 6740 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7554 | 6739 | 386 | 386 | 5.11% | 5.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1243268 | 7476.56 | 813 | 796 | 166.2 |
| A | 8 | 15 | 106930 | 638.66 | 813 | 796 | 166.2 |
| A | 14 | 254 | 86617 | 516.43 | 813 | 796 | 166.2 |
| B | 10 | 16 | 213473 | 1327.31 | 833 | 814 | 160.2 |
| B | 4 | 239 | 134472 | 834.22 | 833 | 814 | 160.2 |
| B | 15 | 204 | 86990 | 537.87 | 833 | 814 | 160.2 |
| C | 8 | 128 | 10743 | 52.47 | 808 | 812 | 189.3 |
| C | 13 | 61 | 6158 | 28.25 | 808 | 812 | 189.3 |
| C | 8 | 112 | 5954 | 27.17 | 808 | 812 | 189.3 |
| D | 10 | 253 | 891414 | 4745.78 | 765 | 745 | 187.7 |
| D | 1 | 52 | 739271 | 3935.11 | 765 | 745 | 187.7 |
| D | 8 | 195 | 321665 | 1709.97 | 765 | 745 | 187.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

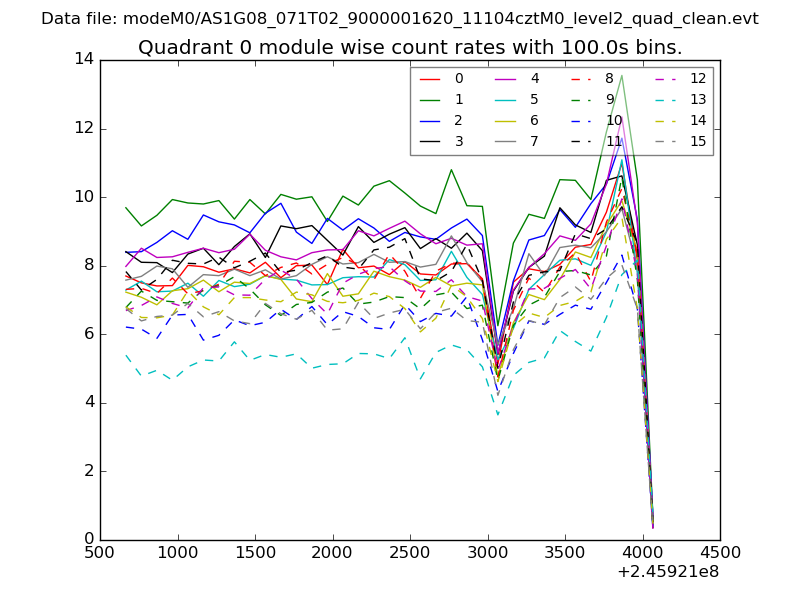

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

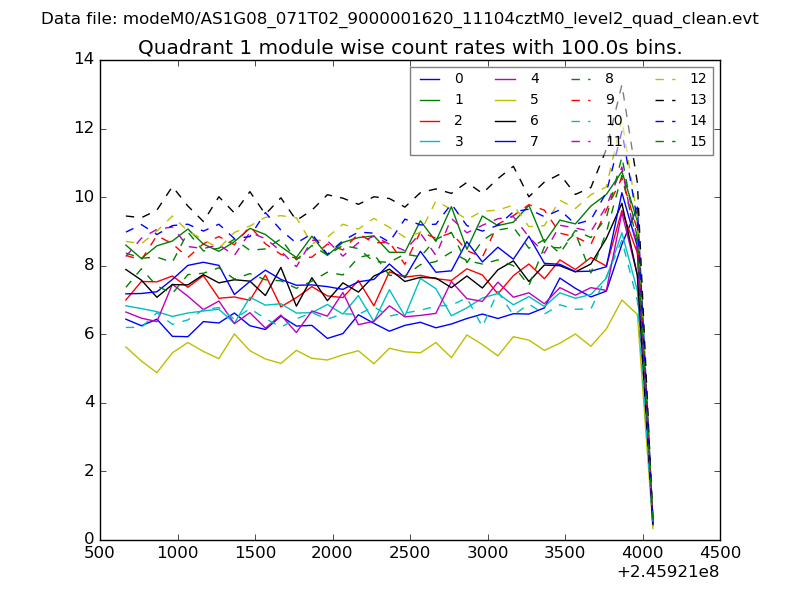

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

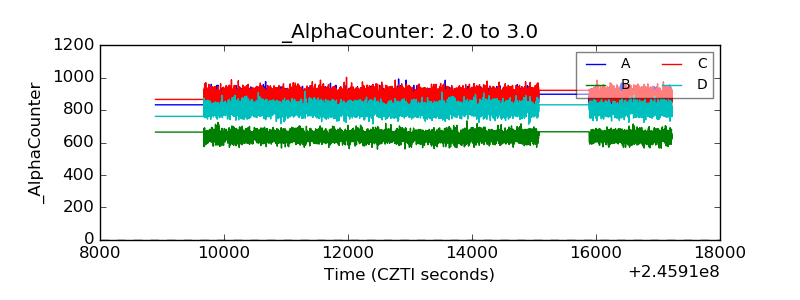

| Alpha Counter |  |

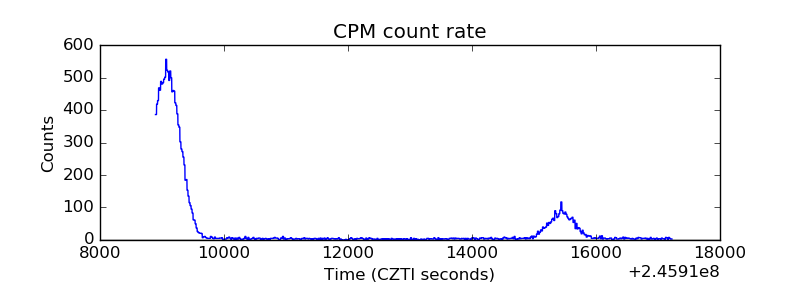

| _CPM_Rate |  |

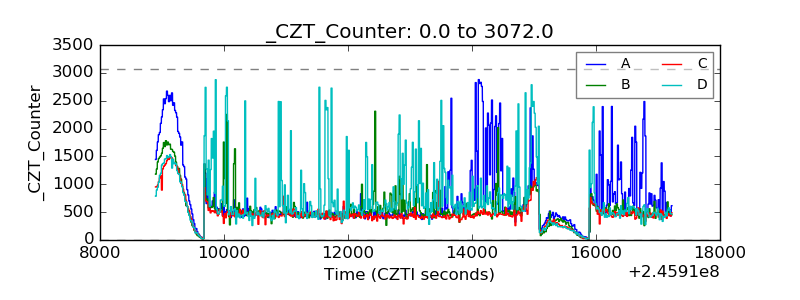

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

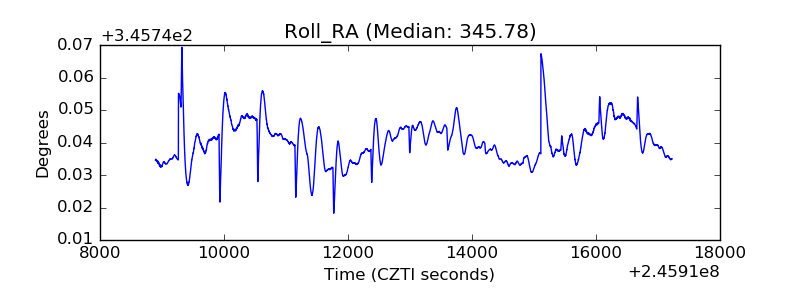

| _Roll_RA |  |
| Veto Counter |  |
