| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11110cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11110cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,620,213,120 | 223,009,920 |
| Size | 1.5 GB | 212.7 MB |
| Events in quadrant A | 13,123,815 | 1,364,837 |
| Events in quadrant B | 10,729,732 | 1,396,275 |
| Events in quadrant C | 8,508,440 | 1,401,610 |
| Events in quadrant D | 15,438,167 | 1,295,202 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 388 | 0 |
| B | 0 | 388 | 0 |
| C | 0 | 388 | 0 |
| D | 0 | 388 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51820 | 6 |
| B | 0 | 44126 | 5 |
| C | 0 | 38624 | 5 |
| D | 0 | 58094 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18794 | 902 | 4.799404% |
| B | 18794 | 682 | 3.628818% |
| C | 18794 | 236 | 1.255720% |
| D | 18794 | 1916 | 10.194743% |

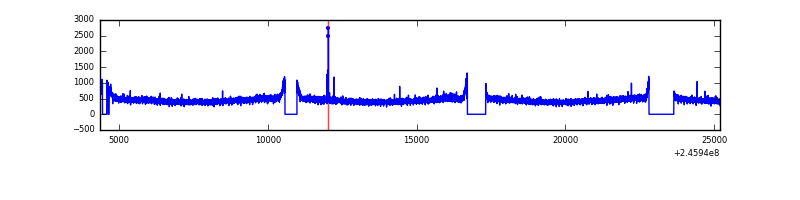

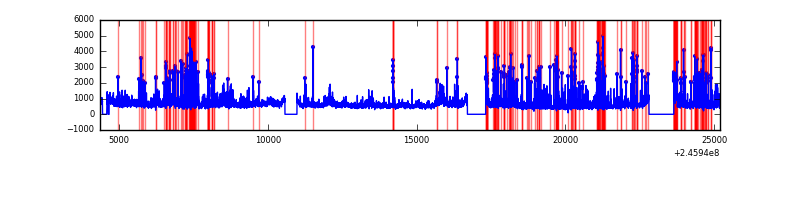

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20829 | 18798 | 354 | 354 | 1.70% | 1.88% |  |
| B | 20829 | 18797 | 214 | 214 | 1.03% | 1.14% |  |
| C | 20829 | 18799 | 2 | 2 | 0.01% | 0.01% |  |
| D | 20829 | 18798 | 1366 | 1366 | 6.56% | 7.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2424142 | 5337.67 | 2205 | 2155 | 453.8 |
| A | 8 | 15 | 2040107 | 4491.32 | 2205 | 2155 | 453.8 |
| A | 11 | 29 | 75038 | 160.62 | 2205 | 2155 | 453.8 |
| B | 4 | 239 | 839305 | 1975.94 | 2217 | 2161 | 423.7 |
| B | 10 | 16 | 655955 | 1543.18 | 2217 | 2161 | 423.7 |
| B | 15 | 204 | 270432 | 633.21 | 2217 | 2161 | 423.7 |
| C | 14 | 234 | 21979 | 39.0 | 2173 | 2179 | 507.6 |
| C | 13 | 61 | 16163 | 27.55 | 2173 | 2179 | 507.6 |
| C | 9 | 54 | 11370 | 18.1 | 2173 | 2179 | 507.6 |
| D | 10 | 253 | 2895797 | 5722.85 | 2081 | 2021 | 505.7 |
| D | 1 | 52 | 2214599 | 4375.68 | 2081 | 2021 | 505.7 |
| D | 13 | 104 | 640834 | 1263.34 | 2081 | 2021 | 505.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

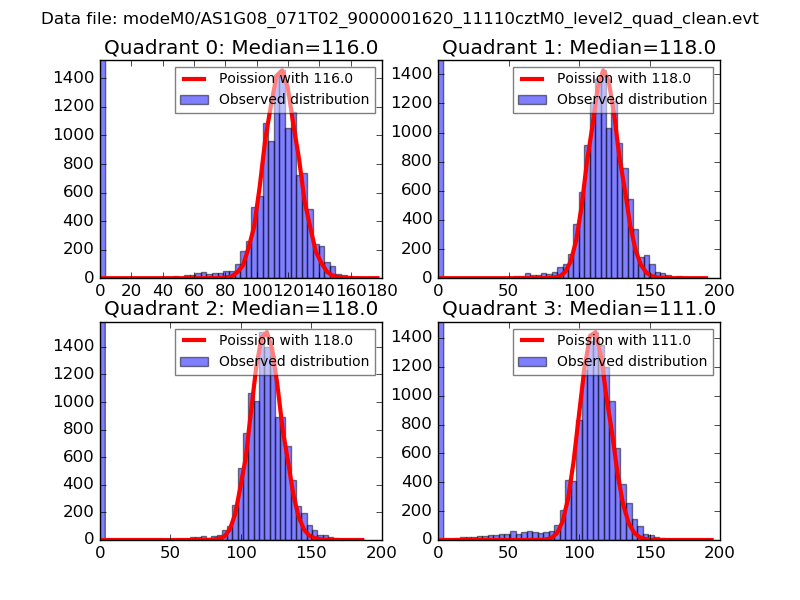

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

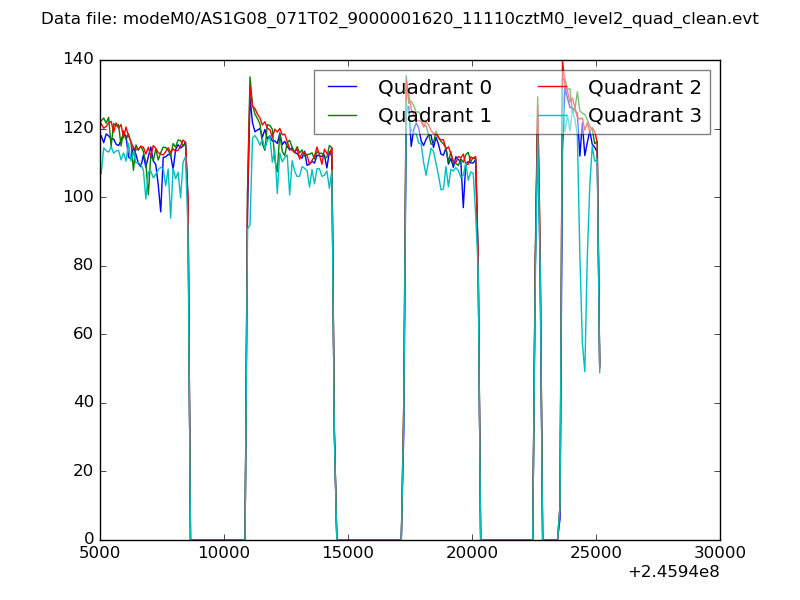

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

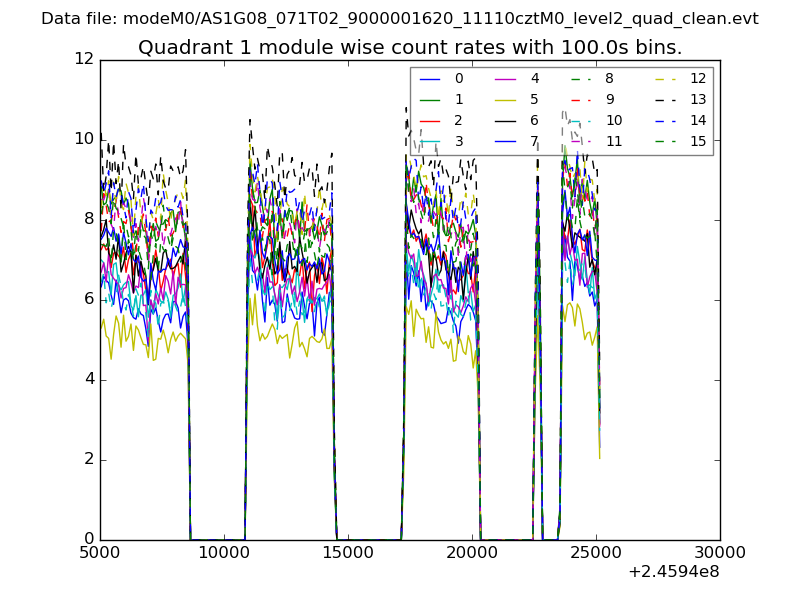

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

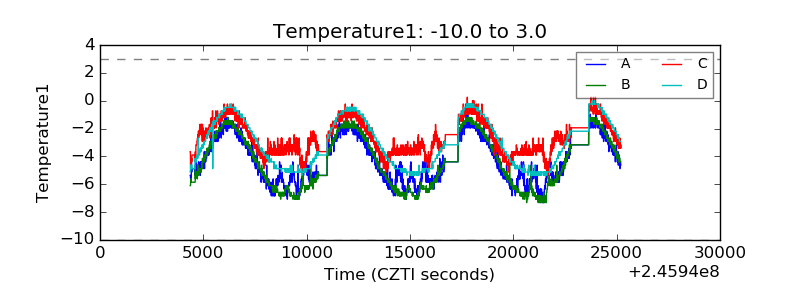

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

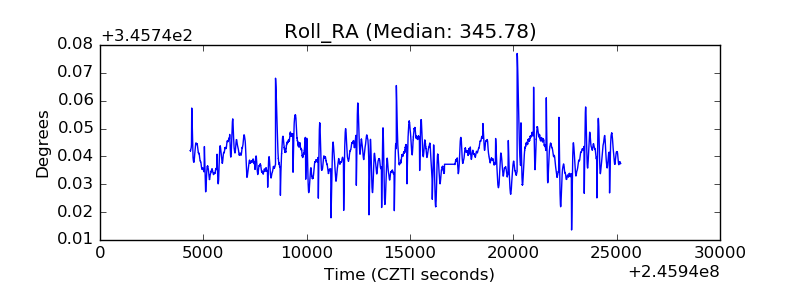

| _Roll_RA |  |

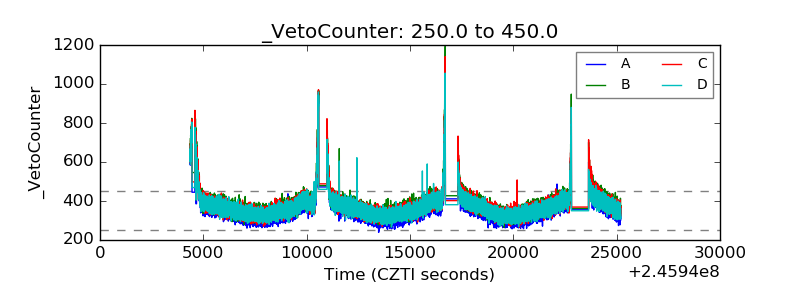

| Veto Counter |  |
