| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11117cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11117cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,523,520 | 60,793,920 |
| Size | 516.4 MB | 58.0 MB |
| Events in quadrant A | 4,405,694 | 351,400 |
| Events in quadrant B | 3,809,378 | 358,153 |
| Events in quadrant C | 3,039,904 | 353,697 |
| Events in quadrant D | 4,711,959 | 331,511 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17125 | 2 |
| B | 0 | 15213 | 1 |
| C | 0 | 13110 | 1 |
| D | 0 | 18173 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6395 | 229 | 3.580923% |
| B | 6395 | 159 | 2.486317% |
| C | 6395 | 40 | 0.625489% |
| D | 6395 | 469 | 7.333855% |

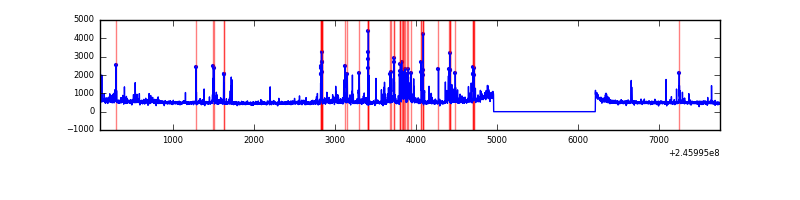

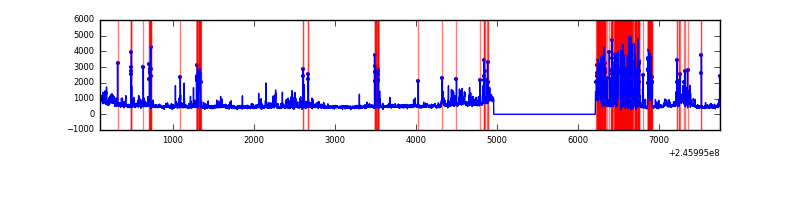

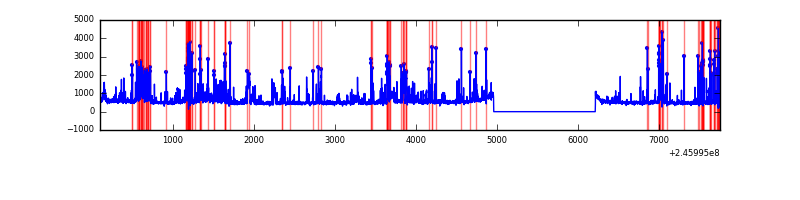

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7650 | 6396 | 142 | 142 | 1.86% | 2.22% |  |
| B | 7650 | 6396 | 53 | 53 | 0.69% | 0.83% |  |
| C | 7650 | 6396 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7650 | 6396 | 377 | 377 | 4.93% | 5.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1244077 | 7630.97 | 795 | 779 | 162.9 |
| A | 14 | 254 | 63169 | 382.93 | 795 | 779 | 162.9 |
| A | 11 | 29 | 20827 | 123.05 | 795 | 779 | 162.9 |
| B | 4 | 239 | 428902 | 2794.84 | 809 | 790 | 153.2 |
| B | 15 | 204 | 53279 | 342.66 | 809 | 790 | 153.2 |
| B | 10 | 16 | 51267 | 329.53 | 809 | 790 | 153.2 |
| C | 8 | 222 | 8626 | 43.67 | 777 | 784 | 179.6 |
| C | 13 | 61 | 5887 | 28.42 | 777 | 784 | 179.6 |
| C | 14 | 234 | 3141 | 13.13 | 777 | 784 | 179.6 |
| D | 10 | 253 | 959067 | 5436.11 | 734 | 715 | 176.3 |
| D | 1 | 52 | 260201 | 1471.89 | 734 | 715 | 176.3 |
| D | 11 | 129 | 230889 | 1305.63 | 734 | 715 | 176.3 |

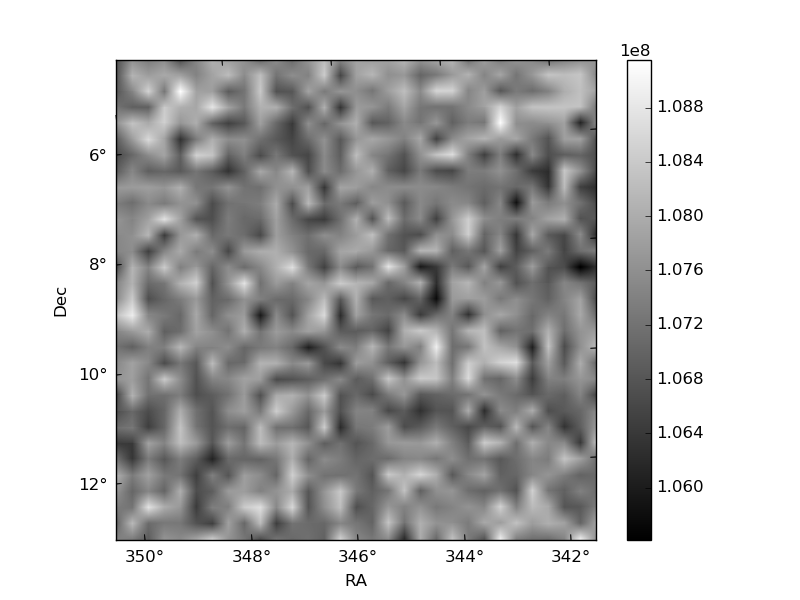

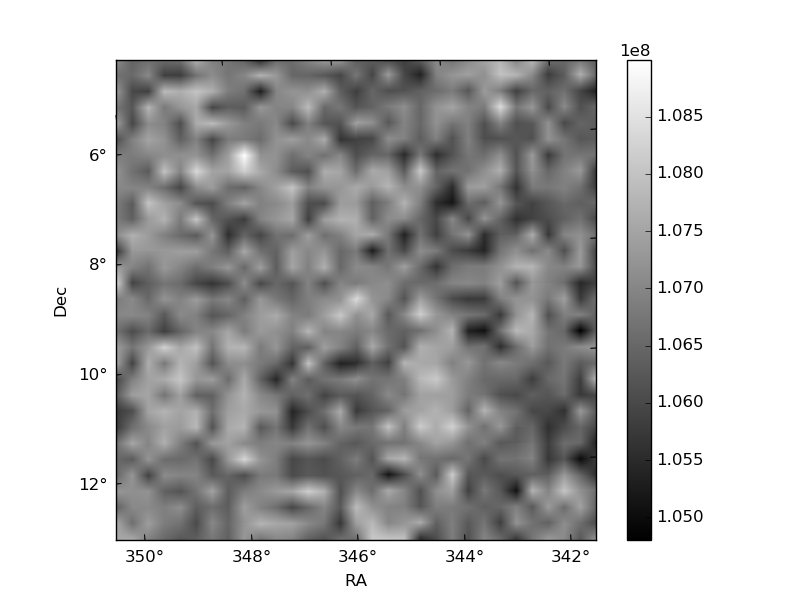

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

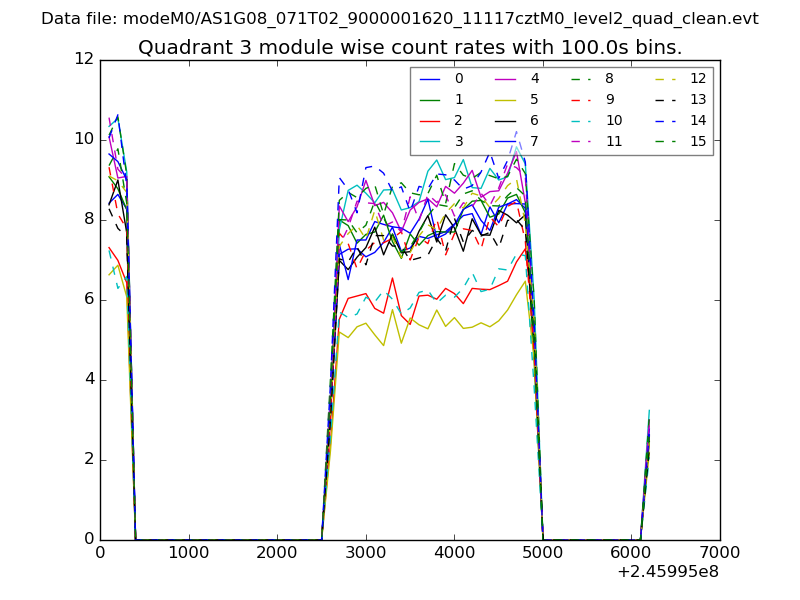

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

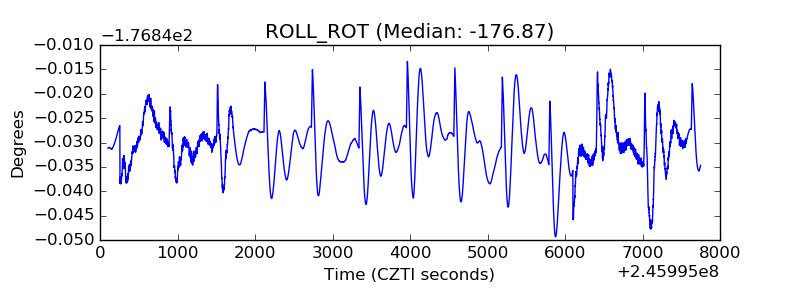

| _ROLL_ROT |  |

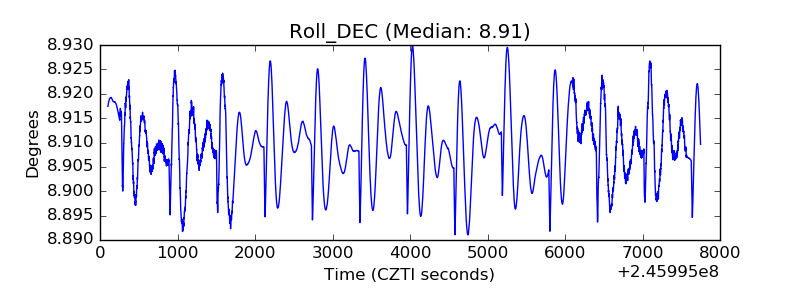

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
