| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11133cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11133cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,636,800 | 67,939,200 |
| Size | 536.6 MB | 64.8 MB |
| Events in quadrant A | 4,519,330 | 393,972 |
| Events in quadrant B | 4,418,619 | 398,443 |
| Events in quadrant C | 3,216,344 | 406,545 |
| Events in quadrant D | 4,422,885 | 382,363 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17802 | 3 |
| B | 0 | 17397 | 2 |
| C | 0 | 14163 | 2 |
| D | 0 | 17688 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6822 | 379 | 5.555556% |
| B | 6822 | 299 | 4.382879% |
| C | 6822 | 85 | 1.245969% |
| D | 6823 | 257 | 3.766672% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7652 | 6823 | 181 | 181 | 2.37% | 2.65% |  |
| B | 7652 | 6823 | 128 | 128 | 1.67% | 1.88% |  |
| C | 7652 | 6823 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7653 | 6824 | 171 | 171 | 2.23% | 2.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1260575 | 7443.33 | 822 | 803 | 169.2 |
| A | 14 | 63 | 51690 | 300.66 | 822 | 803 | 169.2 |
| A | 14 | 238 | 26904 | 154.22 | 822 | 803 | 169.2 |
| B | 10 | 16 | 666699 | 4126.7 | 833 | 812 | 161.4 |
| B | 4 | 239 | 221524 | 1367.82 | 833 | 812 | 161.4 |
| B | 15 | 204 | 87067 | 534.55 | 833 | 812 | 161.4 |
| C | 9 | 54 | 25788 | 131.02 | 814 | 820 | 190.6 |
| C | 14 | 234 | 14941 | 74.1 | 814 | 820 | 190.6 |
| C | 13 | 61 | 5975 | 27.05 | 814 | 820 | 190.6 |
| D | 1 | 52 | 548376 | 2825.63 | 798 | 775 | 193.8 |
| D | 13 | 249 | 337817 | 1739.14 | 798 | 775 | 193.8 |
| D | 10 | 253 | 214308 | 1101.84 | 798 | 775 | 193.8 |

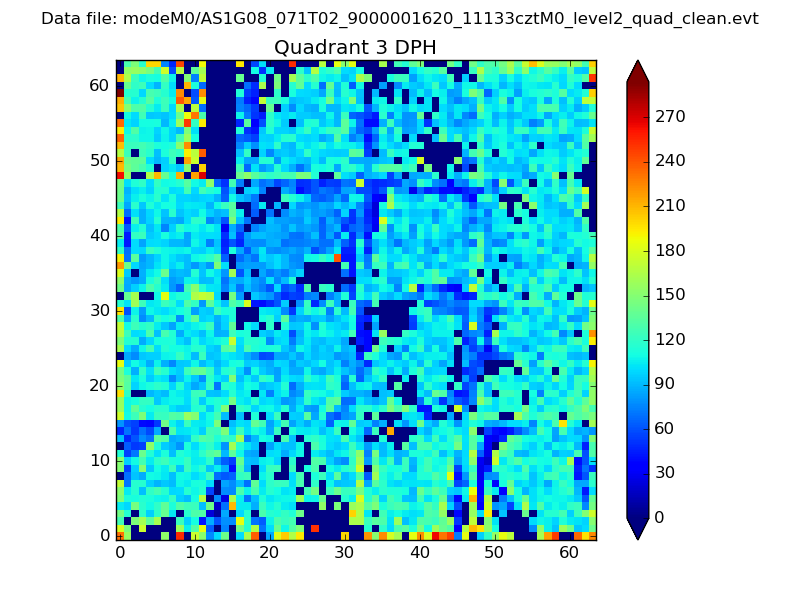

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

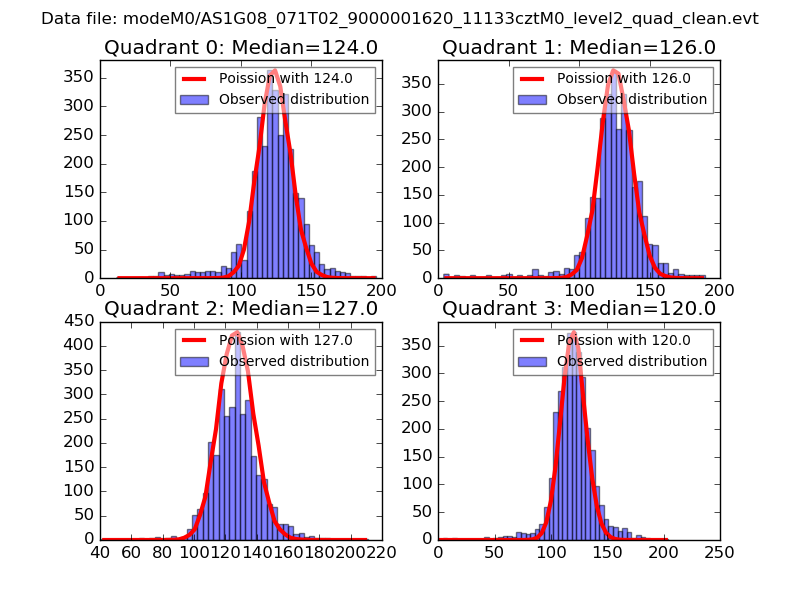

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
