| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_071T02_9000001620_11134cztM0_level2.evt | modeM0/AS1G08_071T02_9000001620_11134cztM0_level2_quad_clean.evt |
| Size (bytes) | 760,464,000 | 80,357,760 |
| Size | 725.2 MB | 76.6 MB |
| Events in quadrant A | 8,119,833 | 452,513 |
| Events in quadrant B | 5,376,398 | 484,315 |
| Events in quadrant C | 3,715,517 | 491,294 |
| Events in quadrant D | 5,295,139 | 465,789 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29299 | 3 |
| B | 0 | 20903 | 2 |
| C | 0 | 16334 | 2 |
| D | 0 | 21018 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7749 | 1595 | 20.583301% |
| B | 7749 | 606 | 7.820364% |
| C | 7749 | 217 | 2.800361% |
| D | 7749 | 581 | 7.497742% |

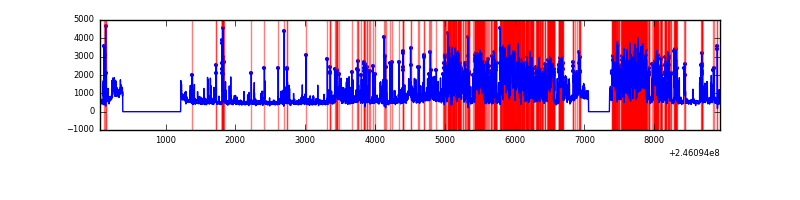

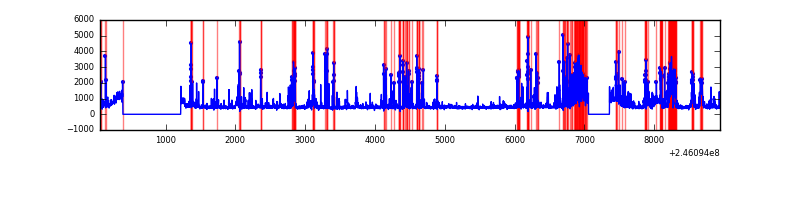

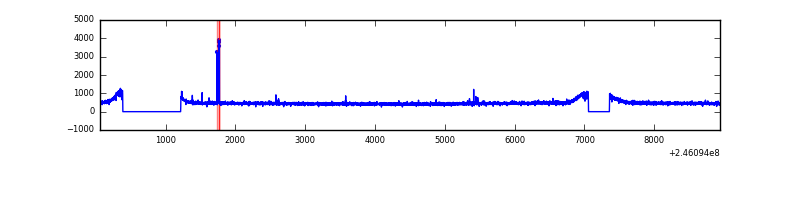

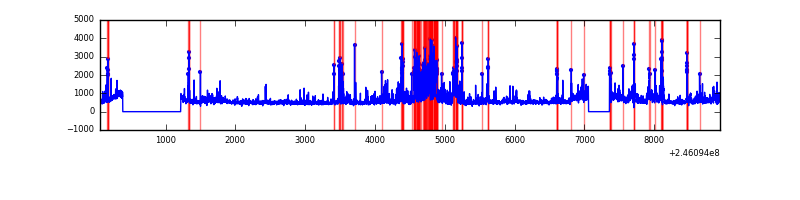

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8879 | 7751 | 1049 | 1049 | 11.81% | 13.53% |  |
| B | 8879 | 7751 | 180 | 180 | 2.03% | 2.32% |  |
| C | 8879 | 7751 | 4 | 4 | 0.05% | 0.05% |  |
| D | 8879 | 7751 | 292 | 292 | 3.29% | 3.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 4068792 | 21903.38 | 905 | 883 | 185.7 |
| A | 14 | 238 | 354025 | 1901.47 | 905 | 883 | 185.7 |
| A | 8 | 15 | 126566 | 676.73 | 905 | 883 | 185.7 |
| B | 4 | 239 | 816161 | 4338.61 | 958 | 933 | 187.9 |
| B | 10 | 16 | 483596 | 2568.72 | 958 | 933 | 187.9 |
| B | 15 | 204 | 123105 | 650.19 | 958 | 933 | 187.9 |
| C | 9 | 54 | 26166 | 113.48 | 944 | 950 | 222.2 |
| C | 14 | 234 | 7512 | 29.53 | 944 | 950 | 222.2 |
| C | 13 | 61 | 7059 | 27.49 | 944 | 950 | 222.2 |
| D | 10 | 253 | 748630 | 3362.44 | 913 | 886 | 222.4 |
| D | 1 | 52 | 735384 | 3302.88 | 913 | 886 | 222.4 |
| D | 13 | 104 | 79961 | 355.58 | 913 | 886 | 222.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

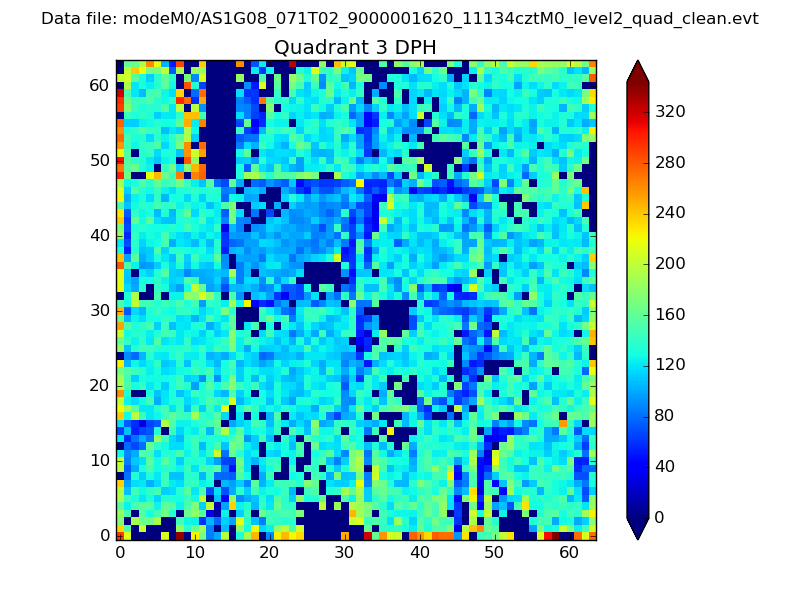

Quadrant C |

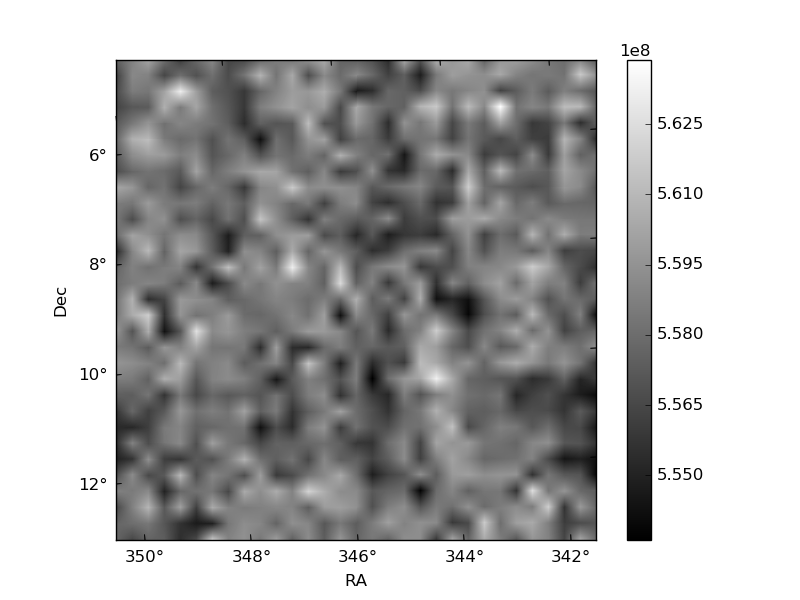

| Plot type | Count rate plots | Images |
|---|---|---|

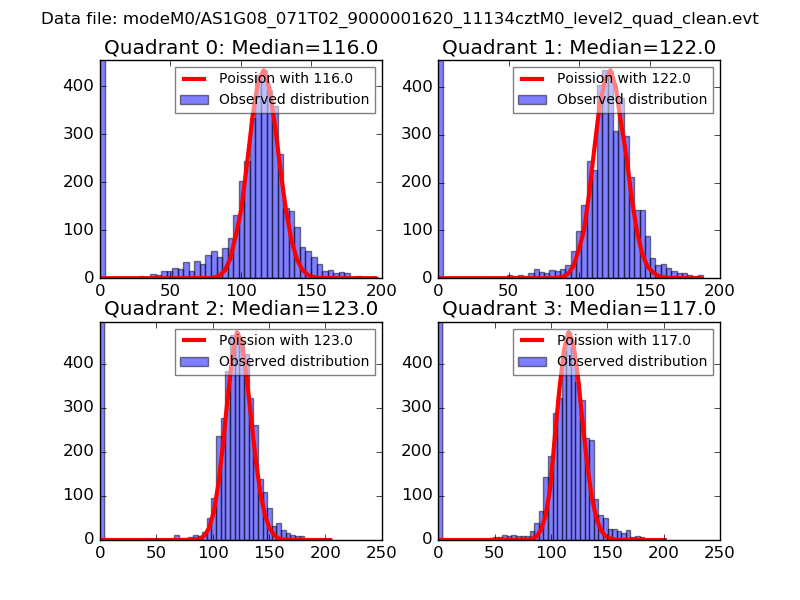

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

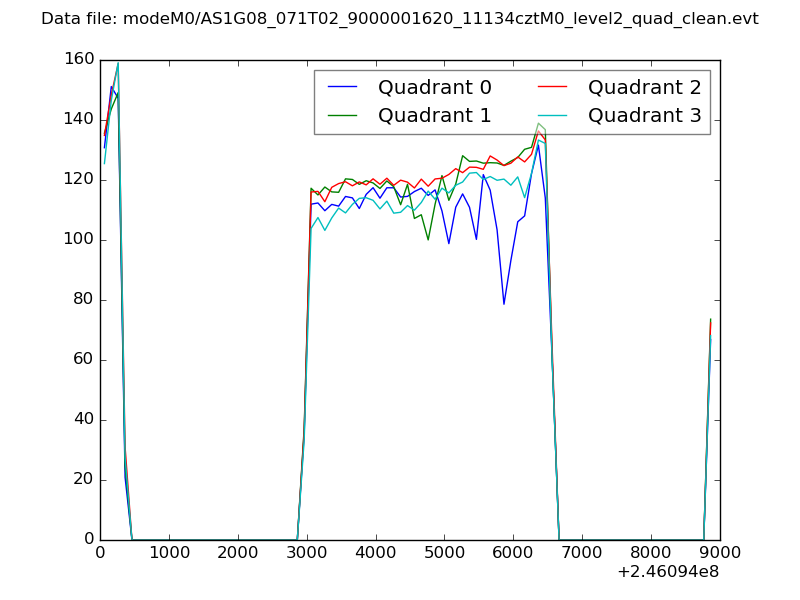

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

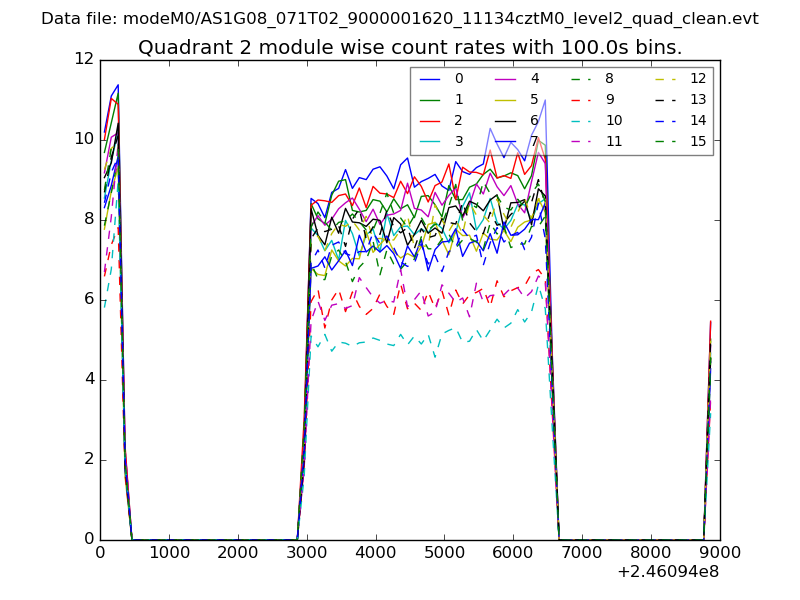

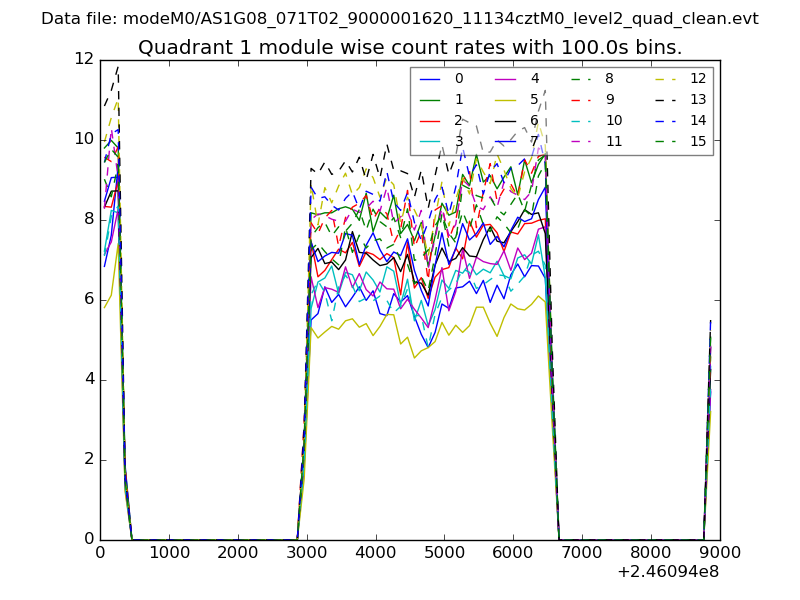

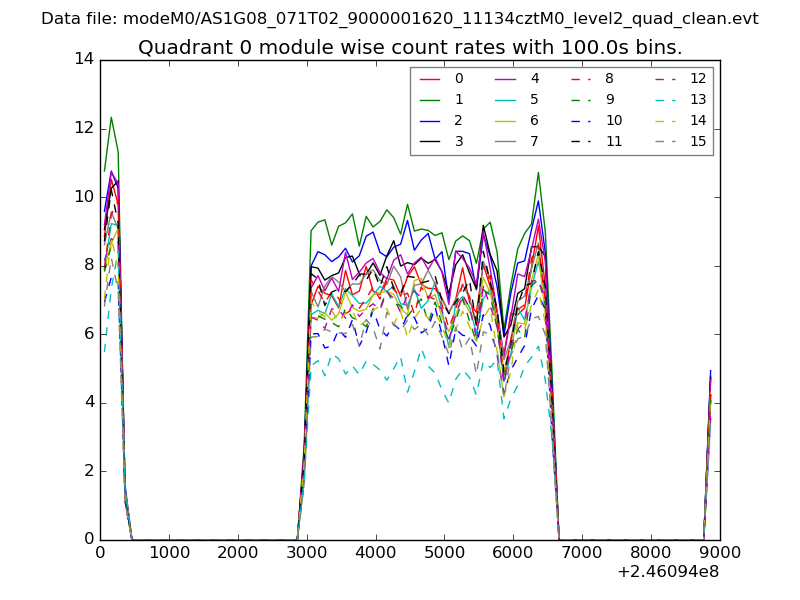

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

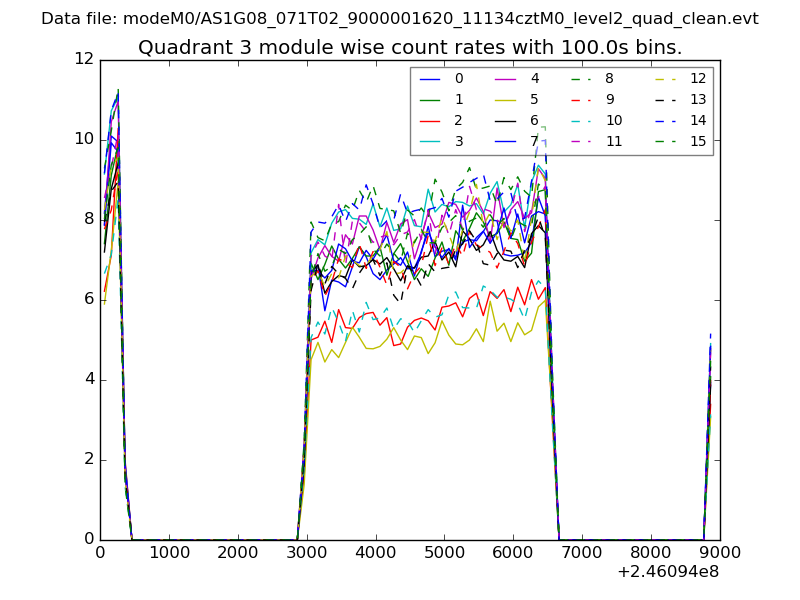

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

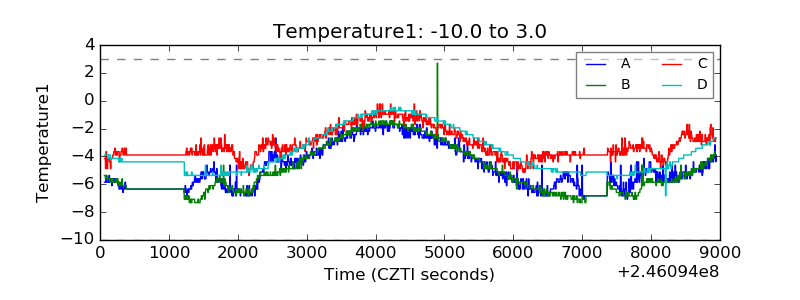

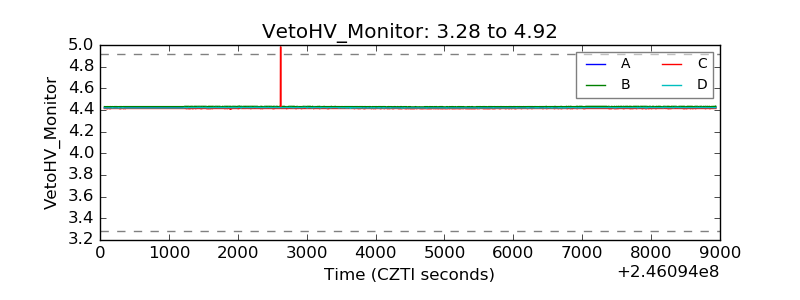

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

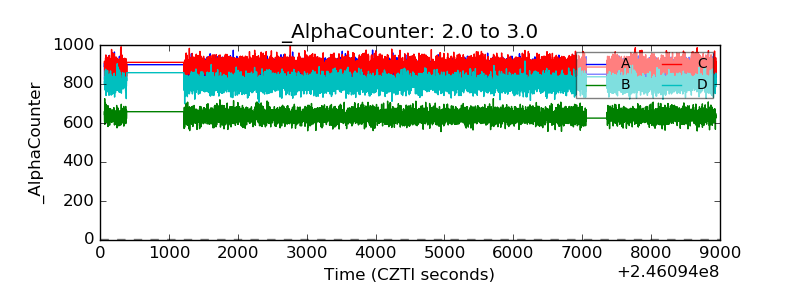

| Alpha Counter |  |

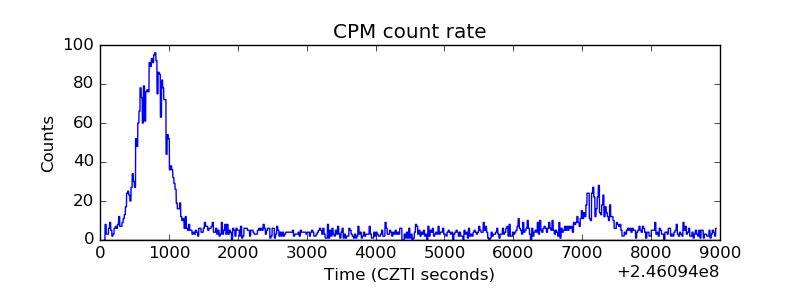

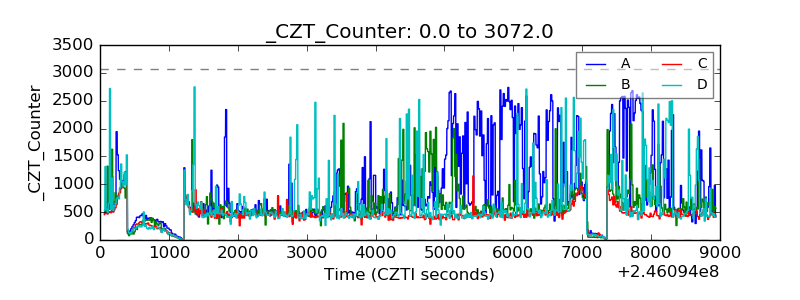

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

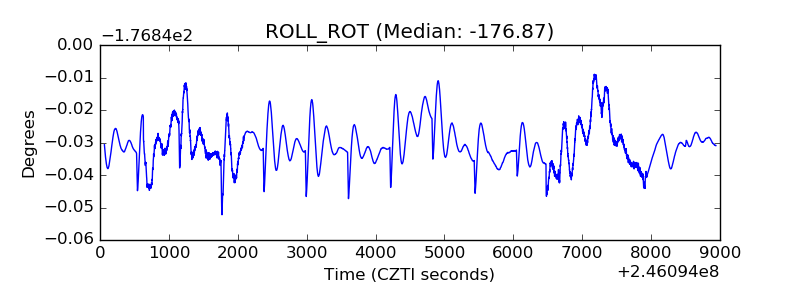

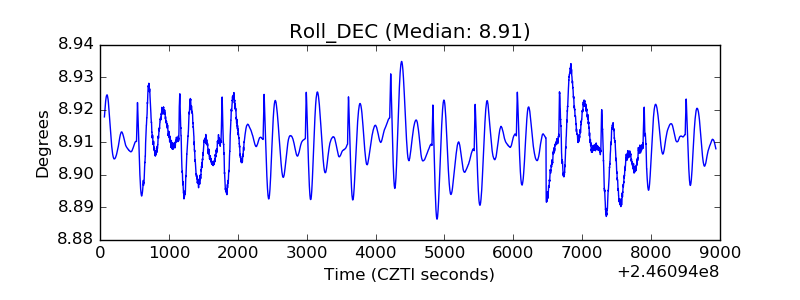

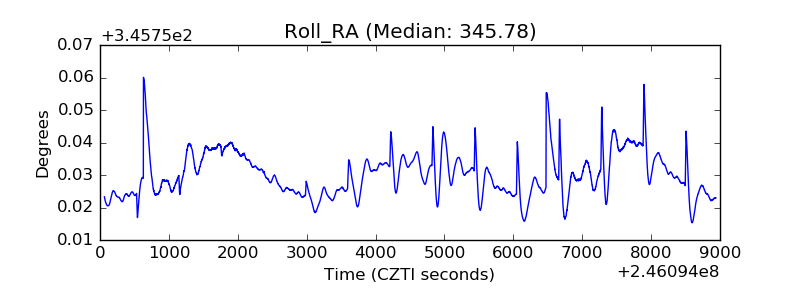

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

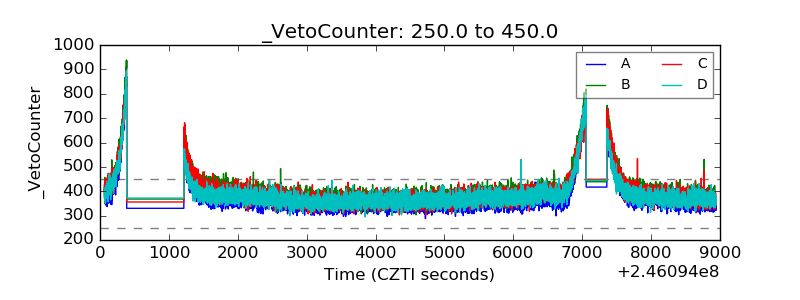

| Veto Counter |  |
