| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_180T01_9000001622_11144cztM0_level2.evt | modeM0/AS1A04_180T01_9000001622_11144cztM0_level2_quad_clean.evt |
| Size (bytes) | 736,767,360 | 89,498,880 |
| Size | 702.6 MB | 85.4 MB |
| Events in quadrant A | 6,941,850 | 526,808 |
| Events in quadrant B | 5,462,183 | 553,570 |
| Events in quadrant C | 4,042,186 | 540,839 |
| Events in quadrant D | 5,298,547 | 505,015 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26769 | 536 |
| B | 0 | 22077 | 525 |
| C | 0 | 17673 | 375 |
| D | 0 | 21694 | 387 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 6 |
| B | 0 | 23 | 5 |
| C | 0 | 22 | 4 |
| D | 0 | 25 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 176 | 4 |
| B | 0 | 177 | 5 |
| C | 0 | 176 | 2 |
| D | 0 | 174 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8389 | 657 | 7.831684% |
| B | 8397 | 272 | 3.239252% |
| C | 8398 | 19 | 0.226244% |
| D | 8396 | 371 | 4.418771% |

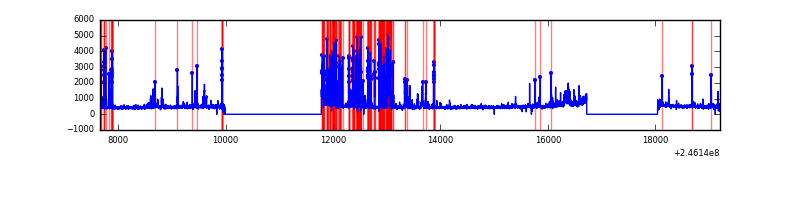

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11543 | 8422 | 432 | 432 | 3.74% | 5.13% |  |
| B | 11543 | 8430 | 124 | 124 | 1.07% | 1.47% |  |
| C | 11541 | 8423 | 2 | 2 | 0.02% | 0.02% |  |
| D | 11543 | 8422 | 294 | 294 | 2.55% | 3.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1654751 | 7993.67 | 1025 | 1006 | 206.9 |
| A | 8 | 5 | 944965 | 4562.79 | 1025 | 1006 | 206.9 |
| A | 14 | 63 | 182675 | 878.13 | 1025 | 1006 | 206.9 |
| B | 4 | 239 | 614576 | 3082.42 | 1063 | 1038 | 199.0 |
| B | 10 | 16 | 379536 | 1901.58 | 1063 | 1038 | 199.0 |
| B | 15 | 204 | 110626 | 550.57 | 1063 | 1038 | 199.0 |
| C | 9 | 54 | 21688 | 87.0 | 1022 | 1027 | 237.5 |
| C | 9 | 204 | 13067 | 50.7 | 1022 | 1027 | 237.5 |
| C | 8 | 128 | 9710 | 36.56 | 1022 | 1027 | 237.5 |
| D | 10 | 253 | 1030390 | 4310.55 | 988 | 961 | 238.8 |
| D | 11 | 129 | 139390 | 579.65 | 988 | 961 | 238.8 |
| D | 2 | 14 | 84406 | 349.41 | 988 | 961 | 238.8 |

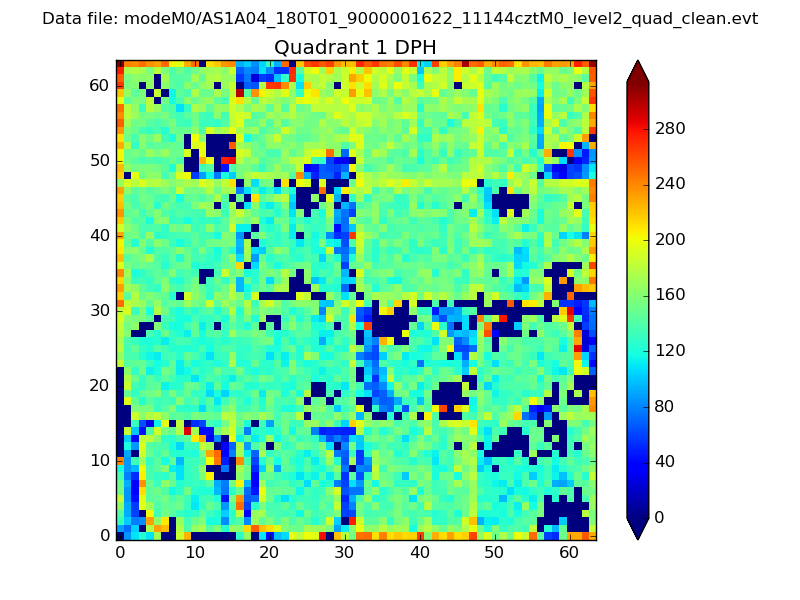

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

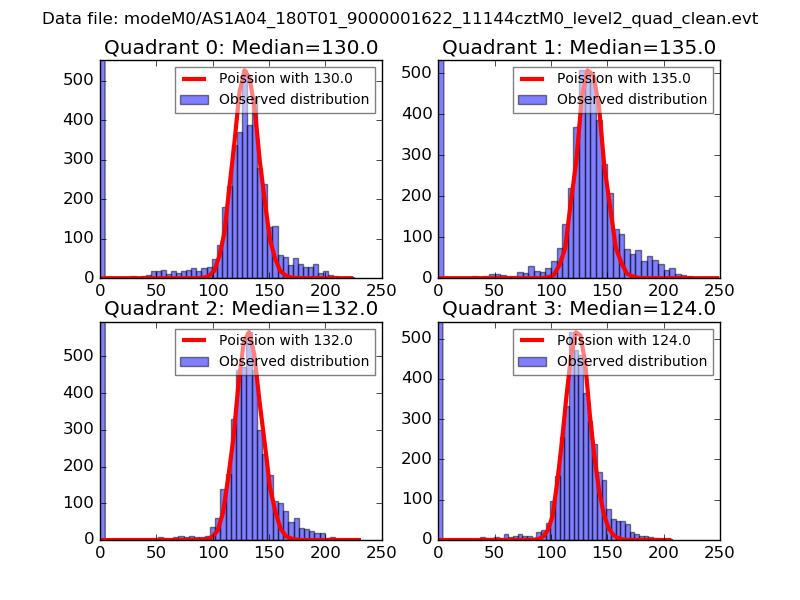

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

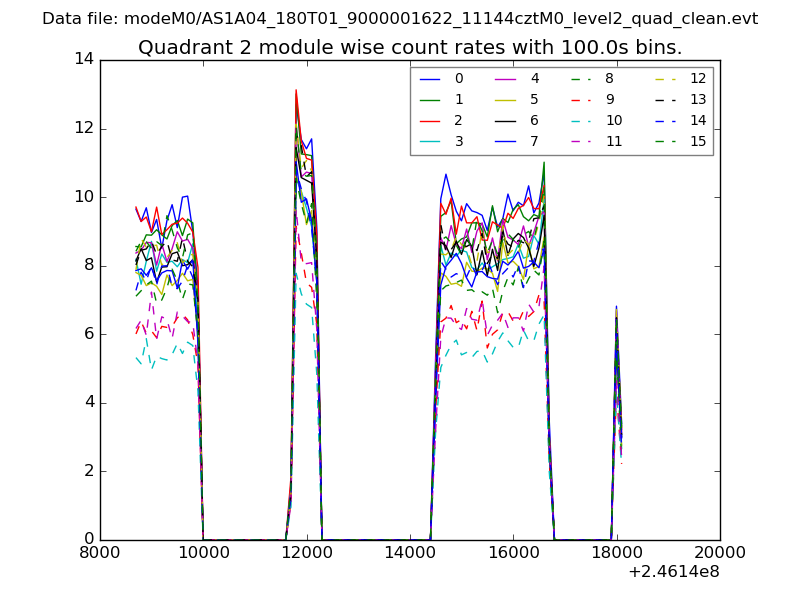

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

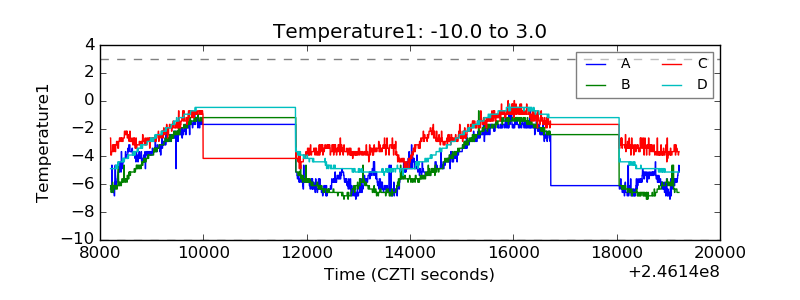

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

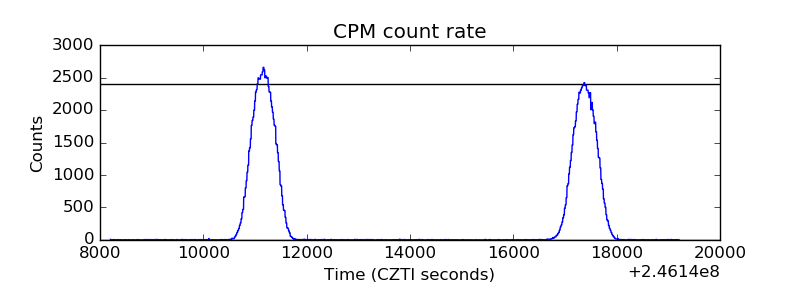

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

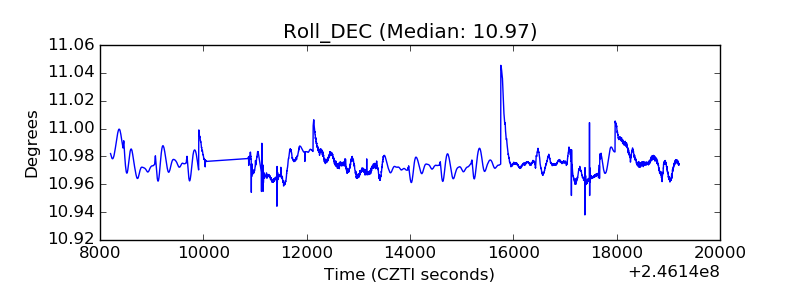

| _Roll_DEC |  |
| _Roll_RA |  |

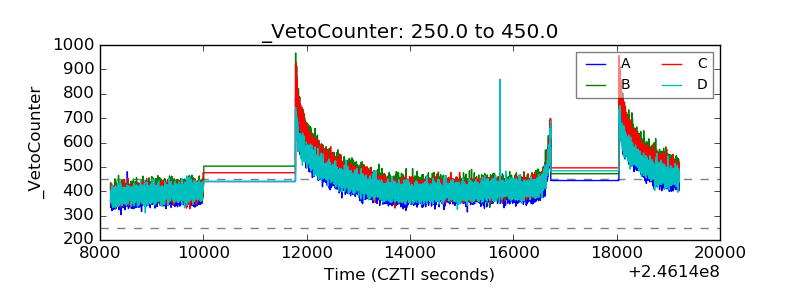

| Veto Counter |  |
