| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_058T01_9000001628_11157cztM0_level2.evt | modeM0/AS1A04_058T01_9000001628_11157cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,199,680 | 89,424,000 |
| Size | 518.0 MB | 85.3 MB |
| Events in quadrant A | 5,968,996 | 509,614 |
| Events in quadrant B | 3,410,945 | 605,978 |
| Events in quadrant C | 2,739,055 | 626,416 |
| Events in quadrant D | 3,938,123 | 559,723 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24312 | 2673 |
| B | 0 | 15960 | 1799 |
| C | 0 | 13198 | 987 |
| D | 0 | 17733 | 1991 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 14 |
| B | 0 | 130 | 12 |
| C | 0 | 130 | 6 |
| D | 0 | 130 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 1 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5717 | 1093 | 19.118419% |
| B | 5826 | 174 | 2.986612% |
| C | 5886 | 28 | 0.475705% |
| D | 5738 | 150 | 2.614151% |

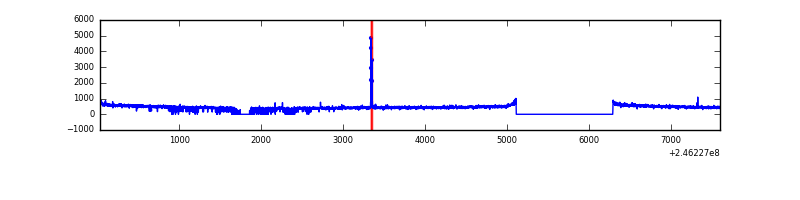

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7568 | 6004 | 713 | 713 | 9.42% | 11.88% |  |
| B | 7568 | 6065 | 70 | 70 | 0.92% | 1.15% |  |
| C | 7568 | 6121 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7568 | 6016 | 81 | 81 | 1.07% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 2551820 | 20493.91 | 609 | 596 | 124.5 |
| A | 8 | 15 | 571869 | 4589.02 | 609 | 596 | 124.5 |
| A | 8 | 5 | 474019 | 3802.99 | 609 | 596 | 124.5 |
| B | 4 | 239 | 499505 | 3860.81 | 692 | 674 | 129.2 |
| B | 15 | 204 | 67368 | 516.19 | 692 | 674 | 129.2 |
| B | 0 | 219 | 49961 | 381.47 | 692 | 674 | 129.2 |
| C | 5 | 128 | 26165 | 159.3 | 693 | 693 | 159.9 |
| C | 13 | 61 | 5213 | 28.27 | 693 | 693 | 159.9 |
| C | 9 | 204 | 4952 | 26.63 | 693 | 693 | 159.9 |
| D | 10 | 199 | 449302 | 2856.58 | 657 | 638 | 157.1 |
| D | 2 | 14 | 200900 | 1275.04 | 657 | 638 | 157.1 |
| D | 12 | 16 | 181445 | 1151.17 | 657 | 638 | 157.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

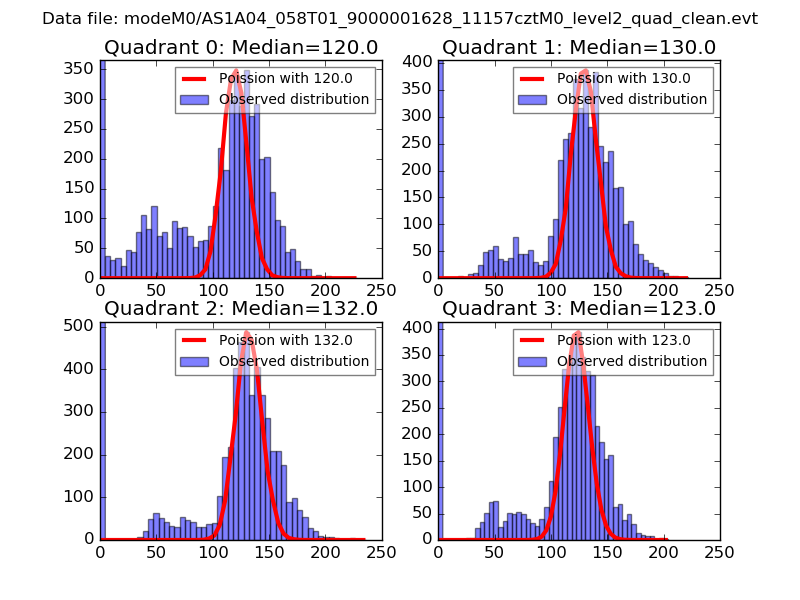

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

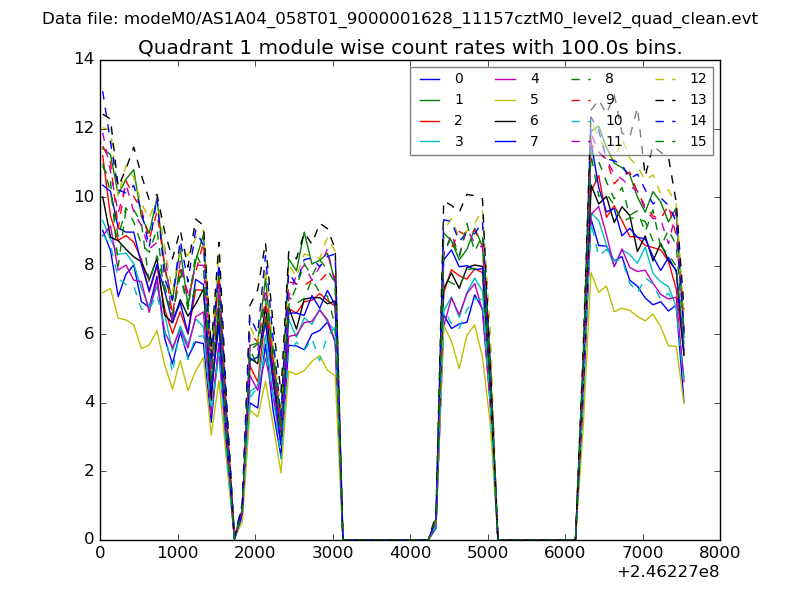

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

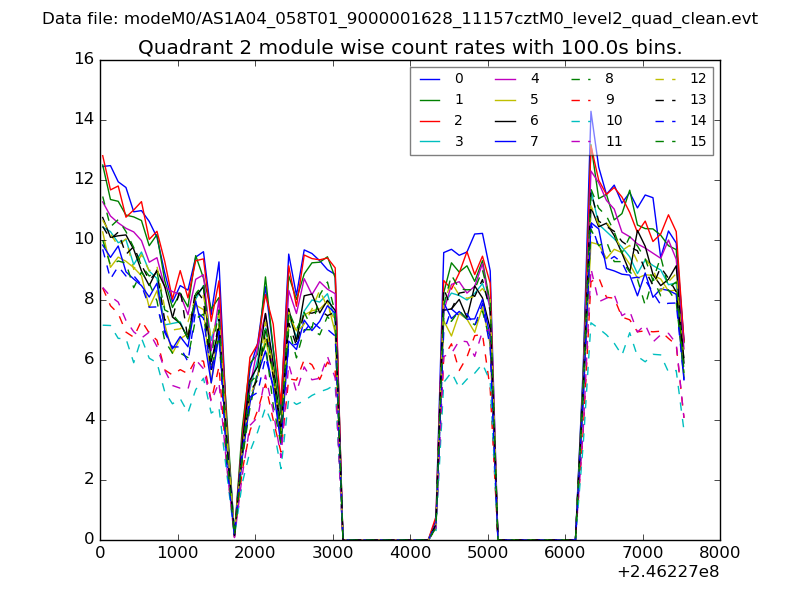

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

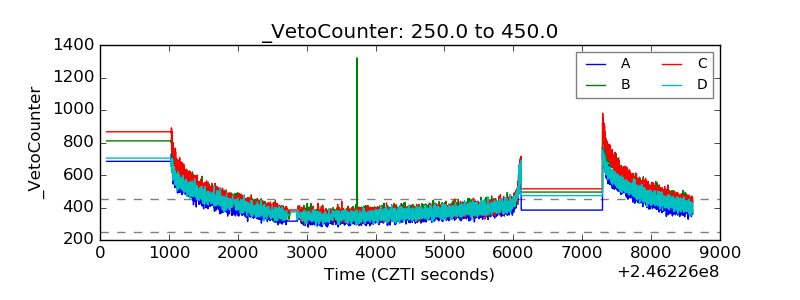

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

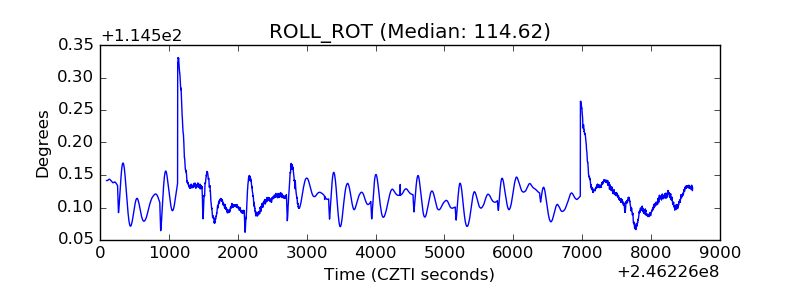

| _ROLL_ROT |  |

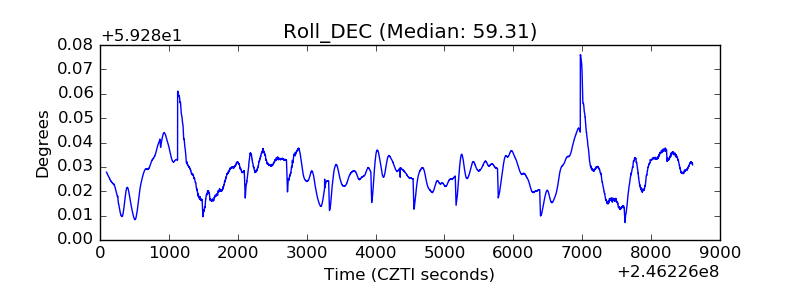

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
