| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_058T01_9000001628_11158cztM0_level2.evt | modeM0/AS1A04_058T01_9000001628_11158cztM0_level2_quad_clean.evt |
| Size (bytes) | 390,968,640 | 67,446,720 |
| Size | 372.9 MB | 64.3 MB |
| Events in quadrant A | 3,561,560 | 408,053 |
| Events in quadrant B | 2,752,803 | 441,613 |
| Events in quadrant C | 2,091,666 | 454,284 |
| Events in quadrant D | 3,117,031 | 410,189 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16476 | 2803 |
| B | 0 | 13310 | 2022 |
| C | 0 | 10925 | 1366 |
| D | 0 | 14890 | 2257 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 105 | 11 |
| B | 0 | 106 | 8 |
| C | 0 | 108 | 12 |
| D | 0 | 104 | 10 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 3 |
| B | 0 | 18 | 8 |
| C | 0 | 18 | 10 |
| D | 0 | 19 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4631 | 304 | 6.564457% |
| B | 4683 | 140 | 2.989537% |
| C | 4710 | 7 | 0.148620% |
| D | 4644 | 85 | 1.830319% |

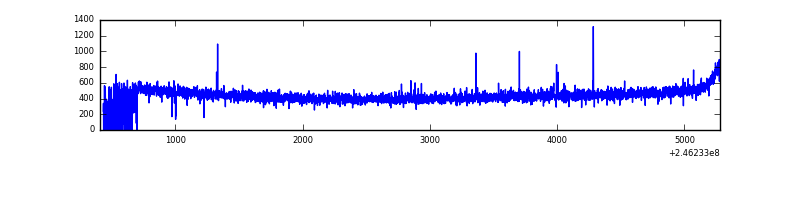

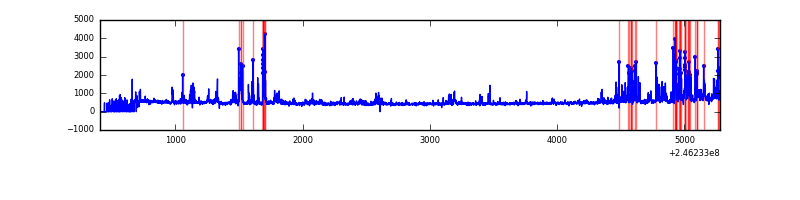

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4843 | 4680 | 213 | 213 | 4.40% | 4.55% |  |
| B | 4873 | 4741 | 56 | 56 | 1.15% | 1.18% |  |
| C | 4846 | 4773 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4864 | 4695 | 65 | 65 | 1.34% | 1.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1165745 | 11085.44 | 517 | 506 | 105.1 |
| A | 14 | 238 | 147118 | 1394.79 | 517 | 506 | 105.1 |
| A | 8 | 15 | 137554 | 1303.8 | 517 | 506 | 105.1 |
| B | 4 | 239 | 429228 | 4209.87 | 538 | 525 | 101.8 |
| B | 15 | 204 | 80026 | 780.7 | 538 | 525 | 101.8 |
| B | 0 | 214 | 49075 | 476.76 | 538 | 525 | 101.8 |
| C | 12 | 4 | 5099 | 36.87 | 533 | 535 | 123.8 |
| C | 9 | 204 | 4657 | 33.3 | 533 | 535 | 123.8 |
| C | 13 | 61 | 4072 | 28.58 | 533 | 535 | 123.8 |
| D | 10 | 157 | 253104 | 1942.43 | 505 | 493 | 130.0 |
| D | 8 | 195 | 200569 | 1538.47 | 505 | 493 | 130.0 |
| D | 1 | 52 | 190757 | 1463.02 | 505 | 493 | 130.0 |

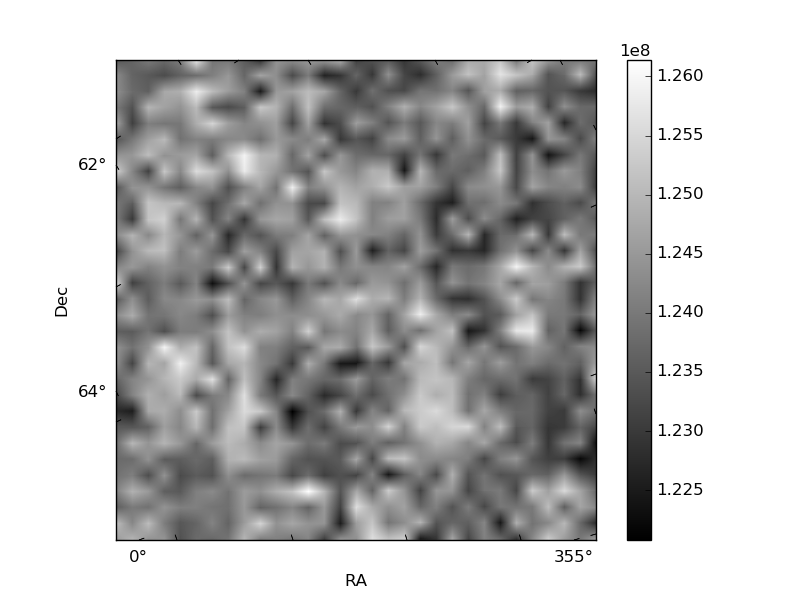

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

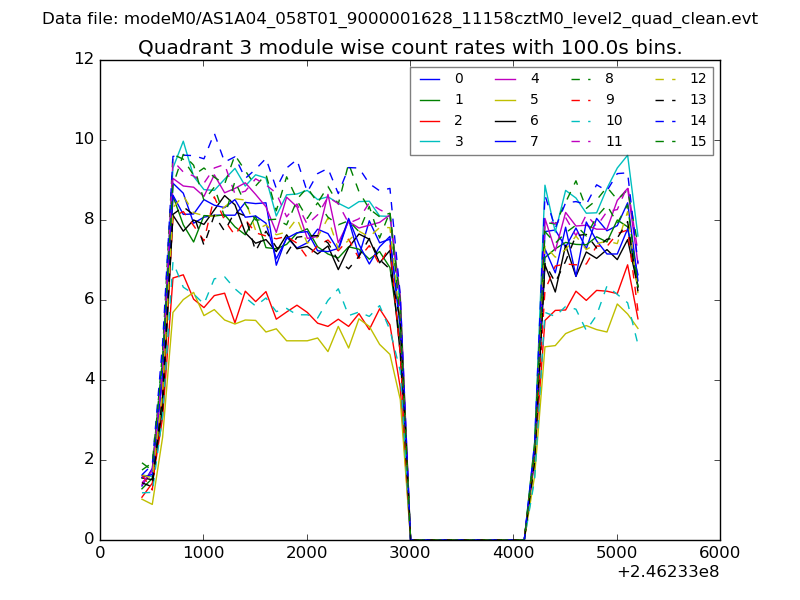

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

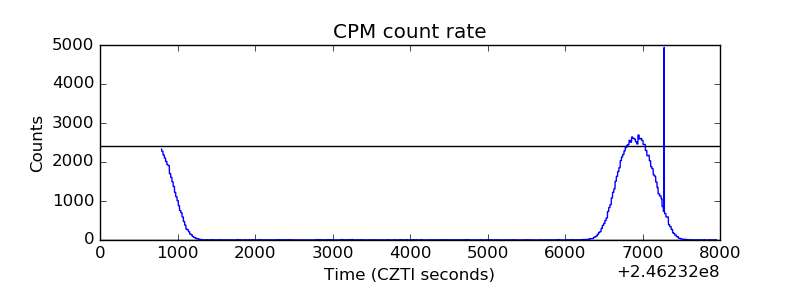

| _CPM_Rate |  |

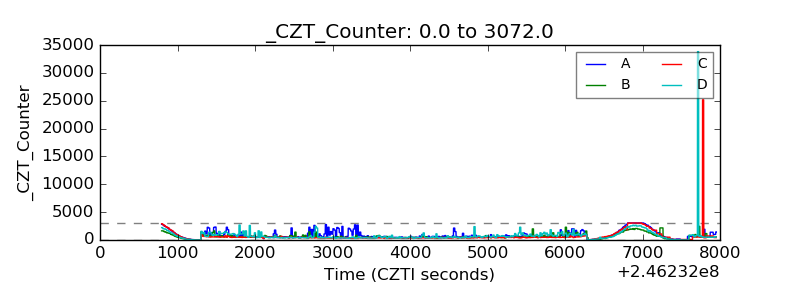

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

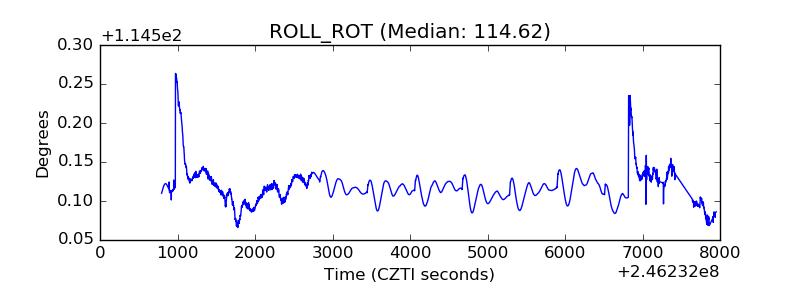

| _ROLL_ROT |  |
| _Roll_DEC |  |

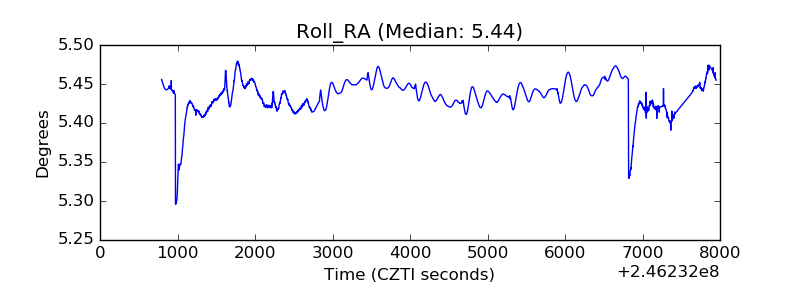

| _Roll_RA |  |
| Veto Counter |  |
