| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_058T01_9000001628_11163cztM0_level2.evt | modeM0/AS1A04_058T01_9000001628_11163cztM0_level2_quad_clean.evt |
| Size (bytes) | 373,109,760 | 52,799,040 |
| Size | 355.8 MB | 50.4 MB |
| Events in quadrant A | 3,638,244 | 307,744 |
| Events in quadrant B | 2,553,623 | 340,445 |
| Events in quadrant C | 1,800,562 | 346,061 |
| Events in quadrant D | 3,022,840 | 309,777 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13744 | 34 |
| B | 0 | 10375 | 1 |
| C | 0 | 8520 | 3 |
| D | 0 | 12001 | 11 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 0 |
| C | 0 | 86 | 0 |
| D | 0 | 86 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4167 | 638 | 15.310775% |
| B | 4173 | 202 | 4.840642% |
| C | 4172 | 58 | 1.390221% |
| D | 4170 | 324 | 7.769784% |

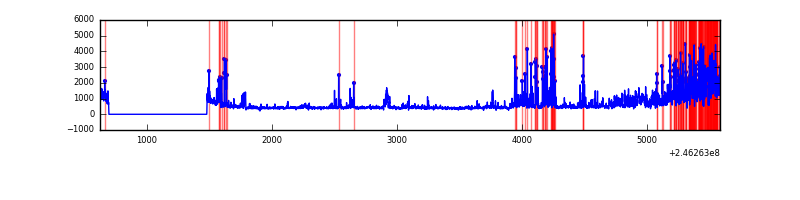

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4958 | 4173 | 357 | 357 | 7.20% | 8.55% |  |
| B | 4958 | 4174 | 67 | 67 | 1.35% | 1.61% |  |
| C | 4958 | 4174 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4958 | 4174 | 203 | 203 | 4.09% | 4.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1344658 | 14538.05 | 448 | 438 | 92.5 |
| A | 8 | 15 | 272060 | 2937.65 | 448 | 438 | 92.5 |
| A | 8 | 5 | 255424 | 2757.73 | 448 | 438 | 92.5 |
| B | 4 | 239 | 479670 | 5379.38 | 469 | 457 | 89.1 |
| B | 4 | 80 | 103640 | 1158.27 | 469 | 457 | 89.1 |
| B | 0 | 214 | 31497 | 348.44 | 469 | 457 | 89.1 |
| C | 12 | 4 | 5683 | 48.75 | 459 | 460 | 107.1 |
| C | 13 | 61 | 3470 | 28.1 | 459 | 460 | 107.1 |
| C | 14 | 234 | 2205 | 16.29 | 459 | 460 | 107.1 |
| D | 12 | 16 | 680665 | 6354.97 | 443 | 429 | 107.0 |
| D | 10 | 157 | 335549 | 3130.79 | 443 | 429 | 107.0 |
| D | 1 | 52 | 121467 | 1130.77 | 443 | 429 | 107.0 |

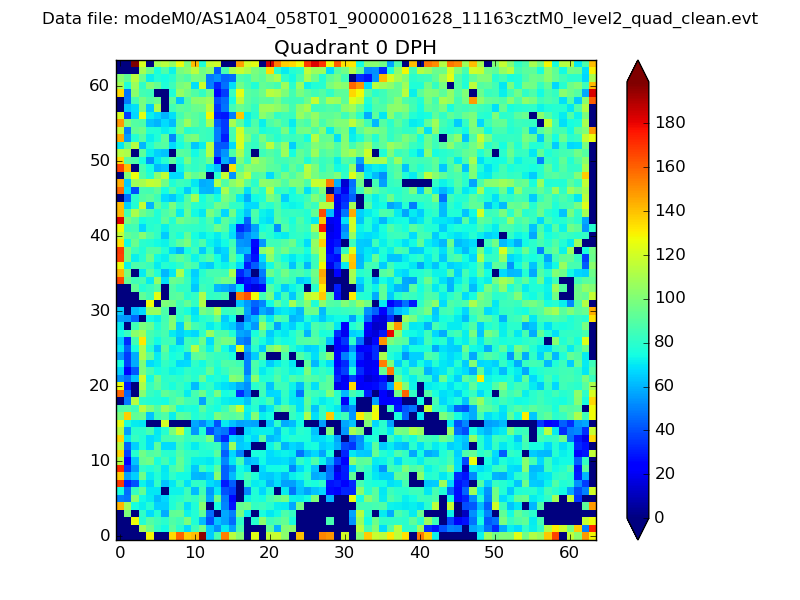

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

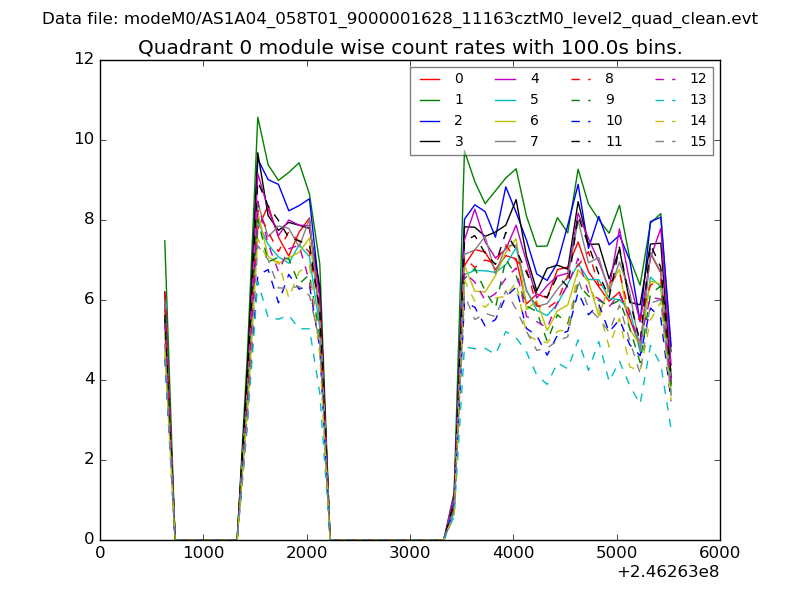

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

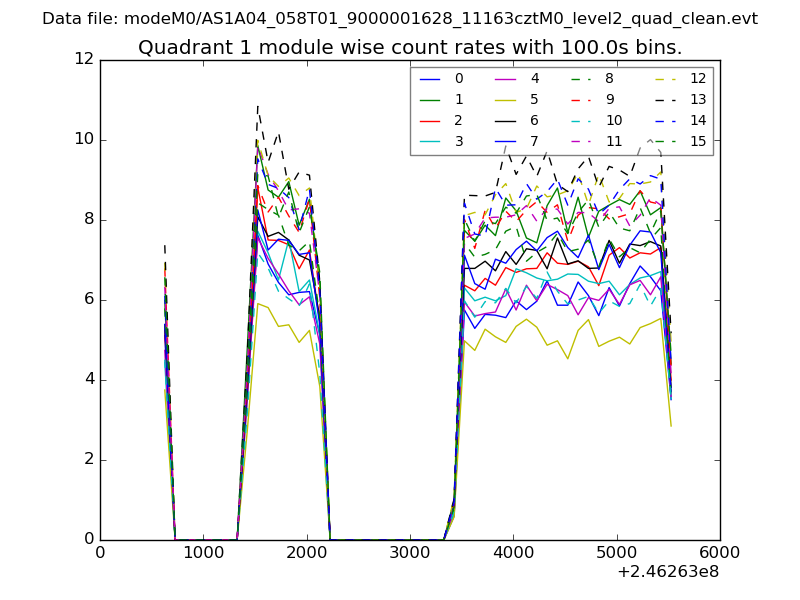

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

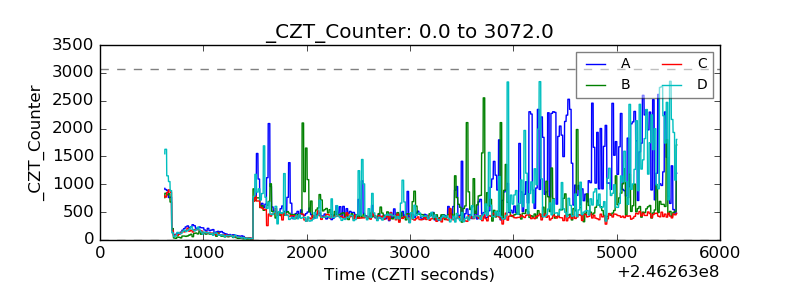

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

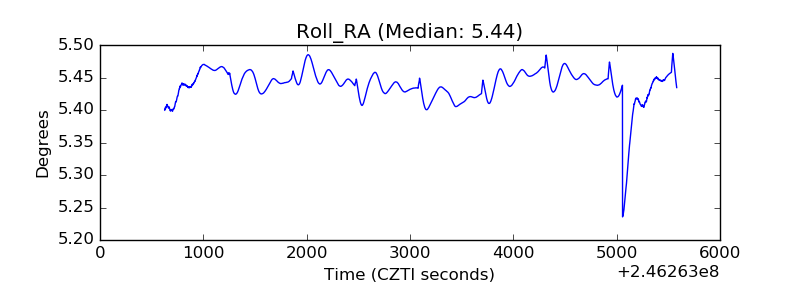

| _Roll_RA |  |

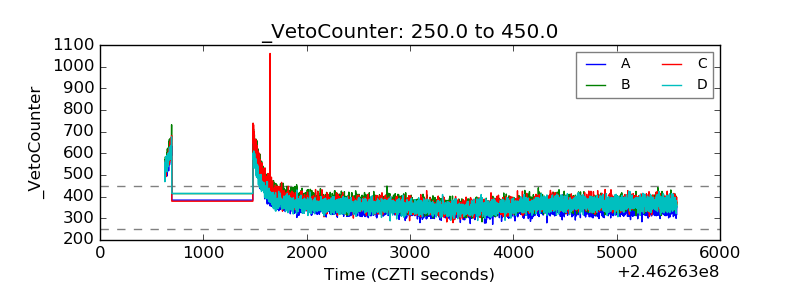

| Veto Counter |  |
