| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_171T01_9000001634_11187cztM0_level2.evt | modeM0/AS1A04_171T01_9000001634_11187cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,018,560 | 91,408,320 |
| Size | 487.3 MB | 87.2 MB |
| Events in quadrant A | 3,521,164 | 585,198 |
| Events in quadrant B | 3,959,711 | 601,455 |
| Events in quadrant C | 2,978,867 | 594,708 |
| Events in quadrant D | 4,579,425 | 537,125 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14504 | 3 |
| B | 0 | 15977 | 2 |
| C | 0 | 13126 | 2 |
| D | 0 | 17882 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6447 | 78 | 1.209865% |
| B | 6447 | 221 | 3.427951% |
| C | 6447 | 5 | 0.077555% |
| D | 6447 | 245 | 3.800217% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

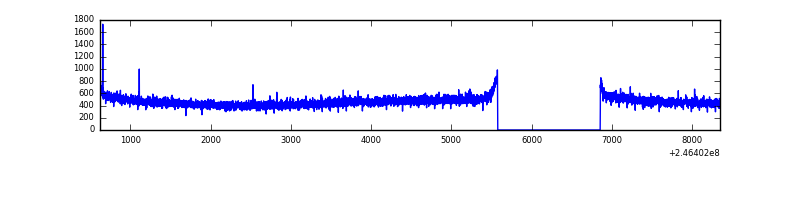

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7727 | 6448 | 35 | 35 | 0.45% | 0.54% |  |
| B | 7727 | 6448 | 119 | 119 | 1.54% | 1.85% |  |
| C | 7727 | 6448 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7727 | 6448 | 215 | 215 | 2.78% | 3.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 255534 | 1637.95 | 773 | 758 | 155.5 |
| A | 8 | 15 | 155103 | 992.28 | 773 | 758 | 155.5 |
| A | 14 | 238 | 98690 | 629.6 | 773 | 758 | 155.5 |
| B | 4 | 239 | 809833 | 5473.7 | 784 | 766 | 147.8 |
| B | 3 | 189 | 43304 | 287.79 | 784 | 766 | 147.8 |
| B | 0 | 229 | 18099 | 117.27 | 784 | 766 | 147.8 |
| C | 13 | 61 | 5711 | 28.01 | 763 | 769 | 176.4 |
| C | 5 | 128 | 2964 | 12.44 | 763 | 769 | 176.4 |
| C | 0 | 10 | 2533 | 10.0 | 763 | 769 | 176.4 |
| D | 2 | 14 | 865076 | 4924.85 | 733 | 715 | 175.5 |
| D | 10 | 157 | 591747 | 3367.51 | 733 | 715 | 175.5 |
| D | 1 | 52 | 138786 | 786.68 | 733 | 715 | 175.5 |

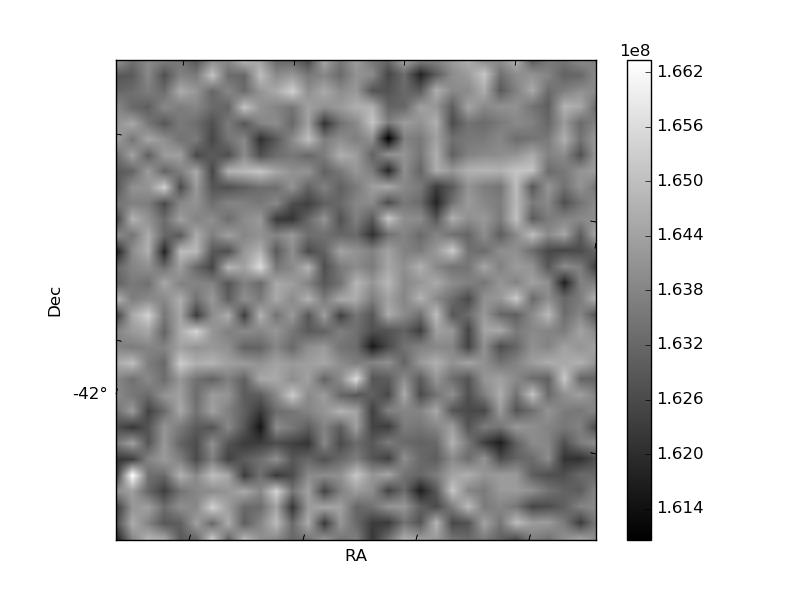

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

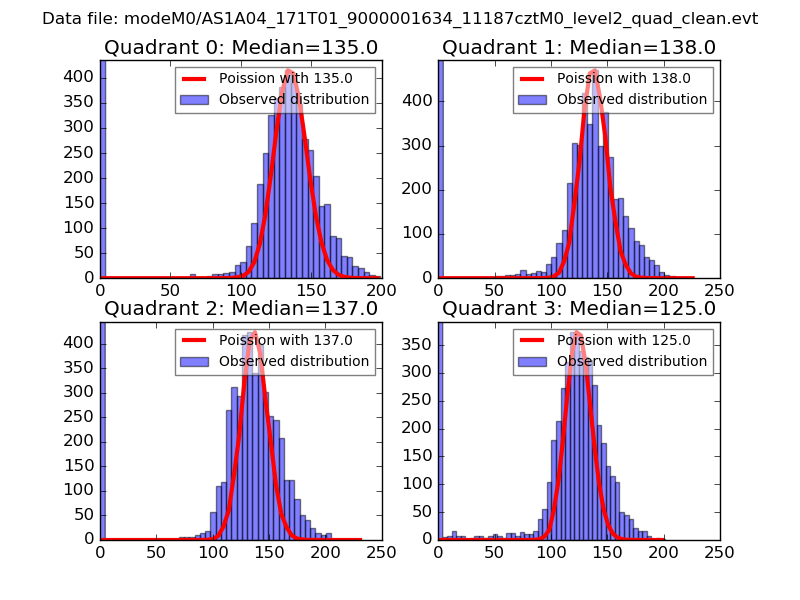

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

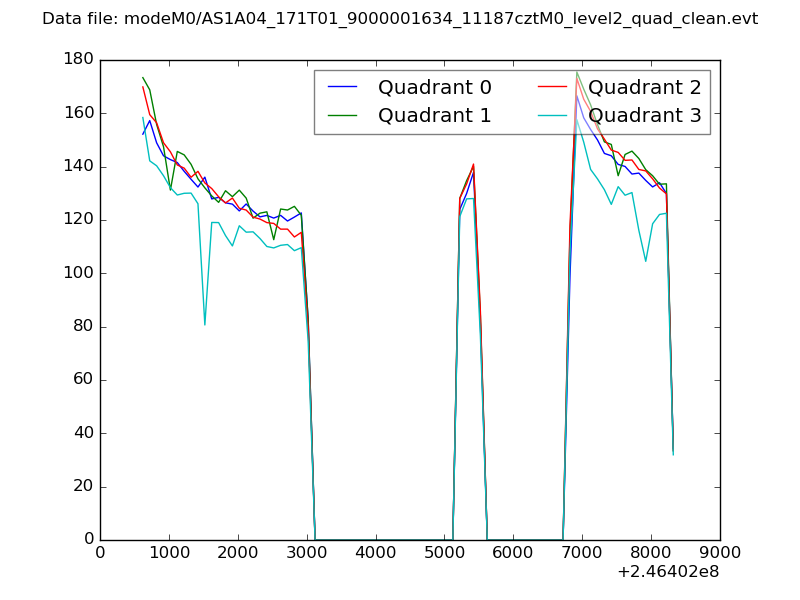

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

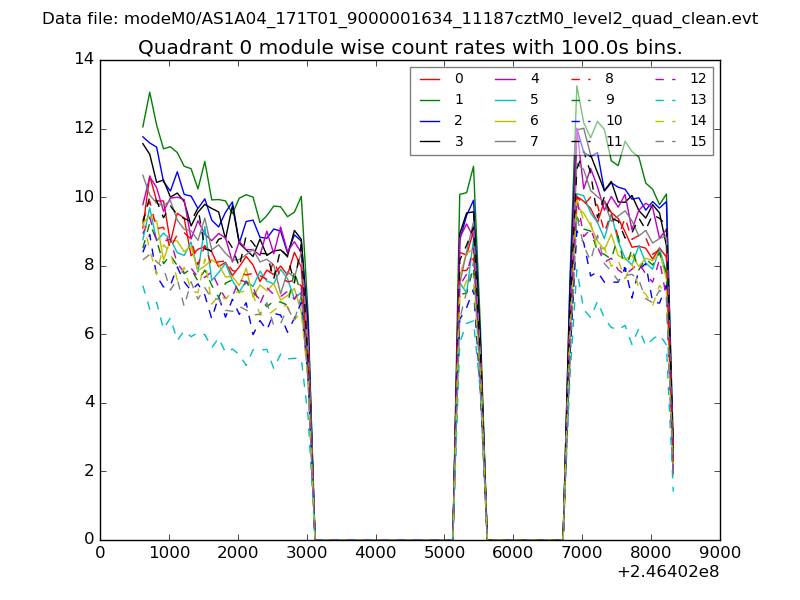

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

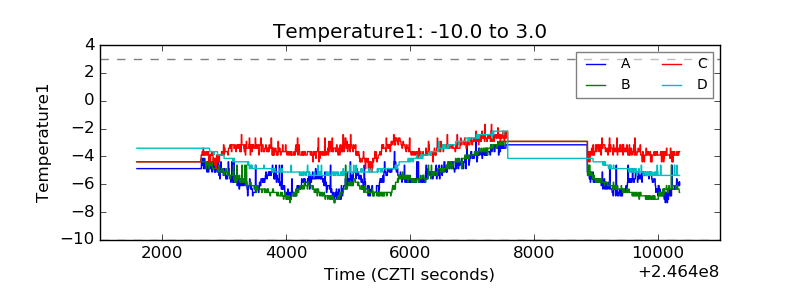

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

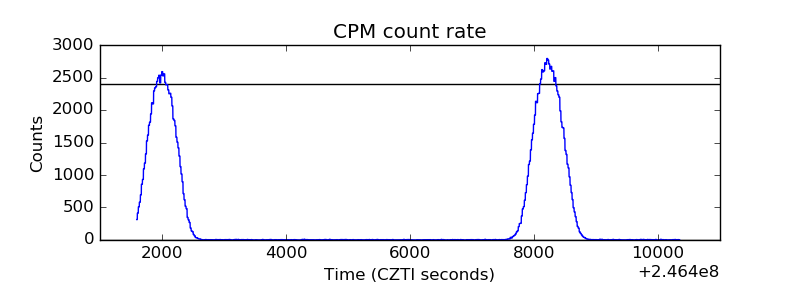

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

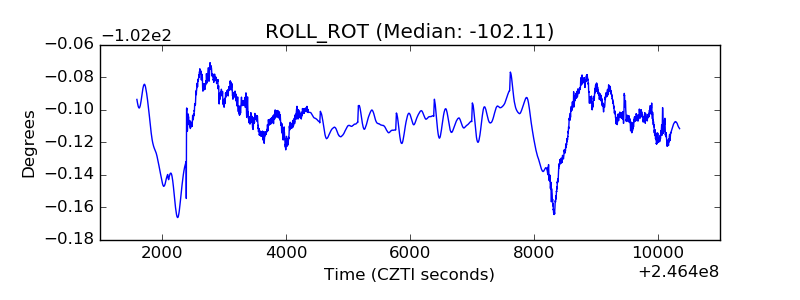

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
