| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_171T01_9000001634_11208cztM0_level2.evt | modeM0/AS1A04_171T01_9000001634_11208cztM0_level2_quad_clean.evt |
| Size (bytes) | 711,164,160 | 86,057,280 |
| Size | 678.2 MB | 82.1 MB |
| Events in quadrant A | 5,283,318 | 508,297 |
| Events in quadrant B | 5,161,530 | 514,808 |
| Events in quadrant C | 4,081,146 | 518,588 |
| Events in quadrant D | 6,451,370 | 489,155 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 4 |
| B | 0 | 170 | 4 |
| C | 0 | 170 | 2 |
| D | 0 | 170 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21585 | 449 |
| B | 0 | 21144 | 389 |
| C | 0 | 18417 | 338 |
| D | 0 | 25472 | 783 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8265 | 697 | 8.433152% |
| B | 8271 | 921 | 11.135292% |
| C | 8272 | 553 | 6.685203% |
| D | 8255 | 1108 | 13.422168% |

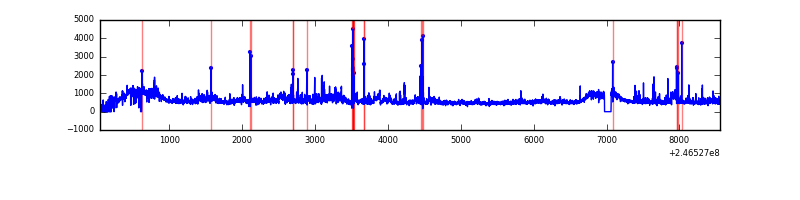

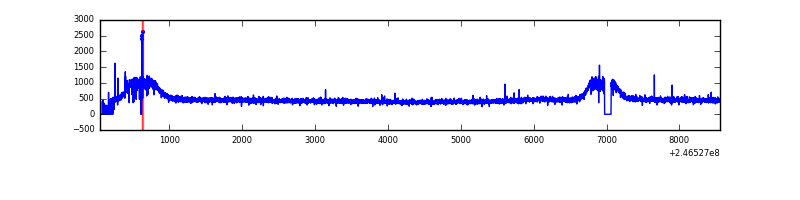

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8480 | 8314 | 26 | 26 | 0.31% | 0.31% |  |
| B | 8486 | 8318 | 144 | 144 | 1.70% | 1.73% |  |
| C | 8506 | 8310 | 3 | 3 | 0.04% | 0.04% |  |
| D | 8472 | 8289 | 416 | 416 | 4.91% | 5.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 906736 | 4166.77 | 1038 | 1010 | 217.4 |
| A | 8 | 5 | 276423 | 1267.03 | 1038 | 1010 | 217.4 |
| A | 1 | 162 | 36947 | 165.33 | 1038 | 1010 | 217.4 |
| B | 4 | 239 | 923820 | 4450.57 | 1036 | 1007 | 207.3 |
| B | 15 | 204 | 62377 | 295.98 | 1036 | 1007 | 207.3 |
| B | 4 | 80 | 49432 | 233.55 | 1036 | 1007 | 207.3 |
| C | 5 | 128 | 13926 | 52.59 | 1035 | 1039 | 245.1 |
| C | 8 | 128 | 11568 | 42.97 | 1035 | 1039 | 245.1 |
| C | 13 | 61 | 7669 | 27.05 | 1035 | 1039 | 245.1 |
| D | 2 | 14 | 1214289 | 4971.3 | 1001 | 969 | 244.1 |
| D | 1 | 52 | 858343 | 3512.89 | 1001 | 969 | 244.1 |
| D | 13 | 152 | 296788 | 1212.05 | 1001 | 969 | 244.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

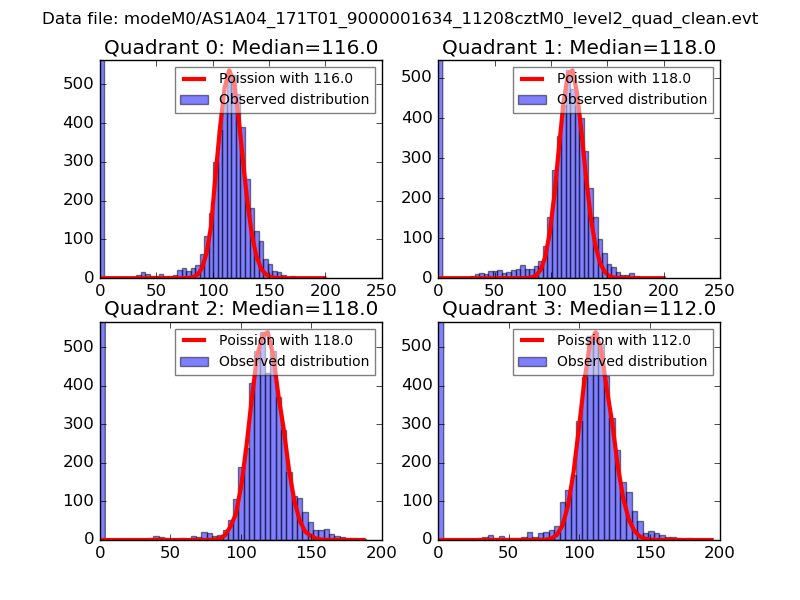

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

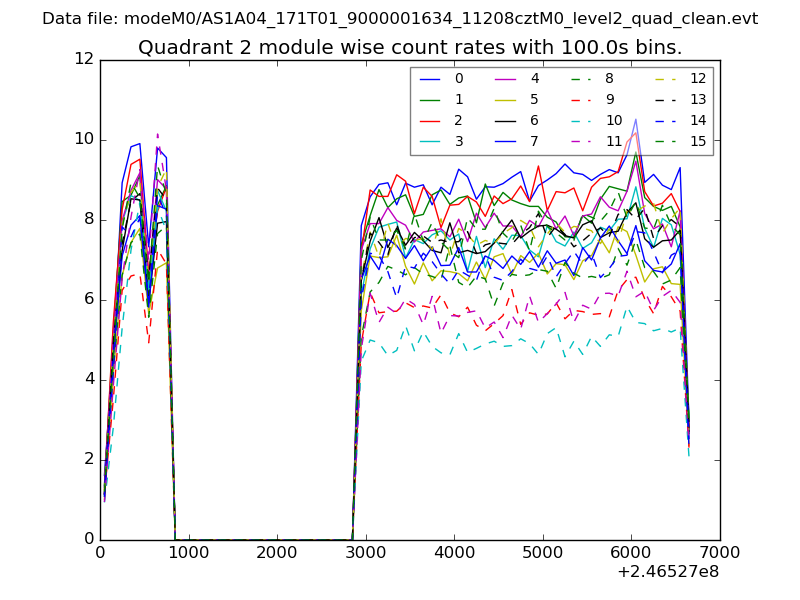

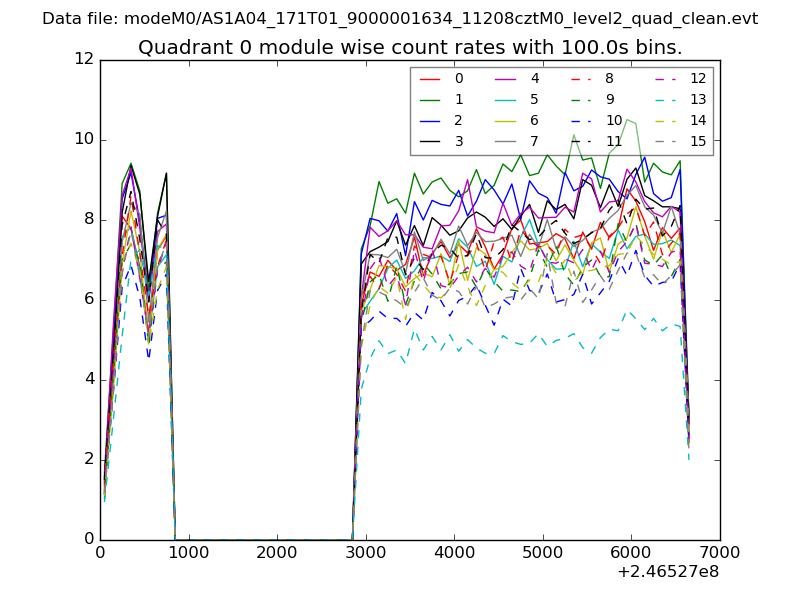

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

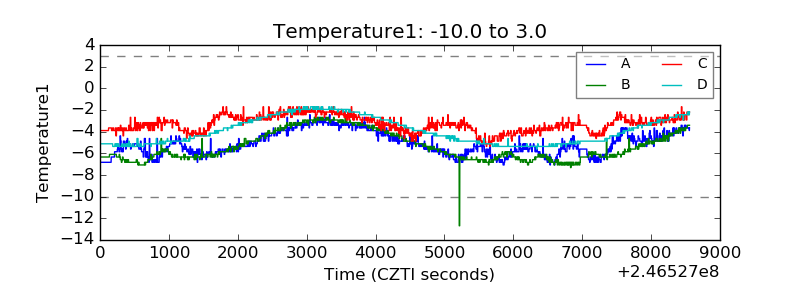

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

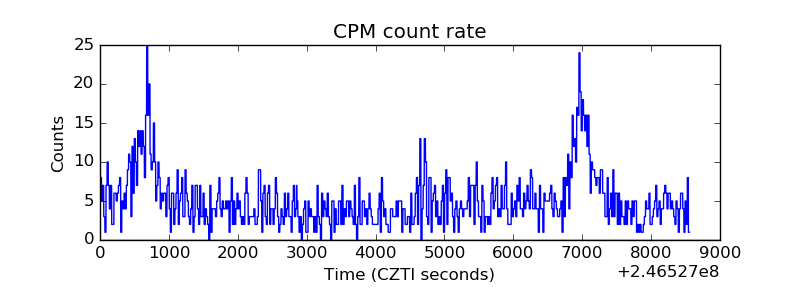

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

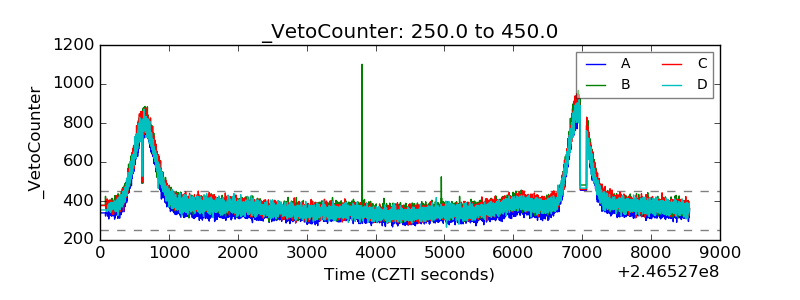

| Veto Counter |  |
