| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_200T01_9000001638_11223cztM0_level2.evt | modeM0/AS1T01_200T01_9000001638_11223cztM0_level2_quad_clean.evt |
| Size (bytes) | 782,925,120 | 120,936,960 |
| Size | 746.7 MB | 115.3 MB |
| Events in quadrant A | 10,337,369 | 677,049 |
| Events in quadrant B | 3,816,407 | 853,715 |
| Events in quadrant C | 3,611,568 | 834,373 |
| Events in quadrant D | 5,456,625 | 792,599 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35724 | 2 |
| B | 0 | 16080 | 1 |
| C | 0 | 16016 | 1 |
| D | 0 | 21014 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7238 | 2583 | 35.686654% |
| B | 7238 | 178 | 2.459243% |
| C | 7238 | 253 | 3.495441% |
| D | 7238 | 282 | 3.896104% |

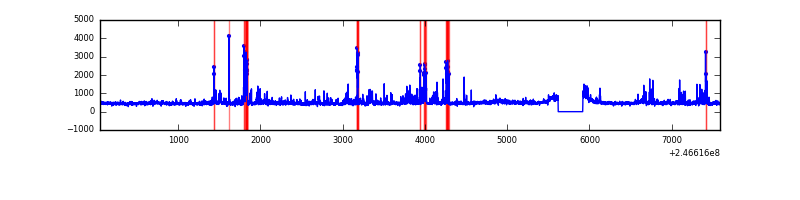

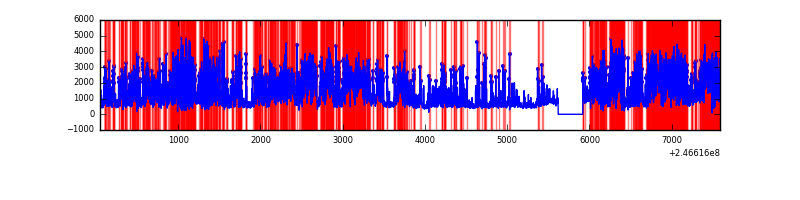

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7538 | 7239 | 1833 | 1833 | 24.32% | 25.32% |  |
| B | 7538 | 7239 | 46 | 46 | 0.61% | 0.64% |  |
| C | 7538 | 7239 | 113 | 113 | 1.50% | 1.56% |  |
| D | 7538 | 7239 | 191 | 191 | 2.53% | 2.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 3886372 | 27338.01 | 692 | 676 | 142.1 |
| A | 8 | 5 | 3607342 | 25374.88 | 692 | 676 | 142.1 |
| A | 15 | 174 | 94470 | 659.89 | 692 | 676 | 142.1 |
| B | 4 | 239 | 384958 | 2442.18 | 820 | 798 | 157.3 |
| B | 3 | 189 | 81300 | 511.77 | 820 | 798 | 157.3 |
| B | 15 | 204 | 78488 | 493.89 | 820 | 798 | 157.3 |
| C | 4 | 254 | 540725 | 2978.19 | 784 | 786 | 181.3 |
| C | 14 | 234 | 6728 | 32.77 | 784 | 786 | 181.3 |
| C | 13 | 61 | 5900 | 28.21 | 784 | 786 | 181.3 |
| D | 1 | 52 | 1167580 | 6204.59 | 787 | 763 | 188.1 |
| D | 8 | 195 | 488559 | 2593.87 | 787 | 763 | 188.1 |
| D | 14 | 34 | 296409 | 1572.11 | 787 | 763 | 188.1 |

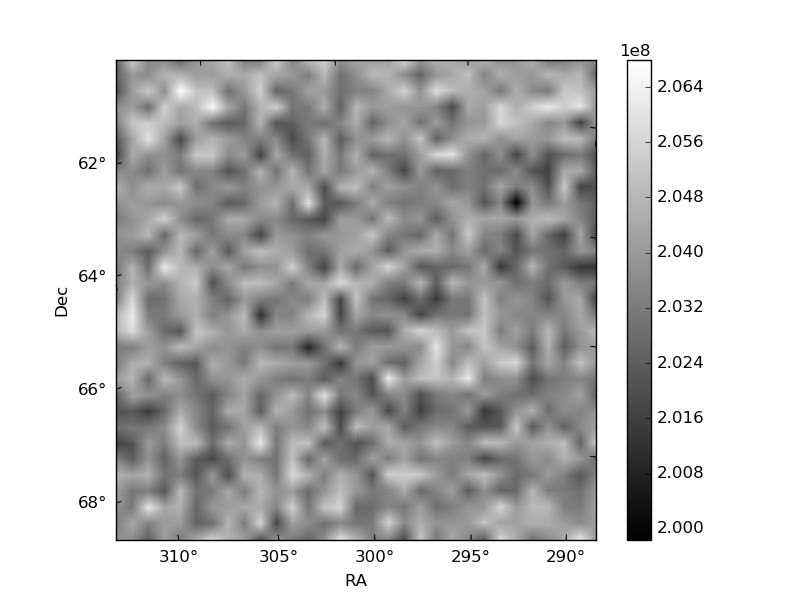

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

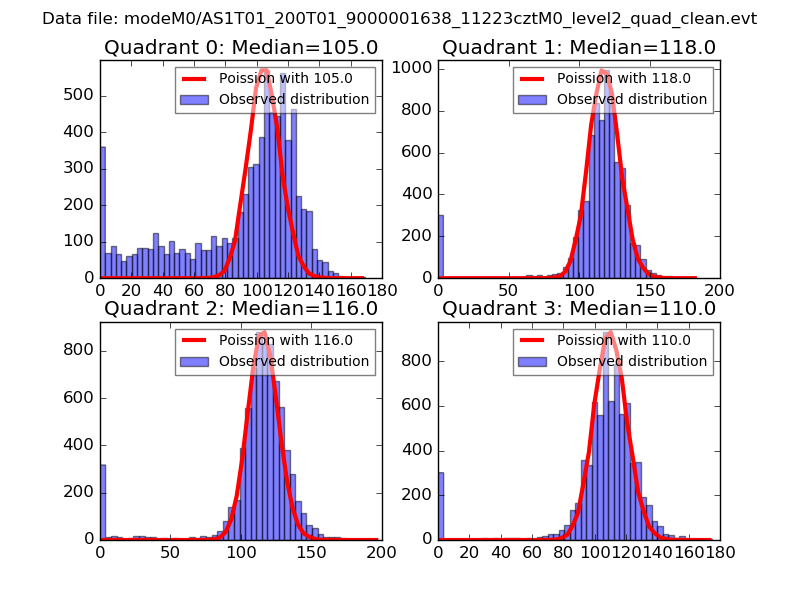

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

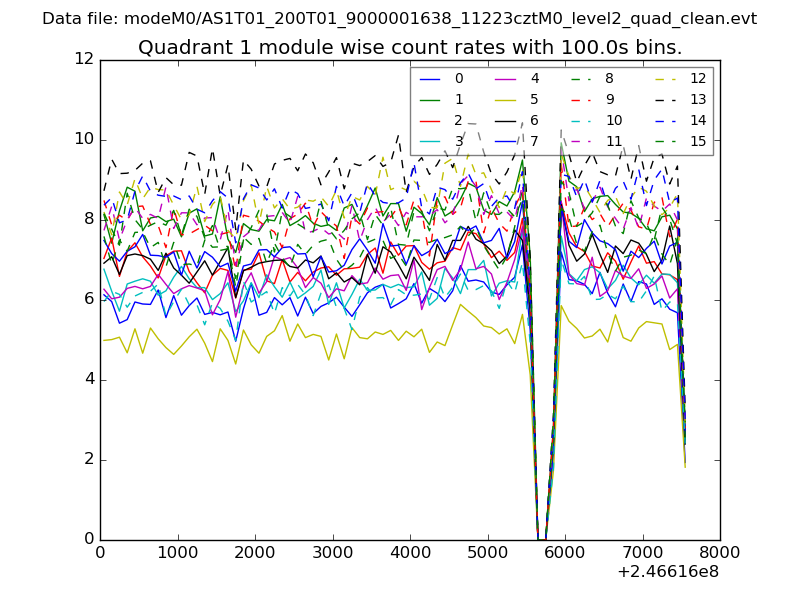

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

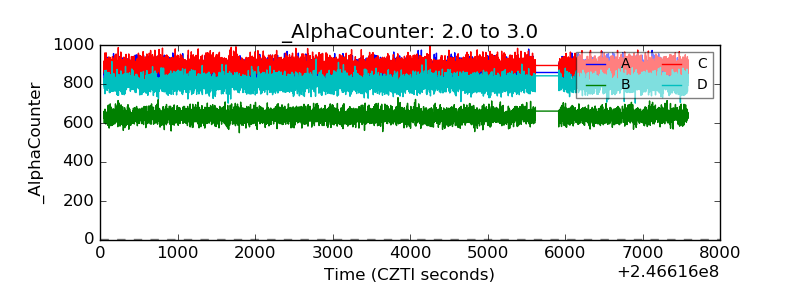

| Alpha Counter |  |

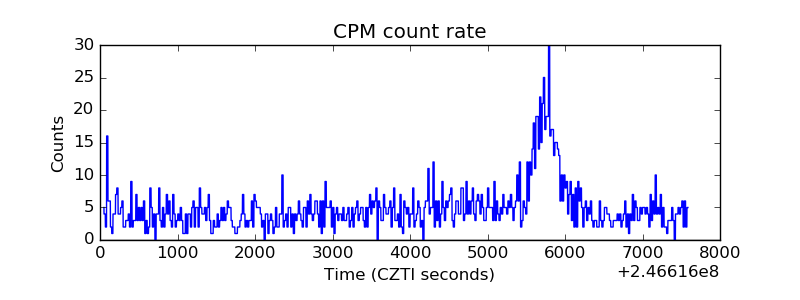

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

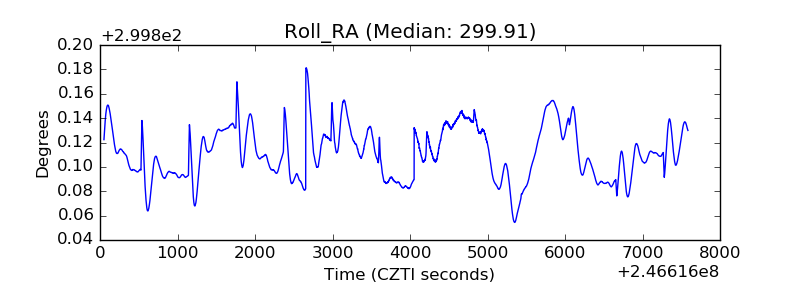

| _Roll_RA |  |
| Veto Counter |  |
