| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_200T01_9000001638_11234cztM0_level2.evt | modeM0/AS1T01_200T01_9000001638_11234cztM0_level2_quad_clean.evt |
| Size (bytes) | 648,936,000 | 124,689,600 |
| Size | 618.9 MB | 118.9 MB |
| Events in quadrant A | 6,492,663 | 798,427 |
| Events in quadrant B | 3,675,538 | 851,543 |
| Events in quadrant C | 3,961,407 | 849,759 |
| Events in quadrant D | 5,053,105 | 792,078 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24239 | 3 |
| B | 0 | 15723 | 2 |
| C | 0 | 16772 | 2 |
| D | 0 | 19630 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6956 | 632 | 9.085681% |
| B | 6956 | 212 | 3.047729% |
| C | 6956 | 288 | 4.140311% |
| D | 6956 | 386 | 5.549166% |

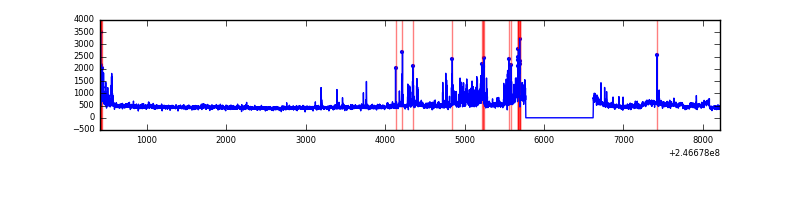

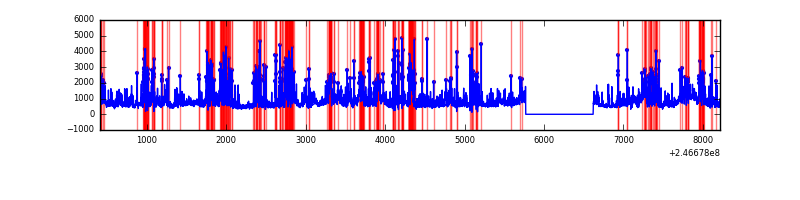

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7806 | 6957 | 417 | 417 | 5.34% | 5.99% |  |
| B | 7806 | 6957 | 24 | 24 | 0.31% | 0.34% |  |
| C | 7806 | 6957 | 170 | 170 | 2.18% | 2.44% |  |
| D | 7806 | 6957 | 264 | 264 | 3.38% | 3.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1529923 | 9902.6 | 767 | 749 | 154.4 |
| A | 14 | 238 | 1005810 | 6508.56 | 767 | 749 | 154.4 |
| A | 15 | 174 | 780891 | 5052.03 | 767 | 749 | 154.4 |
| B | 4 | 239 | 332532 | 2222.31 | 794 | 774 | 149.3 |
| B | 10 | 244 | 106212 | 706.29 | 794 | 774 | 149.3 |
| B | 15 | 204 | 62949 | 416.49 | 794 | 774 | 149.3 |
| C | 4 | 254 | 939107 | 5285.4 | 770 | 771 | 177.5 |
| C | 1 | 3 | 12389 | 65.44 | 770 | 771 | 177.5 |
| C | 13 | 61 | 5737 | 27.97 | 770 | 771 | 177.5 |
| D | 8 | 195 | 775710 | 4332.77 | 749 | 729 | 178.9 |
| D | 1 | 52 | 569777 | 3181.44 | 749 | 729 | 178.9 |
| D | 10 | 253 | 383492 | 2139.95 | 749 | 729 | 178.9 |

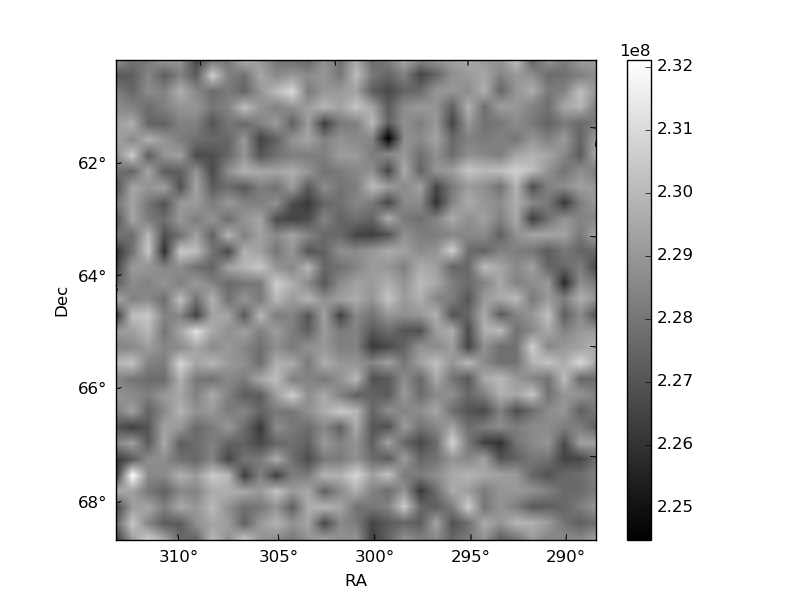

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

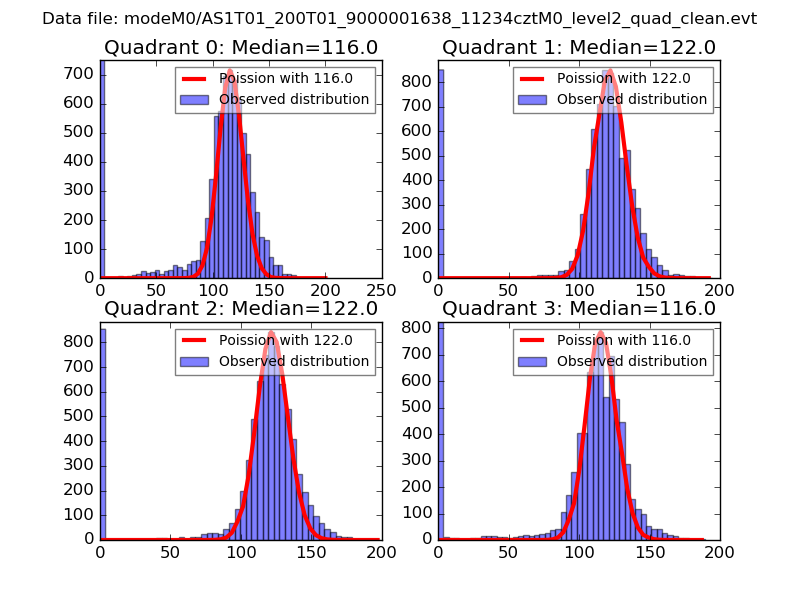

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

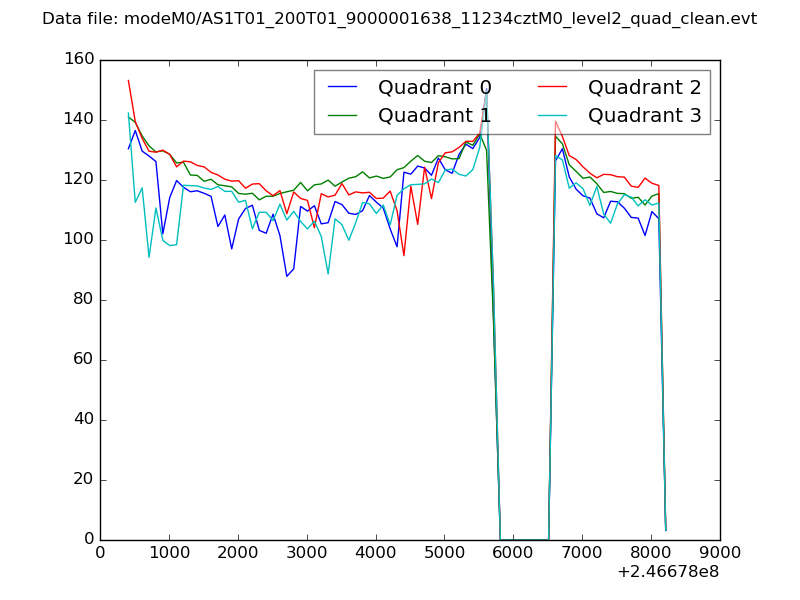

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

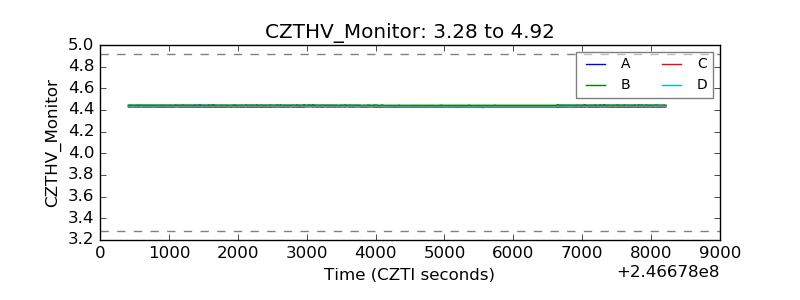

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

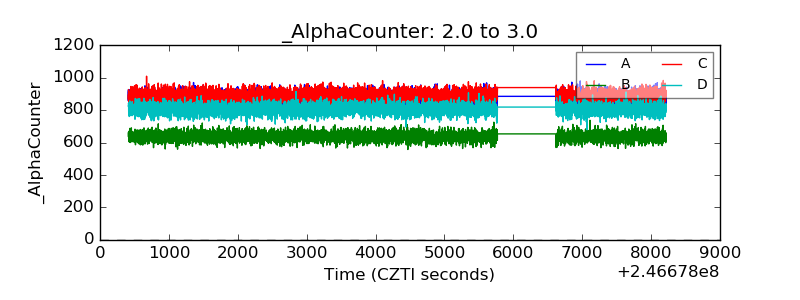

| Alpha Counter |  |

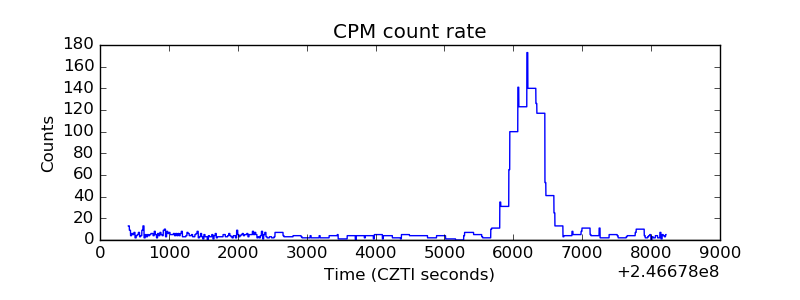

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
