| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_200T01_9000001638_11235cztM0_level2.evt | modeM0/AS1T01_200T01_9000001638_11235cztM0_level2_quad_clean.evt |
| Size (bytes) | 648,927,360 | 126,552,960 |
| Size | 618.9 MB | 120.7 MB |
| Events in quadrant A | 5,772,628 | 819,680 |
| Events in quadrant B | 4,817,929 | 846,804 |
| Events in quadrant C | 3,515,903 | 863,268 |
| Events in quadrant D | 5,062,083 | 804,369 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22070 | 3 |
| B | 0 | 19170 | 2 |
| C | 0 | 15600 | 2 |
| D | 0 | 19940 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7159 | 405 | 5.657215% |
| B | 7159 | 232 | 3.240676% |
| C | 7159 | 98 | 1.368906% |
| D | 7159 | 274 | 3.827350% |

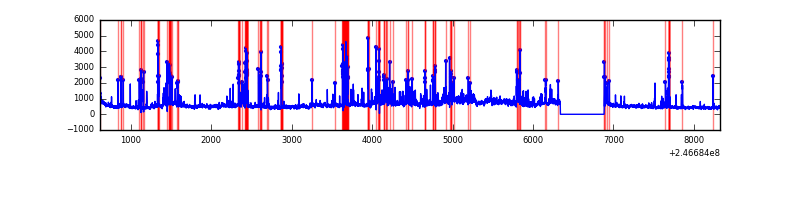

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7704 | 7160 | 230 | 230 | 2.99% | 3.21% |  |
| B | 7704 | 7160 | 67 | 67 | 0.87% | 0.94% |  |
| C | 7704 | 7160 | 50 | 50 | 0.65% | 0.70% |  |
| D | 7704 | 7160 | 189 | 189 | 2.45% | 2.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1407911 | 8748.3 | 791 | 775 | 160.8 |
| A | 15 | 174 | 768815 | 4774.98 | 791 | 775 | 160.8 |
| A | 14 | 238 | 403486 | 2503.69 | 791 | 775 | 160.8 |
| B | 10 | 244 | 1097486 | 7176.76 | 804 | 785 | 152.8 |
| B | 4 | 239 | 461812 | 3016.94 | 804 | 785 | 152.8 |
| B | 15 | 204 | 44761 | 287.78 | 804 | 785 | 152.8 |
| C | 4 | 254 | 428661 | 2337.08 | 789 | 791 | 183.1 |
| C | 13 | 61 | 5918 | 28.0 | 789 | 791 | 183.1 |
| C | 12 | 4 | 5486 | 25.64 | 789 | 791 | 183.1 |
| D | 8 | 195 | 846680 | 4553.68 | 769 | 746 | 185.8 |
| D | 4 | 95 | 325100 | 1746.0 | 769 | 746 | 185.8 |
| D | 1 | 52 | 226392 | 1214.66 | 769 | 746 | 185.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

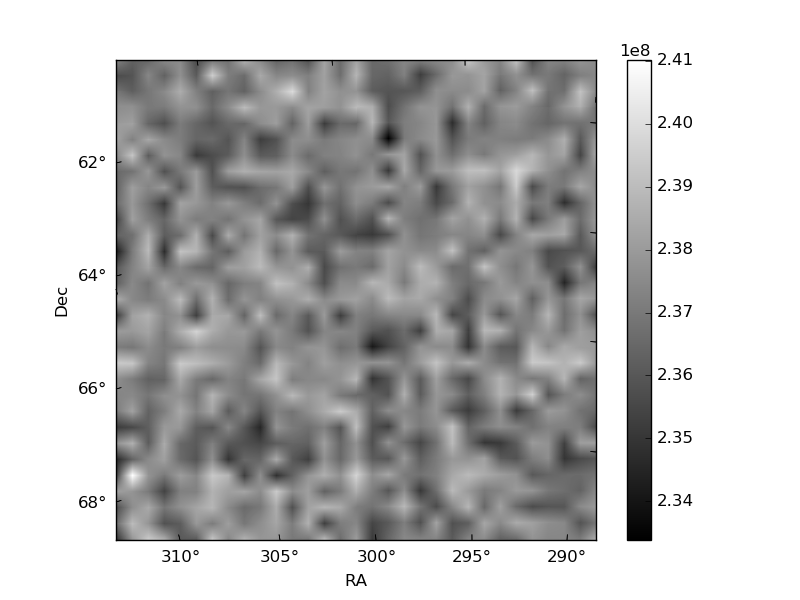

| Plot type | Count rate plots | Images |
|---|---|---|

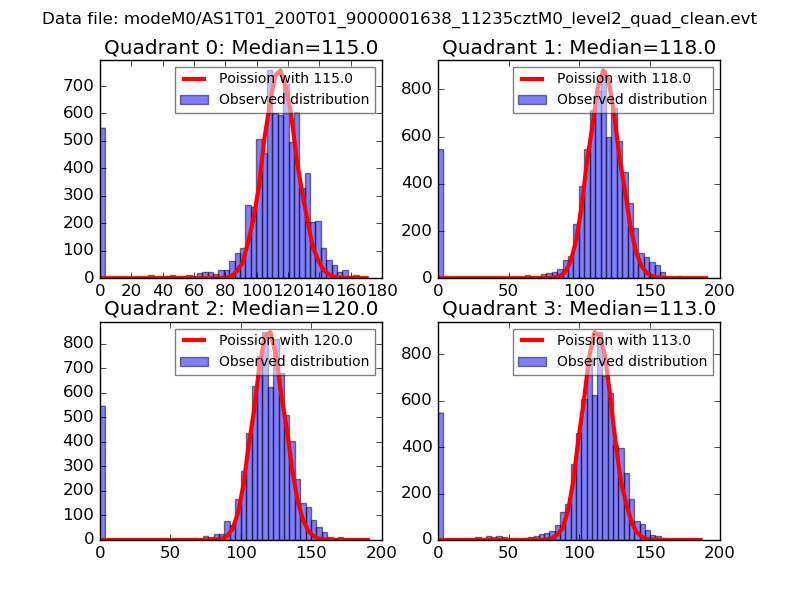

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

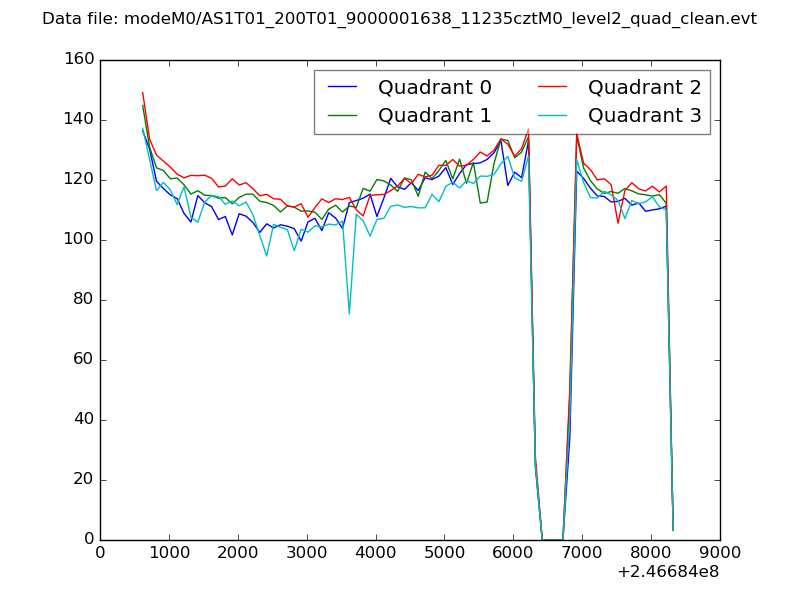

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

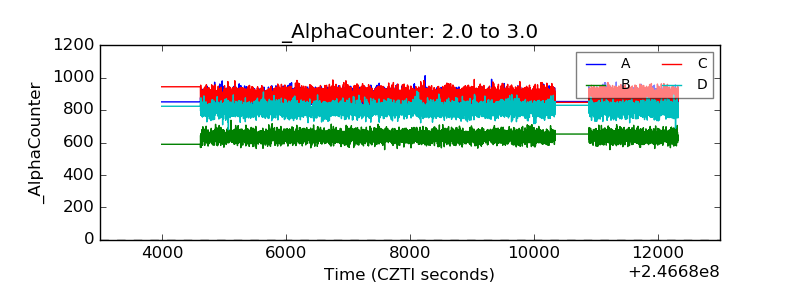

| Alpha Counter |  |

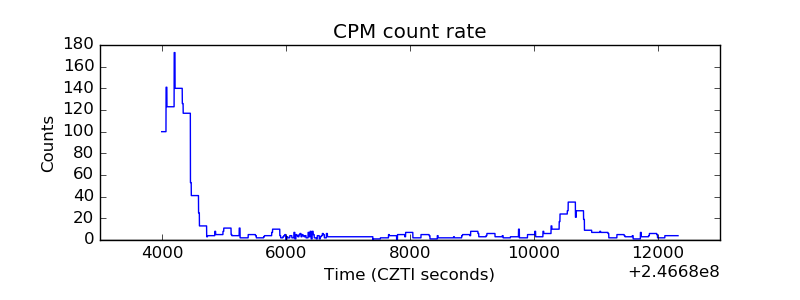

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

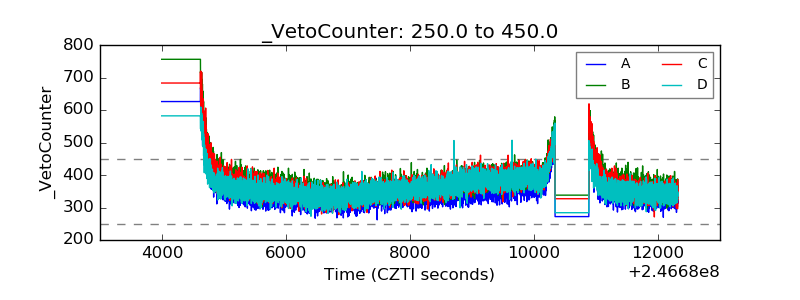

| Veto Counter |  |
