| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_080T01_9000001644_11263cztM0_level2.evt | modeM0/AS1A04_080T01_9000001644_11263cztM0_level2_quad_clean.evt |
| Size (bytes) | 727,099,200 | 76,475,520 |
| Size | 693.4 MB | 72.9 MB |
| Events in quadrant A | 4,396,863 | 476,842 |
| Events in quadrant B | 4,310,855 | 474,693 |
| Events in quadrant C | 3,031,137 | 485,349 |
| Events in quadrant D | 9,827,769 | 409,193 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17357 | 2 |
| B | 0 | 17328 | 1 |
| C | 0 | 13689 | 1 |
| D | 0 | 33920 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6732 | 273 | 4.055258% |
| B | 6732 | 393 | 5.837790% |
| C | 6732 | 20 | 0.297089% |
| D | 6732 | 709 | 10.531788% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7642 | 6733 | 186 | 186 | 2.43% | 2.76% |  |
| B | 7642 | 6733 | 202 | 202 | 2.64% | 3.00% |  |
| C | 7642 | 6733 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7642 | 6733 | 476 | 476 | 6.23% | 7.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 848916 | 5368.03 | 772 | 756 | 158.0 |
| A | 13 | 251 | 259921 | 1640.26 | 772 | 756 | 158.0 |
| A | 8 | 5 | 168555 | 1062.01 | 772 | 756 | 158.0 |
| B | 4 | 239 | 1127889 | 7579.42 | 775 | 756 | 148.7 |
| B | 11 | 51 | 56474 | 374.68 | 775 | 756 | 148.7 |
| B | 10 | 249 | 20867 | 135.24 | 775 | 756 | 148.7 |
| C | 9 | 204 | 28138 | 151.6 | 770 | 775 | 180.5 |
| C | 13 | 61 | 5621 | 26.85 | 770 | 775 | 180.5 |
| C | 5 | 128 | 2667 | 10.48 | 770 | 775 | 180.5 |
| D | 1 | 52 | 5725801 | 33059.69 | 721 | 701 | 173.2 |
| D | 10 | 253 | 631344 | 3641.66 | 721 | 701 | 173.2 |
| D | 13 | 249 | 225757 | 1299.59 | 721 | 701 | 173.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

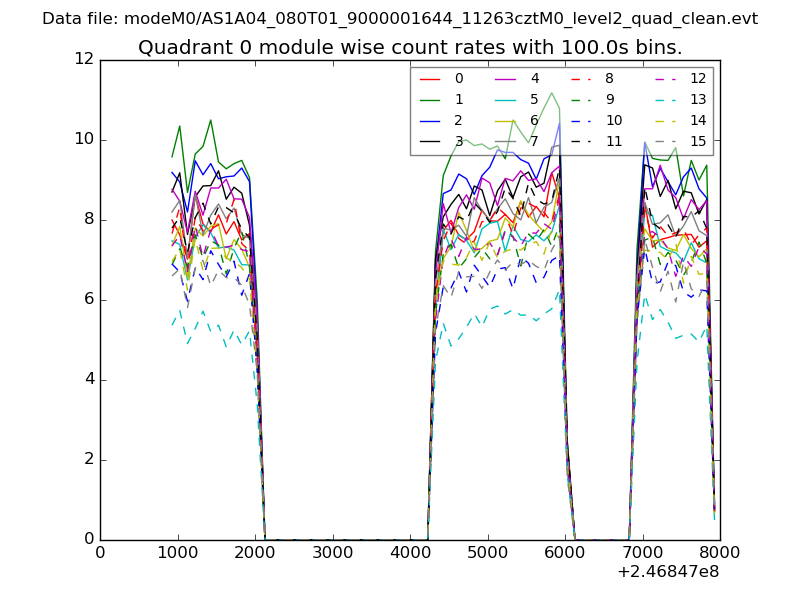

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

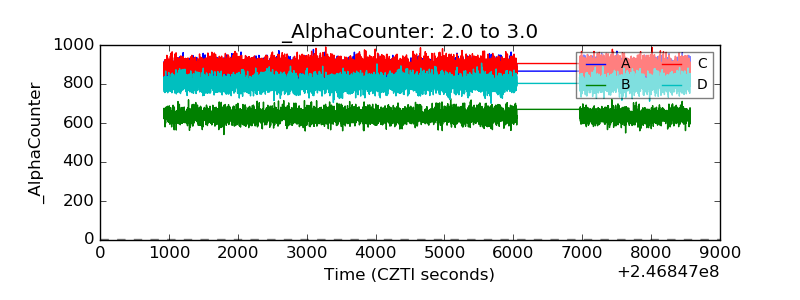

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

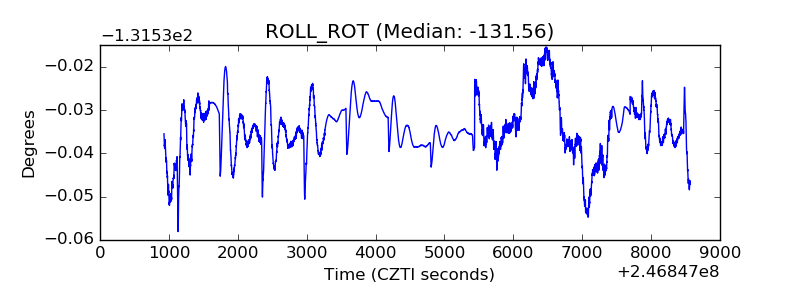

| _ROLL_ROT |  |

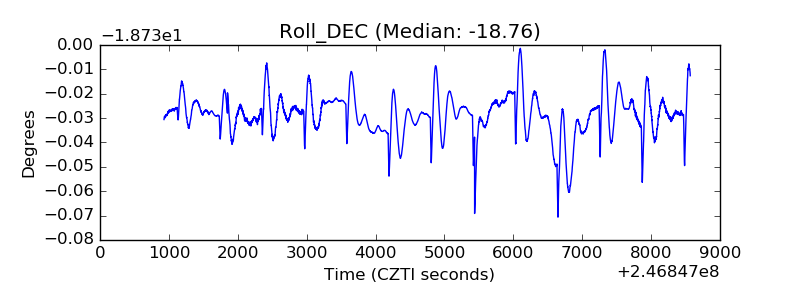

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
