| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_012T01_9000001642_11258cztM0_level2.evt | modeM0/AS1C03_012T01_9000001642_11258cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,584,320 | 86,184,000 |
| Size | 571.8 MB | 82.2 MB |
| Events in quadrant A | 3,499,211 | 575,629 |
| Events in quadrant B | 3,644,139 | 578,023 |
| Events in quadrant C | 2,832,909 | 570,506 |
| Events in quadrant D | 7,785,573 | 475,960 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14211 | 2 |
| B | 0 | 14560 | 1 |
| C | 0 | 12182 | 1 |
| D | 0 | 27157 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5861 | 113 | 1.927999% |
| B | 5861 | 206 | 3.514759% |
| C | 5861 | 32 | 0.545982% |
| D | 5861 | 1657 | 28.271626% |

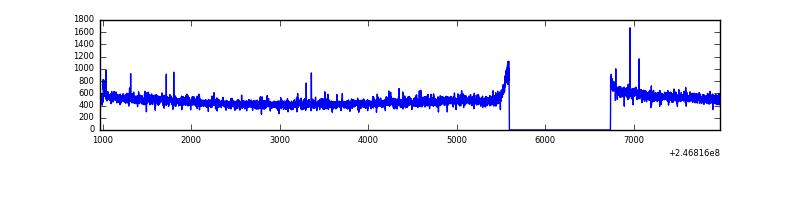

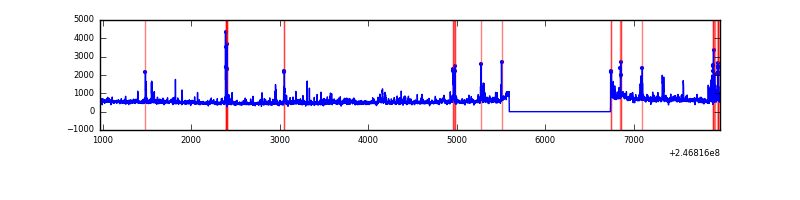

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7006 | 5862 | 33 | 33 | 0.47% | 0.56% |  |
| B | 7006 | 5862 | 77 | 77 | 1.10% | 1.31% |  |
| C | 7006 | 5862 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7006 | 5862 | 1449 | 1449 | 20.68% | 24.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 225362 | 1510.45 | 732 | 722 | 148.7 |
| A | 8 | 15 | 222531 | 1491.41 | 732 | 722 | 148.7 |
| A | 14 | 238 | 103506 | 691.1 | 732 | 722 | 148.7 |
| B | 4 | 239 | 628026 | 4581.78 | 733 | 718 | 136.9 |
| B | 11 | 51 | 48223 | 346.97 | 733 | 718 | 136.9 |
| B | 15 | 204 | 39300 | 281.8 | 733 | 718 | 136.9 |
| C | 9 | 204 | 14667 | 83.65 | 721 | 728 | 166.6 |
| C | 13 | 61 | 5232 | 27.03 | 721 | 728 | 166.6 |
| C | 8 | 222 | 3354 | 15.76 | 721 | 728 | 166.6 |
| D | 13 | 104 | 2675261 | 17618.04 | 631 | 615 | 151.8 |
| D | 1 | 52 | 829579 | 5460.43 | 631 | 615 | 151.8 |
| D | 4 | 95 | 560018 | 3684.82 | 631 | 615 | 151.8 |

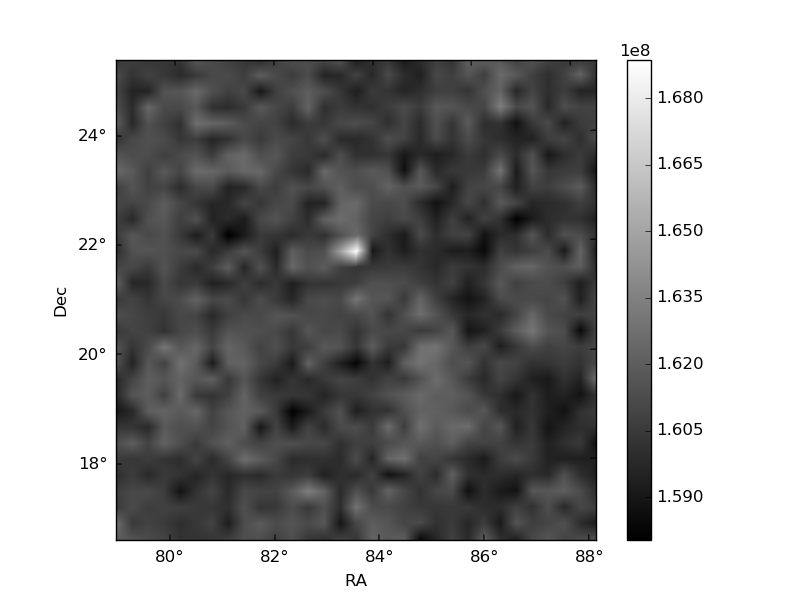

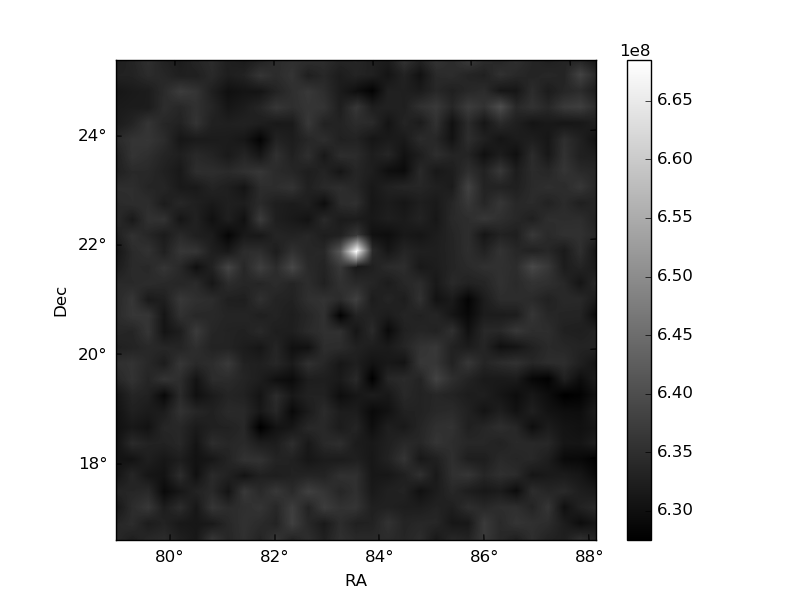

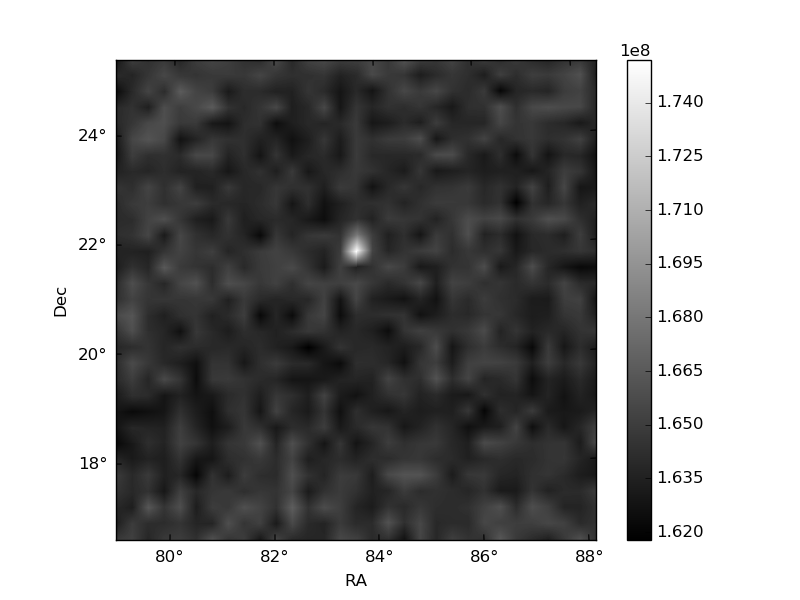

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

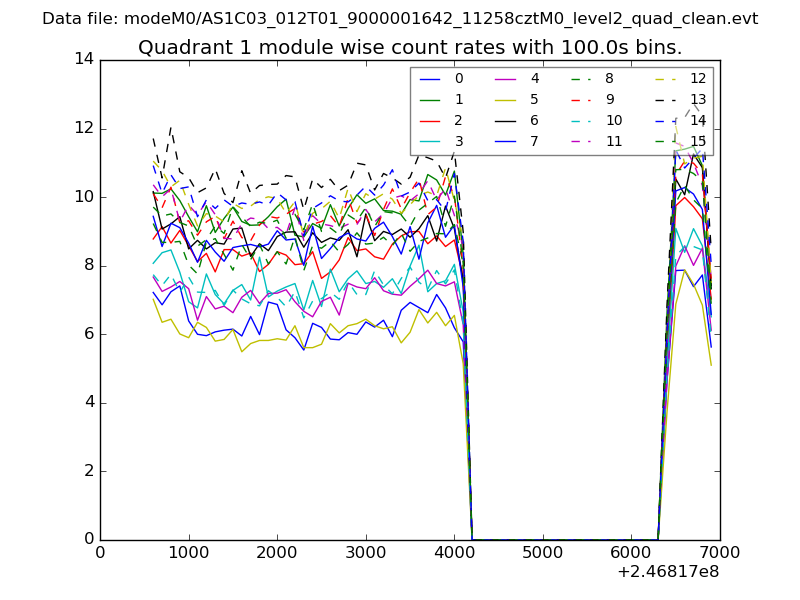

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

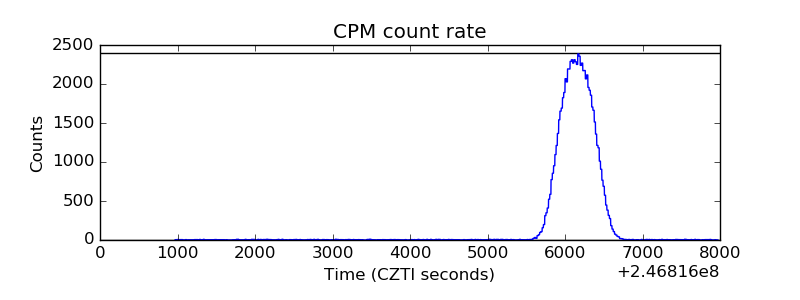

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

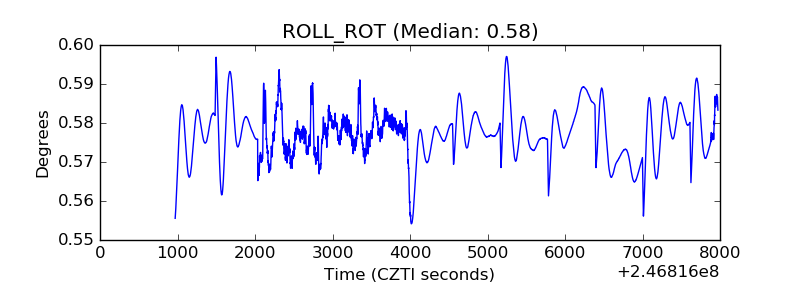

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
