| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_044T01_9000001648_11272cztM0_level2.evt | modeM0/AS1A04_044T01_9000001648_11272cztM0_level2_quad_clean.evt |
| Size (bytes) | 735,963,840 | 71,317,440 |
| Size | 701.9 MB | 68.0 MB |
| Events in quadrant A | 4,890,929 | 462,800 |
| Events in quadrant B | 3,880,354 | 483,733 |
| Events in quadrant C | 2,758,196 | 463,545 |
| Events in quadrant D | 10,357,230 | 332,023 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18738 | 2 |
| B | 0 | 15586 | 1 |
| C | 0 | 12241 | 1 |
| D | 0 | 34974 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5961 | 358 | 6.005704% |
| B | 5961 | 284 | 4.764301% |
| C | 5961 | 44 | 0.738131% |
| D | 5961 | 2100 | 35.228988% |

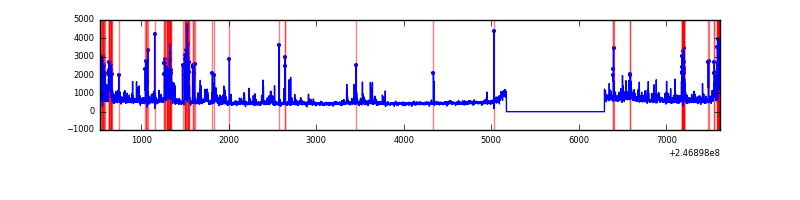

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7081 | 5961 | 186 | 186 | 2.63% | 3.12% |  |
| B | 7081 | 5961 | 120 | 120 | 1.69% | 2.01% |  |
| C | 7081 | 5961 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7081 | 5961 | 1746 | 1746 | 24.66% | 29.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1059522 | 7283.0 | 712 | 698 | 145.4 |
| A | 8 | 15 | 376156 | 2582.55 | 712 | 698 | 145.4 |
| A | 13 | 251 | 233025 | 1598.04 | 712 | 698 | 145.4 |
| B | 4 | 239 | 568534 | 4123.3 | 721 | 704 | 137.7 |
| B | 3 | 64 | 250199 | 1811.71 | 721 | 704 | 137.7 |
| B | 11 | 51 | 99094 | 714.46 | 721 | 704 | 137.7 |
| C | 9 | 204 | 5855 | 31.34 | 704 | 709 | 164.2 |
| C | 13 | 61 | 5124 | 26.89 | 704 | 709 | 164.2 |
| C | 12 | 4 | 3780 | 18.7 | 704 | 709 | 164.2 |
| D | 10 | 234 | 4116618 | 28548.79 | 592 | 574 | 144.2 |
| D | 10 | 253 | 1397409 | 9688.42 | 592 | 574 | 144.2 |
| D | 10 | 249 | 735869 | 5099.99 | 592 | 574 | 144.2 |

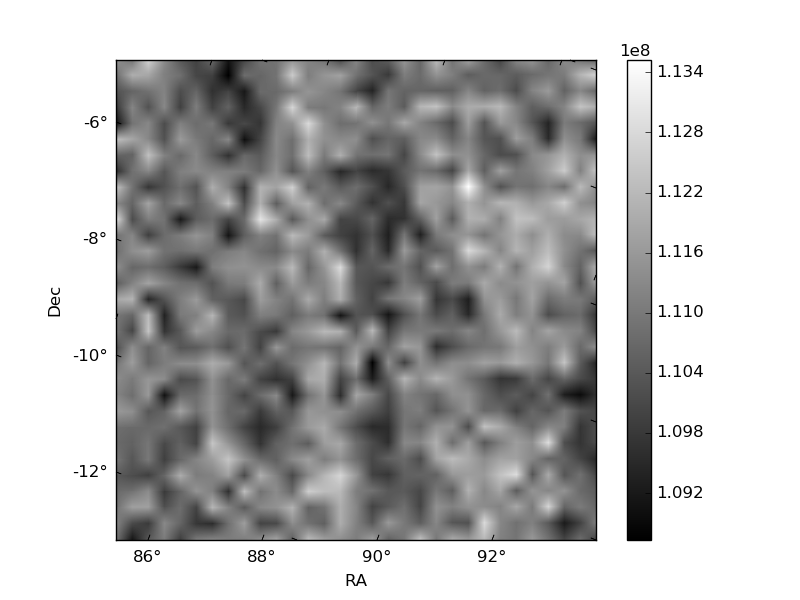

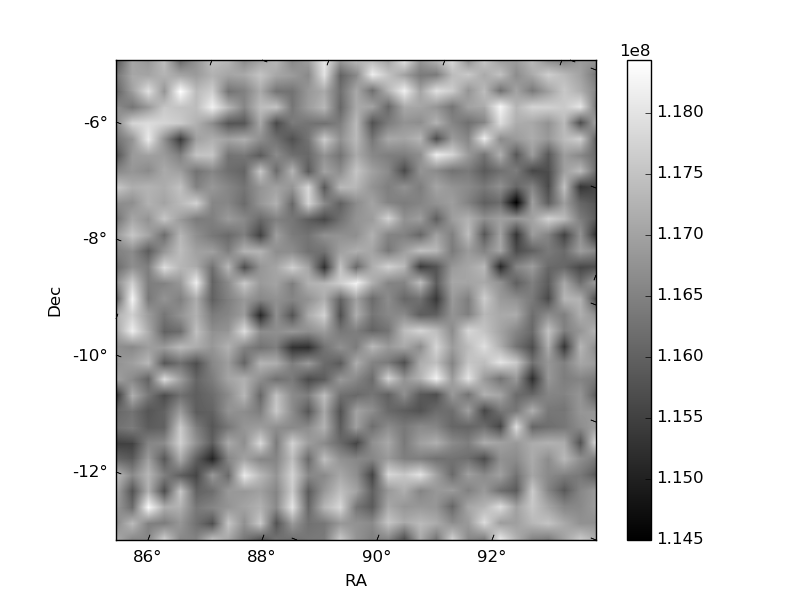

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

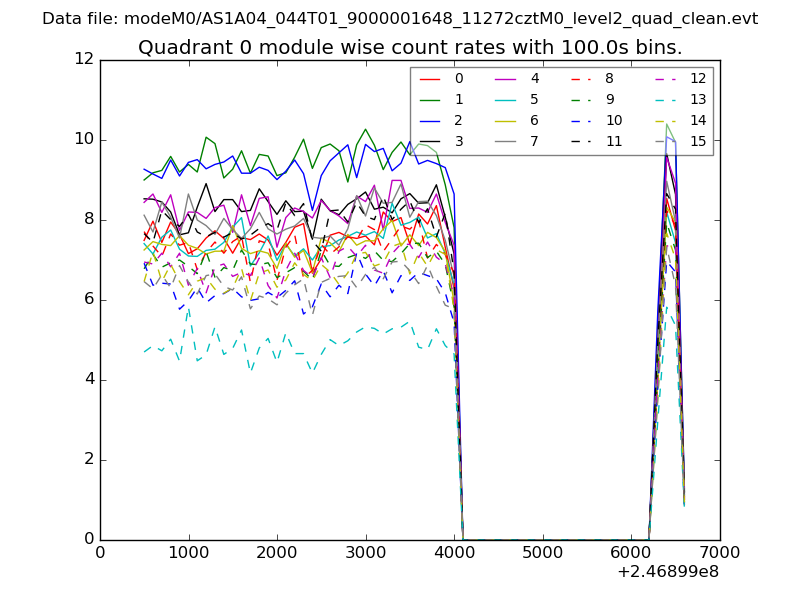

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

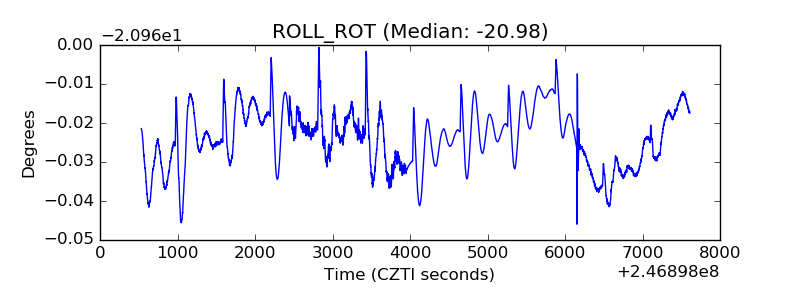

| _ROLL_ROT |  |
| _Roll_DEC |  |

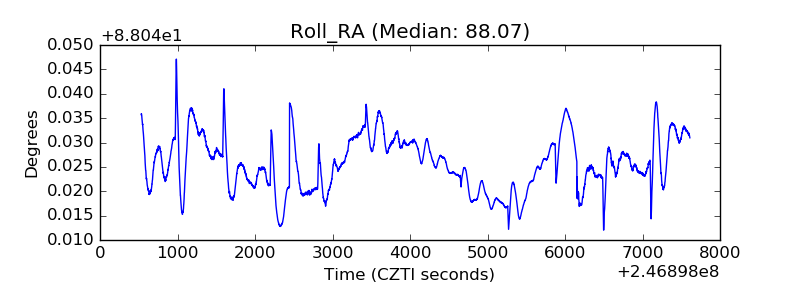

| _Roll_RA |  |

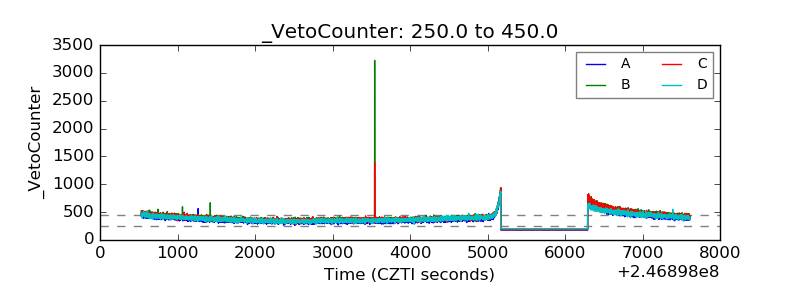

| Veto Counter |  |
