| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_044T01_9000001648_11274cztM0_level2.evt | modeM0/AS1A04_044T01_9000001648_11274cztM0_level2_quad_clean.evt |
| Size (bytes) | 620,444,160 | 92,111,040 |
| Size | 591.7 MB | 87.8 MB |
| Events in quadrant A | 5,997,976 | 565,718 |
| Events in quadrant B | 4,608,523 | 631,165 |
| Events in quadrant C | 2,882,686 | 609,647 |
| Events in quadrant D | 4,892,784 | 560,814 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22047 | 2 |
| B | 0 | 17758 | 1 |
| C | 0 | 12460 | 1 |
| D | 0 | 18727 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6040 | 893 | 14.784768% |
| B | 6040 | 539 | 8.923841% |
| C | 6040 | 15 | 0.248344% |
| D | 6040 | 181 | 2.996689% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7330 | 6041 | 559 | 559 | 7.63% | 9.25% |  |
| B | 7330 | 6041 | 264 | 264 | 3.60% | 4.37% |  |
| C | 7330 | 6041 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7330 | 6041 | 153 | 153 | 2.09% | 2.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1844781 | 12809.53 | 709 | 696 | 144.0 |
| A | 8 | 5 | 845606 | 5868.98 | 709 | 696 | 144.0 |
| A | 0 | 8 | 147664 | 1020.88 | 709 | 696 | 144.0 |
| B | 4 | 239 | 1042034 | 7302.57 | 749 | 734 | 142.6 |
| B | 3 | 64 | 391862 | 2742.96 | 749 | 734 | 142.6 |
| B | 11 | 51 | 91756 | 638.33 | 749 | 734 | 142.6 |
| C | 13 | 61 | 5433 | 27.46 | 738 | 744 | 170.7 |
| C | 5 | 128 | 2821 | 12.17 | 738 | 744 | 170.7 |
| C | 3 | 202 | 1812 | 6.26 | 738 | 744 | 170.7 |
| D | 12 | 157 | 1148759 | 6665.34 | 717 | 699 | 172.2 |
| D | 10 | 253 | 282266 | 1634.71 | 717 | 699 | 172.2 |
| D | 1 | 52 | 208447 | 1206.13 | 717 | 699 | 172.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

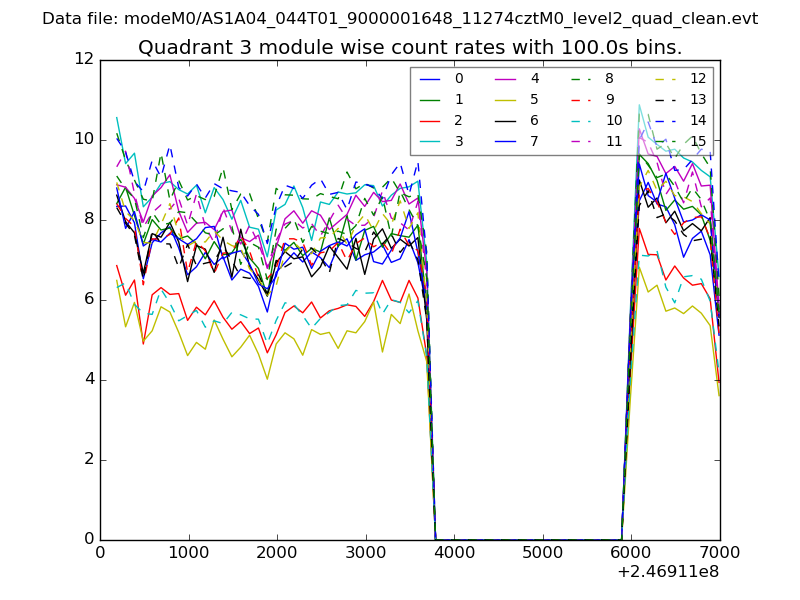

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

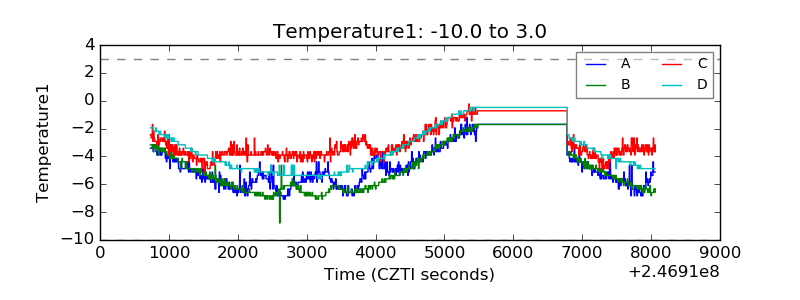

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

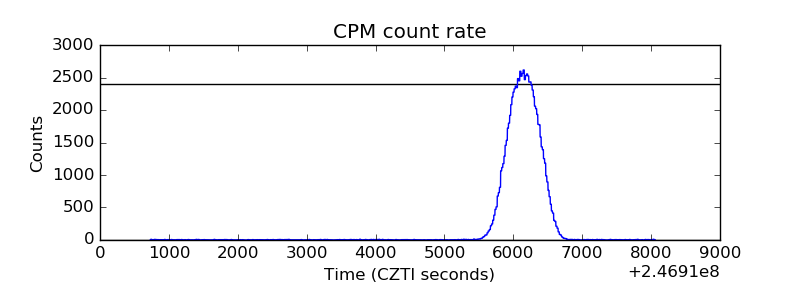

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

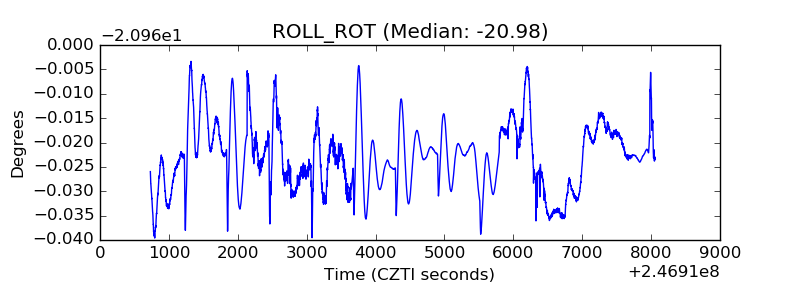

| _ROLL_ROT |  |

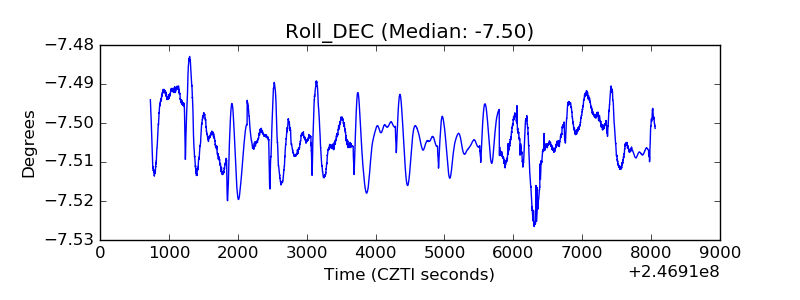

| _Roll_DEC |  |

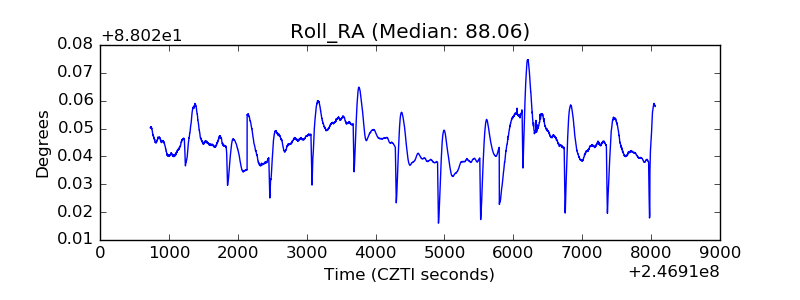

| _Roll_RA |  |
| Veto Counter |  |
