| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_044T01_9000001648_11279cztM0_level2.evt | modeM0/AS1A04_044T01_9000001648_11279cztM0_level2_quad_clean.evt |
| Size (bytes) | 643,187,520 | 90,115,200 |
| Size | 613.4 MB | 85.9 MB |
| Events in quadrant A | 4,932,369 | 576,265 |
| Events in quadrant B | 4,573,892 | 591,445 |
| Events in quadrant C | 3,188,639 | 576,042 |
| Events in quadrant D | 6,305,133 | 492,006 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19334 | 3 |
| B | 0 | 18281 | 2 |
| C | 0 | 14487 | 2 |
| D | 0 | 23325 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7070 | 344 | 4.865629% |
| B | 7070 | 482 | 6.817539% |
| C | 7070 | 75 | 1.060820% |
| D | 7070 | 894 | 12.644979% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7251 | 7073 | 149 | 149 | 2.05% | 2.11% |  |
| B | 7251 | 7073 | 196 | 196 | 2.70% | 2.77% |  |
| C | 7251 | 7073 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7251 | 7073 | 734 | 734 | 10.12% | 10.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 844836 | 5001.22 | 825 | 805 | 168.8 |
| A | 8 | 15 | 239490 | 1414.3 | 825 | 805 | 168.8 |
| A | 14 | 238 | 205059 | 1210.28 | 825 | 805 | 168.8 |
| B | 4 | 239 | 881653 | 5503.12 | 823 | 803 | 160.1 |
| B | 3 | 64 | 318829 | 1986.87 | 823 | 803 | 160.1 |
| B | 11 | 51 | 69376 | 428.41 | 823 | 803 | 160.1 |
| C | 8 | 128 | 7241 | 33.63 | 813 | 816 | 191.0 |
| C | 13 | 61 | 6067 | 27.49 | 813 | 816 | 191.0 |
| C | 14 | 234 | 5286 | 23.4 | 813 | 816 | 191.0 |
| D | 10 | 253 | 1165700 | 6274.51 | 761 | 740 | 185.7 |
| D | 7 | 80 | 664901 | 3577.19 | 761 | 740 | 185.7 |
| D | 1 | 52 | 626935 | 3372.7 | 761 | 740 | 185.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

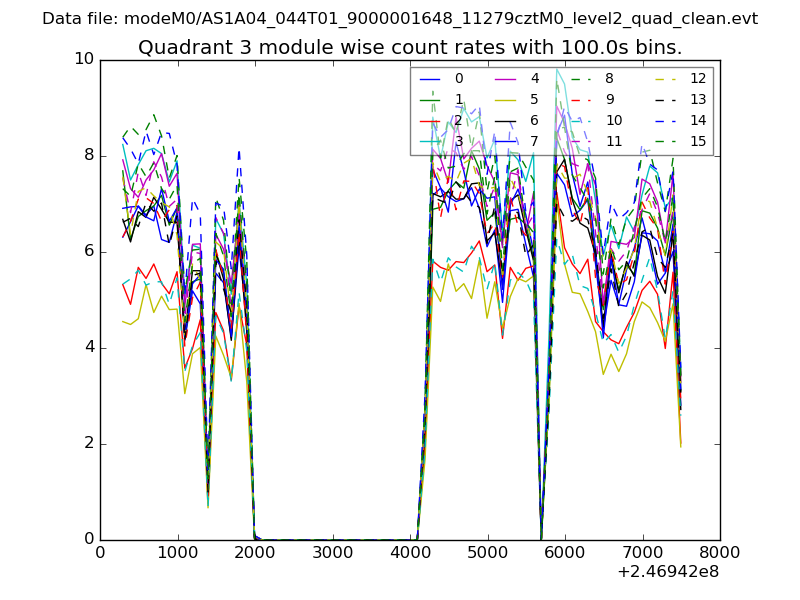

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
