| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_144T01_9000001652_11285cztM0_level2.evt | modeM0/AS1A04_144T01_9000001652_11285cztM0_level2_quad_clean.evt |
| Size (bytes) | 645,477,120 | 80,354,880 |
| Size | 615.6 MB | 76.6 MB |
| Events in quadrant A | 4,270,110 | 504,813 |
| Events in quadrant B | 4,917,741 | 513,681 |
| Events in quadrant C | 3,101,537 | 505,557 |
| Events in quadrant D | 6,811,981 | 447,980 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17220 | 3 |
| B | 0 | 19058 | 2 |
| C | 0 | 13665 | 2 |
| D | 0 | 24870 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6612 | 292 | 4.416213% |
| B | 6612 | 586 | 8.862674% |
| C | 6612 | 45 | 0.680581% |
| D | 6612 | 625 | 9.452511% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8628 | 6614 | 131 | 131 | 1.52% | 1.98% |  |
| B | 8628 | 6614 | 291 | 291 | 3.37% | 4.40% |  |
| C | 8628 | 6614 | 8 | 8 | 0.09% | 0.12% |  |
| D | 8628 | 6614 | 532 | 532 | 6.17% | 8.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 811077 | 5004.28 | 798 | 782 | 161.9 |
| A | 0 | 8 | 116875 | 716.98 | 798 | 782 | 161.9 |
| A | 8 | 15 | 81500 | 498.5 | 798 | 782 | 161.9 |
| B | 4 | 239 | 1603810 | 10472.86 | 798 | 780 | 153.1 |
| B | 11 | 51 | 108294 | 702.41 | 798 | 780 | 153.1 |
| B | 3 | 189 | 26342 | 167.0 | 798 | 780 | 153.1 |
| C | 14 | 234 | 33860 | 180.36 | 787 | 792 | 183.3 |
| C | 13 | 61 | 5694 | 26.74 | 787 | 792 | 183.3 |
| C | 3 | 202 | 2025 | 6.72 | 787 | 792 | 183.3 |
| D | 12 | 157 | 1747788 | 9511.27 | 759 | 737 | 183.7 |
| D | 1 | 52 | 899881 | 4895.11 | 759 | 737 | 183.7 |
| D | 7 | 80 | 406416 | 2208.59 | 759 | 737 | 183.7 |

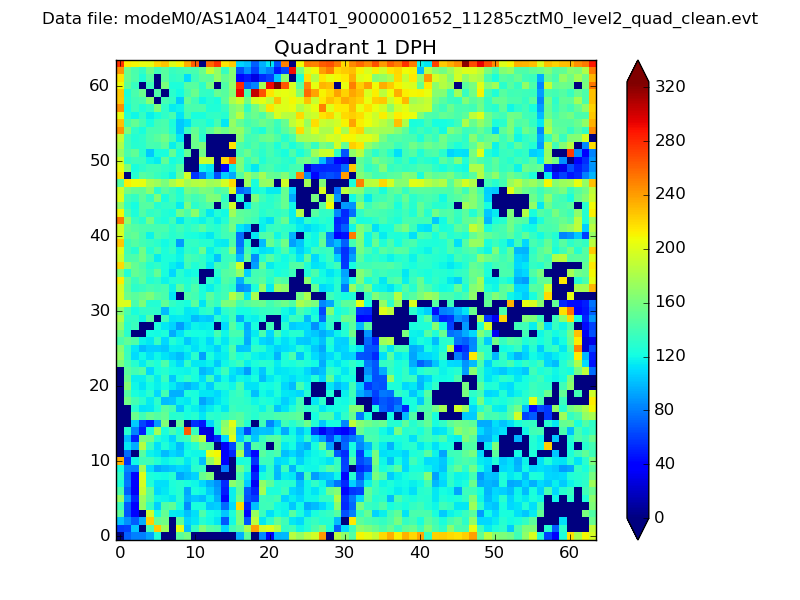

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

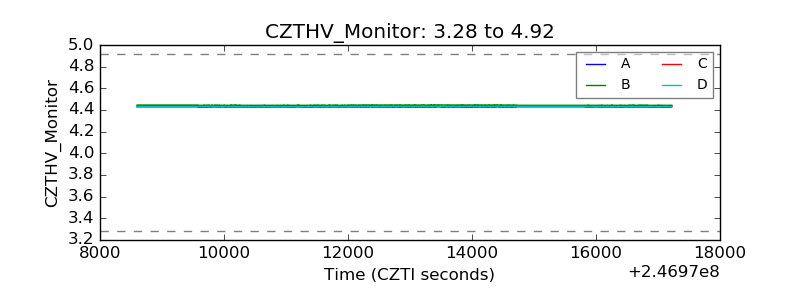

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

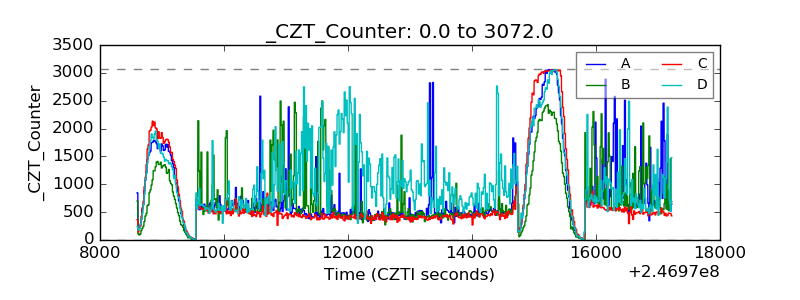

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

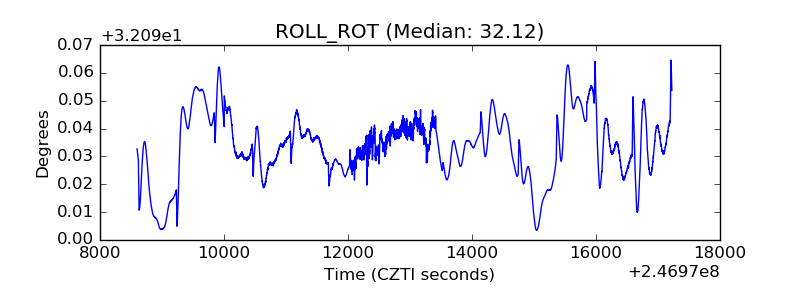

| _ROLL_ROT |  |

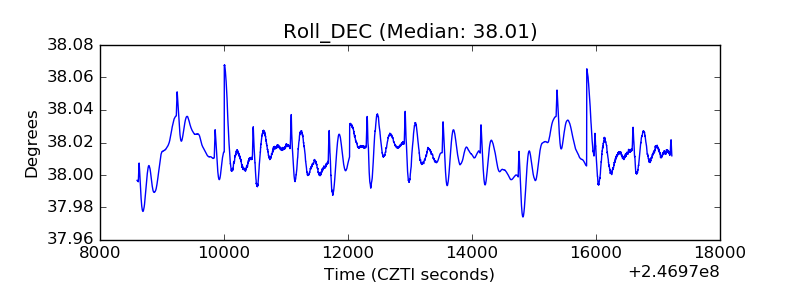

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
