| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_144T01_9000001652_11291cztM0_level2.evt | modeM0/AS1A04_144T01_9000001652_11291cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,973,120 | 89,242,560 |
| Size | 512.1 MB | 85.1 MB |
| Events in quadrant A | 4,492,674 | 554,996 |
| Events in quadrant B | 3,526,200 | 596,582 |
| Events in quadrant C | 2,936,263 | 578,985 |
| Events in quadrant D | 4,875,145 | 527,422 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17610 | 3 |
| B | 0 | 14753 | 2 |
| C | 0 | 13140 | 2 |
| D | 0 | 18869 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6367 | 342 | 5.371447% |
| B | 6367 | 186 | 2.921313% |
| C | 6367 | 13 | 0.204178% |
| D | 6367 | 460 | 7.224753% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

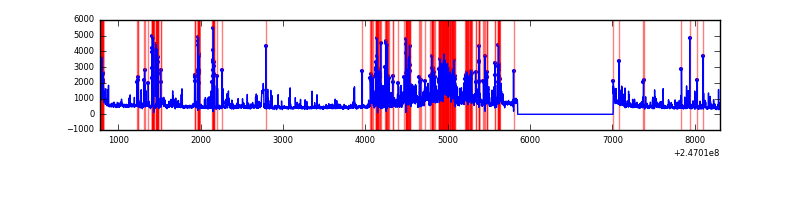

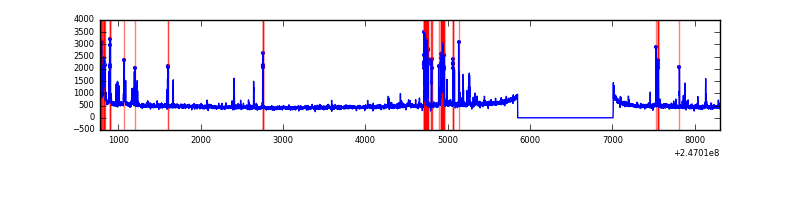

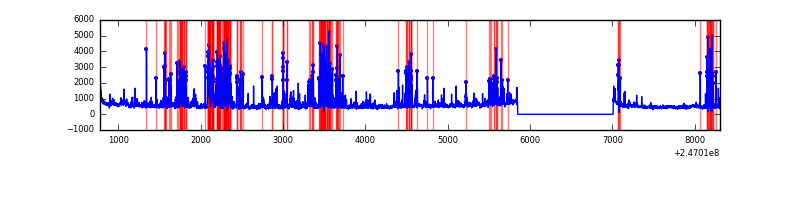

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7527 | 6368 | 246 | 246 | 3.27% | 3.86% |  |
| B | 7527 | 6368 | 90 | 90 | 1.20% | 1.41% |  |
| C | 7527 | 6368 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7527 | 6368 | 316 | 316 | 4.20% | 4.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1470357 | 9617.84 | 750 | 736 | 152.8 |
| A | 14 | 238 | 115656 | 752.09 | 750 | 736 | 152.8 |
| A | 8 | 15 | 12368 | 76.12 | 750 | 736 | 152.8 |
| B | 4 | 239 | 469948 | 3179.25 | 770 | 752 | 147.6 |
| B | 15 | 204 | 22214 | 145.43 | 770 | 752 | 147.6 |
| B | 0 | 214 | 16968 | 109.88 | 770 | 752 | 147.6 |
| C | 13 | 61 | 5531 | 27.39 | 752 | 756 | 174.3 |
| C | 10 | 95 | 2731 | 11.33 | 752 | 756 | 174.3 |
| C | 14 | 234 | 2298 | 8.85 | 752 | 756 | 174.3 |
| D | 14 | 34 | 551968 | 3242.88 | 710 | 689 | 170.0 |
| D | 10 | 253 | 532538 | 3128.59 | 710 | 689 | 170.0 |
| D | 1 | 52 | 303480 | 1781.16 | 710 | 689 | 170.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

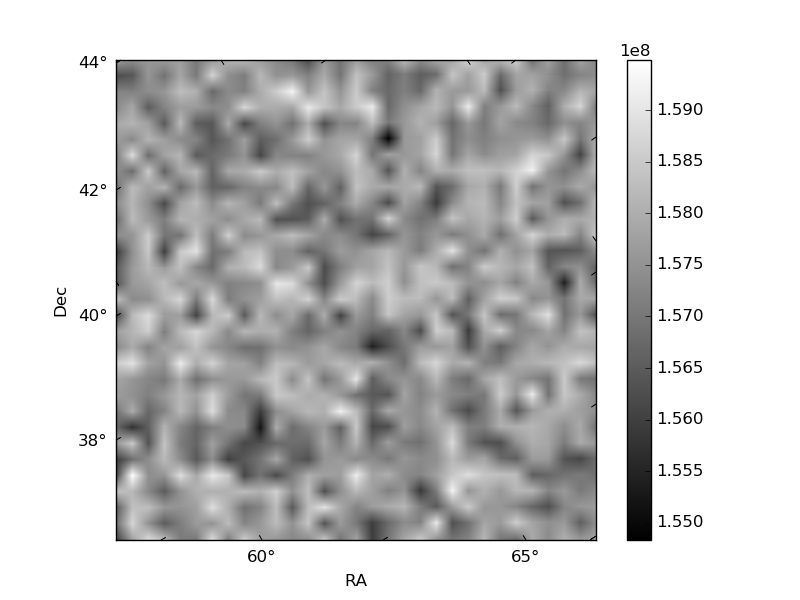

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

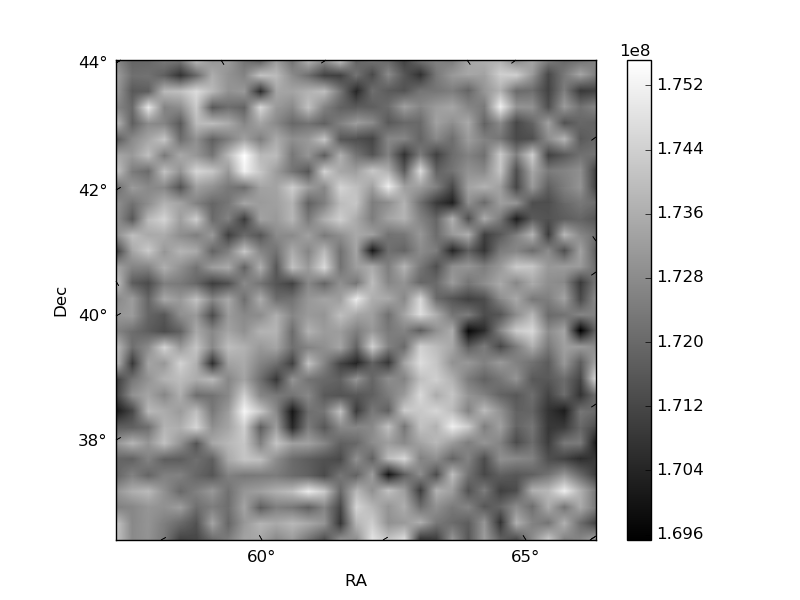

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

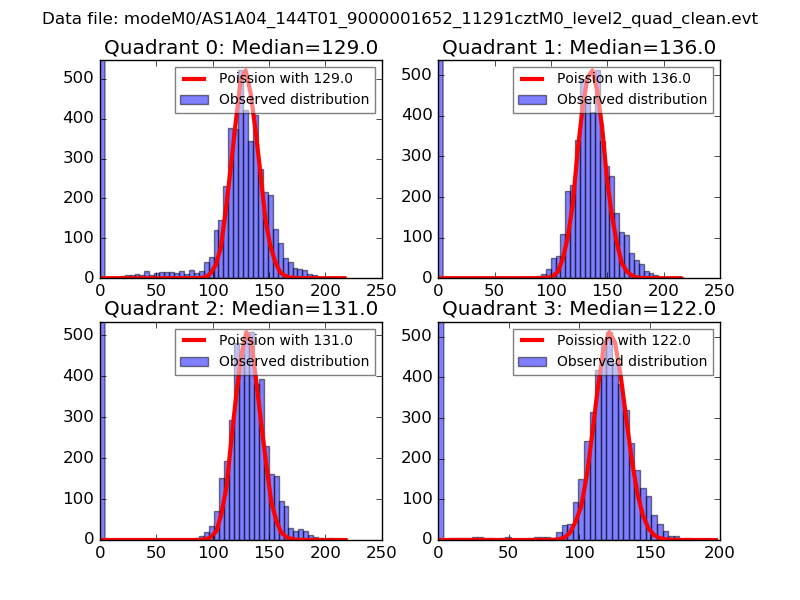

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

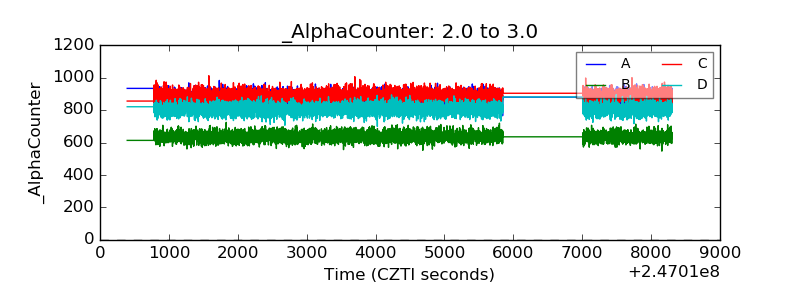

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

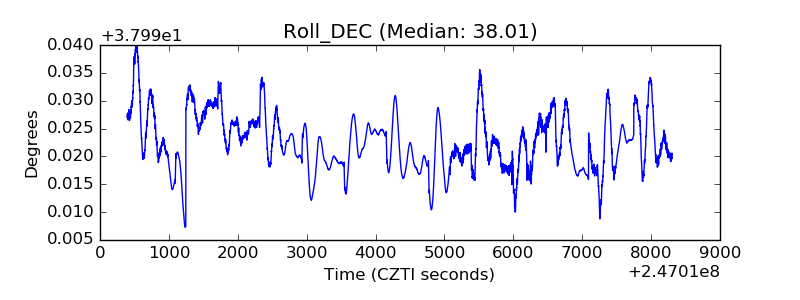

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
