| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_144T01_9000001652_11294cztM0_level2.evt | modeM0/AS1A04_144T01_9000001652_11294cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,182,683,520 | 160,896,960 |
| Size | 1.1 GB | 153.4 MB |
| Events in quadrant A | 11,039,912 | 974,069 |
| Events in quadrant B | 7,824,498 | 1,061,604 |
| Events in quadrant C | 5,838,338 | 1,035,561 |
| Events in quadrant D | 10,241,900 | 906,907 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41621 | 3 |
| B | 0 | 31955 | 2 |
| C | 0 | 26646 | 2 |
| D | 0 | 39782 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12941 | 1846 | 14.264740% |
| B | 12941 | 806 | 6.228267% |
| C | 12941 | 134 | 1.035469% |
| D | 12941 | 1033 | 7.982382% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

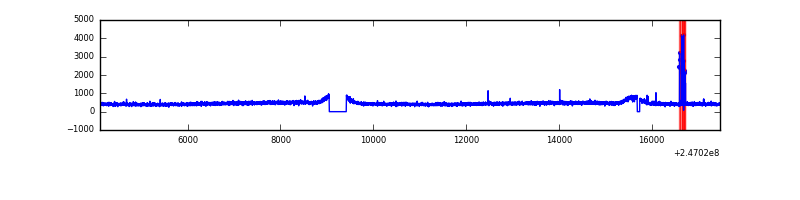

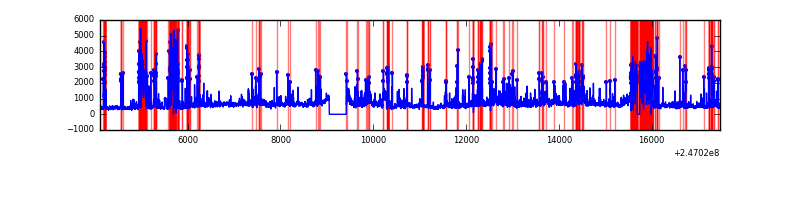

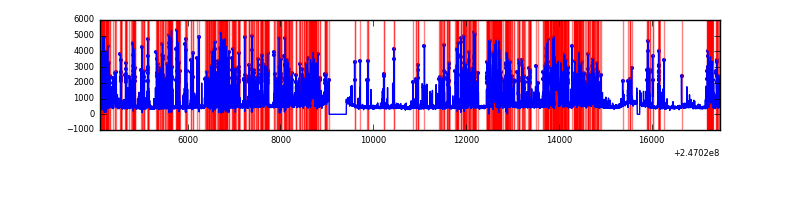

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13366 | 12942 | 1182 | 1182 | 8.84% | 9.13% |  |
| B | 13366 | 12943 | 332 | 332 | 2.48% | 2.57% |  |
| C | 13366 | 12943 | 16 | 16 | 0.12% | 0.12% |  |
| D | 13366 | 12942 | 740 | 740 | 5.54% | 5.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 5130536 | 17232.77 | 1439 | 1405 | 297.6 |
| A | 0 | 8 | 183871 | 613.04 | 1439 | 1405 | 297.6 |
| A | 14 | 238 | 116458 | 386.55 | 1439 | 1405 | 297.6 |
| B | 4 | 239 | 1543787 | 5254.51 | 1512 | 1473 | 293.5 |
| B | 4 | 81 | 232133 | 785.83 | 1512 | 1473 | 293.5 |
| B | 3 | 189 | 76672 | 256.19 | 1512 | 1473 | 293.5 |
| C | 9 | 204 | 52693 | 149.26 | 1479 | 1482 | 343.1 |
| C | 8 | 128 | 11197 | 28.32 | 1479 | 1482 | 343.1 |
| C | 13 | 61 | 10807 | 27.18 | 1479 | 1482 | 343.1 |
| D | 8 | 195 | 1407517 | 4185.56 | 1391 | 1348 | 336.0 |
| D | 1 | 52 | 1312438 | 3902.55 | 1391 | 1348 | 336.0 |
| D | 10 | 253 | 1293587 | 3846.44 | 1391 | 1348 | 336.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

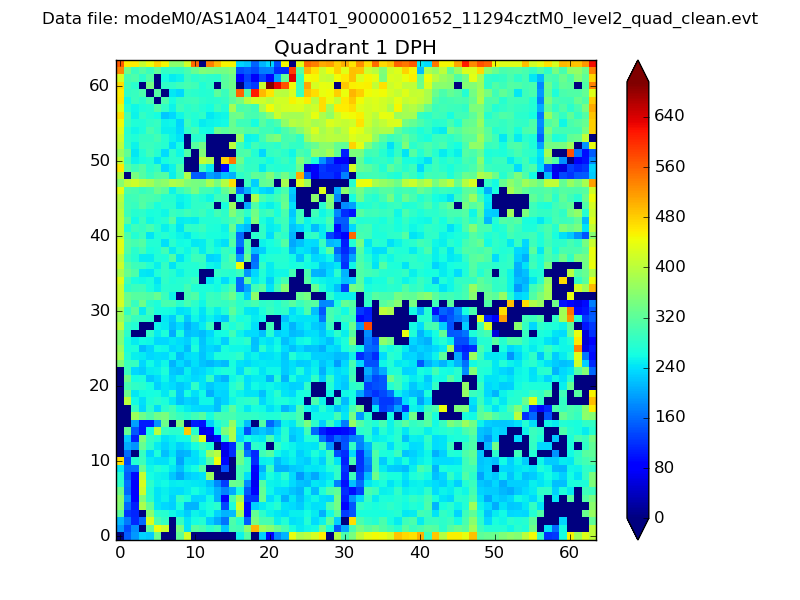

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

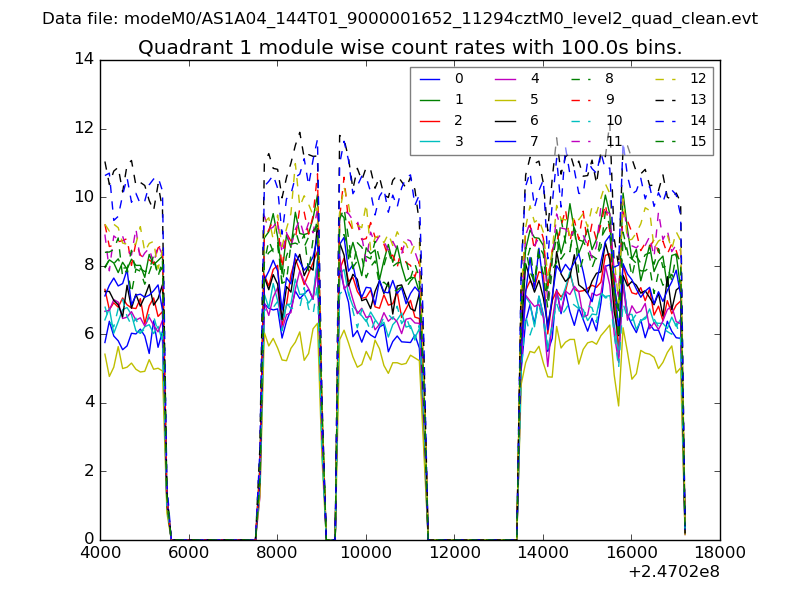

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

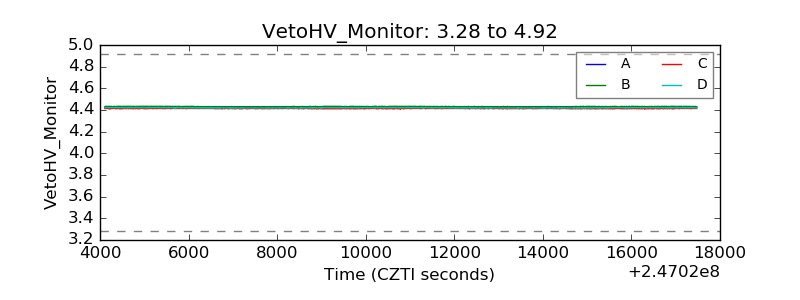

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

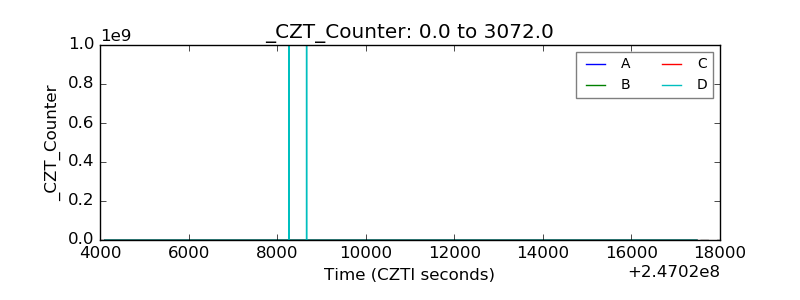

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

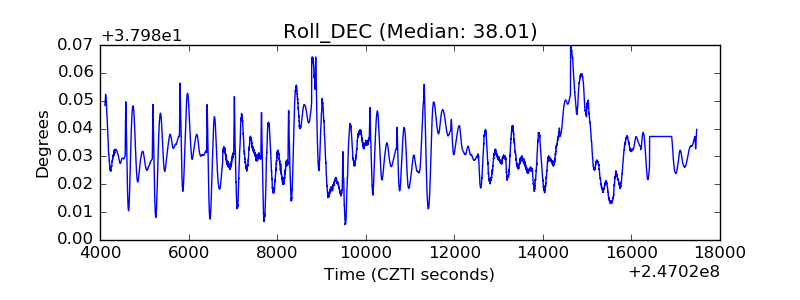

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
