| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_144T01_9000001652_11310cztM0_level2.evt | modeM0/AS1A04_144T01_9000001652_11310cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,922,880 | 81,506,880 |
| Size | 556.9 MB | 77.7 MB |
| Events in quadrant A | 4,163,245 | 508,495 |
| Events in quadrant B | 4,404,450 | 516,614 |
| Events in quadrant C | 3,208,296 | 510,440 |
| Events in quadrant D | 5,427,416 | 438,557 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16971 | 2 |
| B | 0 | 17764 | 1 |
| C | 0 | 14549 | 1 |
| D | 0 | 20952 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7085 | 291 | 4.107269% |
| B | 7085 | 465 | 6.563162% |
| C | 7085 | 92 | 1.298518% |
| D | 7085 | 839 | 11.841920% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7430 | 7086 | 154 | 154 | 2.07% | 2.17% |  |
| B | 7430 | 7086 | 226 | 226 | 3.04% | 3.19% |  |
| C | 7430 | 7086 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7430 | 7086 | 630 | 630 | 8.48% | 8.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 937014 | 5503.15 | 819 | 801 | 170.1 |
| A | 13 | 251 | 27467 | 156.75 | 819 | 801 | 170.1 |
| A | 1 | 162 | 11173 | 60.97 | 819 | 801 | 170.1 |
| B | 4 | 239 | 1031445 | 6497.69 | 817 | 798 | 158.6 |
| B | 10 | 244 | 61836 | 384.81 | 817 | 798 | 158.6 |
| B | 3 | 64 | 49679 | 308.17 | 817 | 798 | 158.6 |
| C | 9 | 204 | 61857 | 325.3 | 801 | 805 | 187.7 |
| C | 8 | 128 | 10137 | 49.72 | 801 | 805 | 187.7 |
| C | 14 | 234 | 6464 | 30.15 | 801 | 805 | 187.7 |
| D | 10 | 253 | 1842807 | 10218.98 | 743 | 719 | 180.3 |
| D | 1 | 52 | 447195 | 2476.83 | 743 | 719 | 180.3 |
| D | 13 | 104 | 136779 | 754.79 | 743 | 719 | 180.3 |

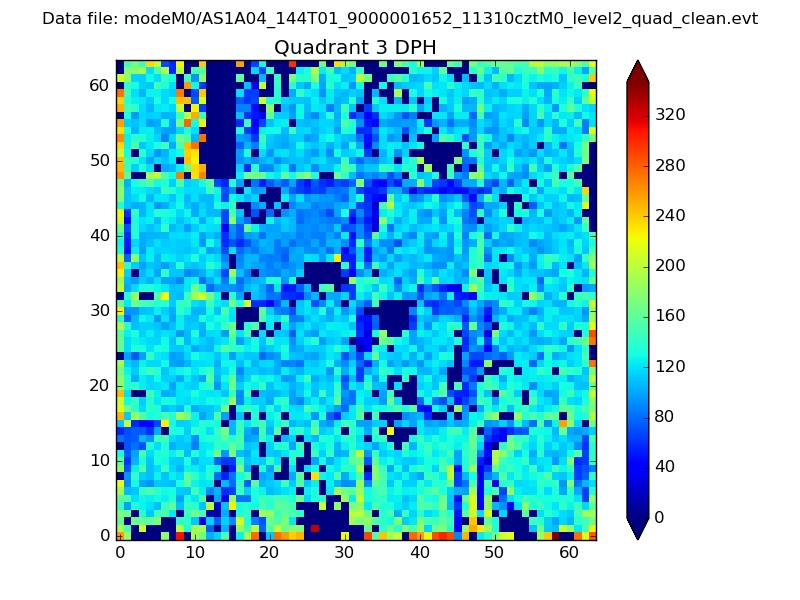

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

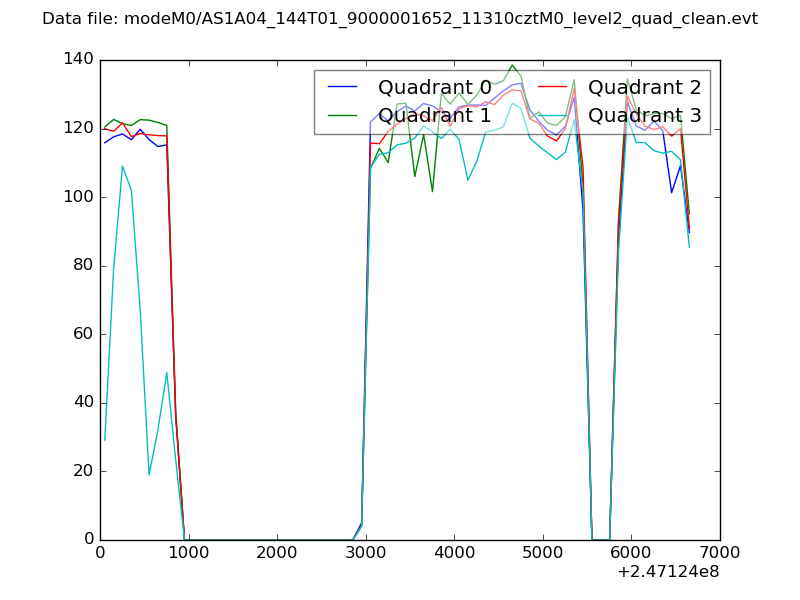

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

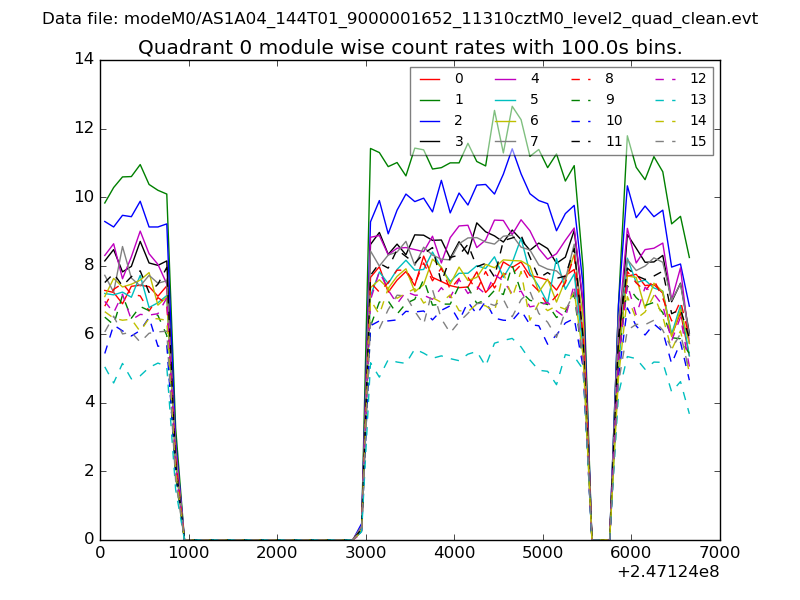

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

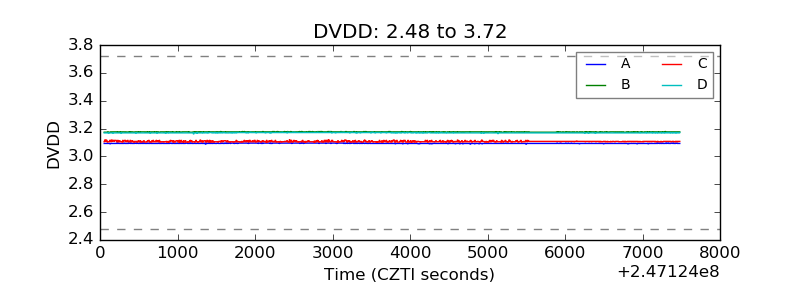

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

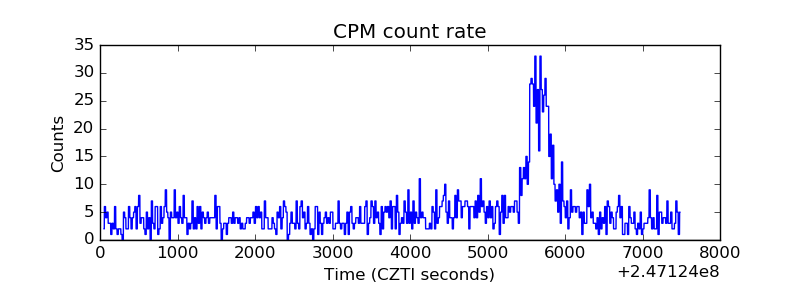

| _CPM_Rate |  |

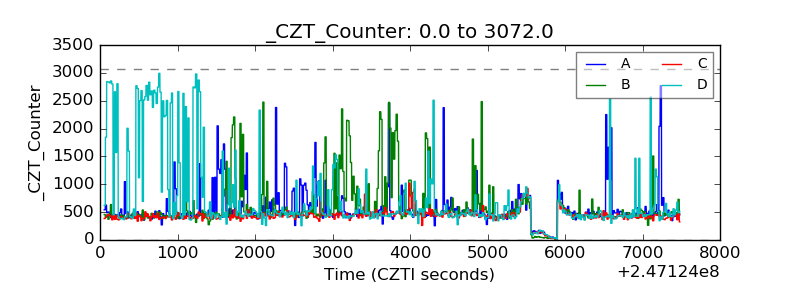

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

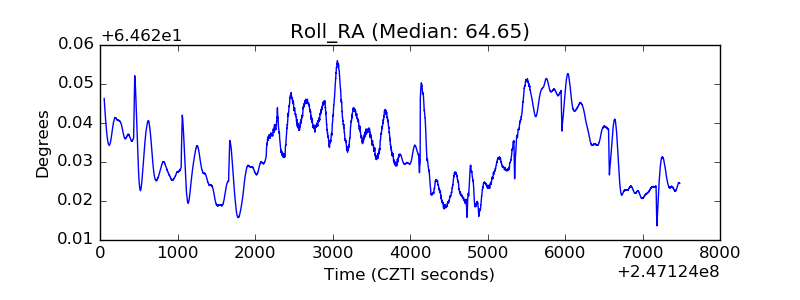

| _Roll_RA |  |
| Veto Counter |  |
