| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_137T01_9000001654_11312cztM0_level2.evt | modeM0/AS1A04_137T01_9000001654_11312cztM0_level2_quad_clean.evt |
| Size (bytes) | 632,496,960 | 78,995,520 |
| Size | 603.2 MB | 75.3 MB |
| Events in quadrant A | 4,242,374 | 471,165 |
| Events in quadrant B | 5,017,344 | 468,576 |
| Events in quadrant C | 3,565,085 | 496,831 |
| Events in quadrant D | 5,843,756 | 455,174 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16968 | 3 |
| B | 0 | 19428 | 2 |
| C | 0 | 15394 | 2 |
| D | 0 | 22080 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7180 | 237 | 3.300836% |
| B | 7180 | 541 | 7.534819% |
| C | 7180 | 145 | 2.019499% |
| D | 7180 | 898 | 12.506964% |

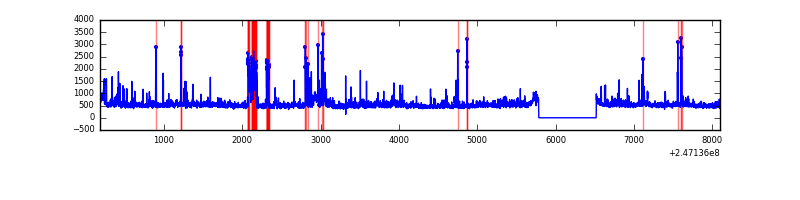

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7915 | 7181 | 69 | 69 | 0.87% | 0.96% |  |
| B | 7915 | 7181 | 291 | 291 | 3.68% | 4.05% |  |
| C | 7915 | 7181 | 43 | 43 | 0.54% | 0.60% |  |
| D | 7915 | 7180 | 684 | 684 | 8.64% | 9.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 560182 | 3206.5 | 851 | 833 | 174.4 |
| A | 1 | 162 | 108931 | 619.68 | 851 | 833 | 174.4 |
| A | 1 | 178 | 68426 | 387.48 | 851 | 833 | 174.4 |
| B | 4 | 239 | 808865 | 4952.28 | 841 | 819 | 163.2 |
| B | 3 | 64 | 710494 | 4349.39 | 841 | 819 | 163.2 |
| B | 0 | 197 | 115717 | 704.18 | 841 | 819 | 163.2 |
| C | 9 | 204 | 295762 | 1517.51 | 837 | 842 | 194.3 |
| C | 13 | 61 | 6196 | 27.55 | 837 | 842 | 194.3 |
| C | 14 | 234 | 4205 | 17.3 | 837 | 842 | 194.3 |
| D | 10 | 253 | 1672504 | 9009.91 | 769 | 749 | 185.5 |
| D | 1 | 52 | 822899 | 4430.97 | 769 | 749 | 185.5 |
| D | 13 | 104 | 127414 | 682.66 | 769 | 749 | 185.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

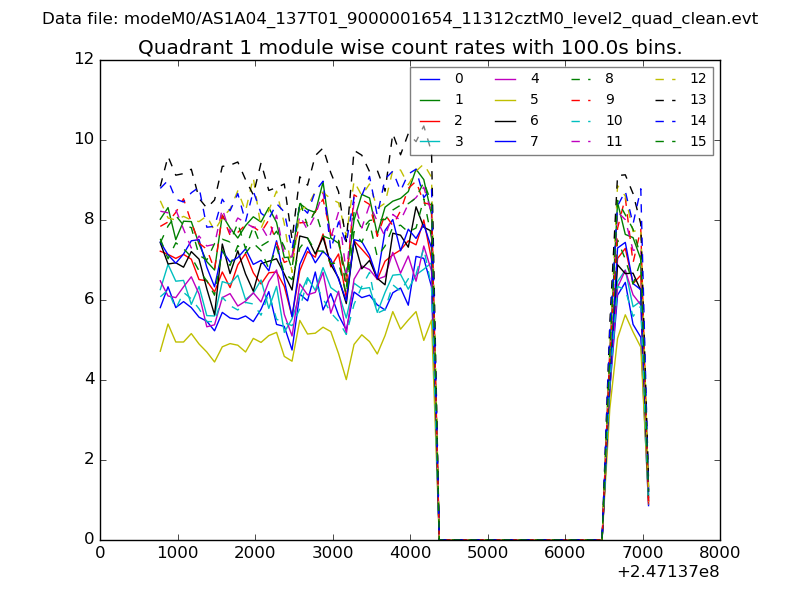

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

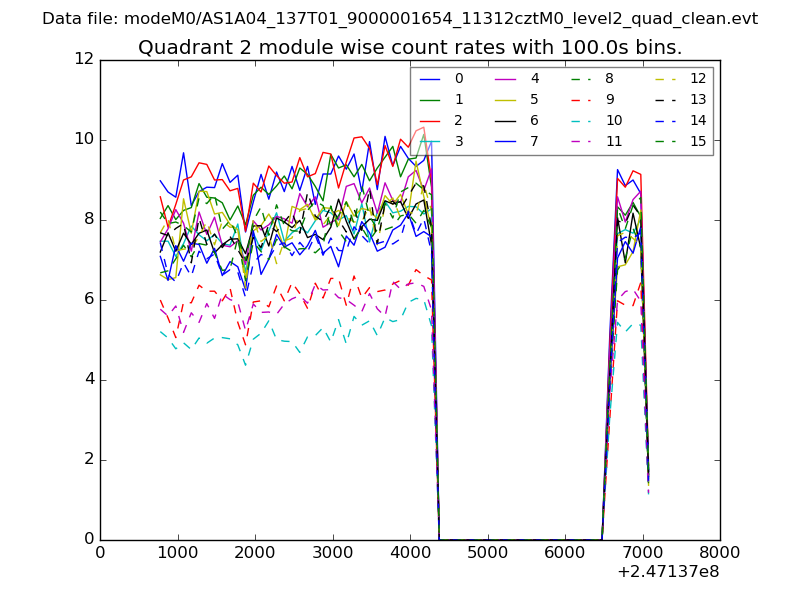

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

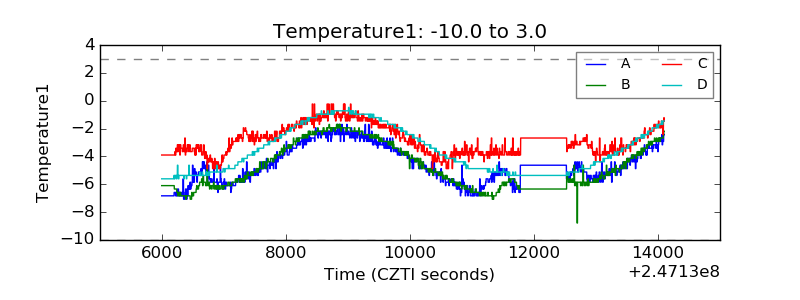

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

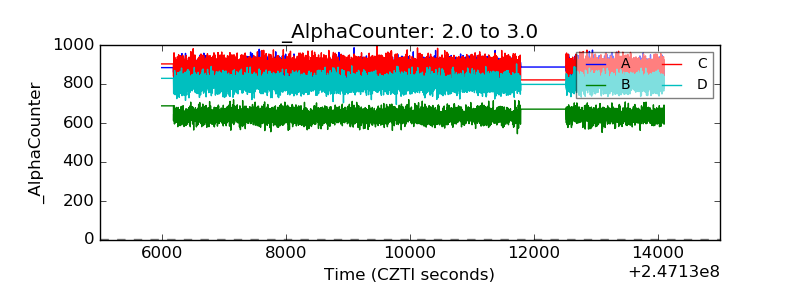

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
