| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_137T01_9000001654_11314cztM0_level2.evt | modeM0/AS1A04_137T01_9000001654_11314cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,854,400 | 90,478,080 |
| Size | 555.9 MB | 86.3 MB |
| Events in quadrant A | 4,172,299 | 572,891 |
| Events in quadrant B | 4,320,687 | 572,422 |
| Events in quadrant C | 3,313,714 | 594,312 |
| Events in quadrant D | 5,403,931 | 545,911 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16716 | 3 |
| B | 0 | 17023 | 2 |
| C | 0 | 14265 | 2 |
| D | 0 | 20472 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6512 | 250 | 3.839066% |
| B | 6512 | 306 | 4.699017% |
| C | 6512 | 93 | 1.428133% |
| D | 6512 | 675 | 10.365479% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7547 | 6513 | 116 | 116 | 1.54% | 1.78% |  |
| B | 7547 | 6513 | 153 | 153 | 2.03% | 2.35% |  |
| C | 7547 | 6513 | 32 | 32 | 0.42% | 0.49% |  |
| D | 7547 | 6513 | 303 | 303 | 4.01% | 4.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 862156 | 5277.5 | 797 | 781 | 163.2 |
| A | 14 | 238 | 68238 | 413.3 | 797 | 781 | 163.2 |
| A | 1 | 162 | 63110 | 381.88 | 797 | 781 | 163.2 |
| B | 4 | 239 | 738065 | 4830.01 | 794 | 774 | 152.6 |
| B | 3 | 64 | 232969 | 1521.11 | 794 | 774 | 152.6 |
| B | 10 | 244 | 56728 | 366.56 | 794 | 774 | 152.6 |
| C | 9 | 204 | 258512 | 1425.26 | 781 | 786 | 180.8 |
| C | 13 | 61 | 5748 | 27.44 | 781 | 786 | 180.8 |
| C | 5 | 128 | 4767 | 22.02 | 781 | 786 | 180.8 |
| D | 1 | 52 | 1273289 | 7005.16 | 760 | 739 | 181.7 |
| D | 7 | 80 | 888075 | 4884.62 | 760 | 739 | 181.7 |
| D | 2 | 120 | 148724 | 814.63 | 760 | 739 | 181.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

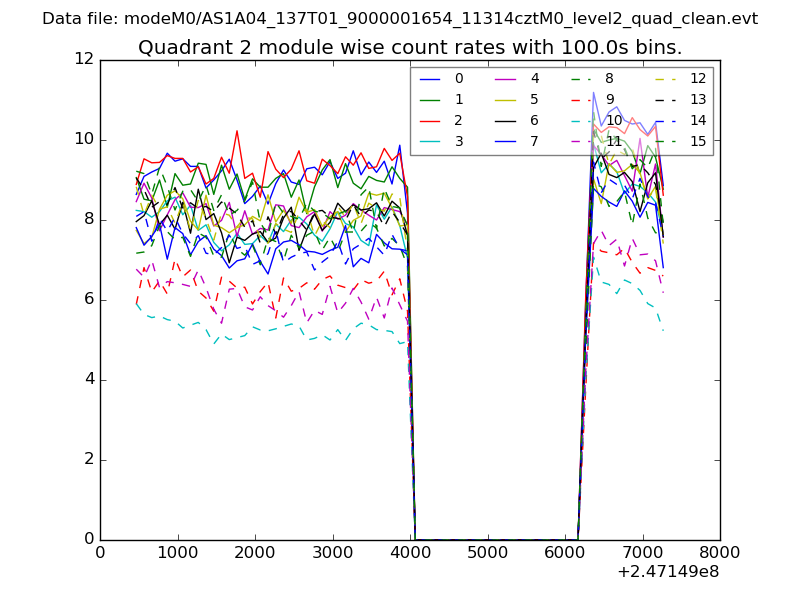

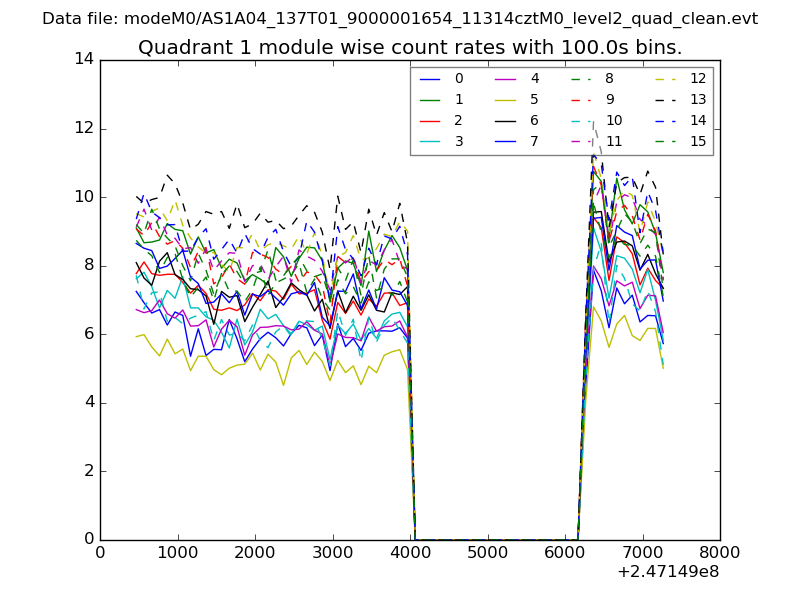

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

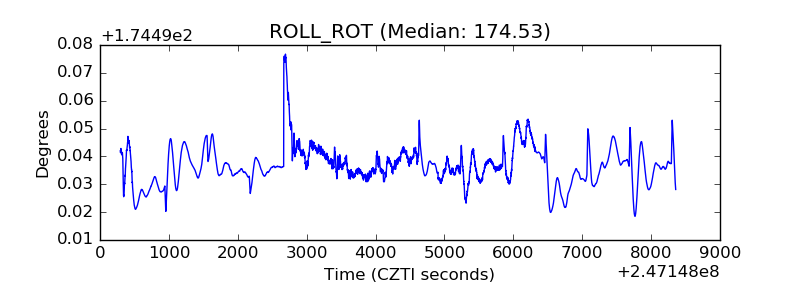

| _ROLL_ROT |  |

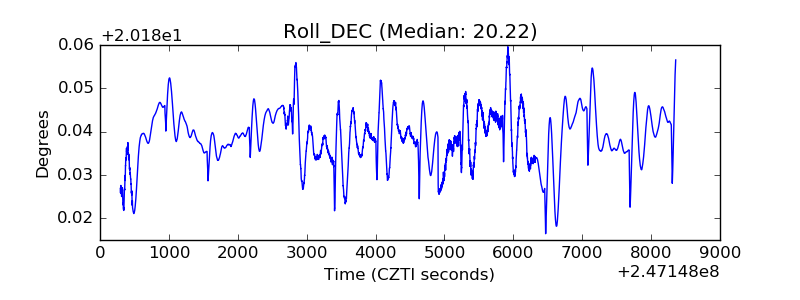

| _Roll_DEC |  |

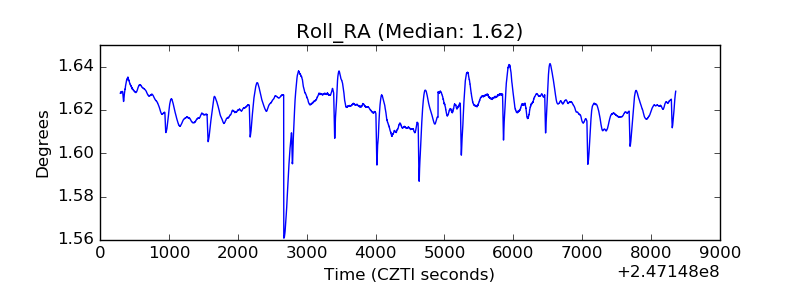

| _Roll_RA |  |

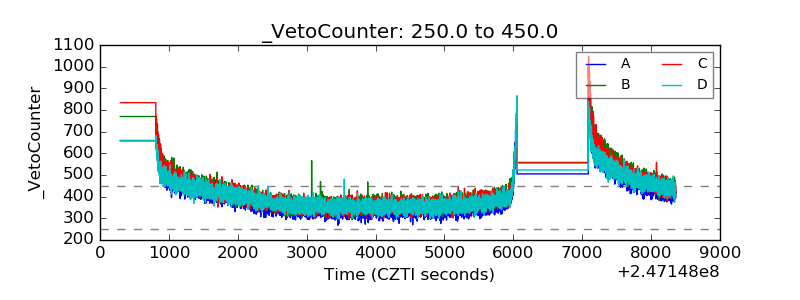

| Veto Counter |  |
