| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_137T01_9000001654_11316cztM0_level2.evt | modeM0/AS1A04_137T01_9000001654_11316cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,231,040 | 99,705,600 |
| Size | 574.3 MB | 95.1 MB |
| Events in quadrant A | 5,043,119 | 644,068 |
| Events in quadrant B | 4,961,764 | 637,546 |
| Events in quadrant C | 3,101,624 | 674,217 |
| Events in quadrant D | 4,711,543 | 629,449 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19223 | 2 |
| B | 0 | 19017 | 1 |
| C | 0 | 13153 | 1 |
| D | 0 | 18207 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6218 | 409 | 6.577678% |
| B | 6218 | 498 | 8.009006% |
| C | 6218 | 50 | 0.804117% |
| D | 6218 | 387 | 6.223866% |

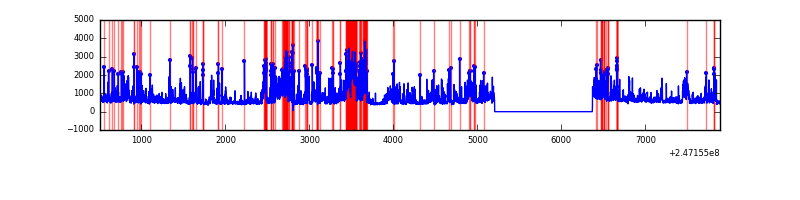

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7383 | 6219 | 268 | 268 | 3.63% | 4.31% |  |
| B | 7383 | 6219 | 336 | 336 | 4.55% | 5.40% |  |
| C | 7383 | 6219 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7383 | 6219 | 294 | 294 | 3.98% | 4.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1958886 | 12585.74 | 759 | 743 | 155.6 |
| A | 8 | 15 | 50673 | 320.92 | 759 | 743 | 155.6 |
| A | 14 | 238 | 31675 | 198.81 | 759 | 743 | 155.6 |
| B | 4 | 239 | 1258223 | 8875.47 | 747 | 728 | 141.7 |
| B | 3 | 64 | 356448 | 2510.69 | 747 | 728 | 141.7 |
| B | 10 | 244 | 177770 | 1249.57 | 747 | 728 | 141.7 |
| C | 9 | 204 | 163890 | 950.26 | 749 | 756 | 171.7 |
| C | 14 | 234 | 8547 | 45.38 | 749 | 756 | 171.7 |
| C | 1 | 3 | 6030 | 30.72 | 749 | 756 | 171.7 |
| D | 7 | 80 | 710523 | 4103.08 | 737 | 721 | 173.0 |
| D | 1 | 52 | 429216 | 2476.96 | 737 | 721 | 173.0 |
| D | 10 | 253 | 315540 | 1819.84 | 737 | 721 | 173.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

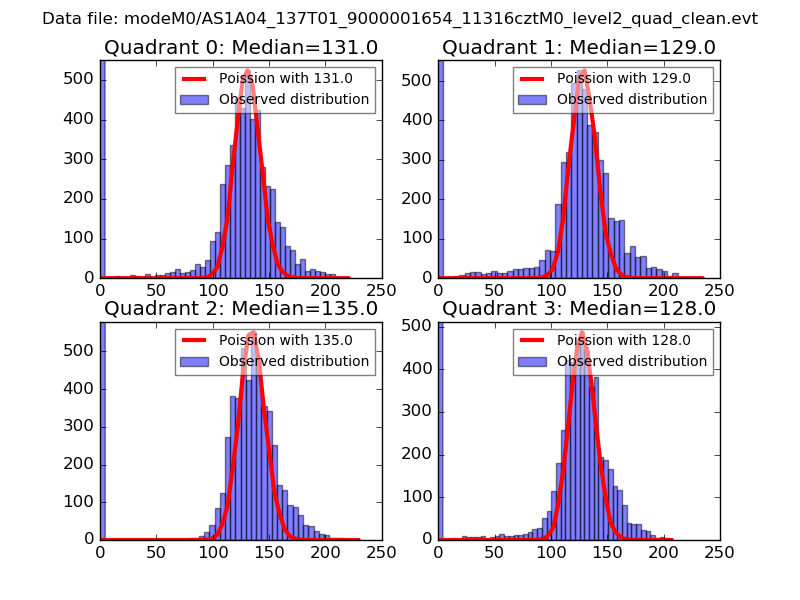

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

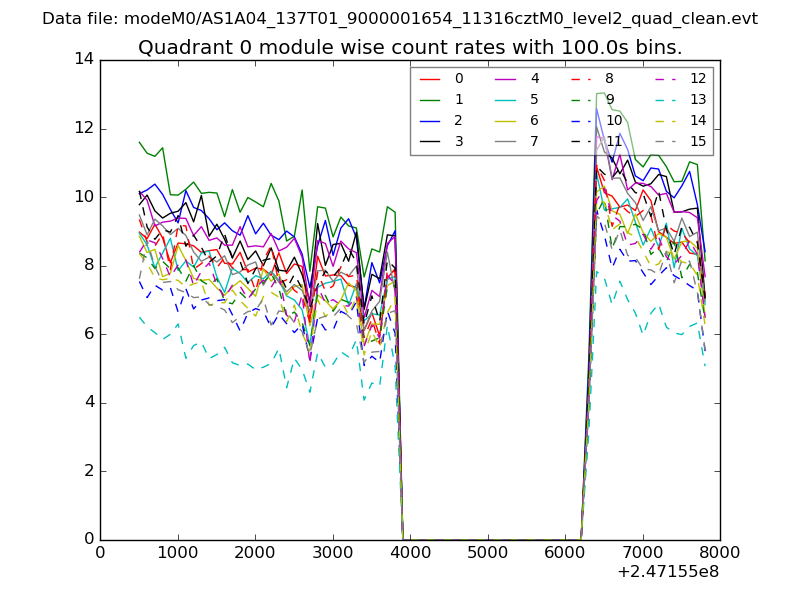

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

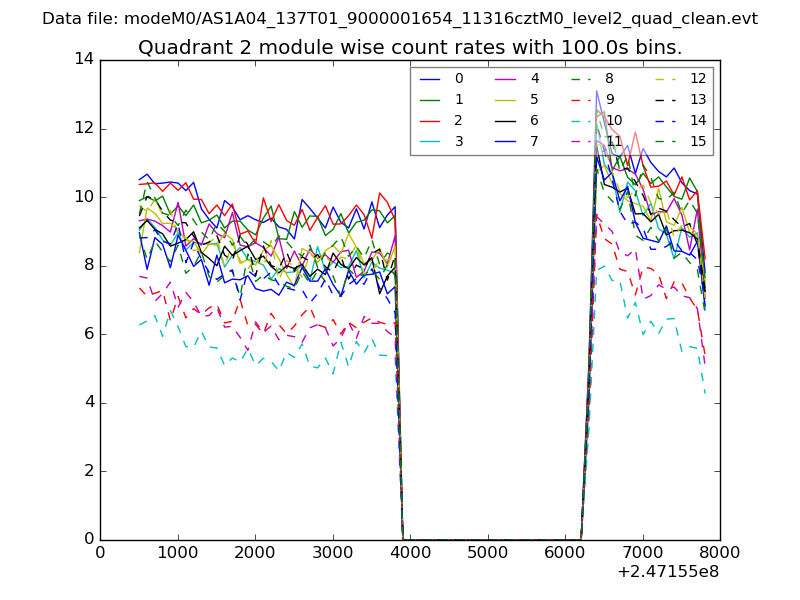

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

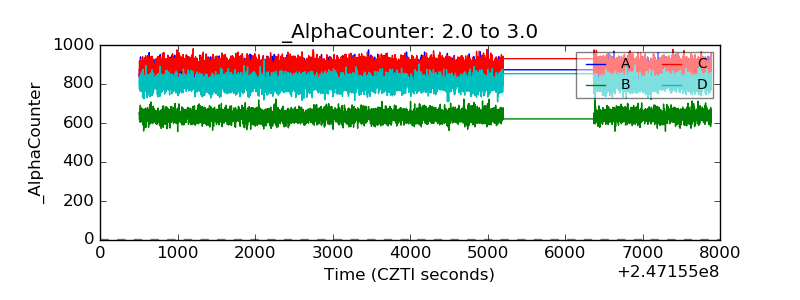

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

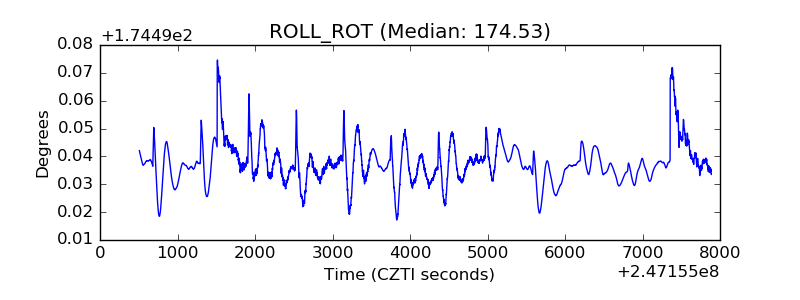

| _ROLL_ROT |  |

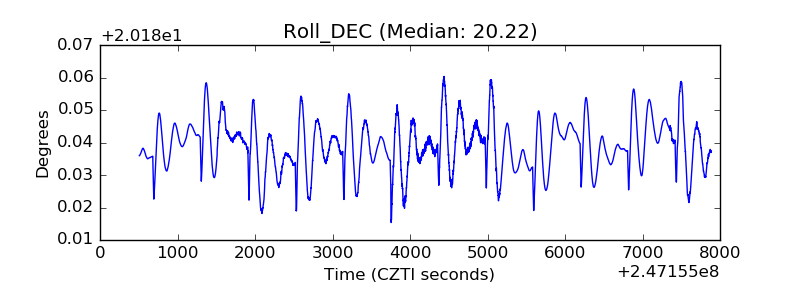

| _Roll_DEC |  |

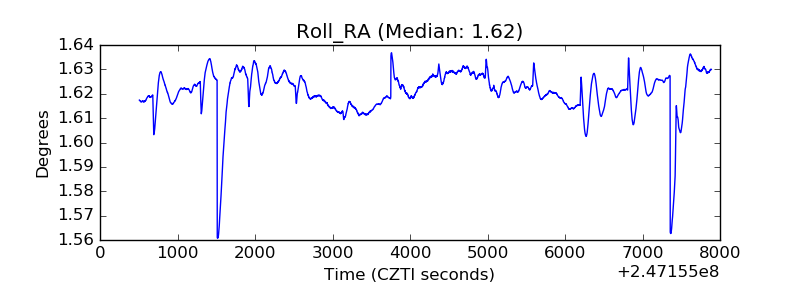

| _Roll_RA |  |
| Veto Counter |  |
