| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_028T01_9000001656_11319cztM0_level2.evt | modeM0/AS1G08_028T01_9000001656_11319cztM0_level2_quad_clean.evt |
| Size (bytes) | 598,155,840 | 81,800,640 |
| Size | 570.4 MB | 78.0 MB |
| Events in quadrant A | 4,036,134 | 523,449 |
| Events in quadrant B | 4,265,498 | 529,667 |
| Events in quadrant C | 3,664,843 | 513,349 |
| Events in quadrant D | 5,721,463 | 469,710 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16014 | 3 |
| B | 0 | 16744 | 2 |
| C | 0 | 14890 | 2 |
| D | 0 | 21217 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6312 | 188 | 2.978454% |
| B | 6312 | 342 | 5.418251% |
| C | 6312 | 226 | 3.580482% |
| D | 6312 | 679 | 10.757288% |

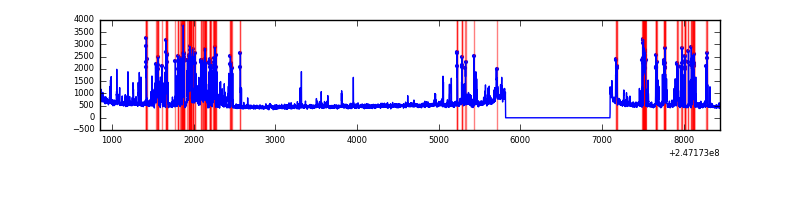

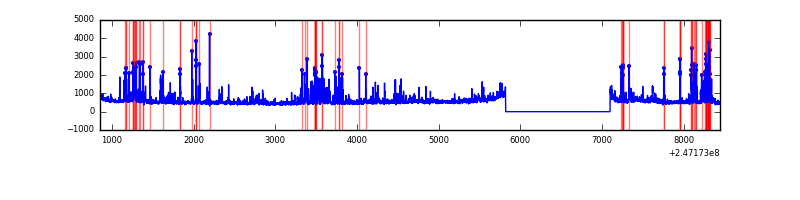

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7592 | 6313 | 86 | 86 | 1.13% | 1.36% |  |
| B | 7592 | 6313 | 185 | 185 | 2.44% | 2.93% |  |
| C | 7592 | 6313 | 95 | 95 | 1.25% | 1.50% |  |
| D | 7592 | 6312 | 566 | 566 | 7.46% | 8.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 601201 | 3761.88 | 786 | 772 | 159.6 |
| A | 14 | 238 | 153572 | 957.34 | 786 | 772 | 159.6 |
| A | 1 | 162 | 62398 | 386.11 | 786 | 772 | 159.6 |
| B | 4 | 239 | 949313 | 6367.4 | 792 | 772 | 149.0 |
| B | 3 | 189 | 130118 | 868.28 | 792 | 772 | 149.0 |
| B | 15 | 204 | 44418 | 292.99 | 792 | 772 | 149.0 |
| C | 9 | 204 | 657475 | 3690.46 | 767 | 773 | 177.9 |
| C | 12 | 4 | 7201 | 36.12 | 767 | 773 | 177.9 |
| C | 13 | 61 | 5747 | 27.95 | 767 | 773 | 177.9 |
| D | 7 | 80 | 1087791 | 6176.12 | 728 | 706 | 176.0 |
| D | 1 | 52 | 615286 | 3491.65 | 728 | 706 | 176.0 |
| D | 10 | 253 | 538004 | 3052.59 | 728 | 706 | 176.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

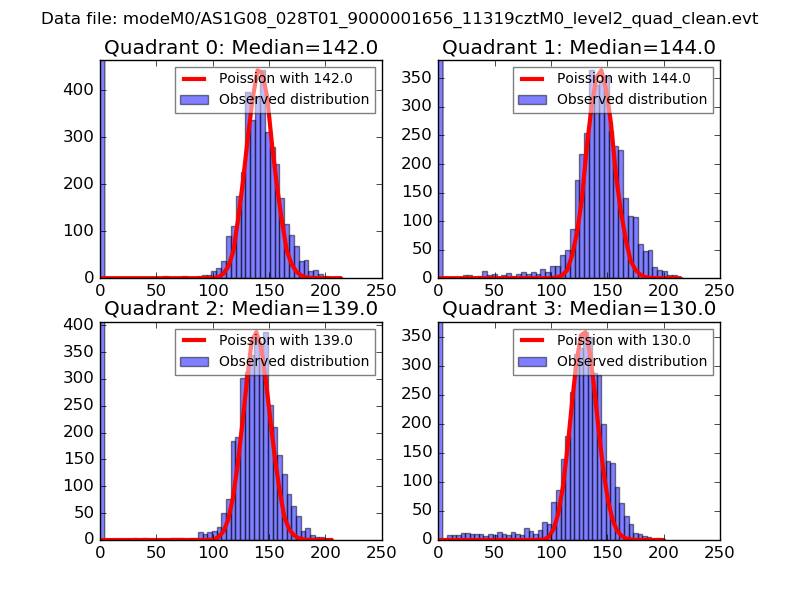

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

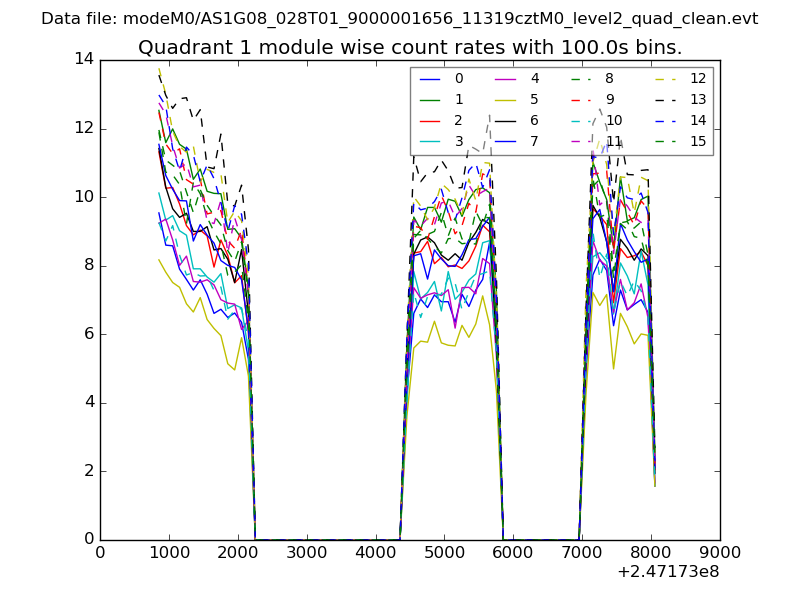

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

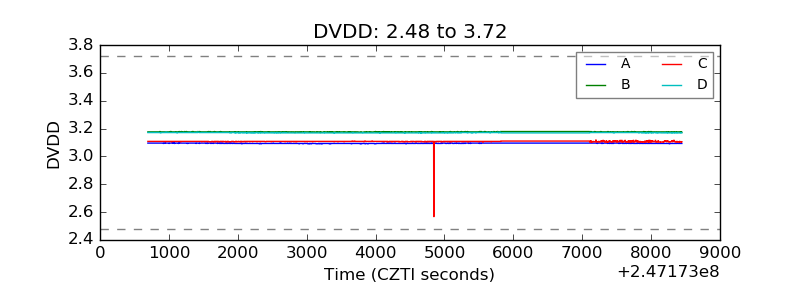

| D_VDD |  |

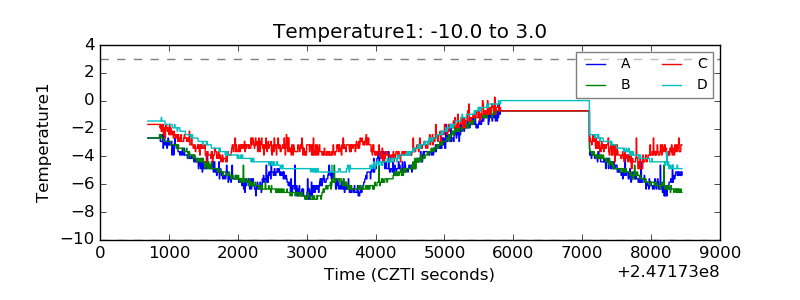

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

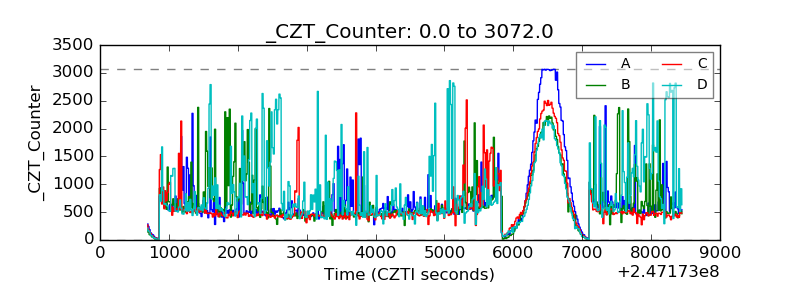

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

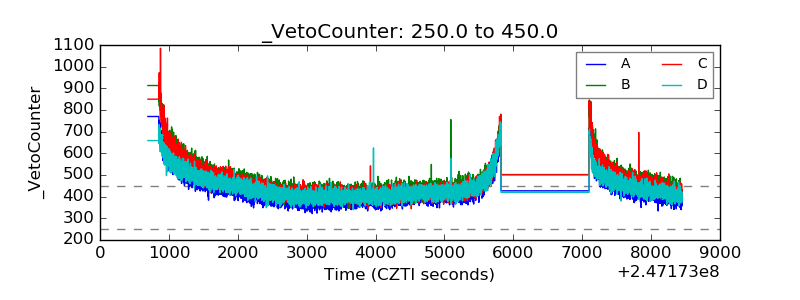

| Veto Counter |  |
