| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_062T01_9000001660_11346cztM0_level2.evt | modeM0/AS1G08_062T01_9000001660_11346cztM0_level2_quad_clean.evt |
| Size (bytes) | 623,551,680 | 74,934,720 |
| Size | 594.7 MB | 71.5 MB |
| Events in quadrant A | 4,547,805 | 492,801 |
| Events in quadrant B | 4,387,049 | 469,585 |
| Events in quadrant C | 2,646,348 | 500,008 |
| Events in quadrant D | 6,924,477 | 414,037 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17460 | 2 |
| B | 0 | 16725 | 1 |
| C | 0 | 11502 | 1 |
| D | 0 | 24389 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5604 | 173 | 3.087081% |
| B | 5604 | 444 | 7.922912% |
| C | 5604 | 16 | 0.285510% |
| D | 5604 | 1198 | 21.377587% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6894 | 5605 | 70 | 70 | 1.02% | 1.25% |  |
| B | 6894 | 5605 | 336 | 336 | 4.87% | 5.99% |  |
| C | 6894 | 5605 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6894 | 5605 | 1104 | 1104 | 16.01% | 19.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 1844404 | 13560.89 | 672 | 660 | 136.0 |
| A | 8 | 5 | 62589 | 455.49 | 672 | 660 | 136.0 |
| A | 1 | 162 | 21035 | 149.86 | 672 | 660 | 136.0 |
| B | 3 | 64 | 931166 | 7609.63 | 656 | 643 | 122.3 |
| B | 4 | 239 | 777459 | 6352.65 | 656 | 643 | 122.3 |
| B | 15 | 204 | 52420 | 423.42 | 656 | 643 | 122.3 |
| C | 13 | 250 | 24743 | 155.74 | 667 | 673 | 154.6 |
| C | 0 | 10 | 11766 | 71.77 | 667 | 673 | 154.6 |
| C | 4 | 175 | 8410 | 50.06 | 667 | 673 | 154.6 |
| D | 13 | 152 | 3173268 | 21686.67 | 605 | 588 | 146.3 |
| D | 10 | 253 | 599923 | 4096.72 | 605 | 588 | 146.3 |
| D | 1 | 52 | 593288 | 4051.37 | 605 | 588 | 146.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

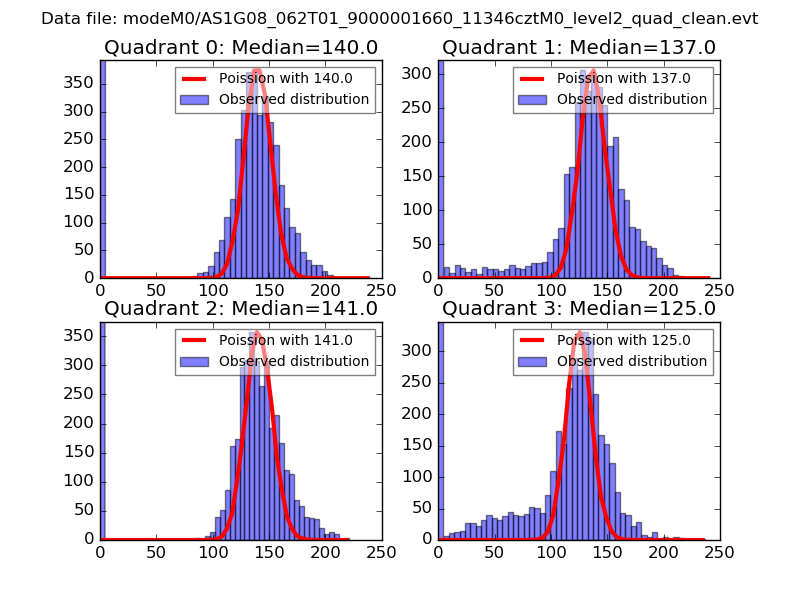

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

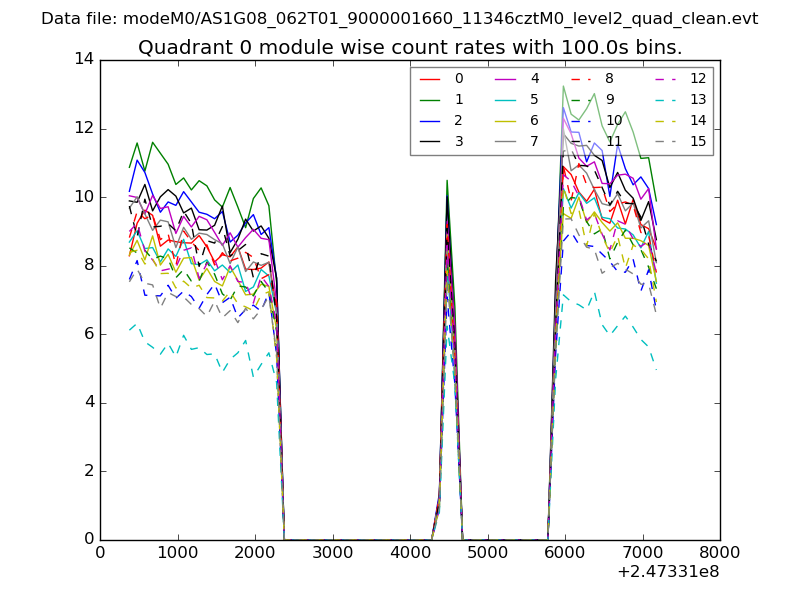

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

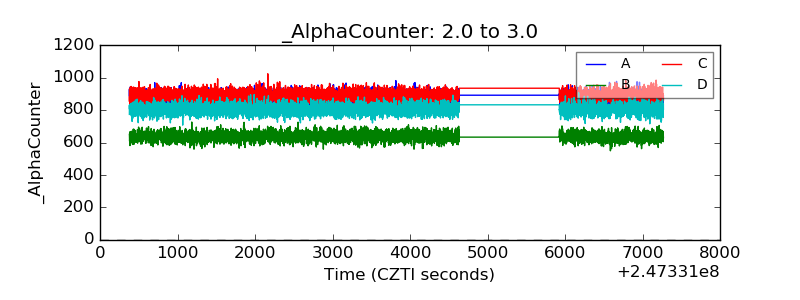

| Alpha Counter |  |

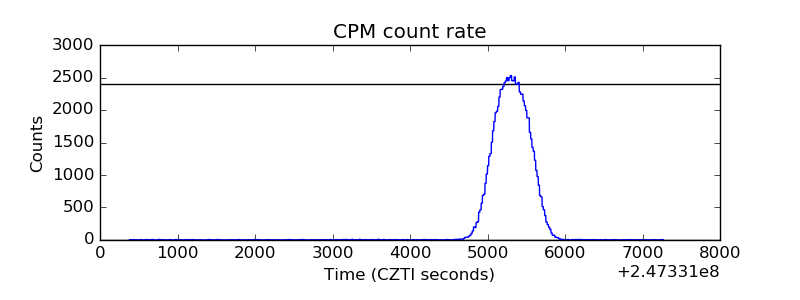

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

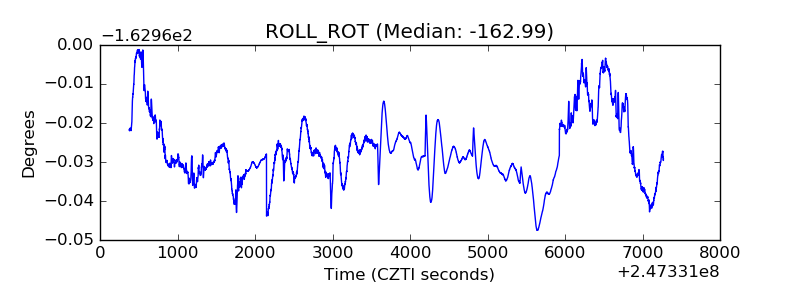

| _ROLL_ROT |  |

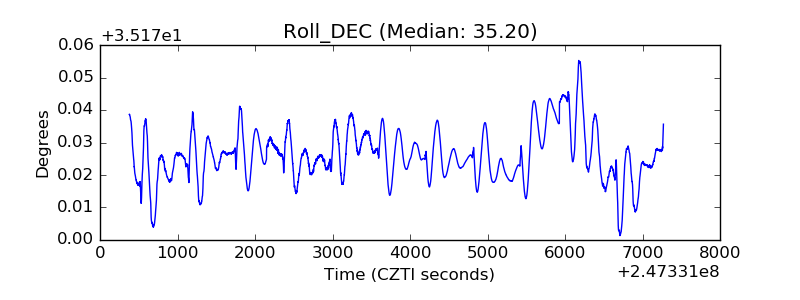

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
