| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T02_9000001662_11380cztM0_level2.evt | modeM0/AS1A04_022T02_9000001662_11380cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,215,040 | 103,656,960 |
| Size | 675.4 MB | 98.9 MB |
| Events in quadrant A | 3,957,647 | 667,729 |
| Events in quadrant B | 5,170,884 | 642,974 |
| Events in quadrant C | 3,606,588 | 720,712 |
| Events in quadrant D | 8,203,504 | 582,861 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17122 | 3 |
| B | 0 | 20547 | 2 |
| C | 0 | 16112 | 2 |
| D | 0 | 29612 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7527 | 90 | 1.195695% |
| B | 7527 | 575 | 7.639166% |
| C | 7527 | 51 | 0.677561% |
| D | 7527 | 1462 | 19.423409% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8747 | 7530 | 24 | 24 | 0.27% | 0.32% |  |
| B | 8747 | 7530 | 290 | 290 | 3.32% | 3.85% |  |
| C | 8747 | 7530 | 18 | 18 | 0.21% | 0.24% |  |
| D | 8747 | 7528 | 1210 | 1210 | 13.83% | 16.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 522067 | 2915.55 | 875 | 856 | 178.8 |
| A | 1 | 162 | 17752 | 94.51 | 875 | 856 | 178.8 |
| A | 8 | 15 | 15023 | 79.25 | 875 | 856 | 178.8 |
| B | 4 | 239 | 1456538 | 8905.19 | 854 | 833 | 163.5 |
| B | 10 | 244 | 176963 | 1077.47 | 854 | 833 | 163.5 |
| B | 3 | 189 | 66092 | 399.22 | 854 | 833 | 163.5 |
| C | 0 | 207 | 164979 | 799.99 | 879 | 881 | 205.1 |
| C | 12 | 4 | 8058 | 34.99 | 879 | 881 | 205.1 |
| C | 13 | 61 | 6323 | 26.53 | 879 | 881 | 205.1 |
| D | 14 | 34 | 2185320 | 11073.52 | 788 | 767 | 197.3 |
| D | 1 | 52 | 1555141 | 7879.13 | 788 | 767 | 197.3 |
| D | 10 | 253 | 628327 | 3181.11 | 788 | 767 | 197.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

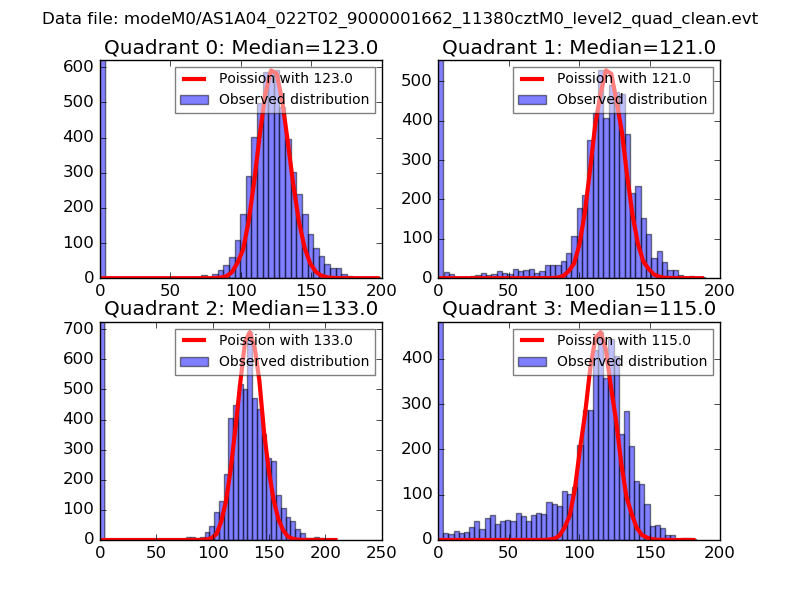

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

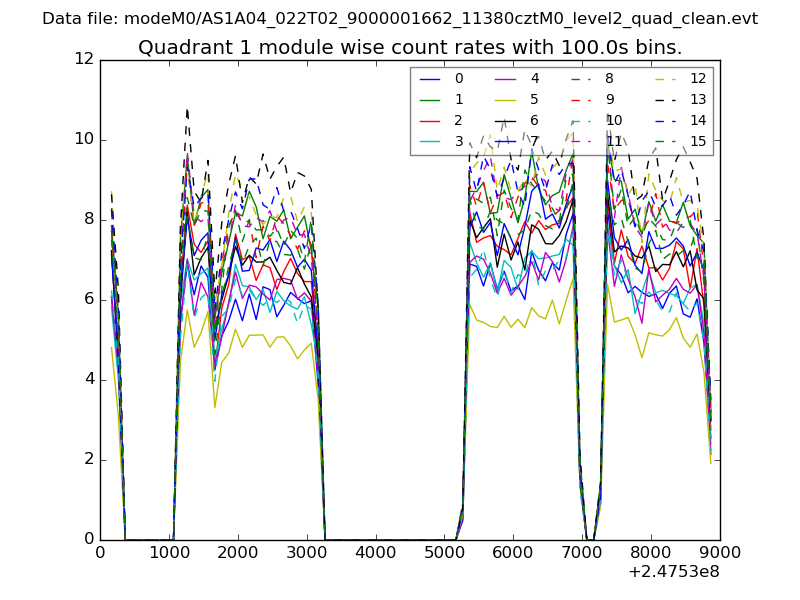

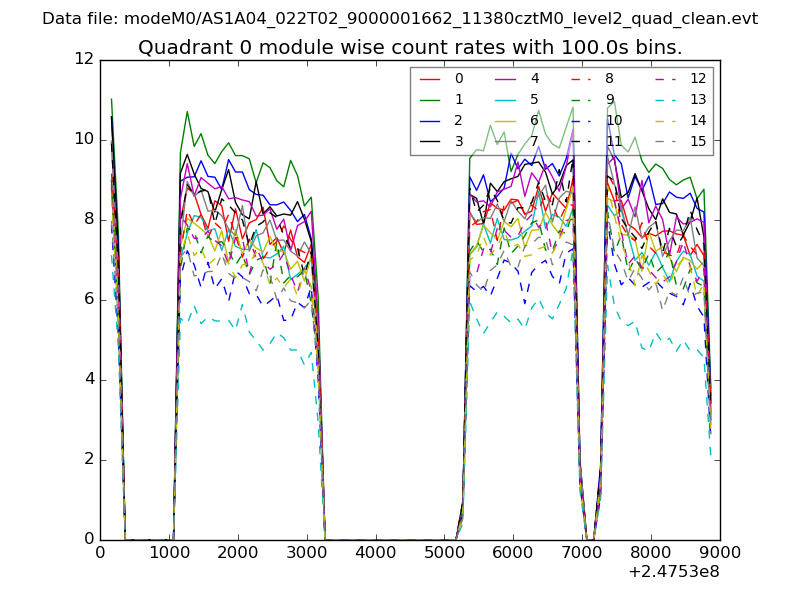

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

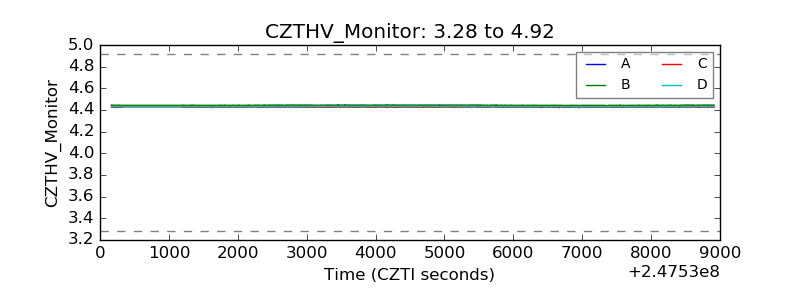

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

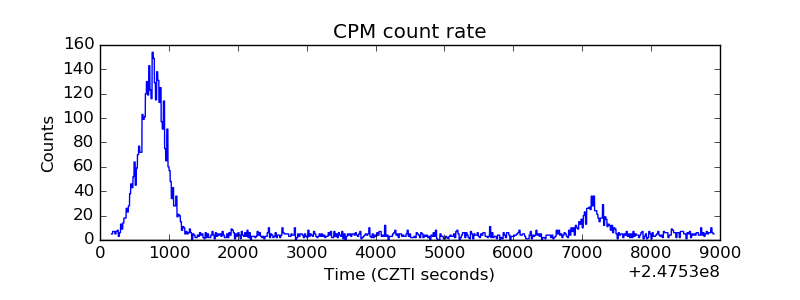

| _CPM_Rate |  |

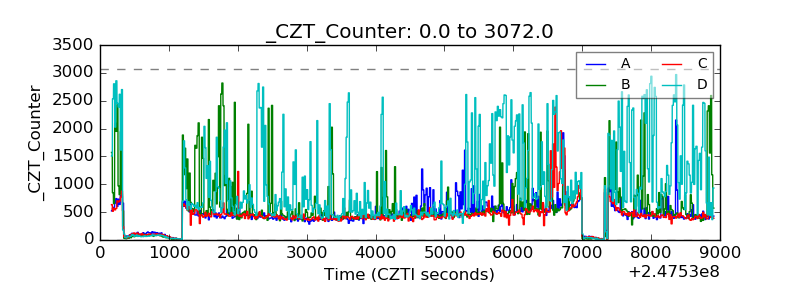

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

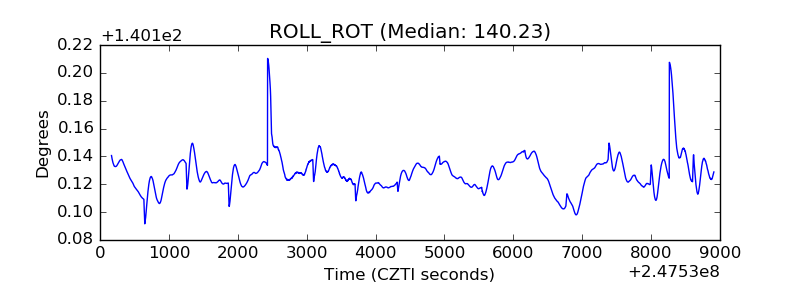

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

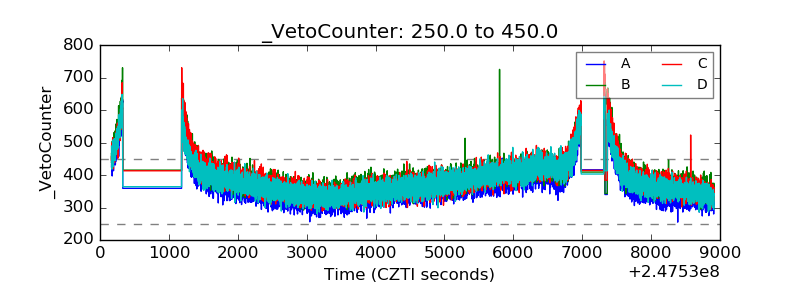

| Veto Counter |  |
