| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T03_9000001664_11384cztM0_level2.evt | modeM0/AS1A04_022T03_9000001664_11384cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,066,049,280 | 143,167,680 |
| Size | 1016.7 MB | 136.5 MB |
| Events in quadrant A | 8,766,298 | 839,122 |
| Events in quadrant B | 8,273,227 | 832,093 |
| Events in quadrant C | 5,740,641 | 926,955 |
| Events in quadrant D | 8,634,231 | 845,793 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34615 | 3 |
| B | 0 | 33116 | 2 |
| C | 0 | 26076 | 2 |
| D | 0 | 34508 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 262 | 0 |
| B | 0 | 262 | 0 |
| C | 0 | 262 | 0 |
| D | 0 | 262 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12895 | 576 | 4.466848% |
| B | 12895 | 748 | 5.800698% |
| C | 12895 | 58 | 0.449787% |
| D | 12895 | 569 | 4.412563% |

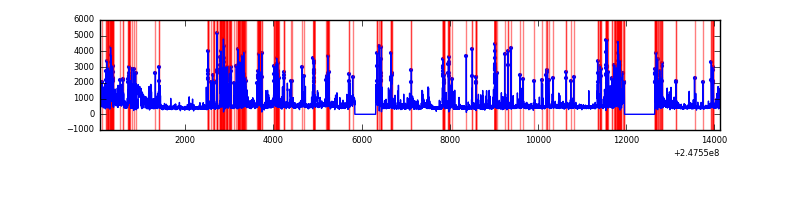

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14055 | 12897 | 322 | 322 | 2.29% | 2.50% |  |
| B | 14055 | 12897 | 451 | 451 | 3.21% | 3.50% |  |
| C | 14055 | 12897 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14055 | 12897 | 413 | 413 | 2.94% | 3.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2816335 | 9464.98 | 1459 | 1424 | 297.4 |
| A | 15 | 174 | 64375 | 211.67 | 1459 | 1424 | 297.4 |
| A | 1 | 162 | 59703 | 195.96 | 1459 | 1424 | 297.4 |
| B | 4 | 239 | 2038474 | 7352.37 | 1454 | 1414 | 277.1 |
| B | 3 | 189 | 172359 | 616.99 | 1454 | 1414 | 277.1 |
| B | 10 | 244 | 90224 | 320.54 | 1454 | 1414 | 277.1 |
| C | 13 | 61 | 10722 | 26.71 | 1470 | 1480 | 346.0 |
| C | 12 | 4 | 6088 | 13.32 | 1470 | 1480 | 346.0 |
| C | 14 | 234 | 4954 | 10.04 | 1470 | 1480 | 346.0 |
| D | 14 | 34 | 991317 | 2894.85 | 1424 | 1385 | 342.0 |
| D | 10 | 253 | 771073 | 2250.79 | 1424 | 1385 | 342.0 |
| D | 1 | 52 | 750843 | 2191.63 | 1424 | 1385 | 342.0 |

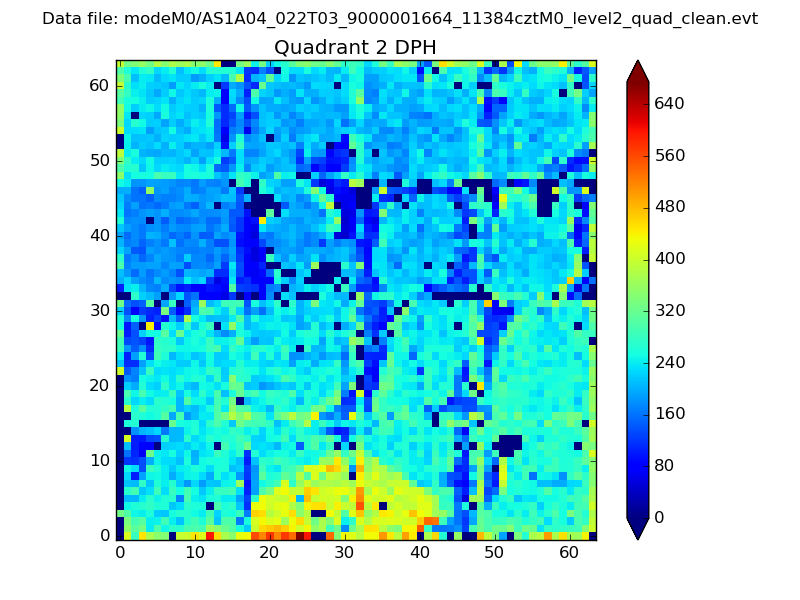

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

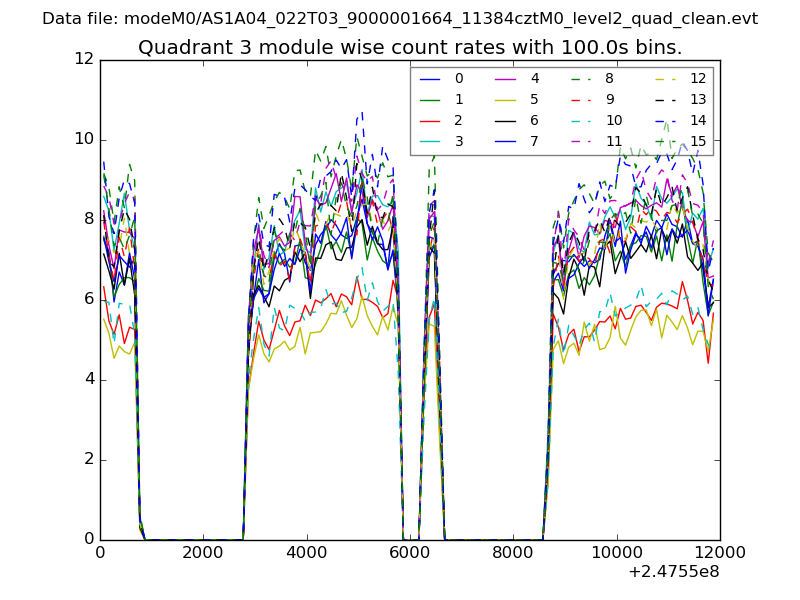

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

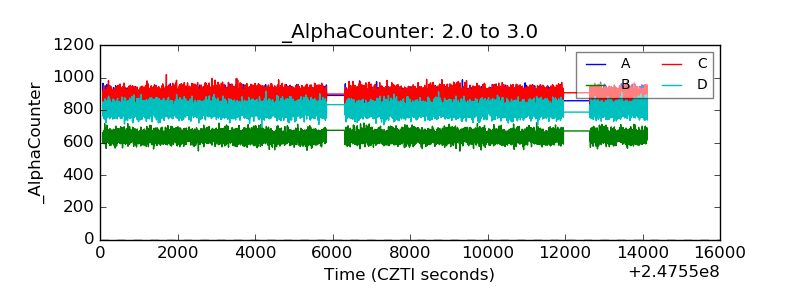

| Alpha Counter |  |

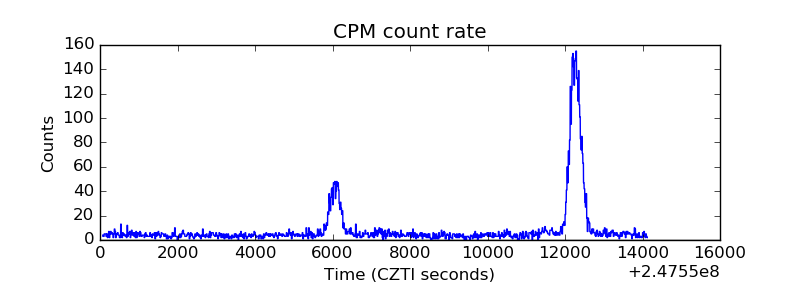

| _CPM_Rate |  |

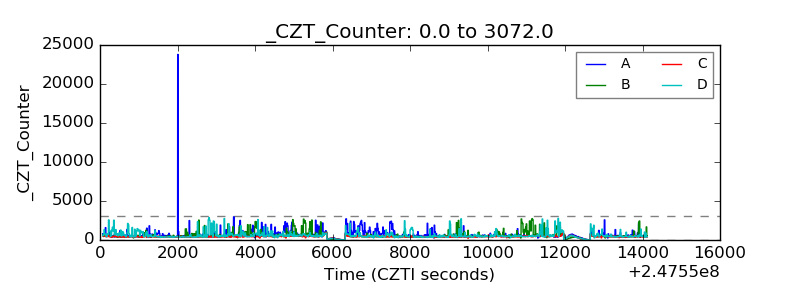

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

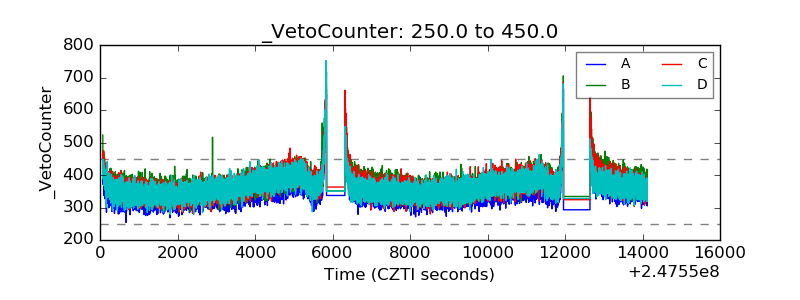

| Veto Counter |  |
