| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T04_9000001666_11403cztM0_level2.evt | modeM0/AS1A04_022T04_9000001666_11403cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,966,080 | 98,377,920 |
| Size | 539.7 MB | 93.8 MB |
| Events in quadrant A | 3,399,586 | 632,522 |
| Events in quadrant B | 4,543,298 | 617,310 |
| Events in quadrant C | 3,216,348 | 661,663 |
| Events in quadrant D | 5,532,126 | 605,611 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14385 | 3 |
| B | 0 | 17849 | 2 |
| C | 0 | 13784 | 2 |
| D | 0 | 21151 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6623 | 98 | 1.479692% |
| B | 6623 | 415 | 6.266043% |
| C | 6623 | 66 | 0.996527% |
| D | 6623 | 333 | 5.027933% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7783 | 6624 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7783 | 6624 | 189 | 189 | 2.43% | 2.85% |  |
| C | 7783 | 6624 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7783 | 6624 | 185 | 185 | 2.38% | 2.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 51432 | 294.11 | 850 | 832 | 172.0 |
| A | 1 | 162 | 29941 | 169.2 | 850 | 832 | 172.0 |
| A | 1 | 178 | 17132 | 94.74 | 850 | 832 | 172.0 |
| B | 4 | 239 | 1235809 | 7908.87 | 824 | 804 | 156.2 |
| B | 15 | 204 | 39918 | 250.48 | 824 | 804 | 156.2 |
| B | 3 | 189 | 31464 | 196.34 | 824 | 804 | 156.2 |
| C | 13 | 61 | 5960 | 26.98 | 825 | 829 | 190.2 |
| C | 3 | 202 | 1967 | 5.98 | 825 | 829 | 190.2 |
| C | 3 | 203 | 1833 | 5.28 | 825 | 829 | 190.2 |
| D | 1 | 52 | 1618815 | 8528.07 | 806 | 787 | 189.7 |
| D | 10 | 253 | 273280 | 1436.22 | 806 | 787 | 189.7 |
| D | 13 | 249 | 208985 | 1097.34 | 806 | 787 | 189.7 |

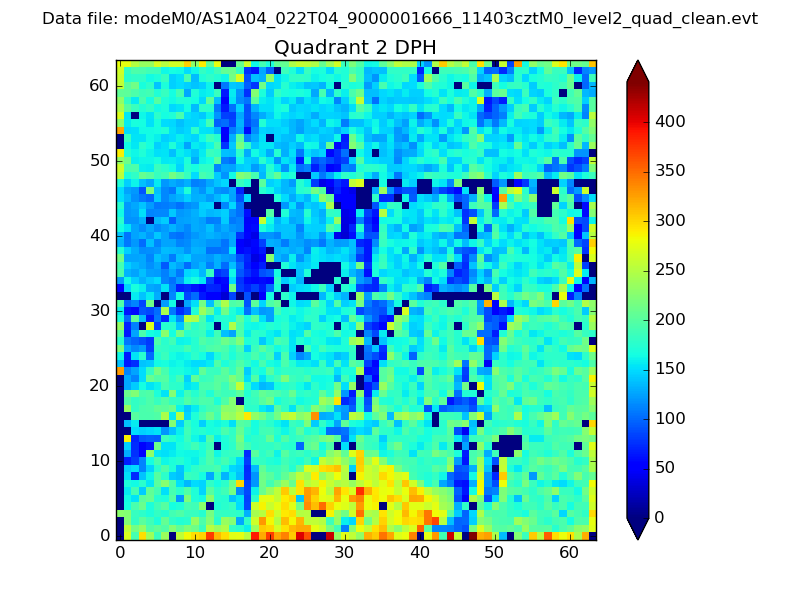

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

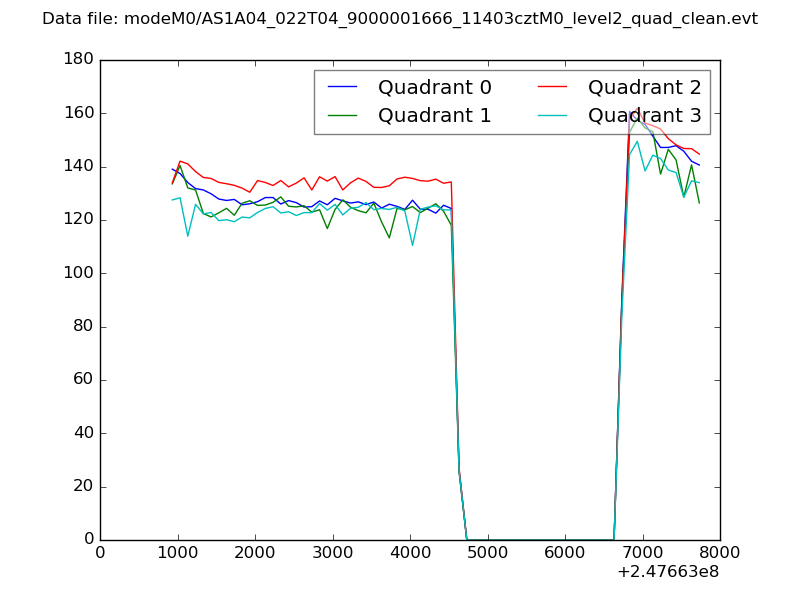

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

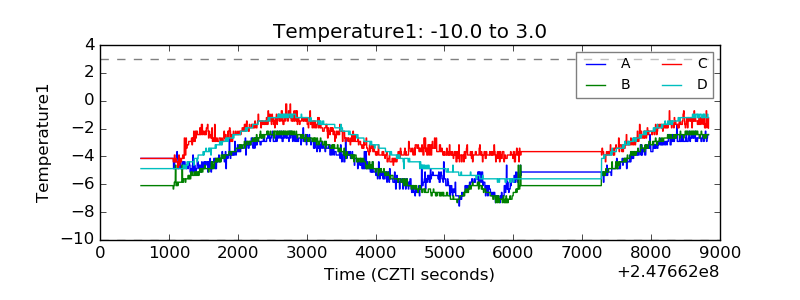

| Temperature 1 |  |

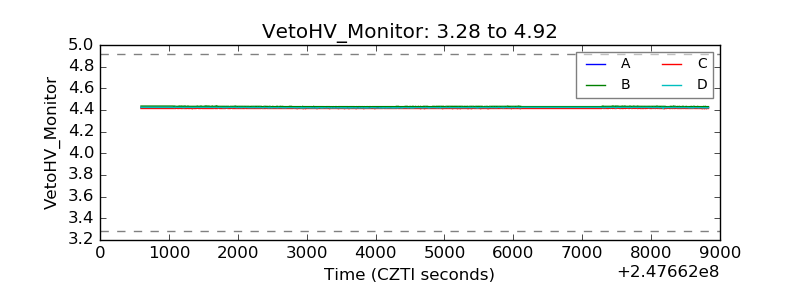

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

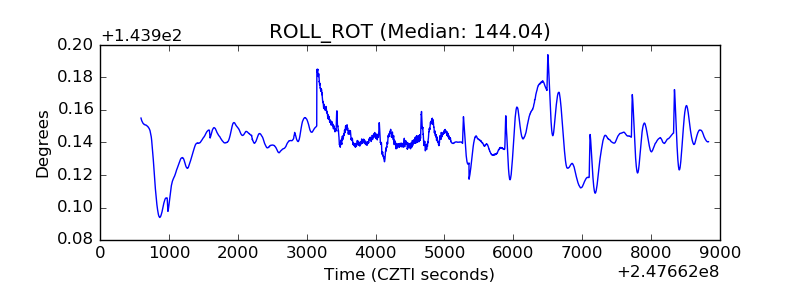

| _ROLL_ROT |  |

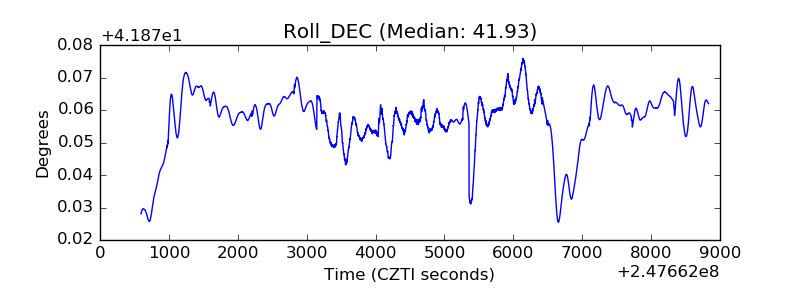

| _Roll_DEC |  |

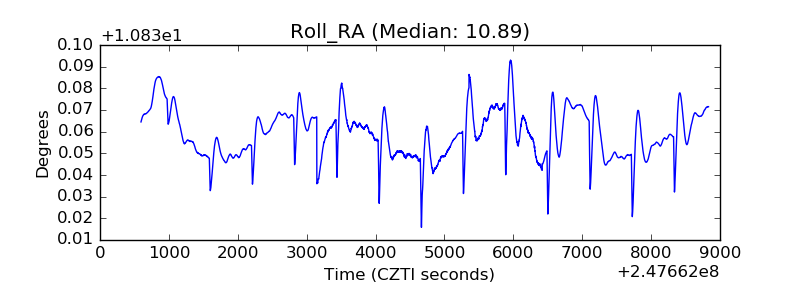

| _Roll_RA |  |
| Veto Counter |  |
