| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_066T01_9000001668_11409cztM0_level2.evt | modeM0/AS1G08_066T01_9000001668_11409cztM0_level2_quad_clean.evt |
| Size (bytes) | 575,369,280 | 104,423,040 |
| Size | 548.7 MB | 99.6 MB |
| Events in quadrant A | 3,693,224 | 674,255 |
| Events in quadrant B | 5,488,326 | 655,279 |
| Events in quadrant C | 3,381,873 | 666,339 |
| Events in quadrant D | 4,344,505 | 635,989 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16238 | 4 |
| B | 0 | 21585 | 3 |
| C | 0 | 15584 | 3 |
| D | 0 | 18328 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7625 | 64 | 0.839344% |
| B | 7625 | 565 | 7.409836% |
| C | 7625 | 19 | 0.249180% |
| D | 7625 | 228 | 2.990164% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8855 | 7628 | 11 | 11 | 0.12% | 0.14% |  |
| B | 8855 | 7628 | 282 | 282 | 3.18% | 3.70% |  |
| C | 8855 | 7628 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8855 | 7628 | 192 | 192 | 2.17% | 2.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 142606 | 769.2 | 897 | 877 | 184.3 |
| A | 11 | 29 | 34705 | 183.59 | 897 | 877 | 184.3 |
| A | 1 | 162 | 24605 | 128.78 | 897 | 877 | 184.3 |
| B | 4 | 239 | 1519909 | 8983.73 | 881 | 859 | 169.1 |
| B | 3 | 189 | 279796 | 1649.64 | 881 | 859 | 169.1 |
| B | 3 | 64 | 143591 | 844.12 | 881 | 859 | 169.1 |
| C | 13 | 61 | 6364 | 27.03 | 867 | 871 | 203.2 |
| C | 3 | 202 | 2102 | 6.06 | 867 | 871 | 203.2 |
| C | -1 | -1 | -1 | -1.0 | 867 | 871 | 203.2 |
| D | 13 | 152 | 710379 | 3426.14 | 852 | 824 | 207.1 |
| D | 10 | 253 | 107373 | 514.48 | 852 | 824 | 207.1 |
| D | 5 | 222 | 50667 | 240.67 | 852 | 824 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

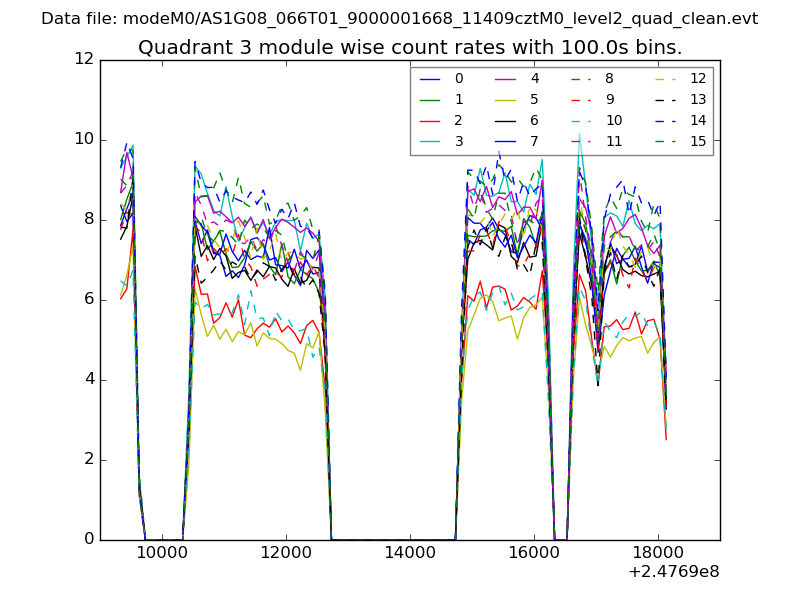

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

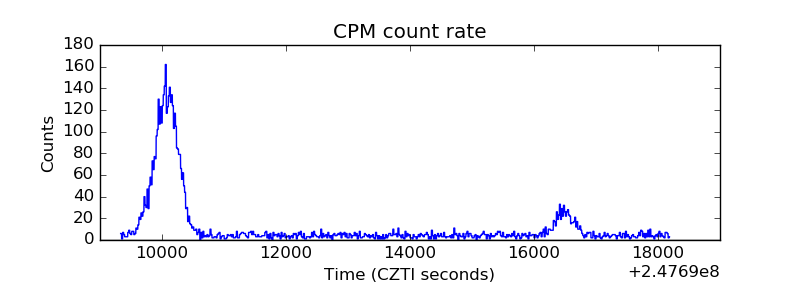

| _CPM_Rate |  |

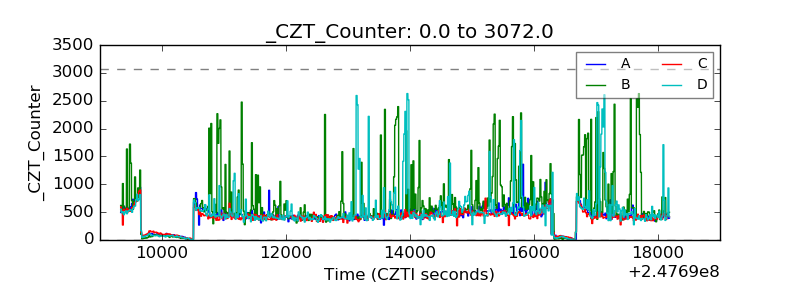

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

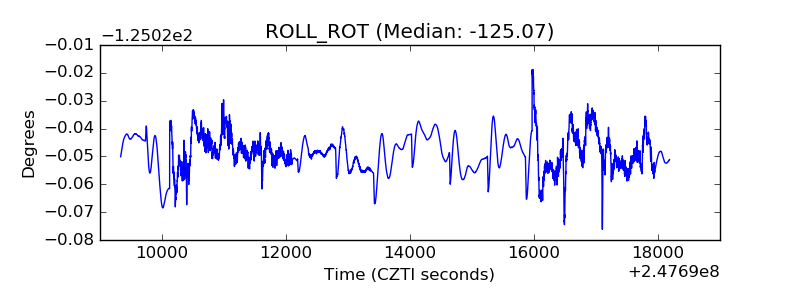

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

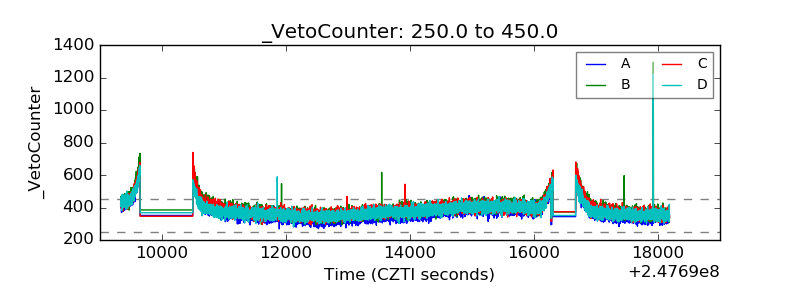

| Veto Counter |  |
