| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_024T04_9000001670_11415cztM0_level2.evt | modeM0/AS1A04_024T04_9000001670_11415cztM0_level2_quad_clean.evt |
| Size (bytes) | 973,373,760 | 181,180,800 |
| Size | 928.3 MB | 172.8 MB |
| Events in quadrant A | 7,525,731 | 1,152,443 |
| Events in quadrant B | 8,787,091 | 1,154,439 |
| Events in quadrant C | 5,693,701 | 1,180,815 |
| Events in quadrant D | 6,614,831 | 1,123,090 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30640 | 4 |
| B | 0 | 34345 | 3 |
| C | 0 | 25788 | 3 |
| D | 0 | 27859 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 0 |
| B | 0 | 260 | 0 |
| C | 0 | 260 | 0 |
| D | 0 | 260 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12680 | 222 | 1.750789% |
| B | 12680 | 720 | 5.678233% |
| C | 12680 | 78 | 0.615142% |
| D | 12680 | 154 | 1.214511% |

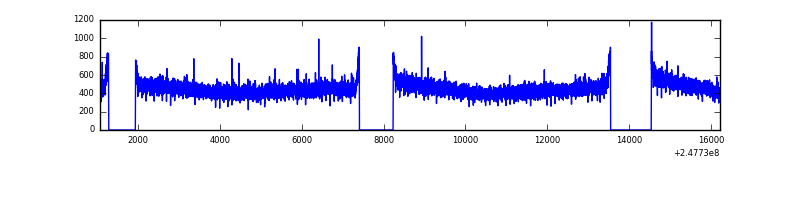

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15155 | 12683 | 51 | 51 | 0.34% | 0.40% |  |
| B | 15155 | 12683 | 385 | 385 | 2.54% | 3.04% |  |
| C | 15155 | 12683 | 0 | 0 | 0.00% | 0.00% |  |
| D | 15155 | 12683 | 43 | 43 | 0.28% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1602725 | 5366.1 | 1484 | 1449 | 298.4 |
| A | 1 | 162 | 55252 | 180.3 | 1484 | 1449 | 298.4 |
| A | 11 | 29 | 41802 | 135.23 | 1484 | 1449 | 298.4 |
| B | 4 | 239 | 2426342 | 8774.81 | 1461 | 1426 | 276.3 |
| B | 11 | 51 | 181604 | 651.99 | 1461 | 1426 | 276.3 |
| B | 15 | 204 | 152458 | 546.52 | 1461 | 1426 | 276.3 |
| C | 13 | 61 | 10741 | 27.56 | 1461 | 1468 | 336.5 |
| C | 3 | 202 | 3598 | 6.33 | 1461 | 1468 | 336.5 |
| C | -1 | -1 | -1 | -1.0 | 1461 | 1468 | 336.5 |
| D | 13 | 152 | 331935 | 940.87 | 1459 | 1413 | 351.3 |
| D | 10 | 253 | 167121 | 471.71 | 1459 | 1413 | 351.3 |
| D | 2 | 120 | 156408 | 441.21 | 1459 | 1413 | 351.3 |

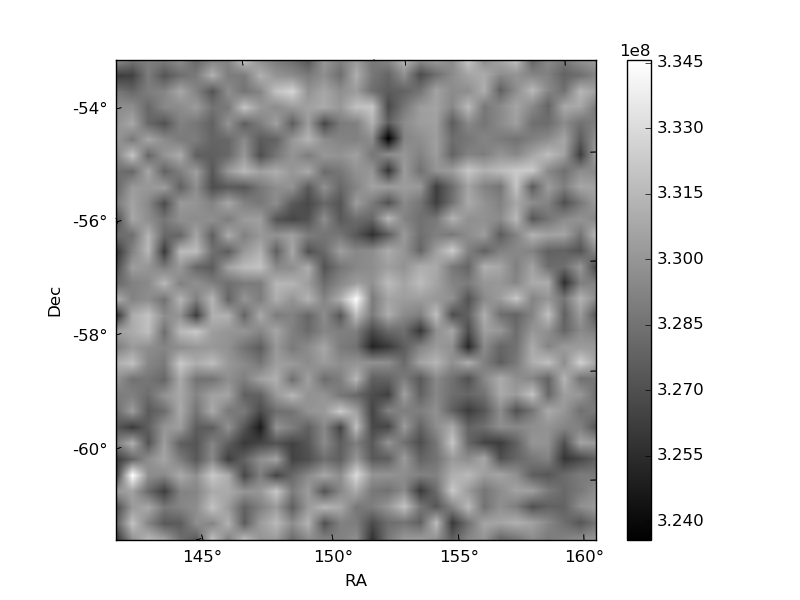

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

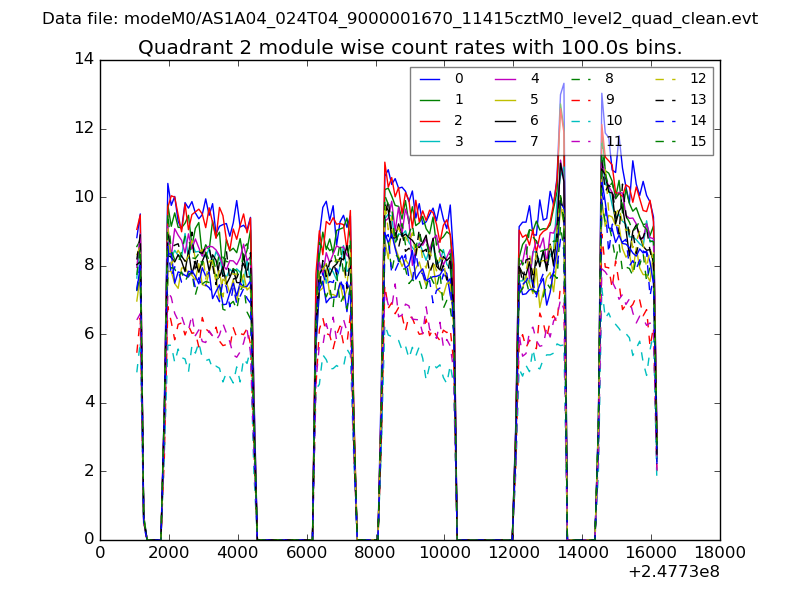

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

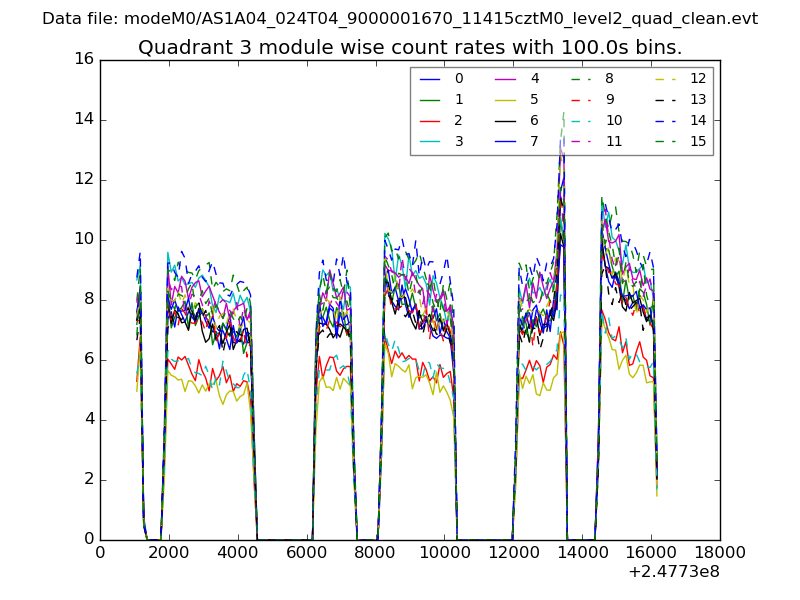

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

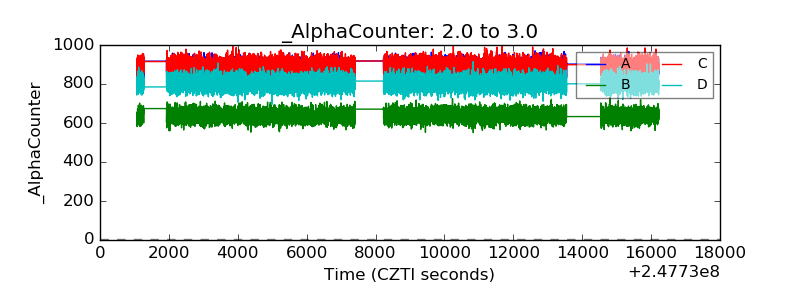

| Alpha Counter |  |

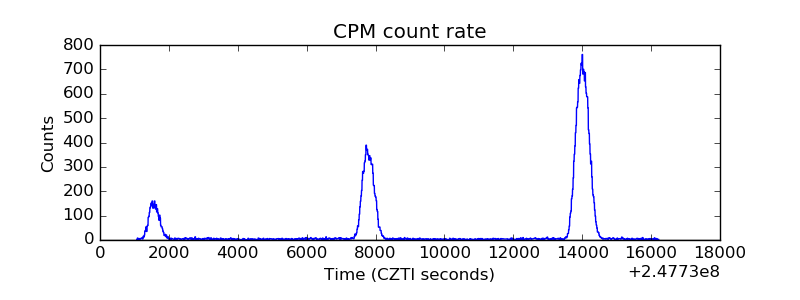

| _CPM_Rate |  |

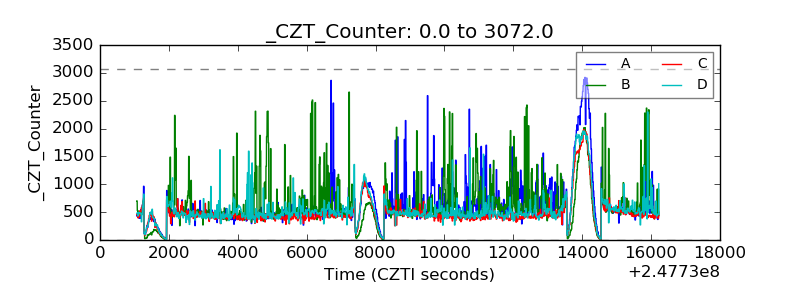

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

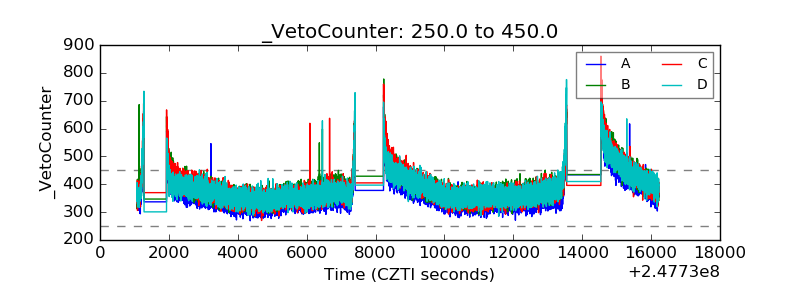

| Veto Counter |  |
