| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_024T04_9000001670_11424cztM0_level2.evt | modeM0/AS1A04_024T04_9000001670_11424cztM0_level2_quad_clean.evt |
| Size (bytes) | 626,261,760 | 101,436,480 |
| Size | 597.2 MB | 96.7 MB |
| Events in quadrant A | 4,061,069 | 647,483 |
| Events in quadrant B | 6,757,551 | 629,249 |
| Events in quadrant C | 3,464,283 | 646,409 |
| Events in quadrant D | 4,161,545 | 613,228 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17419 | 4 |
| B | 0 | 25406 | 3 |
| C | 0 | 15768 | 3 |
| D | 0 | 17754 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7691 | 139 | 1.807307% |
| B | 7691 | 1050 | 13.652321% |
| C | 7691 | 39 | 0.507086% |
| D | 7691 | 136 | 1.768301% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7781 | 7693 | 28 | 28 | 0.36% | 0.36% |  |
| B | 7781 | 7693 | 522 | 522 | 6.71% | 6.79% |  |
| C | 7781 | 7693 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7781 | 7693 | 90 | 90 | 1.16% | 1.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 339203 | 1827.1 | 913 | 893 | 185.2 |
| A | 1 | 162 | 61594 | 327.83 | 913 | 893 | 185.2 |
| A | 1 | 178 | 35775 | 188.39 | 913 | 893 | 185.2 |
| B | 4 | 239 | 1850315 | 11338.15 | 870 | 850 | 163.1 |
| B | 3 | 64 | 1011819 | 6197.75 | 870 | 850 | 163.1 |
| B | 15 | 204 | 134688 | 820.49 | 870 | 850 | 163.1 |
| C | 0 | 207 | 11768 | 52.98 | 885 | 888 | 205.4 |
| C | 13 | 61 | 6614 | 27.88 | 885 | 888 | 205.4 |
| C | 8 | 222 | 3155 | 11.04 | 885 | 888 | 205.4 |
| D | 13 | 104 | 232285 | 1074.26 | 881 | 854 | 215.4 |
| D | 10 | 253 | 202920 | 937.95 | 881 | 854 | 215.4 |
| D | 2 | 120 | 107082 | 493.09 | 881 | 854 | 215.4 |

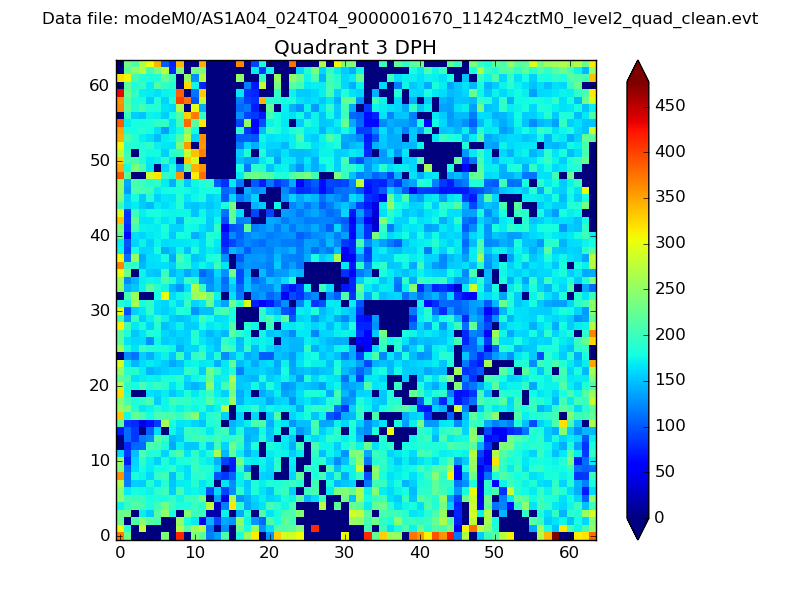

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

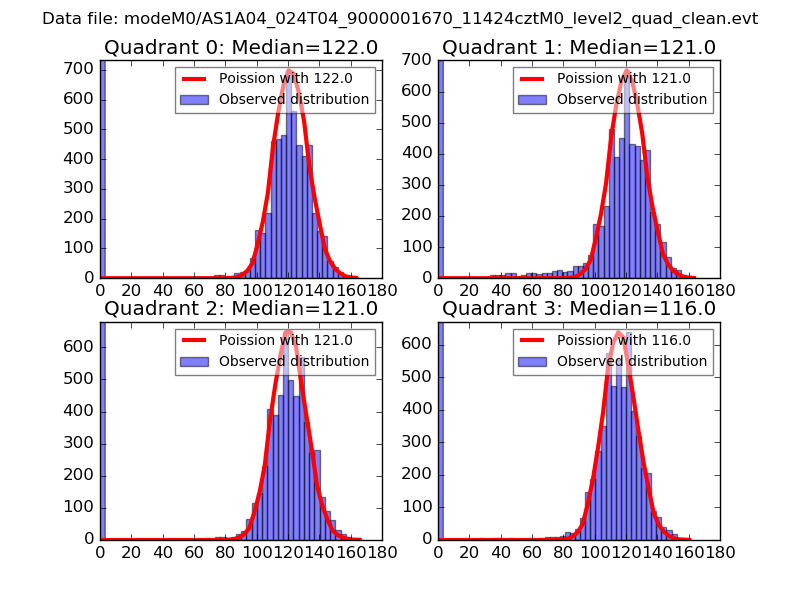

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

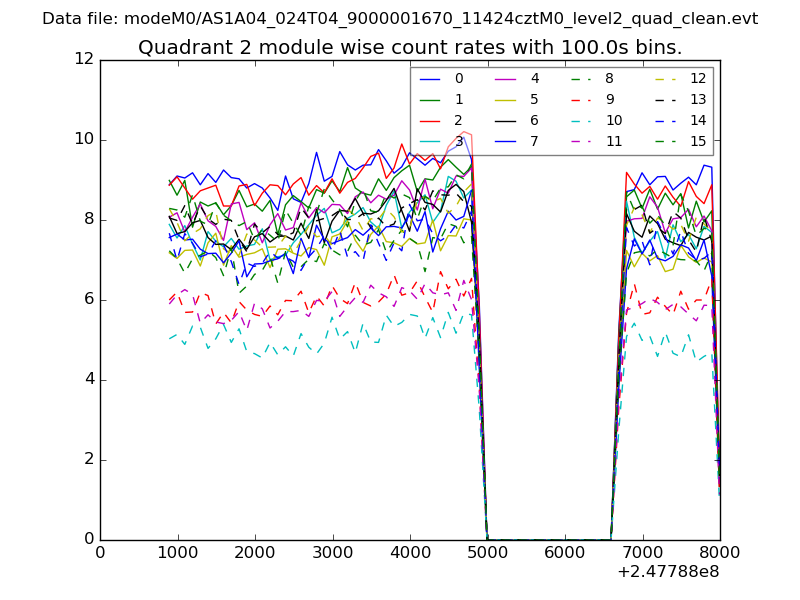

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

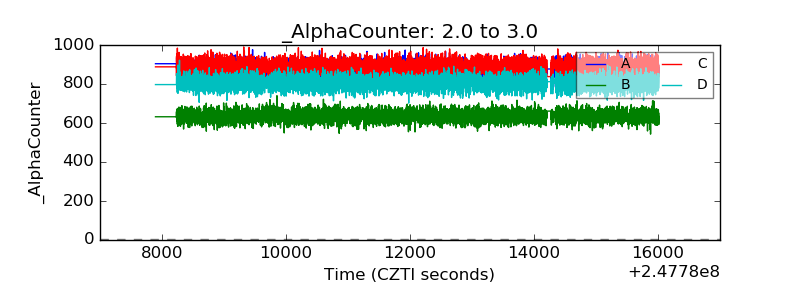

| Alpha Counter |  |

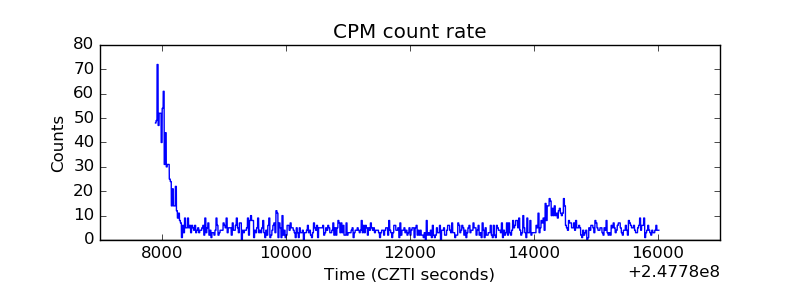

| _CPM_Rate |  |
| CZT Counter |  |

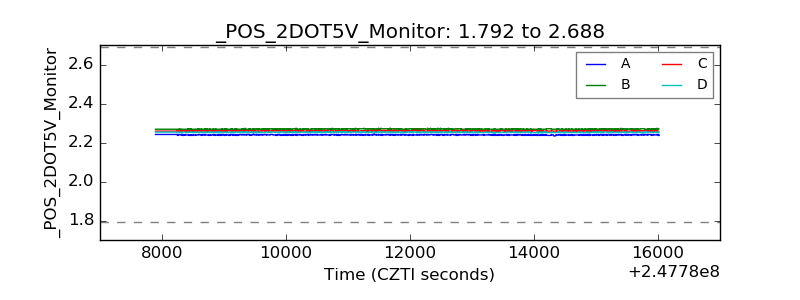

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

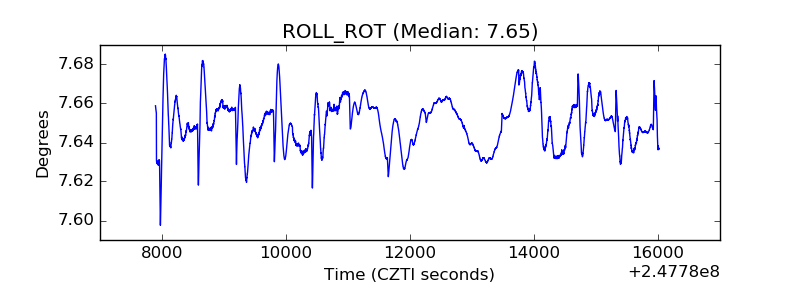

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
