| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_021T02_9000001676_11446cztM0_level2.evt | modeM0/AS1A04_021T02_9000001676_11446cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,490,880 | 83,206,080 |
| Size | 513.5 MB | 79.4 MB |
| Events in quadrant A | 3,711,498 | 511,266 |
| Events in quadrant B | 4,538,462 | 505,124 |
| Events in quadrant C | 3,133,420 | 545,070 |
| Events in quadrant D | 4,477,336 | 497,957 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15078 | 3 |
| B | 0 | 17766 | 2 |
| C | 0 | 13613 | 2 |
| D | 0 | 17629 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6598 | 170 | 2.576538% |
| B | 6598 | 361 | 5.471355% |
| C | 6598 | 66 | 1.000303% |
| D | 6598 | 299 | 4.531676% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7689 | 6600 | 40 | 40 | 0.52% | 0.61% |  |
| B | 7689 | 6599 | 150 | 150 | 1.95% | 2.27% |  |
| C | 7689 | 6600 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7689 | 6600 | 297 | 297 | 3.86% | 4.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 201414 | 1198.19 | 823 | 803 | 167.4 |
| A | 1 | 162 | 119803 | 710.75 | 823 | 803 | 167.4 |
| A | 1 | 178 | 77805 | 459.91 | 823 | 803 | 167.4 |
| B | 4 | 239 | 1147276 | 7414.42 | 808 | 788 | 154.6 |
| B | 3 | 189 | 102326 | 656.65 | 808 | 788 | 154.6 |
| B | 15 | 204 | 55563 | 354.23 | 808 | 788 | 154.6 |
| C | 14 | 234 | 8692 | 42.54 | 801 | 807 | 185.4 |
| C | 13 | 61 | 5852 | 27.22 | 801 | 807 | 185.4 |
| C | 3 | 202 | 1983 | 6.34 | 801 | 807 | 185.4 |
| D | 1 | 52 | 1049394 | 5557.07 | 793 | 772 | 188.7 |
| D | 10 | 253 | 105187 | 553.34 | 793 | 772 | 188.7 |
| D | 13 | 249 | 93021 | 488.86 | 793 | 772 | 188.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

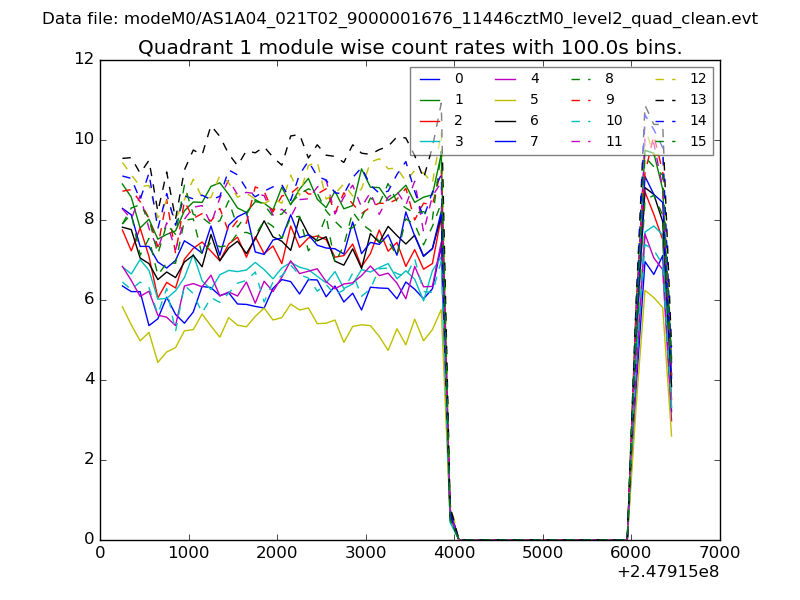

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

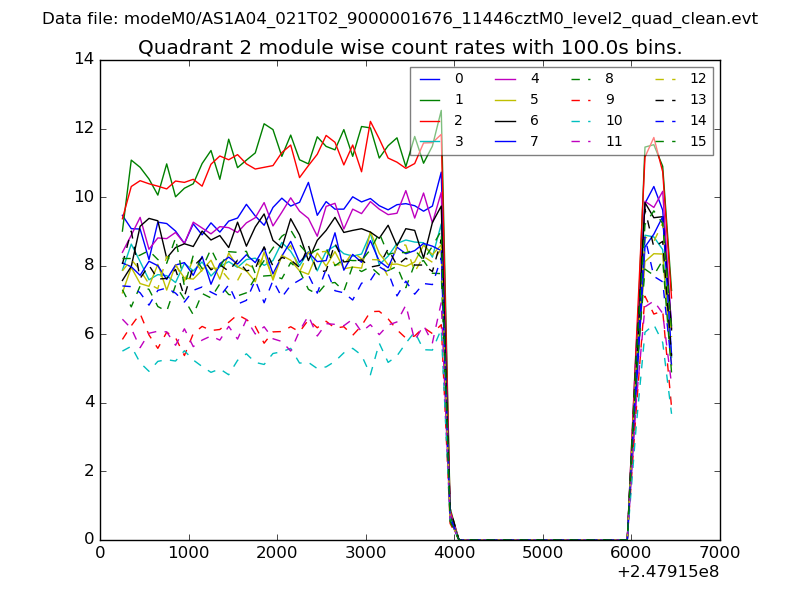

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

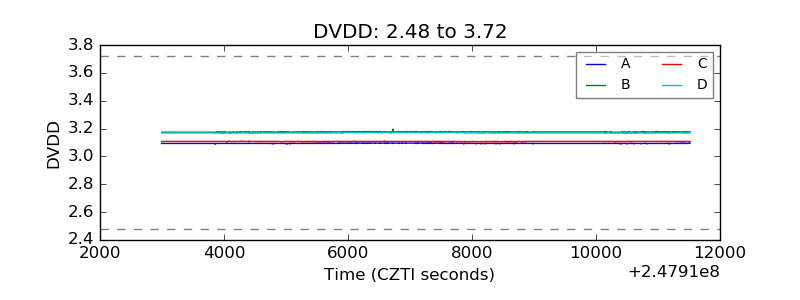

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

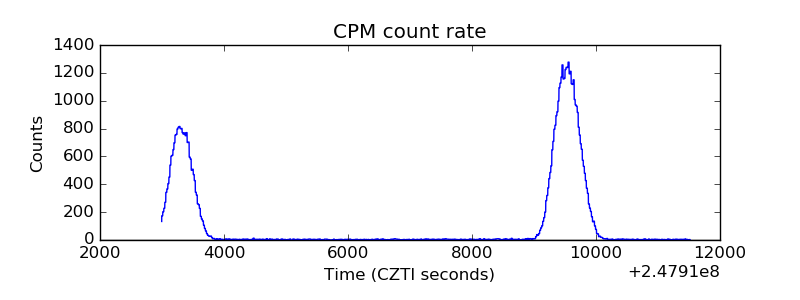

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

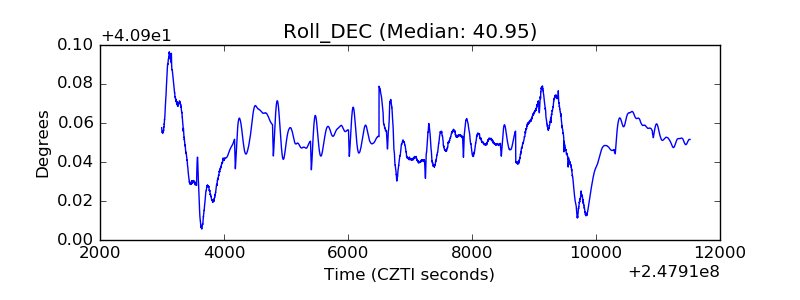

| _Roll_DEC |  |

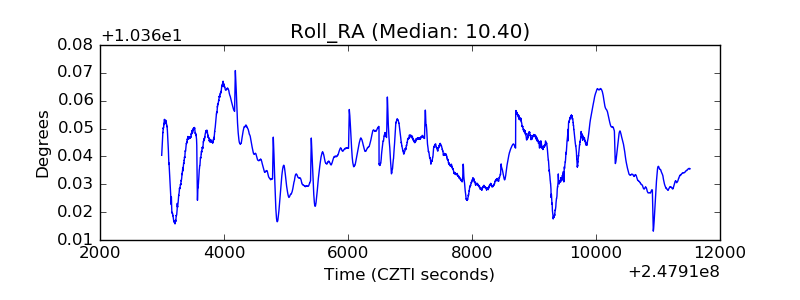

| _Roll_RA |  |

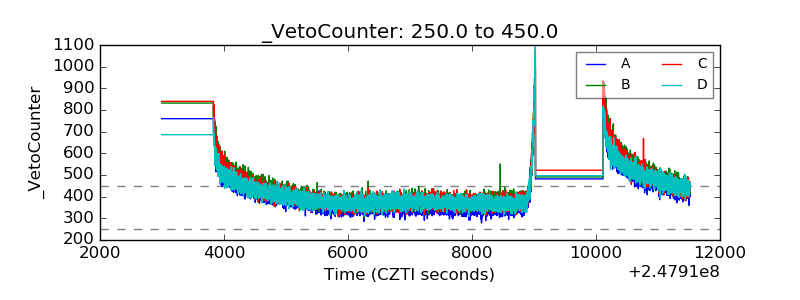

| Veto Counter |  |
