| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_021T02_9000001676_11449cztM0_level2.evt | modeM0/AS1A04_021T02_9000001676_11449cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,387,840 | 104,860,800 |
| Size | 486.7 MB | 100.0 MB |
| Events in quadrant A | 3,094,189 | 696,207 |
| Events in quadrant B | 4,563,333 | 674,375 |
| Events in quadrant C | 2,935,947 | 728,777 |
| Events in quadrant D | 4,457,768 | 658,328 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12916 | 3 |
| B | 0 | 17515 | 2 |
| C | 0 | 12415 | 2 |
| D | 0 | 17101 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5983 | 117 | 1.955541% |
| B | 5983 | 467 | 7.805449% |
| C | 5983 | 83 | 1.387264% |
| D | 5983 | 427 | 7.136888% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7264 | 5986 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7264 | 5986 | 229 | 229 | 3.15% | 3.83% |  |
| C | 7264 | 5986 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7264 | 5986 | 294 | 294 | 4.05% | 4.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 57121 | 369.21 | 762 | 748 | 152.7 |
| A | 1 | 178 | 32481 | 207.83 | 762 | 748 | 152.7 |
| A | 1 | 161 | 27242 | 173.52 | 762 | 748 | 152.7 |
| B | 4 | 239 | 1220727 | 8831.1 | 735 | 717 | 138.1 |
| B | 11 | 51 | 150416 | 1083.6 | 735 | 717 | 138.1 |
| B | 0 | 228 | 124348 | 894.91 | 735 | 717 | 138.1 |
| C | 13 | 61 | 5444 | 27.03 | 752 | 759 | 173.4 |
| C | 14 | 234 | 2860 | 12.12 | 752 | 759 | 173.4 |
| C | 3 | 202 | 1858 | 6.34 | 752 | 759 | 173.4 |
| D | 1 | 52 | 806036 | 4659.37 | 731 | 713 | 172.8 |
| D | 13 | 104 | 458656 | 2649.53 | 731 | 713 | 172.8 |
| D | 8 | 195 | 114864 | 660.44 | 731 | 713 | 172.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

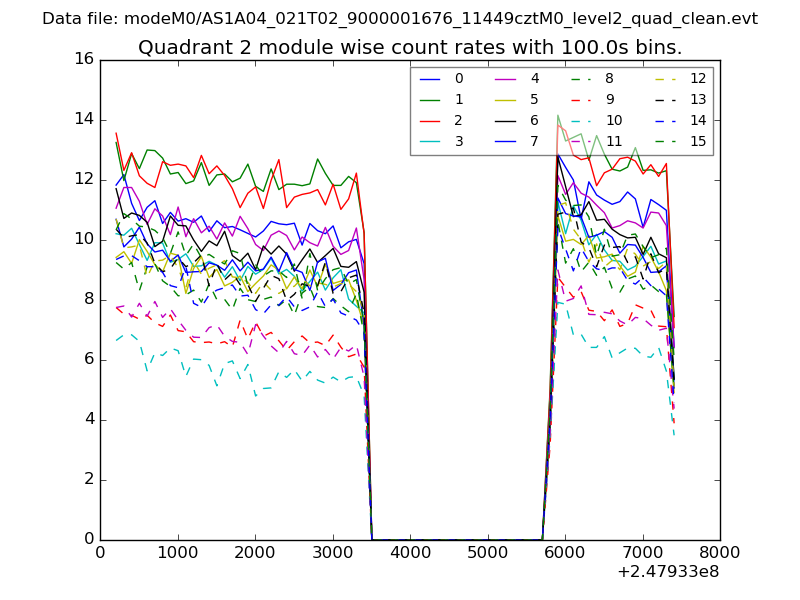

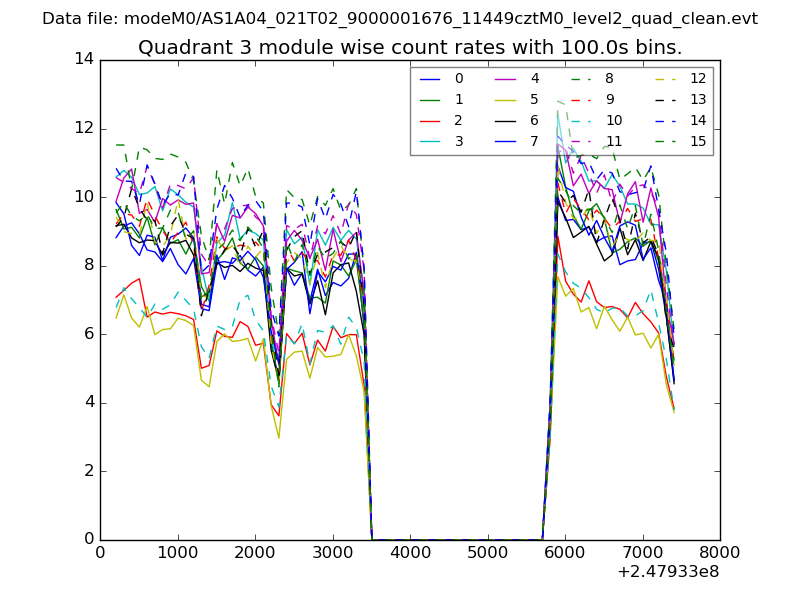

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

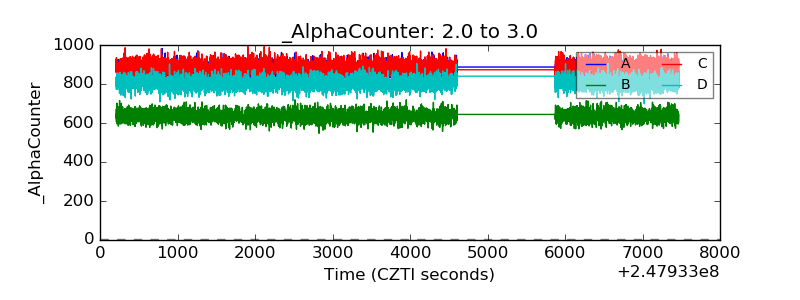

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

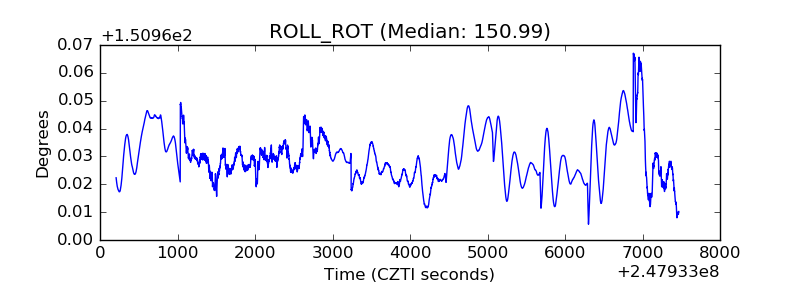

| _ROLL_ROT |  |

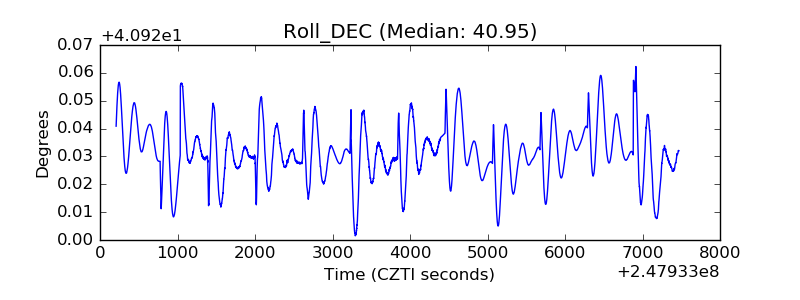

| _Roll_DEC |  |

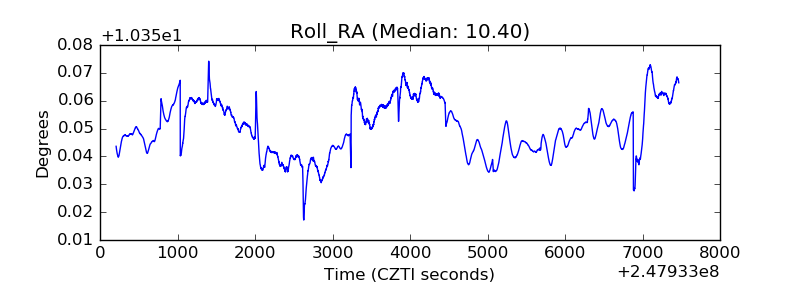

| _Roll_RA |  |
