| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_021T03_9000001678_11453cztM0_level2.evt | modeM0/AS1A04_021T03_9000001678_11453cztM0_level2_quad_clean.evt |
| Size (bytes) | 710,668,800 | 112,691,520 |
| Size | 677.7 MB | 107.5 MB |
| Events in quadrant A | 3,839,087 | 720,043 |
| Events in quadrant B | 5,795,210 | 699,353 |
| Events in quadrant C | 3,708,853 | 773,372 |
| Events in quadrant D | 7,645,038 | 670,830 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16879 | 3 |
| B | 0 | 22501 | 2 |
| C | 0 | 16549 | 2 |
| D | 0 | 28163 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7892 | 91 | 1.153066% |
| B | 7892 | 669 | 8.476939% |
| C | 7892 | 44 | 0.557527% |
| D | 7892 | 1426 | 18.068931% |

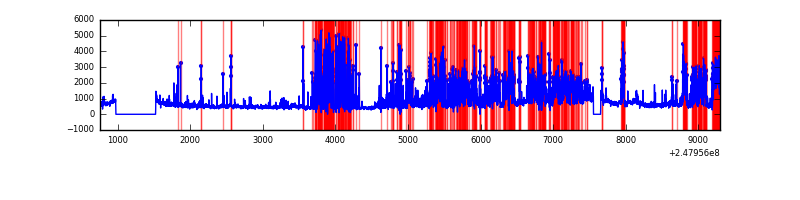

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8543 | 7895 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8543 | 7895 | 266 | 266 | 3.11% | 3.37% |  |
| C | 8543 | 7895 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8543 | 7895 | 841 | 841 | 9.84% | 10.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 36614 | 183.24 | 949 | 926 | 194.8 |
| A | 9 | 143 | 36381 | 182.04 | 949 | 926 | 194.8 |
| A | 8 | 5 | 24282 | 119.92 | 949 | 926 | 194.8 |
| B | 4 | 239 | 1601526 | 8987.35 | 931 | 906 | 178.1 |
| B | 11 | 51 | 273978 | 1533.28 | 931 | 906 | 178.1 |
| B | 15 | 85 | 105543 | 587.53 | 931 | 906 | 178.1 |
| C | 13 | 61 | 6911 | 26.68 | 949 | 955 | 223.2 |
| C | 8 | 128 | 3287 | 10.45 | 949 | 955 | 223.2 |
| C | 14 | 234 | 3250 | 10.28 | 949 | 955 | 223.2 |
| D | 1 | 52 | 2391905 | 11411.52 | 866 | 840 | 209.5 |
| D | 10 | 253 | 1053775 | 5025.2 | 866 | 840 | 209.5 |
| D | 8 | 195 | 355166 | 1691.04 | 866 | 840 | 209.5 |

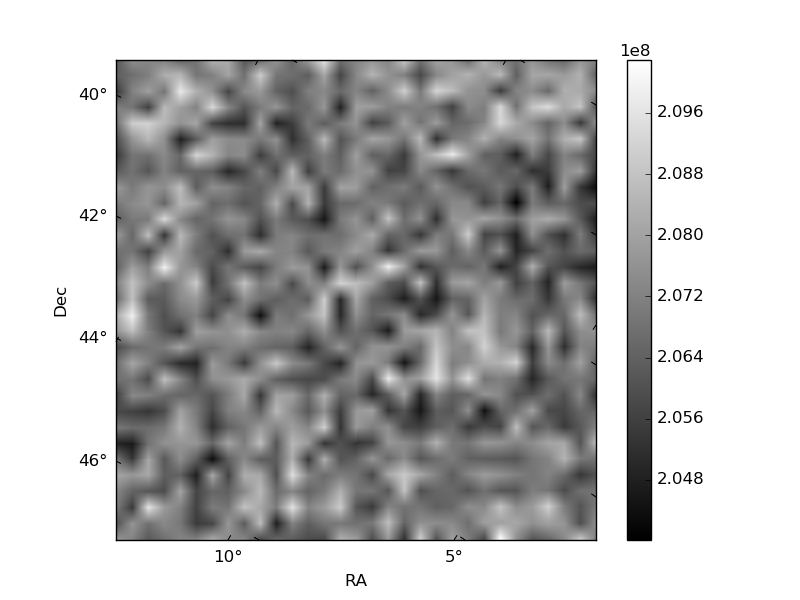

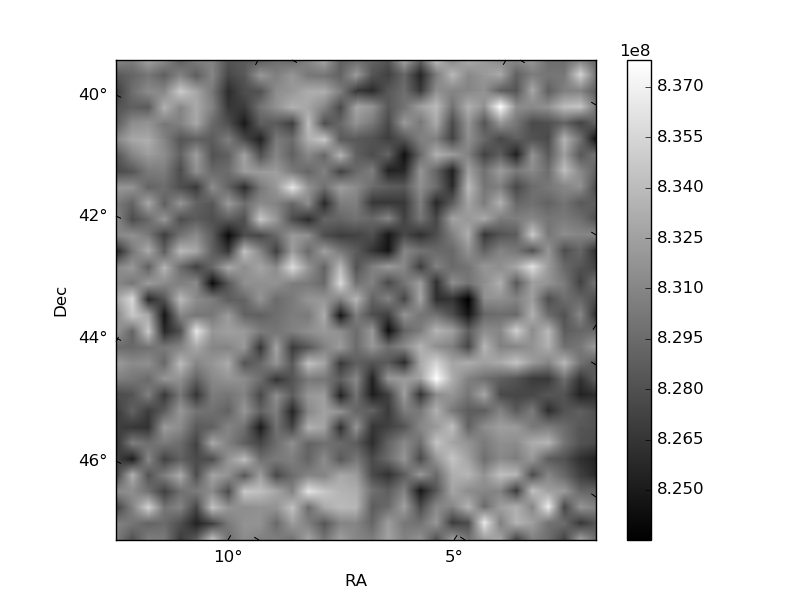

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

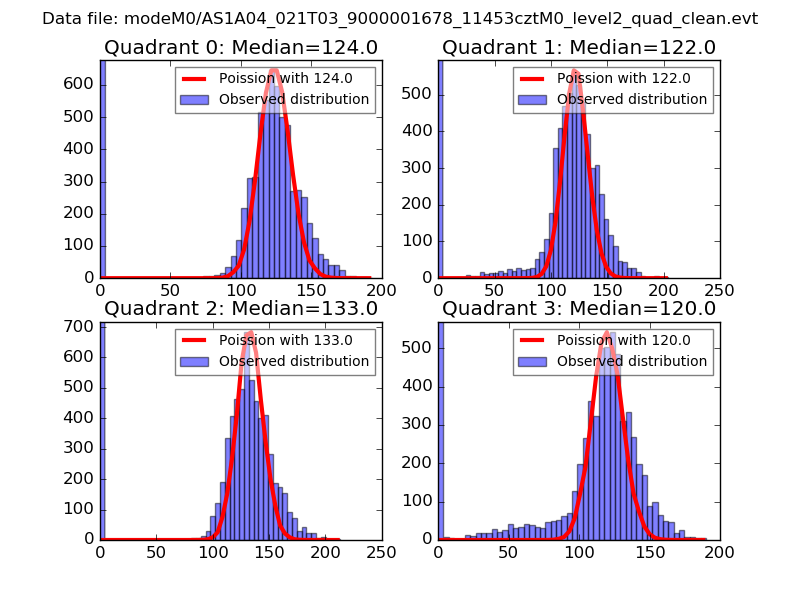

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

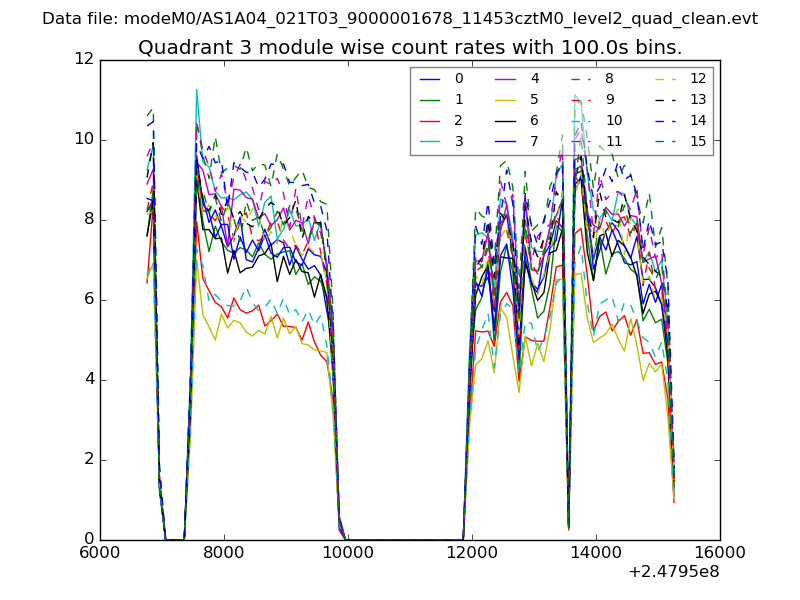

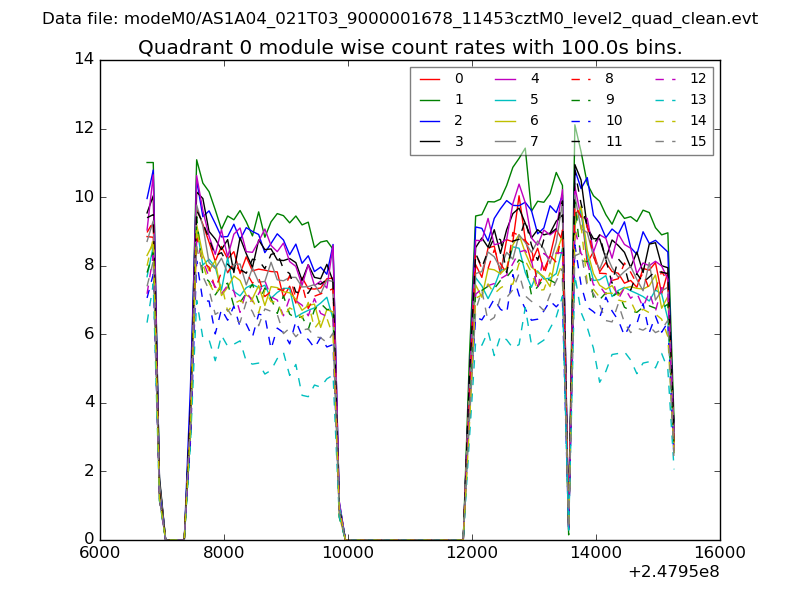

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

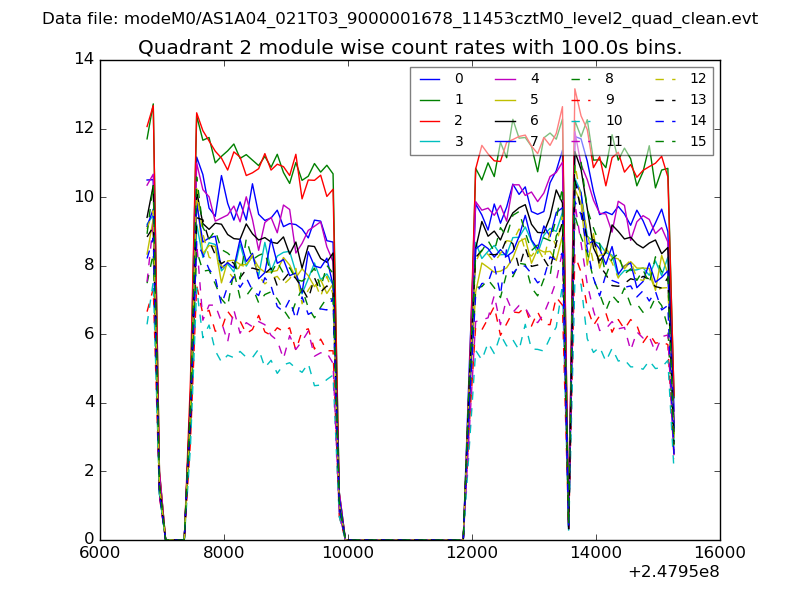

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

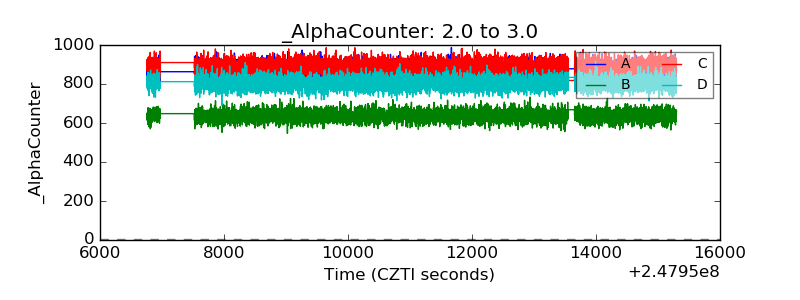

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
