| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_021T03_9000001678_11457cztM0_level2.evt | modeM0/AS1A04_021T03_9000001678_11457cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,102,985,280 | 167,716,800 |
| Size | 1.0 GB | 159.9 MB |
| Events in quadrant A | 6,793,890 | 1,018,380 |
| Events in quadrant B | 9,801,487 | 995,050 |
| Events in quadrant C | 6,373,018 | 1,097,989 |
| Events in quadrant D | 9,476,980 | 988,160 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29686 | 4 |
| B | 0 | 38706 | 3 |
| C | 0 | 28961 | 3 |
| D | 0 | 37941 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 288 | 0 |
| B | 0 | 288 | 0 |
| C | 0 | 288 | 0 |
| D | 0 | 288 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14191 | 110 | 0.775139% |
| B | 14191 | 806 | 5.679656% |
| C | 14191 | 38 | 0.267775% |
| D | 14191 | 668 | 4.707209% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15392 | 14195 | 18 | 18 | 0.12% | 0.13% |  |
| B | 15392 | 14195 | 359 | 359 | 2.33% | 2.53% |  |
| C | 15392 | 14195 | 0 | 0 | 0.00% | 0.00% |  |
| D | 15392 | 14195 | 479 | 479 | 3.11% | 3.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 100231 | 297.06 | 1637 | 1601 | 332.0 |
| A | 1 | 162 | 93552 | 276.95 | 1637 | 1601 | 332.0 |
| A | 8 | 5 | 77745 | 229.34 | 1637 | 1601 | 332.0 |
| B | 4 | 239 | 2560307 | 8363.35 | 1616 | 1576 | 305.9 |
| B | 15 | 204 | 341224 | 1110.16 | 1616 | 1576 | 305.9 |
| B | 11 | 51 | 197676 | 640.96 | 1616 | 1576 | 305.9 |
| C | 13 | 61 | 11952 | 27.07 | 1633 | 1642 | 380.9 |
| C | 14 | 234 | 5309 | 9.63 | 1633 | 1642 | 380.9 |
| C | 9 | 54 | 4064 | 6.36 | 1633 | 1642 | 380.9 |
| D | 1 | 52 | 1587222 | 4190.35 | 1572 | 1531 | 378.4 |
| D | 10 | 253 | 940070 | 2480.18 | 1572 | 1531 | 378.4 |
| D | 8 | 195 | 455383 | 1199.35 | 1572 | 1531 | 378.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

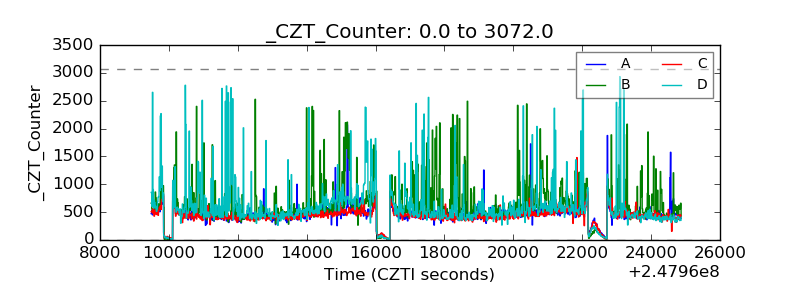

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

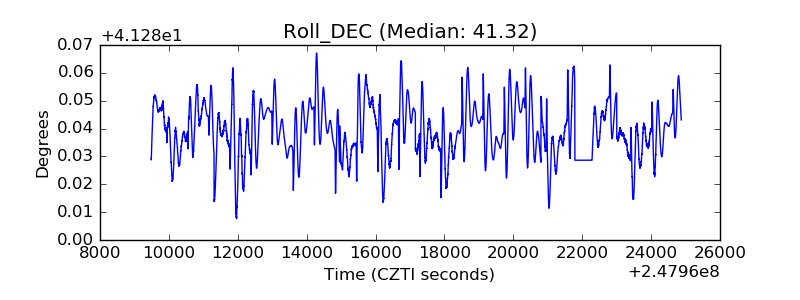

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
