| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_021T03_9000001678_11458cztM0_level2.evt | modeM0/AS1A04_021T03_9000001678_11458cztM0_level2_quad_clean.evt |
| Size (bytes) | 773,432,640 | 123,468,480 |
| Size | 737.6 MB | 117.7 MB |
| Events in quadrant A | 5,170,313 | 746,156 |
| Events in quadrant B | 7,206,752 | 735,197 |
| Events in quadrant C | 4,663,567 | 802,955 |
| Events in quadrant D | 5,687,373 | 742,894 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21759 | 3 |
| B | 0 | 28138 | 2 |
| C | 0 | 20867 | 2 |
| D | 0 | 23878 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 208 | 0 |
| B | 0 | 208 | 0 |
| C | 0 | 208 | 0 |
| D | 0 | 208 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10279 | 103 | 1.002043% |
| B | 10279 | 618 | 6.012258% |
| C | 10279 | 58 | 0.564257% |
| D | 10279 | 185 | 1.799786% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11940 | 10282 | 7 | 7 | 0.06% | 0.07% |  |
| B | 11940 | 10282 | 293 | 293 | 2.45% | 2.85% |  |
| C | 11940 | 10282 | 0 | 0 | 0.00% | 0.00% |  |
| D | 11940 | 10282 | 82 | 82 | 0.69% | 0.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 218499 | 882.56 | 1215 | 1188 | 246.2 |
| A | 1 | 162 | 78939 | 315.77 | 1215 | 1188 | 246.2 |
| A | 1 | 178 | 47458 | 187.92 | 1215 | 1188 | 246.2 |
| B | 4 | 239 | 1937067 | 8417.39 | 1192 | 1162 | 230.0 |
| B | 15 | 204 | 325156 | 1408.74 | 1192 | 1162 | 230.0 |
| B | 11 | 51 | 141551 | 610.41 | 1192 | 1162 | 230.0 |
| C | 13 | 61 | 8692 | 26.94 | 1194 | 1204 | 278.0 |
| C | 14 | 234 | 8503 | 26.26 | 1194 | 1204 | 278.0 |
| C | 3 | 202 | 2894 | 6.08 | 1194 | 1204 | 278.0 |
| D | 8 | 195 | 380655 | 1337.63 | 1181 | 1148 | 283.7 |
| D | 1 | 52 | 378495 | 1330.01 | 1181 | 1148 | 283.7 |
| D | 10 | 253 | 147825 | 516.98 | 1181 | 1148 | 283.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

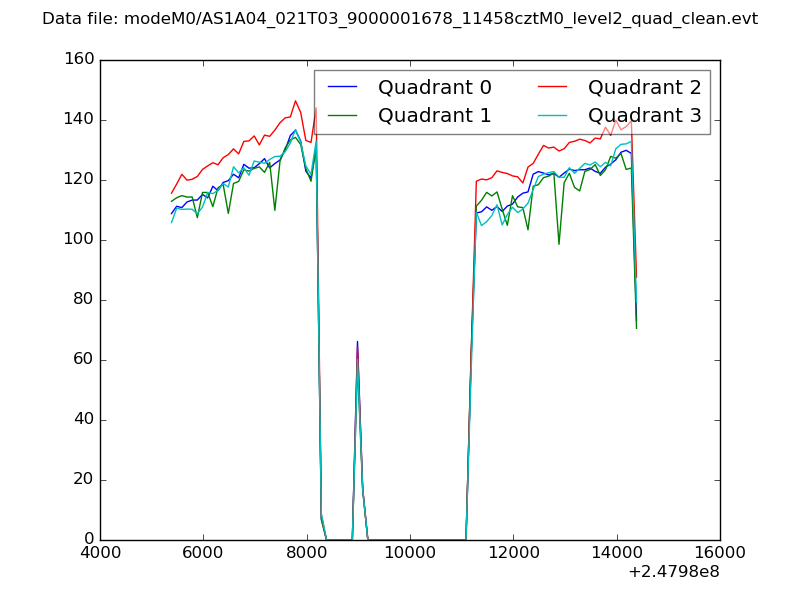

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

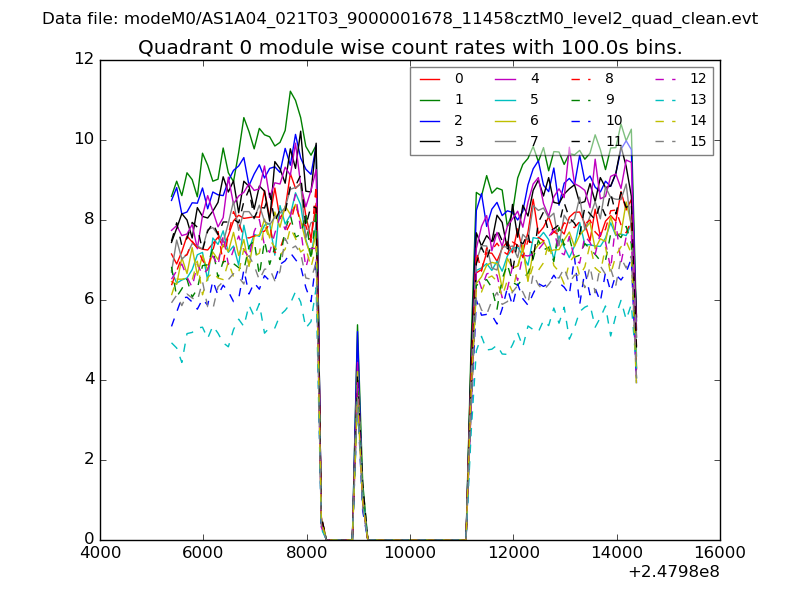

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

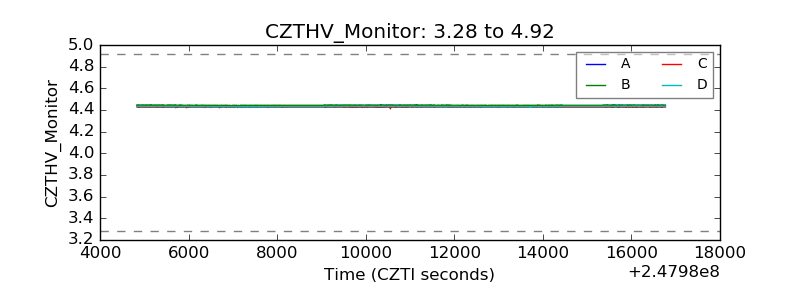

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

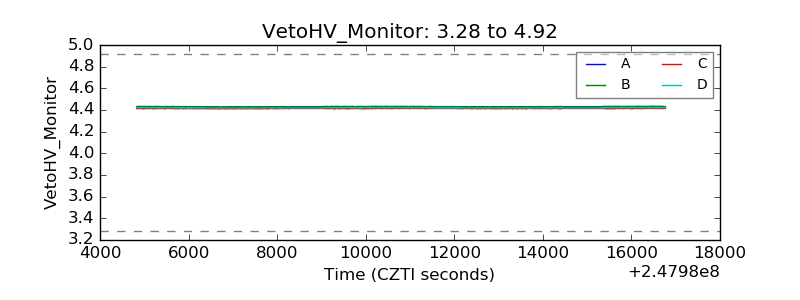

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

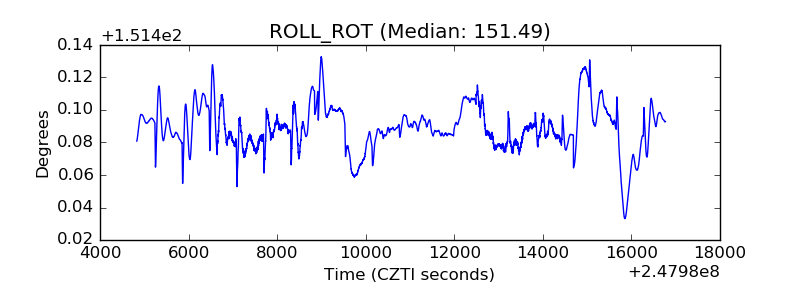

| _ROLL_ROT |  |

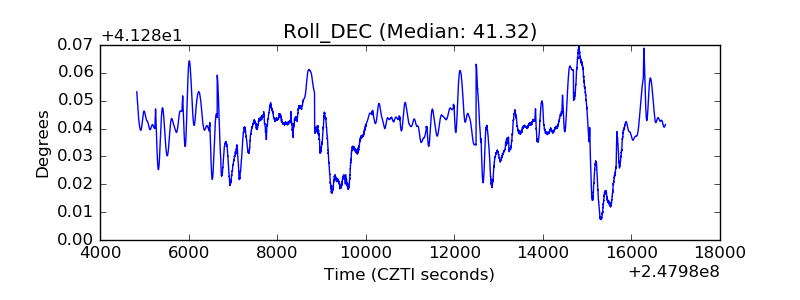

| _Roll_DEC |  |
| _Roll_RA |  |

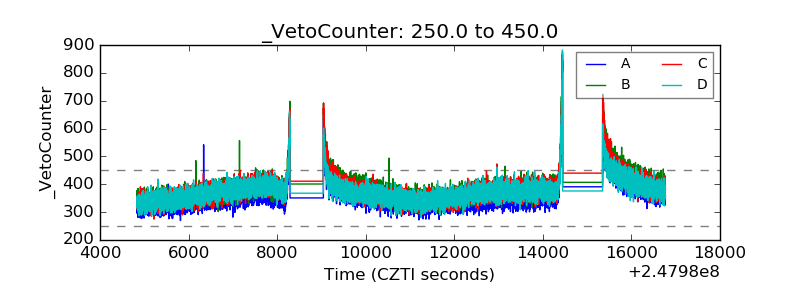

| Veto Counter |  |
