| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_021T04_9000001682_11477cztM0_level2.evt | modeM0/AS1A04_021T04_9000001682_11477cztM0_level2_quad_clean.evt |
| Size (bytes) | 754,513,920 | 100,892,160 |
| Size | 719.6 MB | 96.2 MB |
| Events in quadrant A | 8,322,004 | 595,654 |
| Events in quadrant B | 6,359,450 | 641,021 |
| Events in quadrant C | 3,286,593 | 706,875 |
| Events in quadrant D | 4,443,697 | 657,924 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29239 | 3 |
| B | 0 | 23270 | 2 |
| C | 0 | 13727 | 2 |
| D | 0 | 17393 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6494 | 1874 | 28.857407% |
| B | 6494 | 1252 | 19.279335% |
| C | 6494 | 71 | 1.093317% |
| D | 6494 | 279 | 4.296273% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

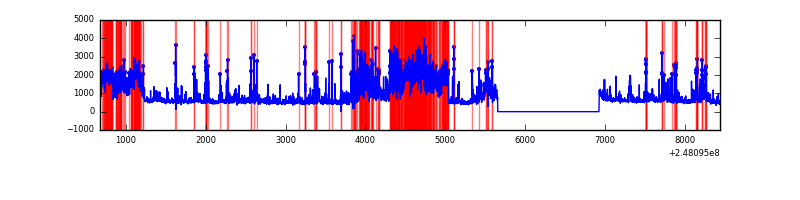

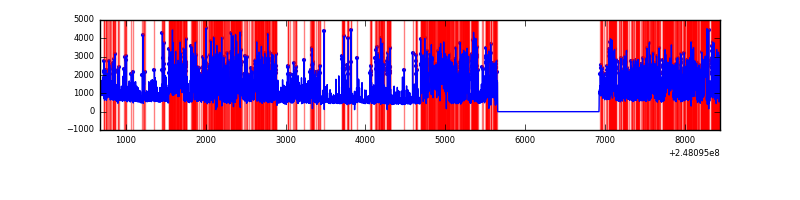

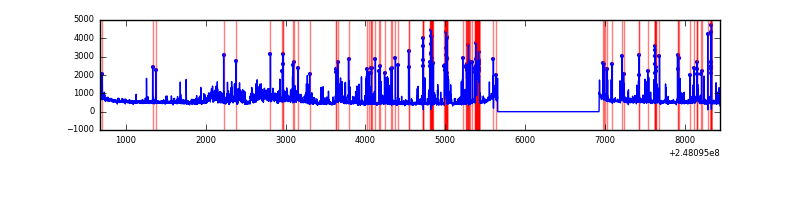

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7765 | 6496 | 1275 | 1275 | 16.42% | 19.63% |  |
| B | 7765 | 6496 | 624 | 624 | 8.04% | 9.61% |  |
| C | 7765 | 6496 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7765 | 6496 | 157 | 157 | 2.02% | 2.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 5159250 | 33112.71 | 775 | 759 | 155.8 |
| A | 15 | 174 | 42340 | 266.91 | 775 | 759 | 155.8 |
| A | 1 | 162 | 36676 | 230.55 | 775 | 759 | 155.8 |
| B | 4 | 81 | 2175588 | 14520.71 | 796 | 778 | 149.8 |
| B | 4 | 239 | 667438 | 4451.14 | 796 | 778 | 149.8 |
| B | 3 | 64 | 213994 | 1423.59 | 796 | 778 | 149.8 |
| C | 14 | 234 | 25648 | 129.37 | 833 | 840 | 191.8 |
| C | 3 | 9 | 15566 | 76.79 | 833 | 840 | 191.8 |
| C | 13 | 61 | 6118 | 27.52 | 833 | 840 | 191.8 |
| D | 1 | 52 | 574564 | 2952.63 | 826 | 806 | 194.3 |
| D | 5 | 222 | 282476 | 1449.51 | 826 | 806 | 194.3 |
| D | 2 | 120 | 157493 | 806.33 | 826 | 806 | 194.3 |

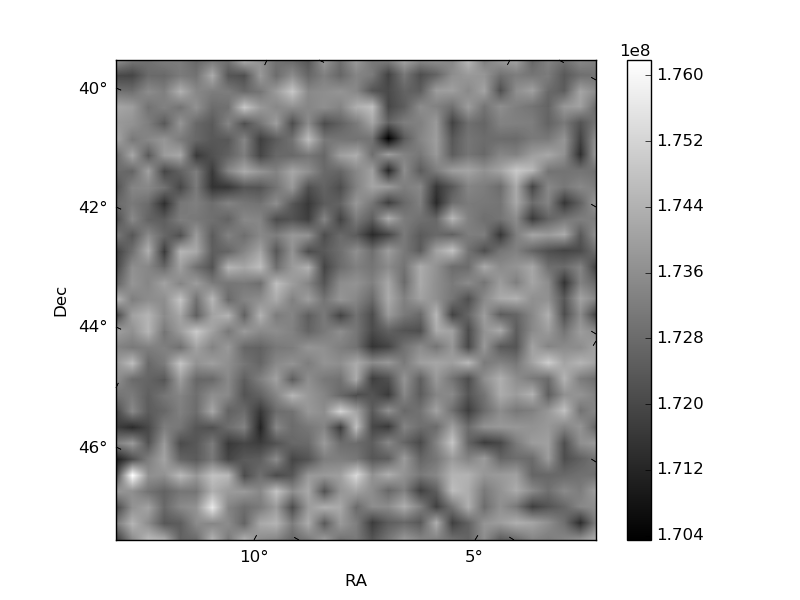

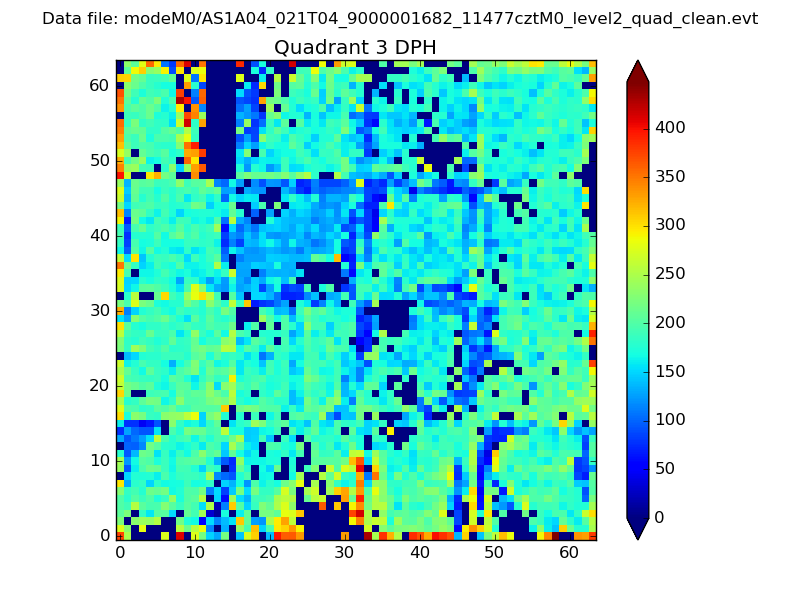

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

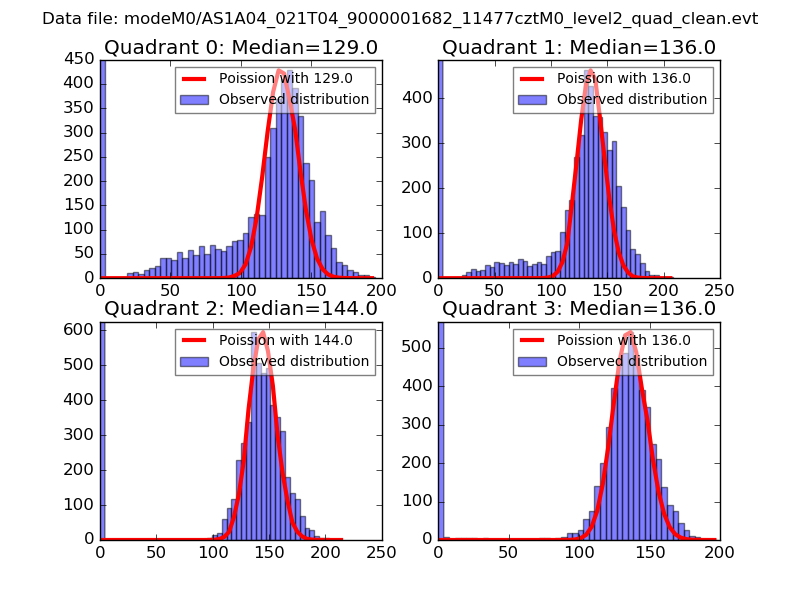

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

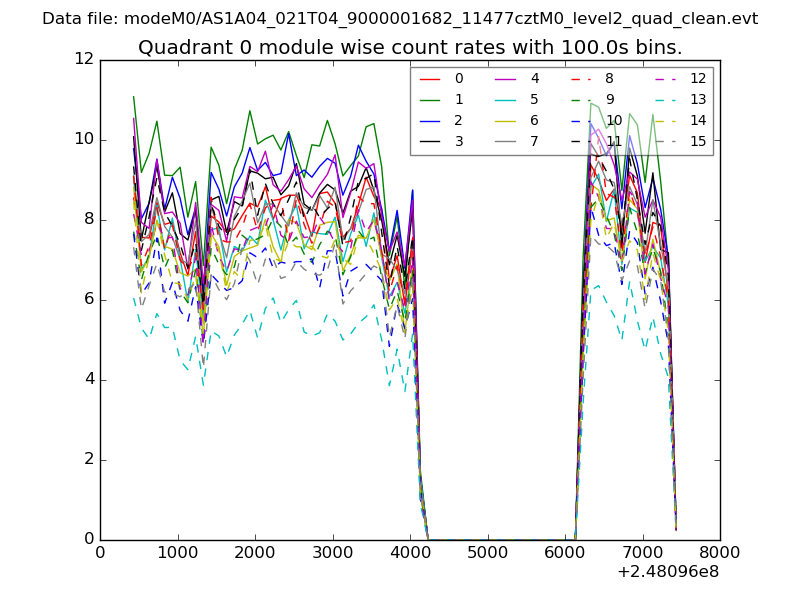

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

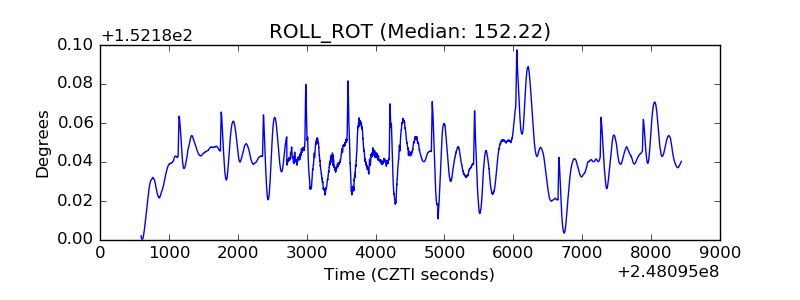

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
