| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_107T01_9000001684_11482cztM0_level2.evt | modeM0/AS1A04_107T01_9000001684_11482cztM0_level2_quad_clean.evt |
| Size (bytes) | 769,034,880 | 93,432,960 |
| Size | 733.4 MB | 89.1 MB |
| Events in quadrant A | 8,933,672 | 551,052 |
| Events in quadrant B | 5,627,499 | 573,886 |
| Events in quadrant C | 3,270,537 | 612,256 |
| Events in quadrant D | 4,966,724 | 584,263 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31619 | 2 |
| B | 0 | 21671 | 1 |
| C | 0 | 14904 | 1 |
| D | 0 | 19802 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7285 | 1412 | 19.382292% |
| B | 7285 | 702 | 9.636239% |
| C | 7285 | 22 | 0.301990% |
| D | 7285 | 265 | 3.637612% |

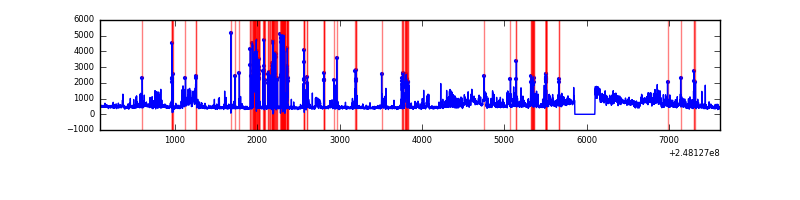

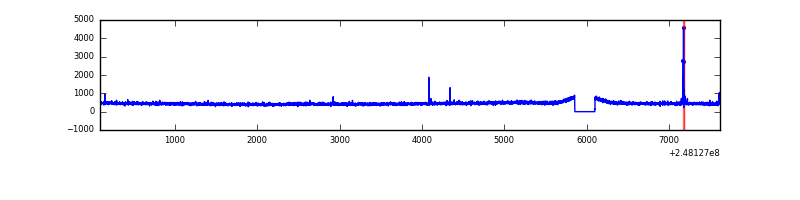

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7531 | 7287 | 988 | 988 | 13.12% | 13.56% |  |
| B | 7531 | 7287 | 366 | 366 | 4.86% | 5.02% |  |
| C | 7531 | 7287 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7531 | 7287 | 182 | 182 | 2.42% | 2.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 5610126 | 34995.52 | 789 | 770 | 160.3 |
| A | 9 | 143 | 77852 | 480.89 | 789 | 770 | 160.3 |
| A | 1 | 162 | 71833 | 443.34 | 789 | 770 | 160.3 |
| B | 4 | 239 | 1228449 | 7896.84 | 814 | 797 | 155.5 |
| B | 3 | 64 | 631374 | 4056.17 | 814 | 797 | 155.5 |
| B | 15 | 204 | 209141 | 1340.17 | 814 | 797 | 155.5 |
| C | 14 | 234 | 26626 | 133.76 | 828 | 832 | 192.8 |
| C | 3 | 9 | 10310 | 49.15 | 828 | 832 | 192.8 |
| C | 13 | 61 | 6075 | 27.19 | 828 | 832 | 192.8 |
| D | 1 | 52 | 736659 | 3744.94 | 815 | 793 | 196.5 |
| D | 10 | 253 | 414214 | 2103.97 | 815 | 793 | 196.5 |
| D | 2 | 120 | 144123 | 729.43 | 815 | 793 | 196.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

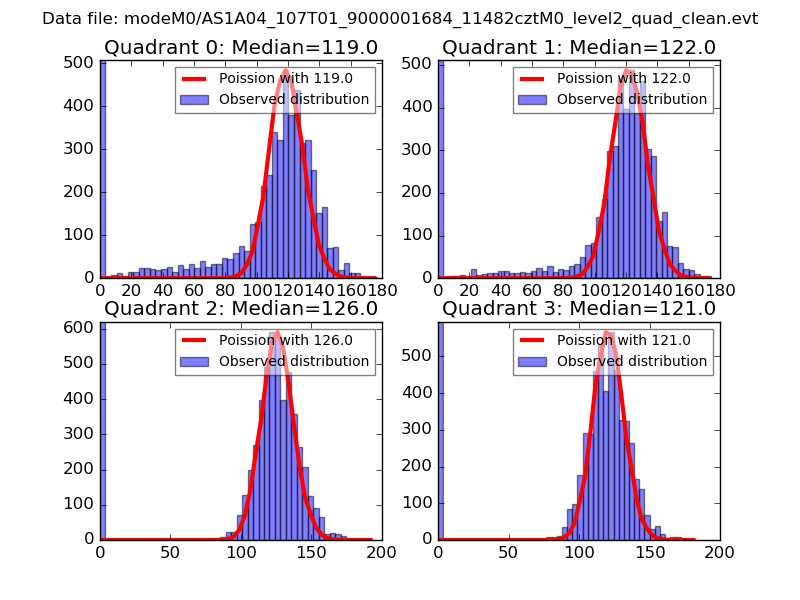

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

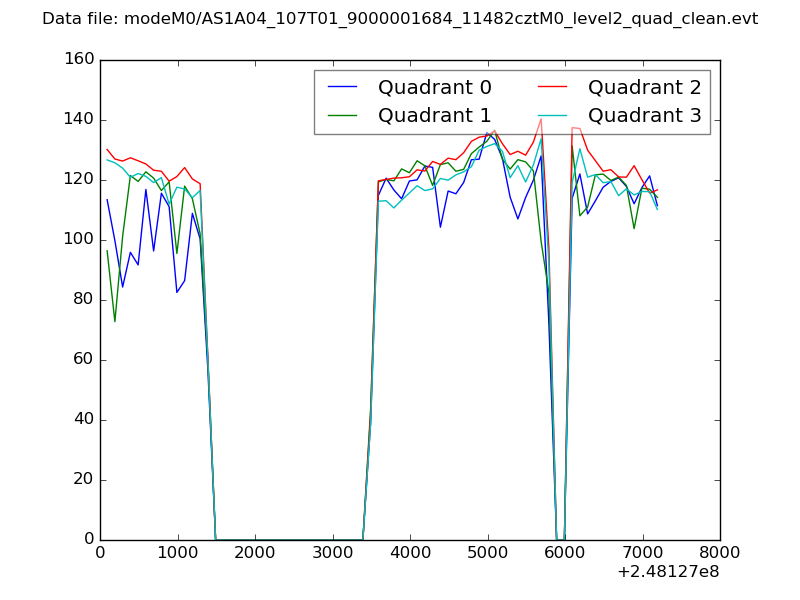

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

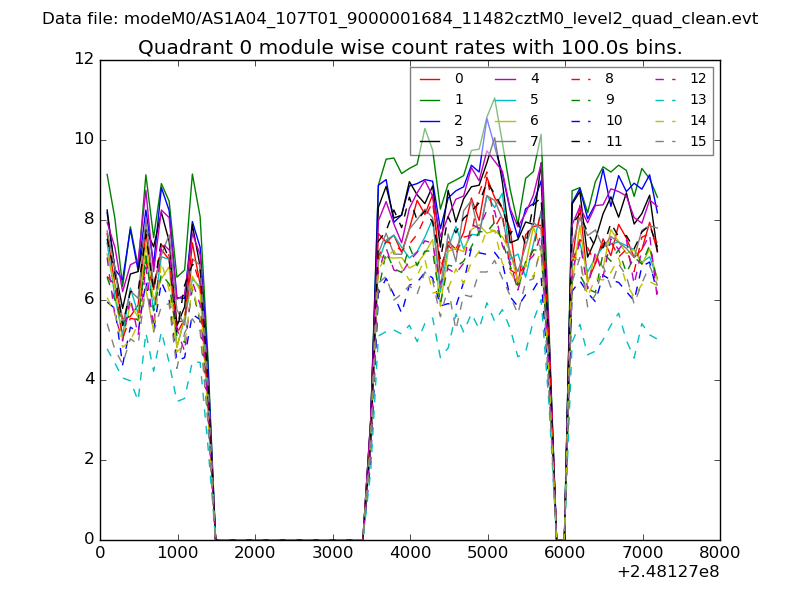

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

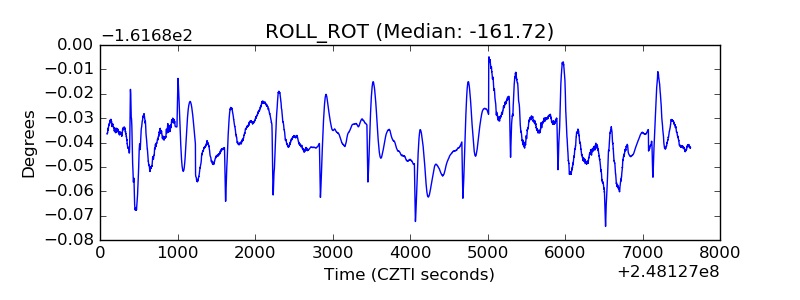

| _ROLL_ROT |  |
| _Roll_DEC |  |

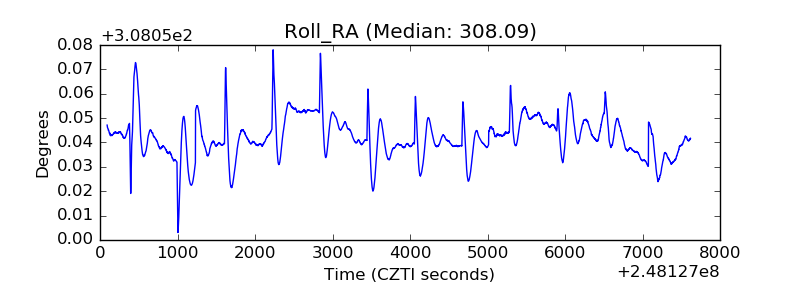

| _Roll_RA |  |

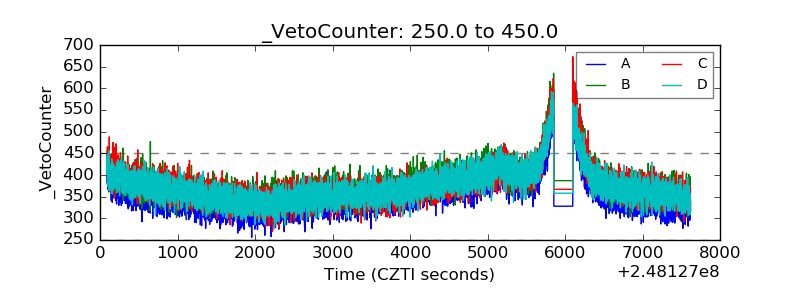

| Veto Counter |  |
